5-01 — FRAME AND OTHER PARTS (#65578) — 269 parça

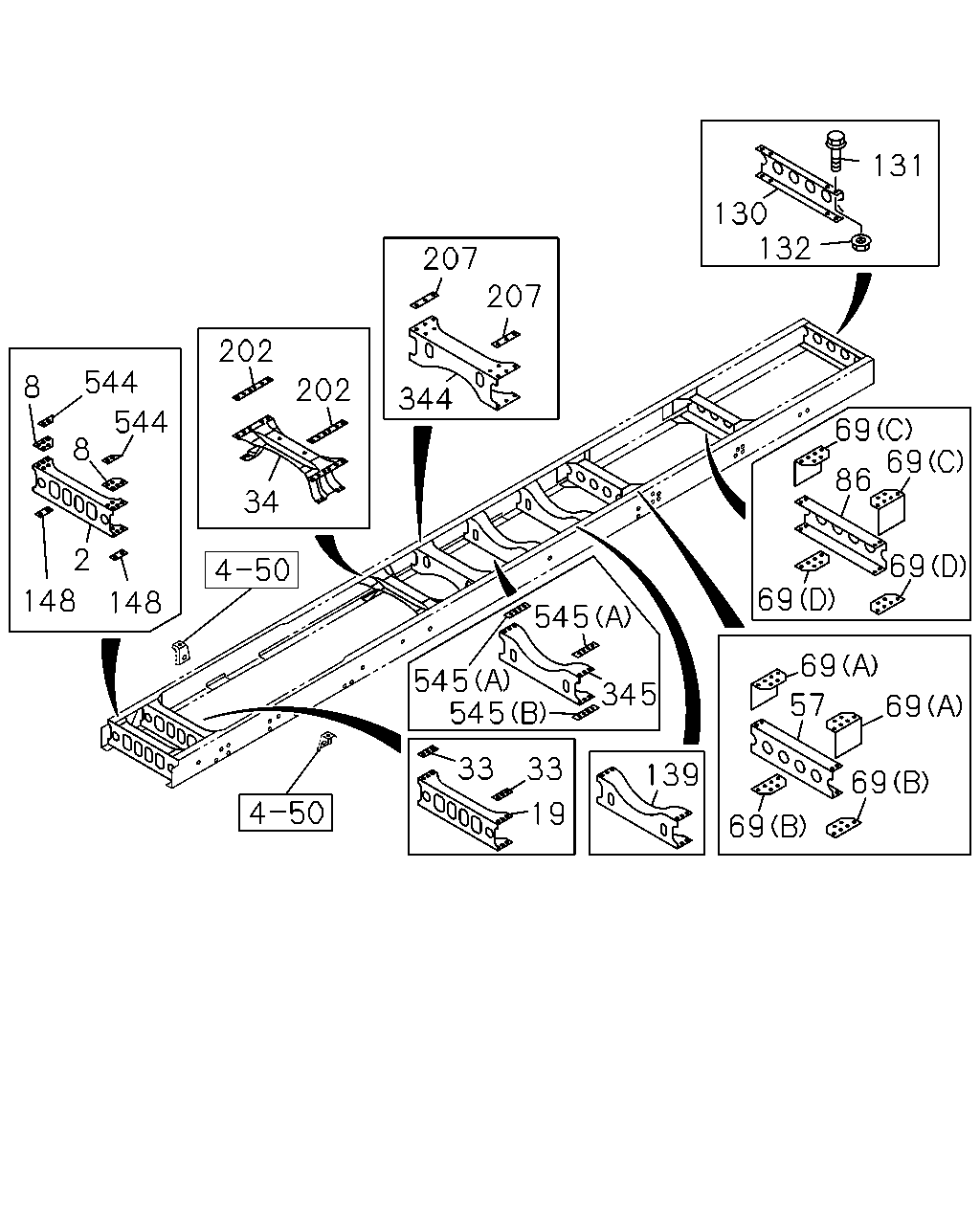

çizim 125356
69 69 69 57 69 139 19 33 33 345 545 545 545 69 69 69 69 86 131 132 130 207 344 207 202 34 202 544 8 8 544 2 148 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 MEMBER; CROSS,1ST 8-97610-852-2 01 1 0710-0711 ● ●
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0712-0808 ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 0809- ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0710-0711 ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0712-0808 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0809- ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-1 01 1 0710-0711 ● ●
19 MEMBER; CROSS,2ND 8-97610-853-3 01 1 0712-0808 ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-5 01 1 0809- ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0710-0711 ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0712-0808 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0809- ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-855-0 01 1 0710-0711 ● ●
34 MEMBER; CROSS,3RD 8-97610-855-0 01 1 0712-0808 ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-855-1 01 1 0809- ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0710-0711 ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0712-0808 ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0809- ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-3 01 1 0710-0711 ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0712-0808 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-0 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0809- ● ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-3 01 1 0710-0711 ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0712-0808 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0809- ● ● ● ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-0 01 1 0710-0711 ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0712-0808 ● ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0809- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0710-0711 ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0712-0808 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0809- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0710-0711 ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0712-0808 ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0809- ● ● ● ● ● ● ●
139 MEMBER; CROSS,6TH 8-97611-238-1 01 1 0710- ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0710-0711 ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0712-0808 ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0809- ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0710-0711 ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0712-0808 ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0809- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
MLD6W M/T(Y2C) 0.24KG 		8-97611-245-0 02 1 0806-0808 ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> 0.24KG 		8-97611-245-0 02 1 0809-0910 ● ●
207 SPACER; 4TH C/MBR
MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0809-0910 ● ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0911-0911 ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0911- ● ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0710-0711 ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0712-0805 ● ● ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0806-0808 ● ● ● ●
207 SPACER; 4TH C/MBR
MZX6P M/T(RSW) 0.25KG 		8-97611-244-0 02 1 0806-0808 ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0809-0906 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0809-0906 ● ● ●
207 SPACER; 4TH C/MBR
MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0809-0906 ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0907-0910 ● ● ●
207 SPACER; 4TH C/MBR
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0911-0911 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0911-0911 ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0911- ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0710-0711 ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0712-0808 ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0809- ● ● ● ● ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0710-0711 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0712-0805 ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0806- ● ● ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) 		8-97611-238-1 01 1 0806- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 0712-0808 ●
544 PLATE; CAB FRT MTG
EURO2 SPECIFICATION<NT2> 		8-97617-891-0 02 1 0809- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 0809- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0710-0711 ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0712-0808 ● ● ● ●
544 PLATE; CAB FRT MTG
EURO4 SPECIFICATION<NT4> 		8-97611-030-0 02 1 0809- ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0809- ● ● ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 0712- ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 0710-0711 ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 0712-0805 ● ● ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 0806- ● ● ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) (A) 0.24KG 		8-97611-245-0 02 1 0806- ●

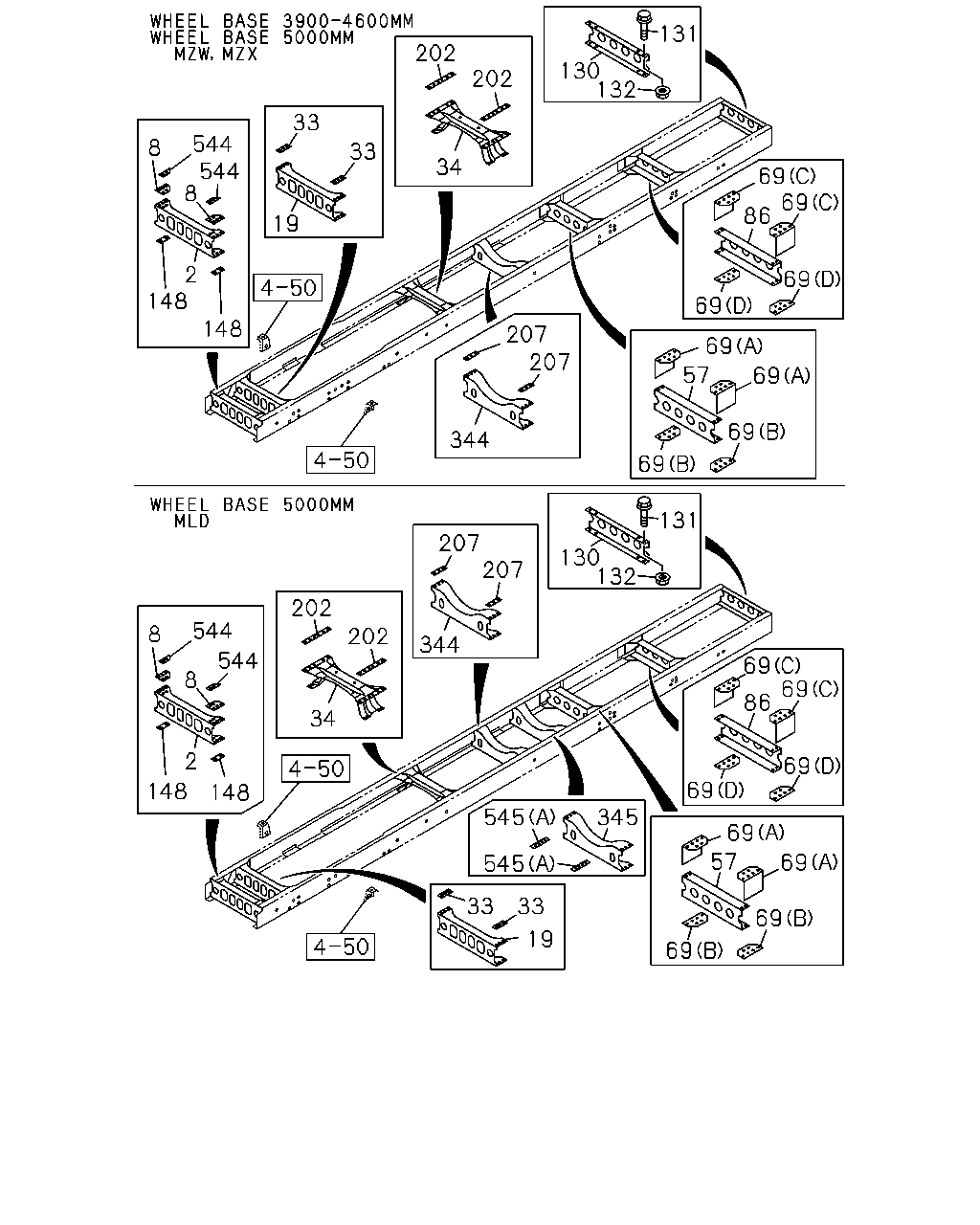

çizim 192362
69 69 69 69 57 345 545 545 33 19 33 148 148 544 544 8 8 2 34 202 202 344 207 207 69 69 69 69 86 132 130 131 344 207 207 69 69 69 69 57 69 69 69 69 86 132 130 131 202 202 34 33 33 19 544 544 8 8 2 148 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 MEMBER; CROSS,1ST 8-97610-852-2 01 1 0710-0711 ● ●
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0712-0808 ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 0809- ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0710-0711 ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0712-0808 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0809- ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-1 01 1 0710-0711 ● ●
19 MEMBER; CROSS,2ND 8-97610-853-3 01 1 0712-0808 ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-5 01 1 0809- ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0710-0711 ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0712-0808 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0809- ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-855-0 01 1 0710-0711 ● ●
34 MEMBER; CROSS,3RD 8-97610-855-0 01 1 0712-0808 ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-855-1 01 1 0809- ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0710-0711 ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0712-0808 ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0809- ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-3 01 1 0710-0711 ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0712-0808 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-0 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0809- ● ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0712-0808 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0809- ● ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-3 01 1 0710-0711 ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0712-0808 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0809- ● ● ● ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-0 01 1 0710-0711 ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0712-0808 ● ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0809- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0710-0711 ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0712-0808 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0809- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0710-0711 ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0712-0808 ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0809- ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0710-0711 ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0712-0808 ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0809- ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0710-0711 ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0712-0808 ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0809- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
MLD6W M/T(Y2C) 0.24KG 		8-97611-245-0 02 1 0806-0808 ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> 0.24KG 		8-97611-245-0 02 1 0809-0910 ● ●
207 SPACER; 4TH C/MBR
MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0809-0910 ● ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0911-0911 ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0911- ● ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0710-0711 ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0712-0805 ● ● ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0806-0808 ● ● ● ●
207 SPACER; 4TH C/MBR
MZX6P M/T(RSW) 0.25KG 		8-97611-244-0 02 1 0806-0808 ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0809-0906 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0809-0906 ● ● ●
207 SPACER; 4TH C/MBR
MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0809-0906 ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0907-0910 ● ● ●
207 SPACER; 4TH C/MBR
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 0.25KG 		8-97611-244-0 02 1 0911-0911 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0911-0911 ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0911- ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0710-0711 ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0712-0808 ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0809- ● ● ● ● ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0710-0711 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0712-0805 ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0806- ● ● ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) 		8-97611-238-1 01 1 0806- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 0712-0808 ●
544 PLATE; CAB FRT MTG
EURO2 SPECIFICATION<NT2> 		8-97617-891-0 02 1 0809- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 0809- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0710-0711 ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0712-0808 ● ● ● ●
544 PLATE; CAB FRT MTG
EURO4 SPECIFICATION<NT4> 		8-97611-030-0 02 1 0809- ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0809- ● ● ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 0712- ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 0710-0711 ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 0712-0805 ● ● ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 0806- ● ● ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) (A) 0.24KG 		8-97611-245-0 02 1 0806- ●

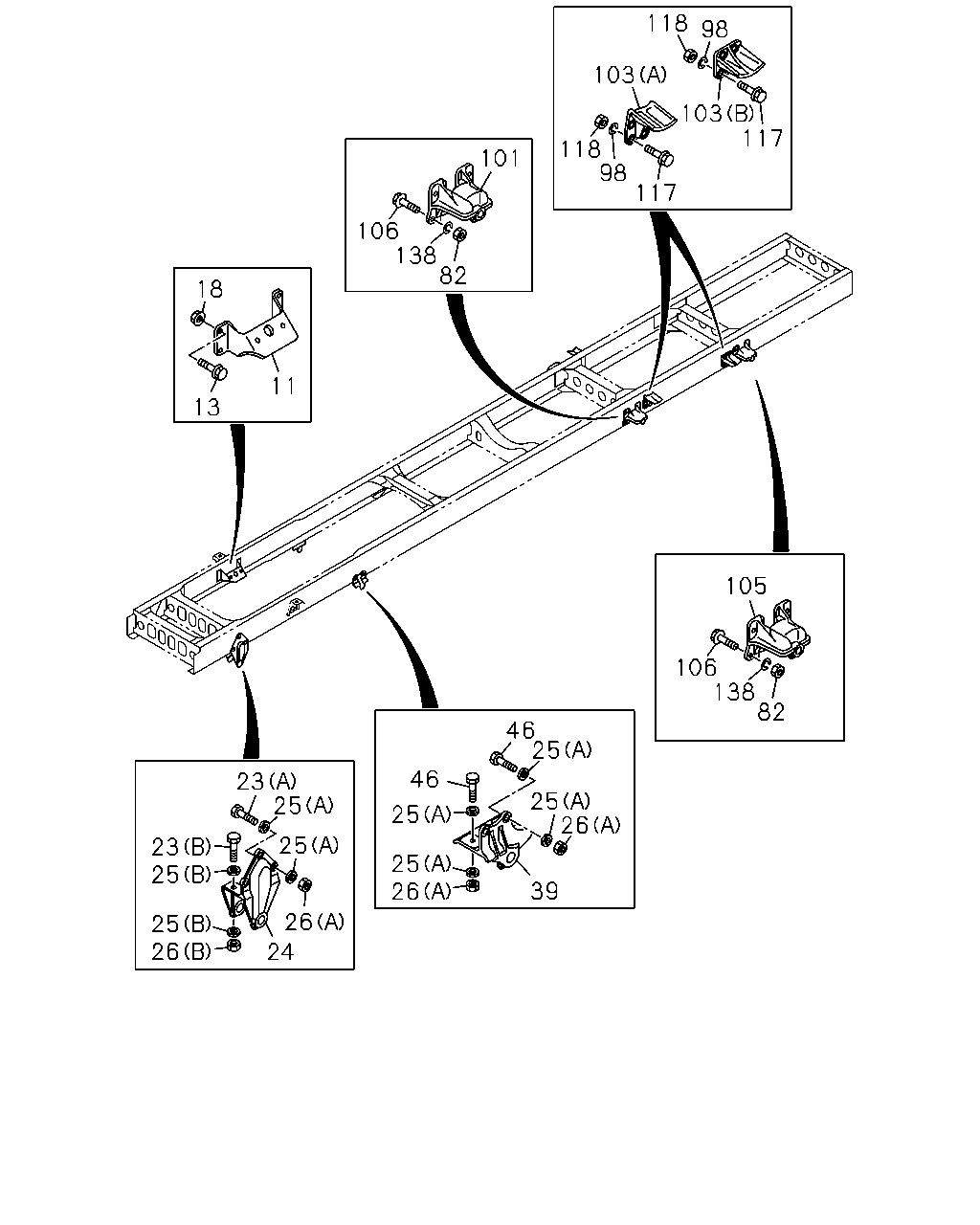

çizim 192393
118 98 103 103 117 118 98 101 117 106 138 82 18 11 13 105 106 138 82 46 25 46 23 25 25 25 26 25 23 25 25 26 39 26 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0710-0711 ● ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0712-0808 ● ● ● ● ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0809- ● ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0710-0711 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0808 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0808 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0710-0711 ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0712-0808 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0809- ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0710-0711 ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0712-0808 ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0809- ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0712-0808 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0809-1003 ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1004- ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0712-0808 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0809-1003 ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1004- ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0710-0711 ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0712-0808 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0809- ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0710-0711 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0712-0808 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 0809- ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0710-0711 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0712-0808 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0809- ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0710-0711 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0712-0808 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0809- ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0710-0711 ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0712-0808 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0809-1003 ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1004- ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0710-0711 ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0712-0808 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0809-1003 ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1004- ● ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0710-0711 ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0712-0808 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0809- ● ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0710-0711 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0712-0808 ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0809- ● ● ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0710-0711 ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0712-0808 ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0809- ● ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0710-0711 ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0712-0808 ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0809- ● ● ● ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0710-0711 ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0712-0808 ● ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0809- ● ● ● ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0710-0711 ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0712-0808 ● ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0809- ● ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0710-0711 ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0712-0808 ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0809- ● ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 0710-0711 ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 0712-0808 ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 0809- ● ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0710-0711 ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0712-0808 ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809- ● ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0710-0711 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0712-0808 ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809- ● ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 0710-0711 ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 0712-0808 ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 0809- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
