4-60 — REAR SUSPENSION (#65575) — 81 parça

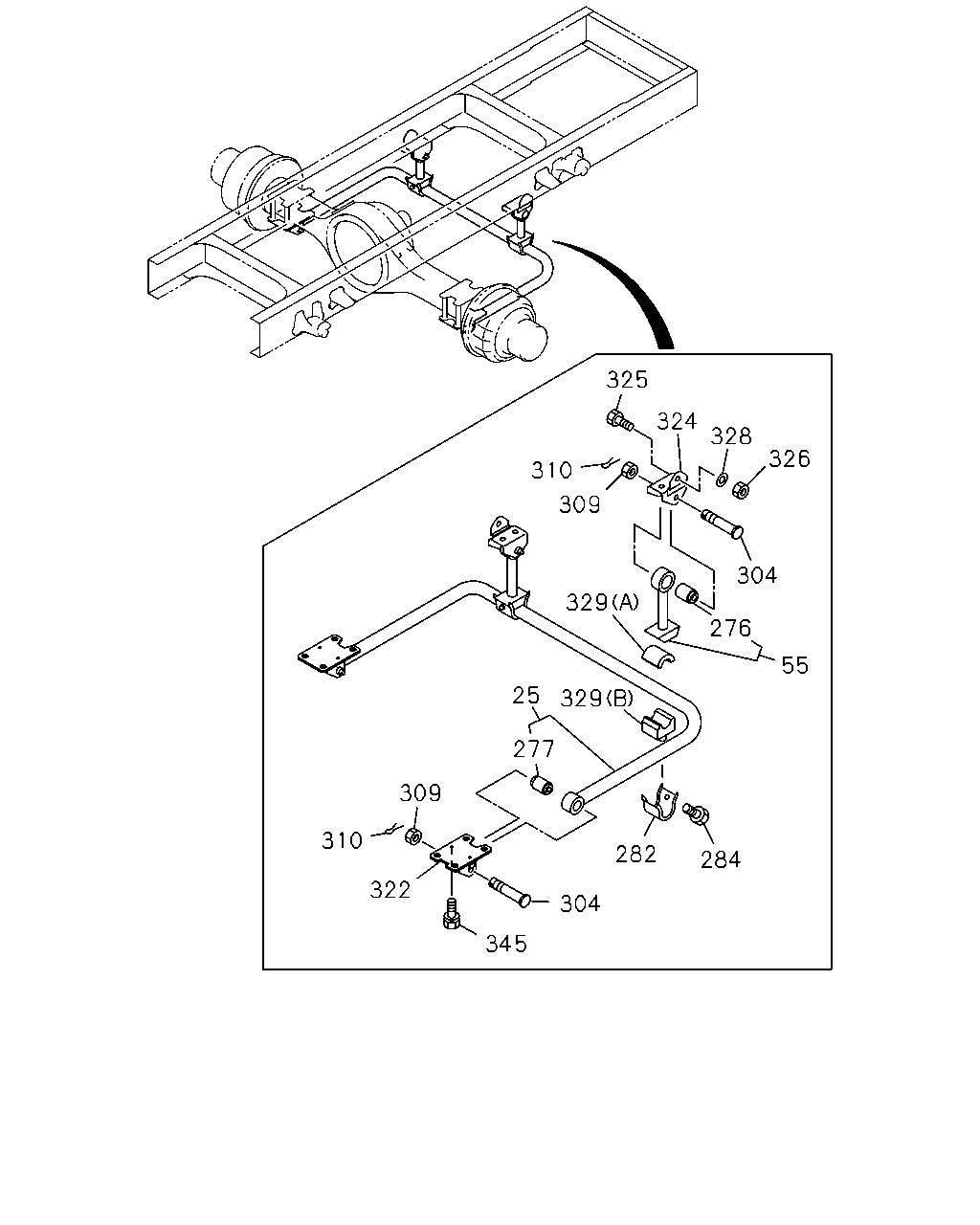

325 324 328 326 310 309 304 329 276 55 25 329 277 309 310 282 284 322 304 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BAR ASM; STAB,RR SUSP STABILIZER REAR LIGHT DUTY<GN1>	1-51770-029-1	01	1	0710-0711	●
25	BAR ASM; STAB,RR SUSP STABILIZER REAR LIGHT DUTY<GN1>	1-51770-029-1	01	1	0712-	●	●
55	ROD; STAB STABILIZER REAR LIGHT DUTY<GN1>	1-51770-024-1	02	1	0710-0711	●
55	ROD; STAB STABILIZER REAR LIGHT DUTY<GN1>	1-51770-024-1	02	1	0712-	●	●
276	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1>	1-51779-019-0	02	1	0710-0711	●
276	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1>	1-51779-019-0	02	1	0712-	●	●
277	BUSHING; STAB,RR UPR STABILIZER REAR LIGHT DUTY<GN1>	1-51779-067-0	02	1	0710-0711	●
277	BUSHING; STAB,RR UPR STABILIZER REAR LIGHT DUTY<GN1>	1-51779-067-0	02	1	0712-	●	●
282	RETAINER; STAB BAR STABILIZER REAR LIGHT DUTY<GN1>	1-51789-015-2	02	1	0710-0711	●
282	RETAINER; STAB BAR STABILIZER REAR LIGHT DUTY<GN1>	1-51789-015-2	02	1	0712-	●	●
284	BOLT; RET TO RET STABILIZER REAR LIGHT DUTY<GN1> M10X25	8-94463-351-0	08	1	0710-0711	●
284	BOLT; RET TO RET STABILIZER REAR LIGHT DUTY<GN1> M10X25	8-94463-351-0	08	1	0712-	●	●
304	PIN; STAB ROD STABILIZER REAR LIGHT DUTY<GN1>	1-51789-020-2	04	1	0710-0711	●
304	PIN; STAB ROD STABILIZER REAR LIGHT DUTY<GN1>	1-51789-020-2	04	1	0712-	●	●
309	NUT; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> M24	9-99116-424-0	04	1	0710-0711	●
309	NUT; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> M24	9-99116-424-0	04	1	0712-	●	●
310	PIN; SPLIT,STAB ROD STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45	0-81125-045-0	04	1	0710-0711	●
310	PIN; SPLIT,STAB ROD STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45	0-81125-045-0	04	1	0712-	●	●
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1>	1-51781-128-0	01	1	0710-0711	●
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1>	1-51781-128-0	01	1	0712-	●	●
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1>	1-51781-038-1	01	1	0710-0711	●
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1>	1-51781-038-1	01	1	0712-	●	●
324	BRACKET; STAB BAR TO FRAME STABILIZER REAR LIGHT DUTY<GN1>	1-51781-059-0	02	1	0710-0711	●
324	BRACKET; STAB BAR TO FRAME STABILIZER REAR LIGHT DUTY<GN1>	1-51781-059-0	02	1	0712-	●	●
325	BOLT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> M14X45	9-92061-445-0	06	1	0710-0711	●
325	BOLT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> M14X45	9-92061-445-0	06	1	0712-	●	●
326	NUT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> M14	0-91110-514-0	06	1	0710-0711	●
326	NUT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> M14	0-91110-514-0	06	1	0712-	●	●
328	WASHER; PL,BRKT STABILIZER REAR LIGHT DUTY<GN1> ID=15	8-98010-627-0	12	1	0710-0711	●
328	WASHER; PL,BRKT STABILIZER REAR LIGHT DUTY<GN1> ID=15	8-98010-627-1	12	1	0712-	●	●
329	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> (A)	1-51789-051-1	02	1	0710-0711	●
329	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> (A)	1-51789-051-1	02	1	0712-	●	●
329	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> (B)	1-51789-052-0	02	1	0710-0711	●
329	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> (B)	1-51789-052-0	02	1	0712-	●	●
345	BOLT; BRKT STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE	0-28051-016-0	04	1	0710-0711	●
345	BOLT; BRKT STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE	0-28051-016-0	04	1	0712-	●	●

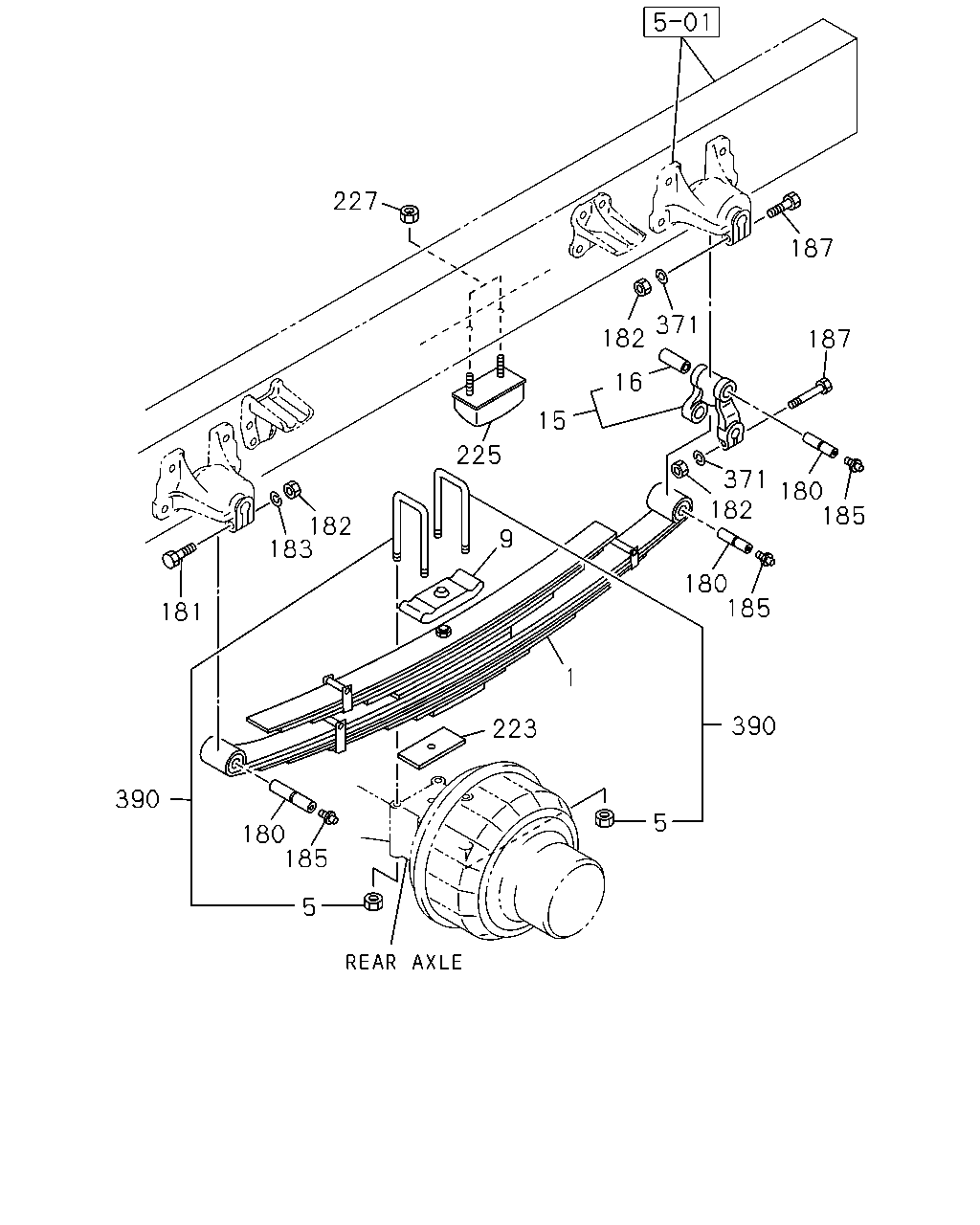

227 187 371 182 187 16 15 225 371 182 180 185 182 183 9 180 185 181 1 390 223 390 5 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98017-564-0	02	1	0710-0711	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98017-564-0	02	1	0712-	●	●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0710-0711	●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0712-	●	●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	0710-0711	●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	0712-	●	●
15	SHACKLE; RR SPR	1-51362-049-2	02	1	0710-0711	●
15	SHACKLE; RR SPR	1-51362-049-2	02	1	0712-	●	●
16	BUSHING; SHACKLE,RR SPR	9-51351-019-2	02	1	0710-0711	●
16	BUSHING; SHACKLE,RR SPR	9-51351-019-2	02	1	0712-0902	●	●
16	BUSHING; SHACKLE,RR SPR	8-98081-830-0	02	1	0903-	●	●
16	BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	1-87610-163-0	02	1	0903-	●	●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	06	1	0710-0711	●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	06	1	0712-	●	●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	0710-0711	●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	0712-	●	●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0710-0711	●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0712-	●	●
182	NUT; PIN,RR SPR M14	0-91110-514-0	04	1	0710-0711	●
182	NUT; PIN,RR SPR M14	0-91110-514-0	04	1	0712-	●	●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0710-0711	●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0712-	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0710-0711	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0712-	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	04	1	0710-0711	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	04	1	0712-	●	●
187	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	04	1	0710-0711	●
187	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	04	1	0712-	●	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 3900MM(39W)	8-98083-789-0	02	1	0809-	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4200MM(42W)	1-51377-166-0	02	1	0710-0711	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W)	1-51377-166-0	02	1	0712-0808	●
223	SPACER; U BOLT,RR SPR	1-51377-166-0	02	1	0712-0808		●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-51377-166-0	02	1	0809-	●
223	SPACER; U BOLT,RR SPR	1-51377-166-0	02	1	0809-		●
223	SPACER; U BOLT,RR SPR WHEEL BASE 6500MM(65W)	1-51377-372-0	02	1	0710-	●
225	RUBBER; CUSHION,RR SPR	1-53366-067-4	02	1	0710-0711	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13)	1-53366-067-4	02	1	0712-	●
225	RUBBER; CUSHION,RR SPR	1-53366-067-4	02	1	0712-		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0710-0711	●
227	NUT; CUSHION RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M12 FLANGE	0-91180-212-0	04	1	0712-	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0712-		●
371	WASHER; LK,SHACKLE ID=14.2	0-91510-514-0	04	1	0710-0711	●
371	WASHER; LK,SHACKLE ID=14.2	0-91510-514-0	04	1	0712-	●	●
390	U-BOLT SET; RR SPRING L=455	1-87870-268-1	04	1	0710-0711	●
390	U-BOLT SET; RR SPRING L=455	1-87870-268-1	04	1	0712-	●	●
