4-36 — POWER STEERING CONTROL; ENGINE SIDE (#65570) — 16 parça

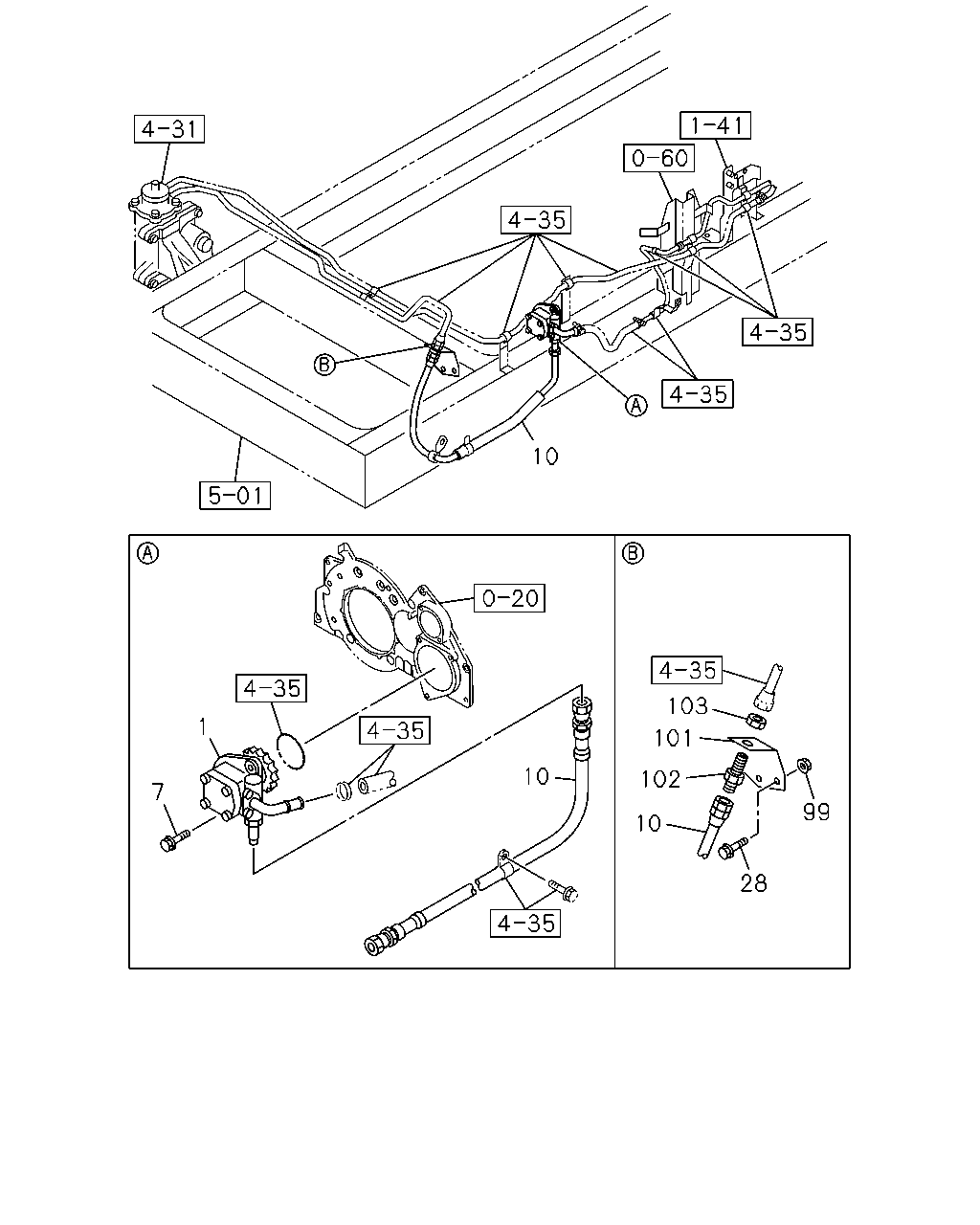

çizim 123805
103 1 101 10 102 7 99 10 28 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-629-0 01 1 0710-0711 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-629-1 01 1 0712- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0710-0711 ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0712- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98076-172-0 01 1 0710-0711 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98076-172-0 01 1 0712- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
101 BRACKET; UNION 8-98052-888-1 01 1 0710-0711 ●
101 BRACKET; UNION 8-98052-888-1 01 1 0712- ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0710-0711 ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0712- ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0710-0711 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0712- ● ●
