Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#65569) — 308 parça

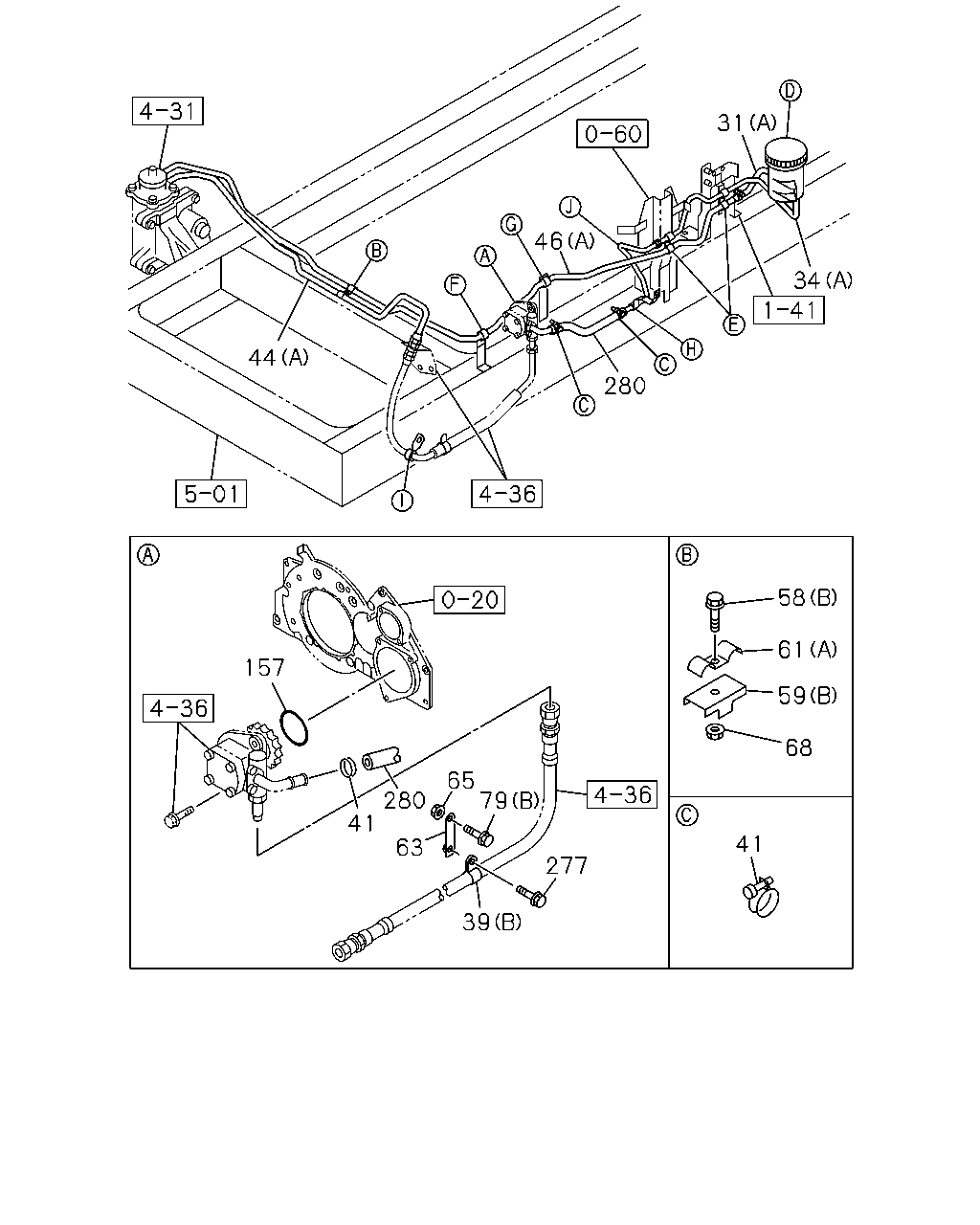

31 46 34 44 280 58 61 157 59 68 65 79 280 41 41 63 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0710-		●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0710-0711		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0712-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0710-0711		●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0712-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-0711		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0712-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98103-320-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98113-923-0	01	1	0803-1010	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98182-041-0	01	1	1011-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98075-632-1	01	1	0710-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2858	8-98103-322-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2879	8-98113-921-0	01	1	0803-1010	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2696	8-98096-303-0	01	1	0710-0711		●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> (A) L=2696	8-98096-303-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=2775	8-98092-721-0	01	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-0802	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0710-0710		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●	●
63	BRACKET; CLIP,P/S BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47476-396-1	01	1	0804-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1108-	●	●
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-		●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711		●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-1107	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1108-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0710-0711		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0712-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0710-0711		●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0712-	●	●

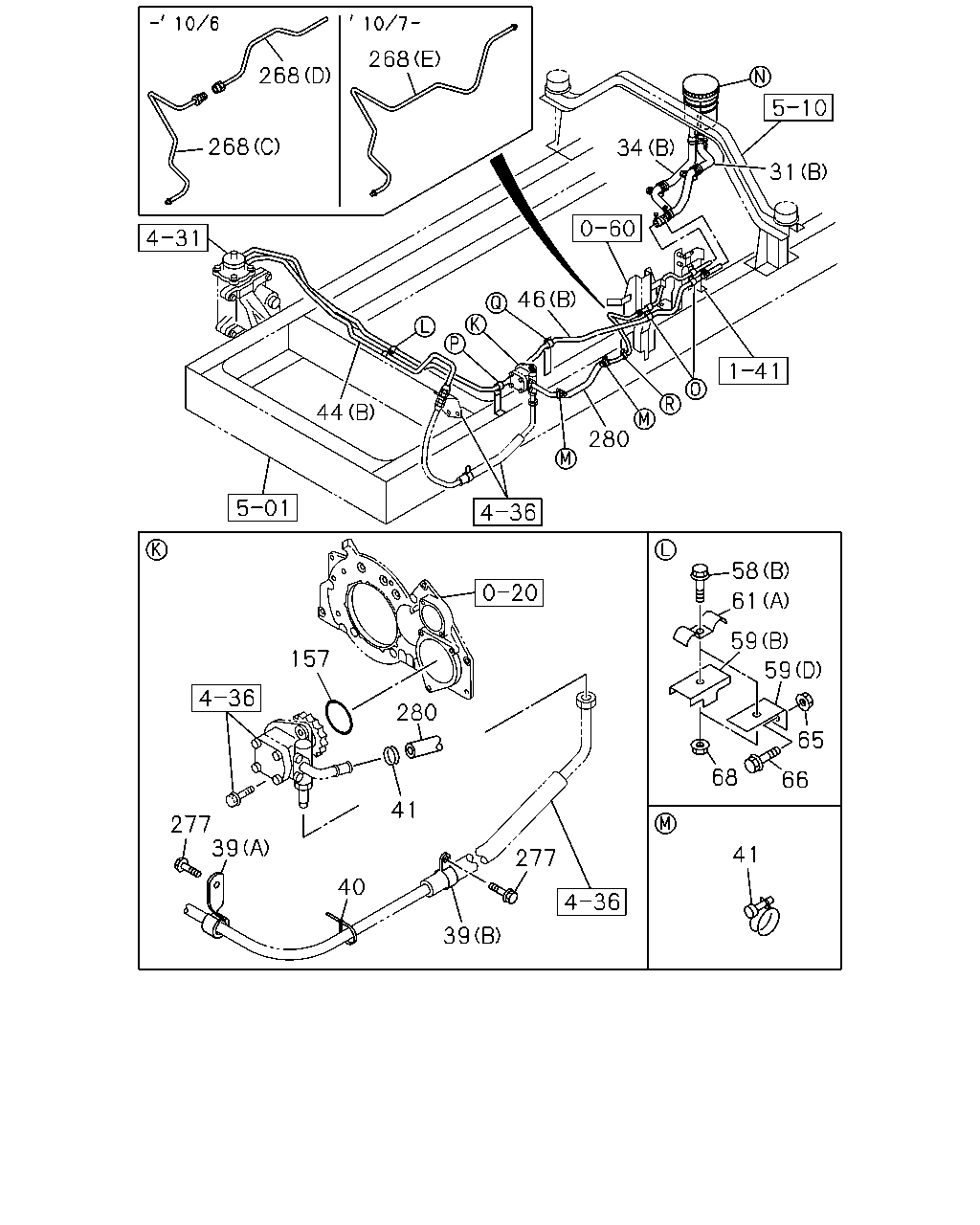

268 268 268 34 31 46 44 280 58 61 59 157 59 280 65 68 66 41 277 39 277 41 40 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0710-		●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0710-0711		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0712-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0710-0711		●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0712-	●	●
40	CLIP; BAND L=250	5-09707-030-1	01	1	0803-0803	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-0711		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0712-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98103-320-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98113-923-0	01	1	0803-1010	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98182-041-0	01	1	1011-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98075-632-1	01	1	0710-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2858	8-98103-322-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2879	8-98113-921-0	01	1	0803-1010	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2696	8-98096-303-0	01	1	0710-0711		●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> (A) L=2696	8-98096-303-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=2775	8-98092-721-0	01	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-0802	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0710-0710		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0710-0711		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0712-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98101-858-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98151-833-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98103-340-1	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98097-499-0	01	1	0710-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0710-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-047-0	01	1	1007-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0710-0711		●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0712-	●	●

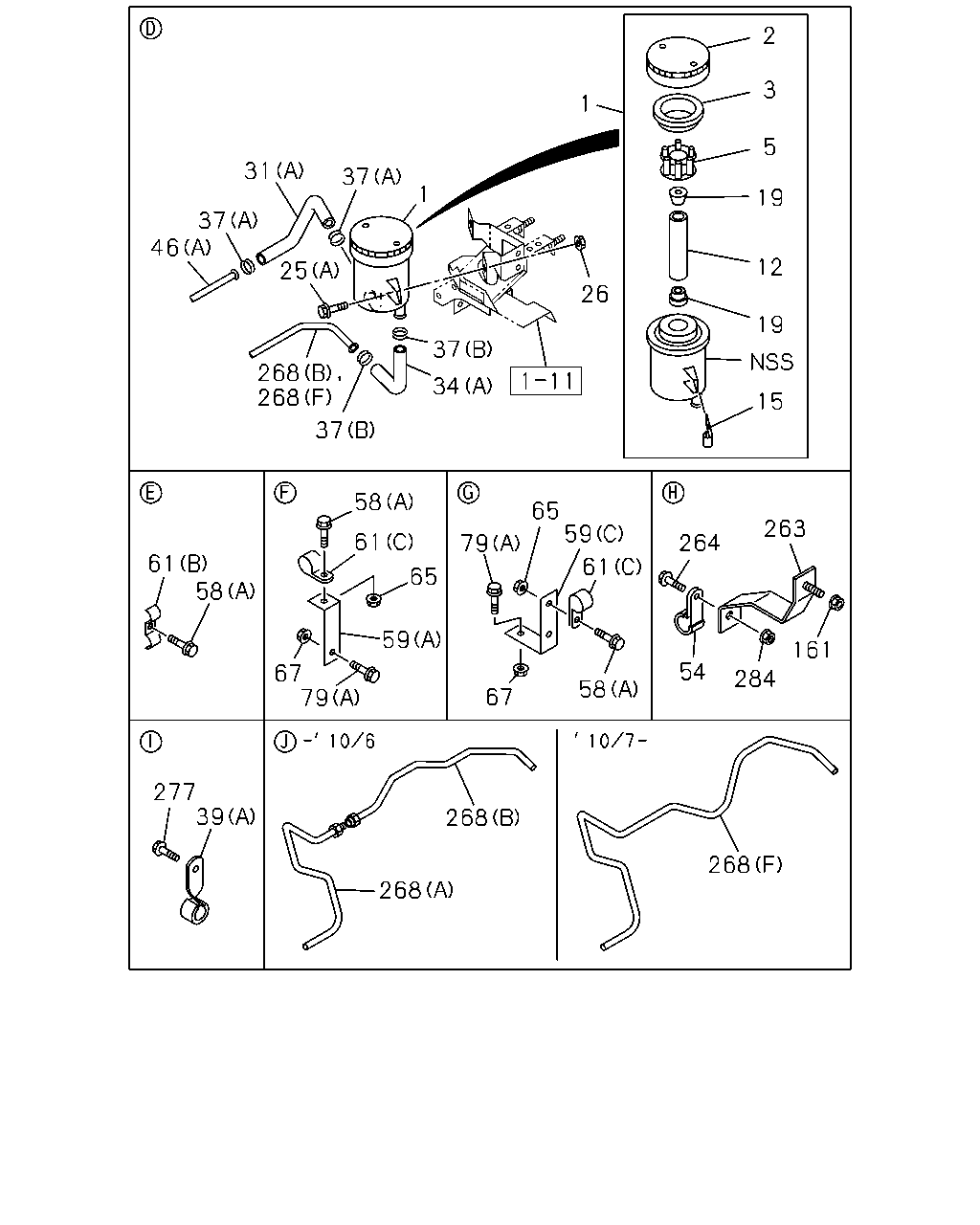

2 3 1 5 31 37 1 19 37 46 12 25 26 19 37 268 268 34 15 37 58 65 59 263 61 264 79 61 58 61 65 59 161 54 67 79 284 58 67 277 39 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-0711		●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-0711		●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-0711		●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-0711		●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-0711		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-0711		●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-0711		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0710-		●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-		●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-	●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-0711		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0710-0711		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0712-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0710-0711		●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0712-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2858	8-98103-322-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2879	8-98113-921-0	01	1	0803-1010	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2696	8-98096-303-0	01	1	0710-0711		●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> (A) L=2696	8-98096-303-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=2775	8-98092-721-0	01	1	0712-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0710-0711		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0712-0906	●	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0907-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-0802	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0710-0710		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0710		●
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1108-	●	●
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-		●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711		●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-1107	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1108-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	0710-0710		●
263	BRACKET; P/S PIPE	8-98096-820-0	01	1	0710-0711		●
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	0712-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-0711		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98101-858-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98151-833-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98103-340-1	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98097-499-0	01	1	0710-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0710-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-047-0	01	1	1007-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●

25 2 1 1 23 3 25 5 26 19 37 37 31 58 12 34 37 58 19 62 37 15 62 15 37 46 37 268 58 61 61 58 65 59 79 263 65 59 61 58 79 161 264 54 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-0711		●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-0711		●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-0711		●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-0711		●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-0711		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-0711		●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-0711		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
23	BRACKET; OIL TANK,P/S	8-98101-813-0	01	1	0712-0808	●
23	BRACKET; OIL TANK,P/S	8-98125-268-0	01	1	0809-	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0710-		●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-		●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-	●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-0711		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2858	8-98103-322-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2879	8-98113-921-0	01	1	0803-1010	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2696	8-98096-303-0	01	1	0710-0711		●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> (A) L=2696	8-98096-303-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=2775	8-98092-721-0	01	1	0712-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0710-0711		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0712-0906	●	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0907-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-0802	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0710-0710		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0711-0711		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0712-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1108-	●	●
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-		●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711		●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-1107	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1108-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	0710-0710		●
263	BRACKET; P/S PIPE	8-98096-820-0	01	1	0710-0711		●
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	0712-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-0711		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98101-858-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98151-833-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98103-340-1	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98097-499-0	01	1	0710-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0710-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-047-0	01	1	1007-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
