4-11 — FRONT HUB AND DRUM OR ROTOR (#65563) — 76 parça

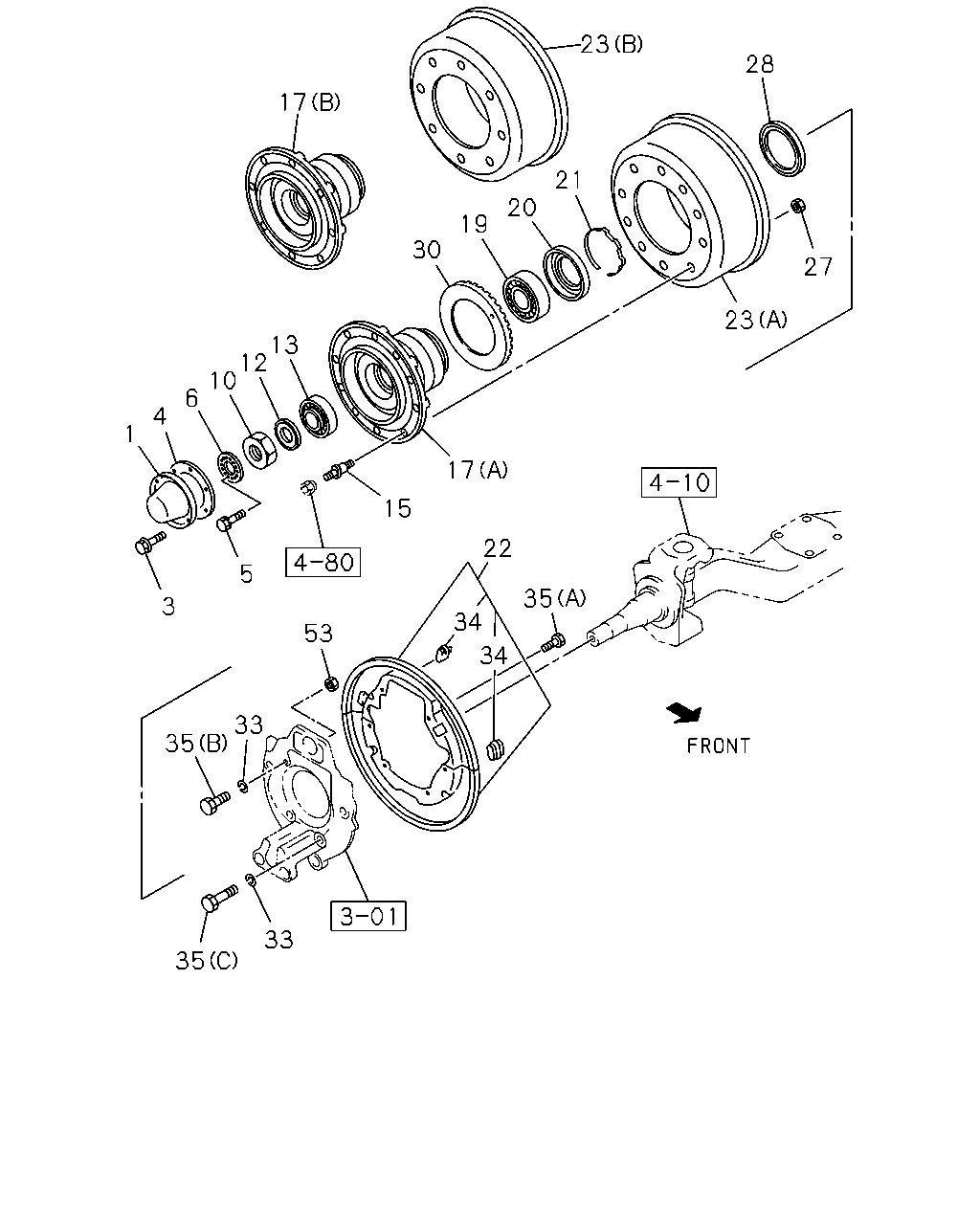

çizim 122583
23 28 17 21 20 19 30 27 23 13 12 10 6 4 1 17 15 22 5 35 3 34 53 34 33 35 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0710-0711 ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0712- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 0710-0711 ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 0712- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-1 02 1 0710-0711 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 0712- ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 04 1 0710-0711 ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 04 1 0712-1201 ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1202- ● ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 0710-0711 ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 0712- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 0710-0711 ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 0712- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0710-0711 ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0712-0911 ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 0912- ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0710-0711 ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0712- ● ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0712-1007 ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 1008- ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0712-1007 ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 1008- ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0710-0711 ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0712- ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0712- ●
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-100-1 02 1 0712- ●
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42312-128-2 02 1 0712- ●
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42312-151-3 02 1 0712- ●
17 HUB; FRT AXLE
(A) 		1-42312-160-0 02 1 0710-0711 ●
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-160-0 02 1 0712- ●
17 HUB; FRT AXLE
(A) 		1-42312-160-0 02 1 0712- ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0710-0711 ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0712- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0710-0711 ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0712- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0710-0711 ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0712- ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47151-458-1 02 1 0712- ●
22 COVER SET; FRT BRK DRUM 1-87831-225-0 02 1 0710-0711 ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-87831-225-0 02 1 0712- ●
22 COVER SET; FRT BRK DRUM 1-87831-225-0 02 1 0712- ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-380-0 02 1 0712- ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42315-355-0 02 1 0712- ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42315-397-0 02 1 0712- ●
23 DRUM; BRK,FRT
(A) 		1-42315-365-0 02 1 0710-0711 ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-365-0 02 1 0712- ●
23 DRUM; BRK,FRT
(A) 		1-42315-365-0 02 1 0712- ●
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE 		1-09440-065-0 16 1 0712- ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 0710-0711 ●
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-09400-071-0 20 1 0712- ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 0712- ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0710-0711 ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0712- ● ●
30 RING; EXCITER,FRT HUB 1-42319-203-0 02 1 0710-0711 ●
30 RING; EXCITER,FRT HUB
ANTI LOCK BRAKE<JE5> 		1-42319-203-0 02 1 0712- ●
30 RING; EXCITER,FRT HUB 1-42319-203-0 02 1 0712- ●
33 WASHER; LK,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2 		0-91510-816-0 04 1 0712- ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 0710-0711 ●
33 WASHER; LK,DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=18.2 		0-91510-818-0 12 1 0712- ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 0712- ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0710-0711 ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0712- ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16X52 		1-09044-120-0 04 1 0712- ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-583-0 04 1 0710-0711 ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65 		1-09000-583-0 04 1 0712-0805 ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-583-0 04 1 0712-0805 ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
(B) M18X45 		9-92061-845-0 08 1 0710-0711 ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X45 		9-92061-845-0 08 1 0712-0805 ●
35 BOLT; DRUM COVER
(B) M18X45 		9-92061-845-0 08 1 0712-0805 ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X45 		1-09000-790-0 08 1 0806- ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 0806- ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 0710-0711 ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 0712- ● ●
53 NUT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		0-91110-516-0 04 1 0712- ●
