Sayfa 4-10 - Isuzu EPC

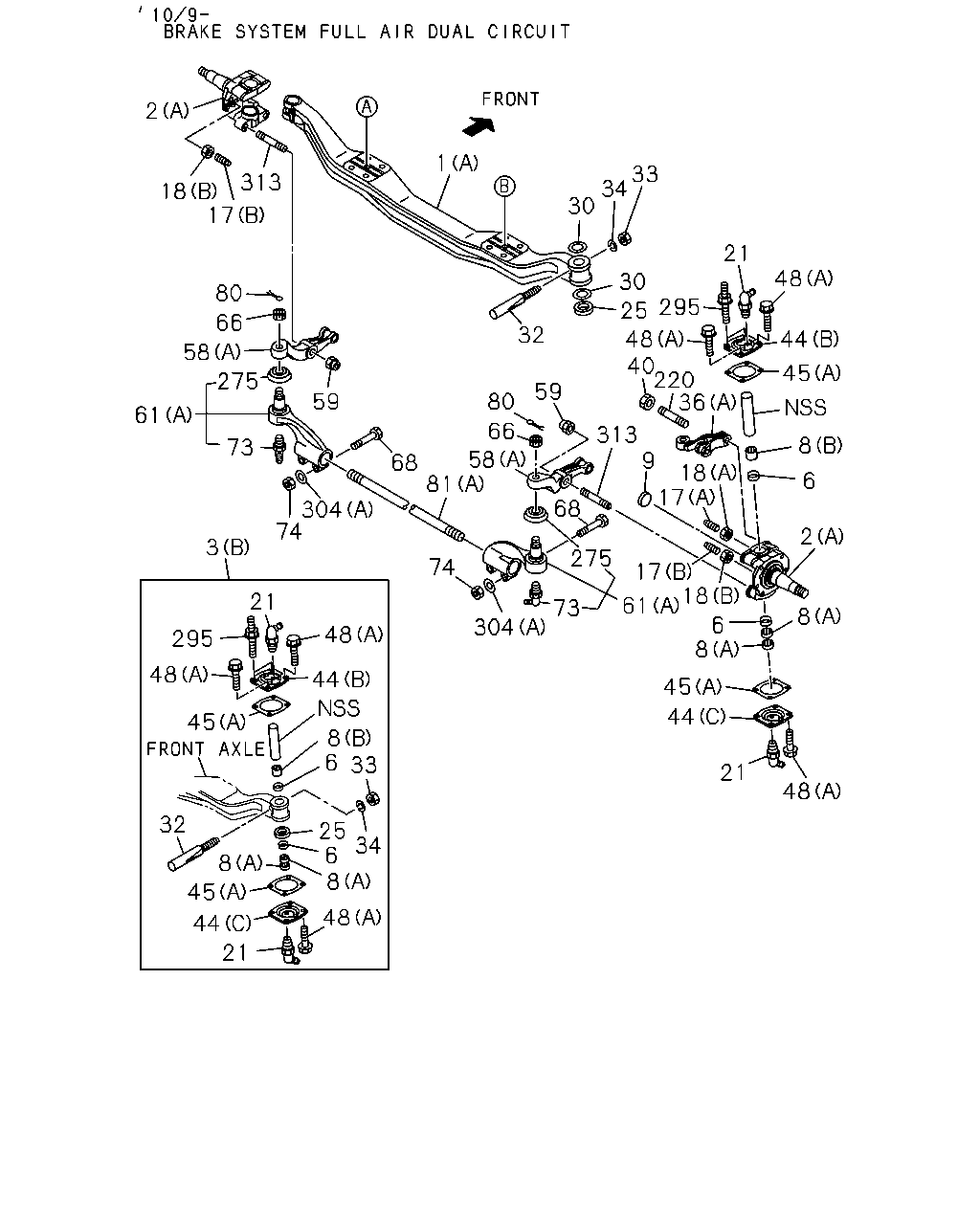

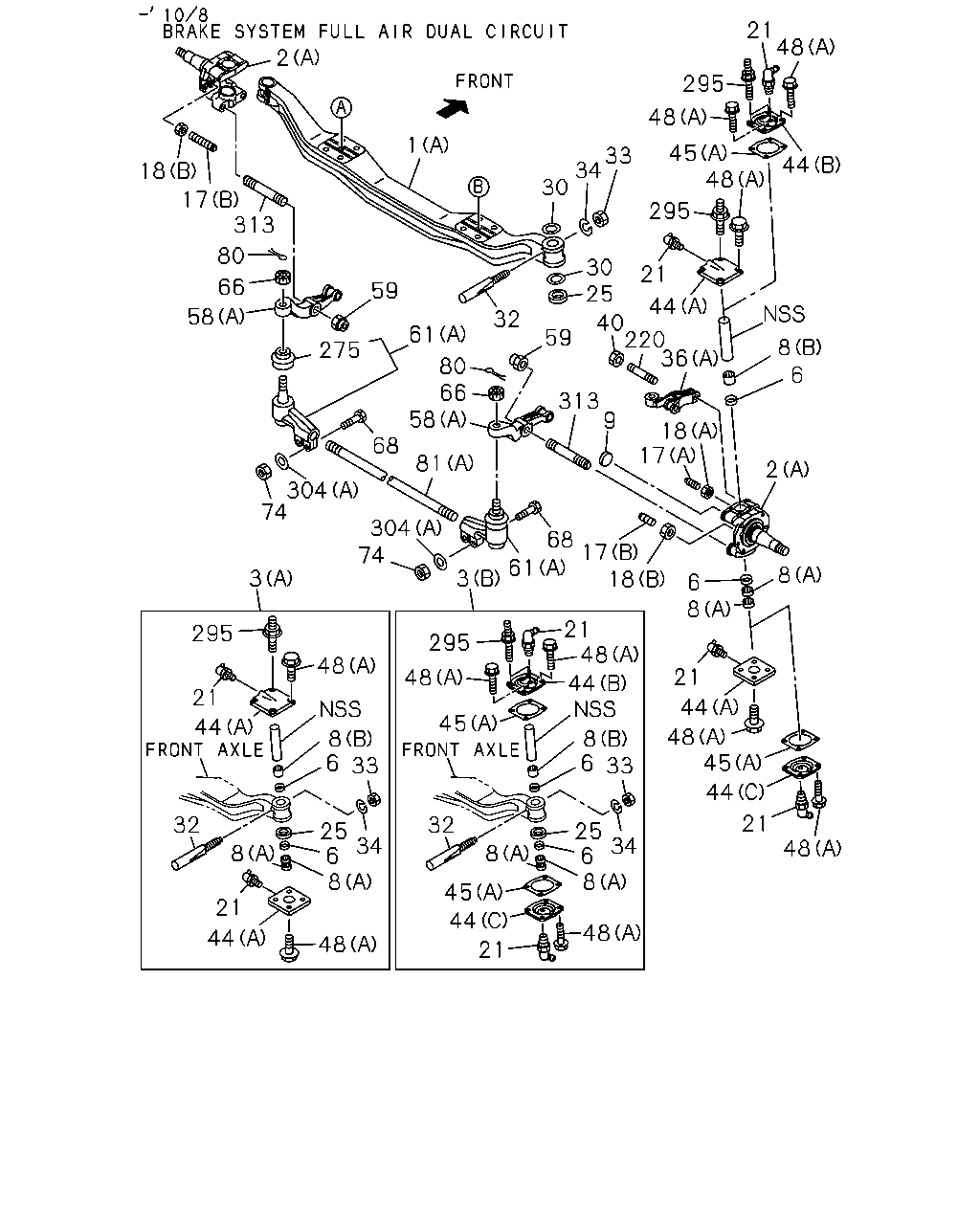

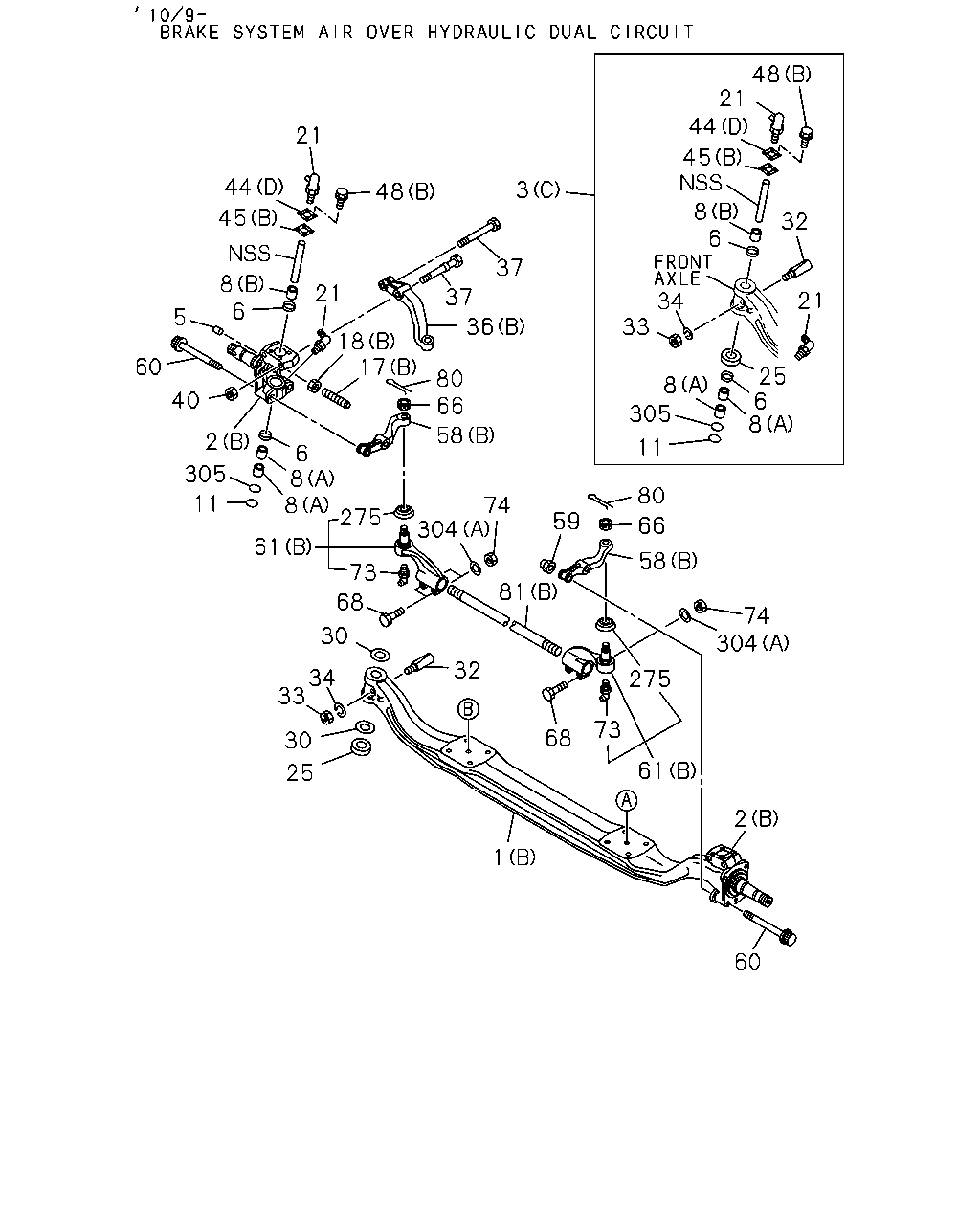

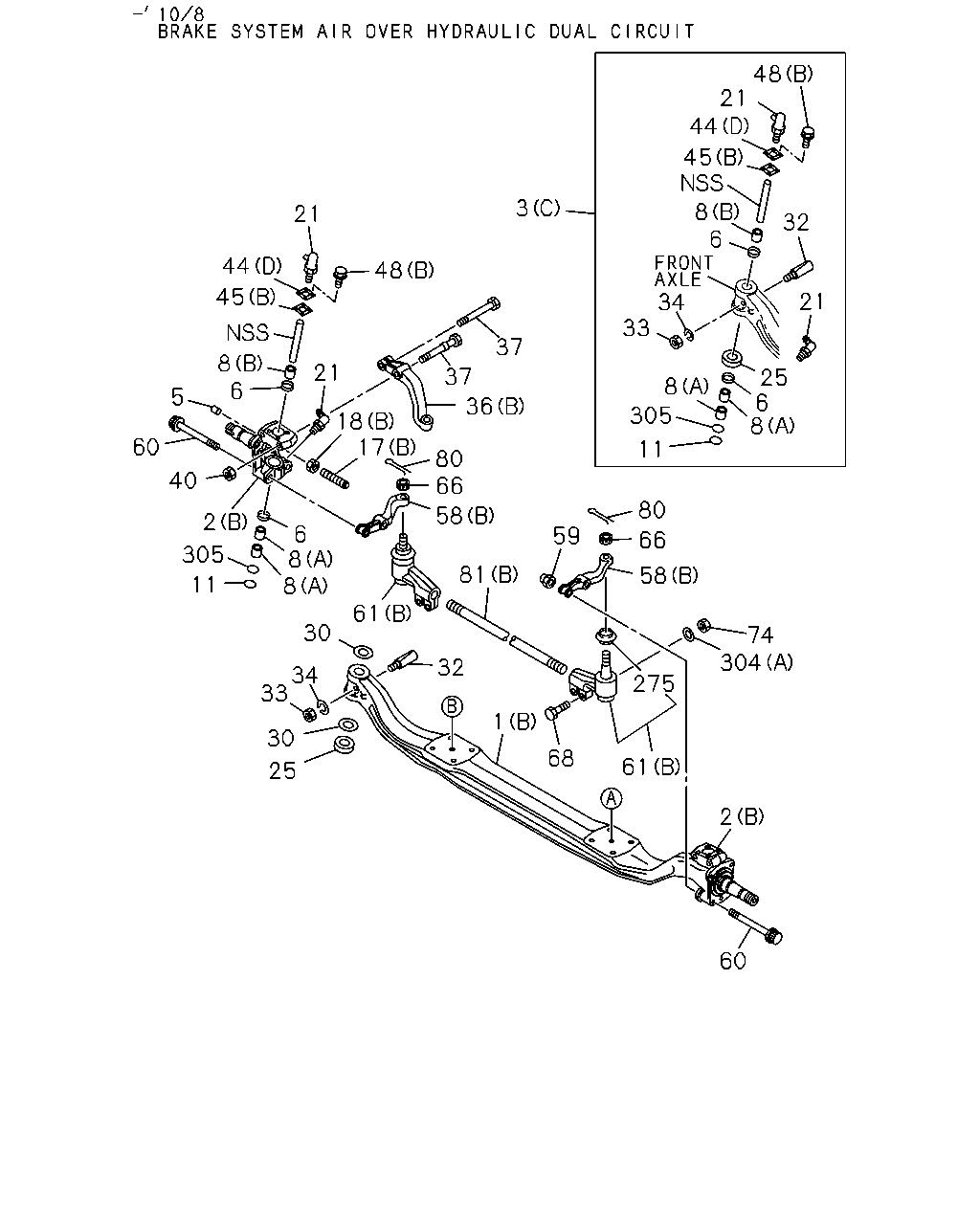

4-10 — FRONT AXLE (#65562) — 773 parça

48 21 44 21 45 44 3 48 8 6 34 33 45 32 37 8 6 21 37 21 5 36 18 17 60 25 6 8 80 66 8 40 305 58 2 11 6 8 8 305 80 11 74 304 275 59 66 61 58 73 1 68 74 304 30 32 34 33 275 30 73 68 61 25 2 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-		●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	8-98061-842-0	01	1	0710-0711	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT (A)	8-98061-842-2	01	1	0712-1011		●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-		●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-1	01	1	0712-		●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-1	01	1	0712-		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-		●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-87831-302-2	02	1	0712-	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0710-0711	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0712-0801		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET (B)	1-87831-349-1	02	1	0802-1011		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-	●
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-		●
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09740-072-0	02	1	0712-	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0710-0711	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0712-	●	●
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09950-204-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0712-		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0712-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0712-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-0711	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0710-0711	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0710-0711	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0712-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0710-0711	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0712-	●	●
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-0711	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0712-1011	●	●
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0710-0711	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0712-		●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X179	8-98052-380-1	01	1	0712-	●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X167	8-98052-381-1	01	1	0712-	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0710-0711	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0712-	●	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-43175-014-1	02	1	0712-	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0711	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0712-0801		●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0710-0711	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-		●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0712-		●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0712-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-0711	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0712-	●	●
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X193	8-98052-379-1	04	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0710-0711	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-0711	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0712-1009		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-0711	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0712-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-0711	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0712-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-0711	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0712-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0710-0711	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0712-1009		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-	●	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12.5	0-91614-512-0	04	1	0712-1009	●

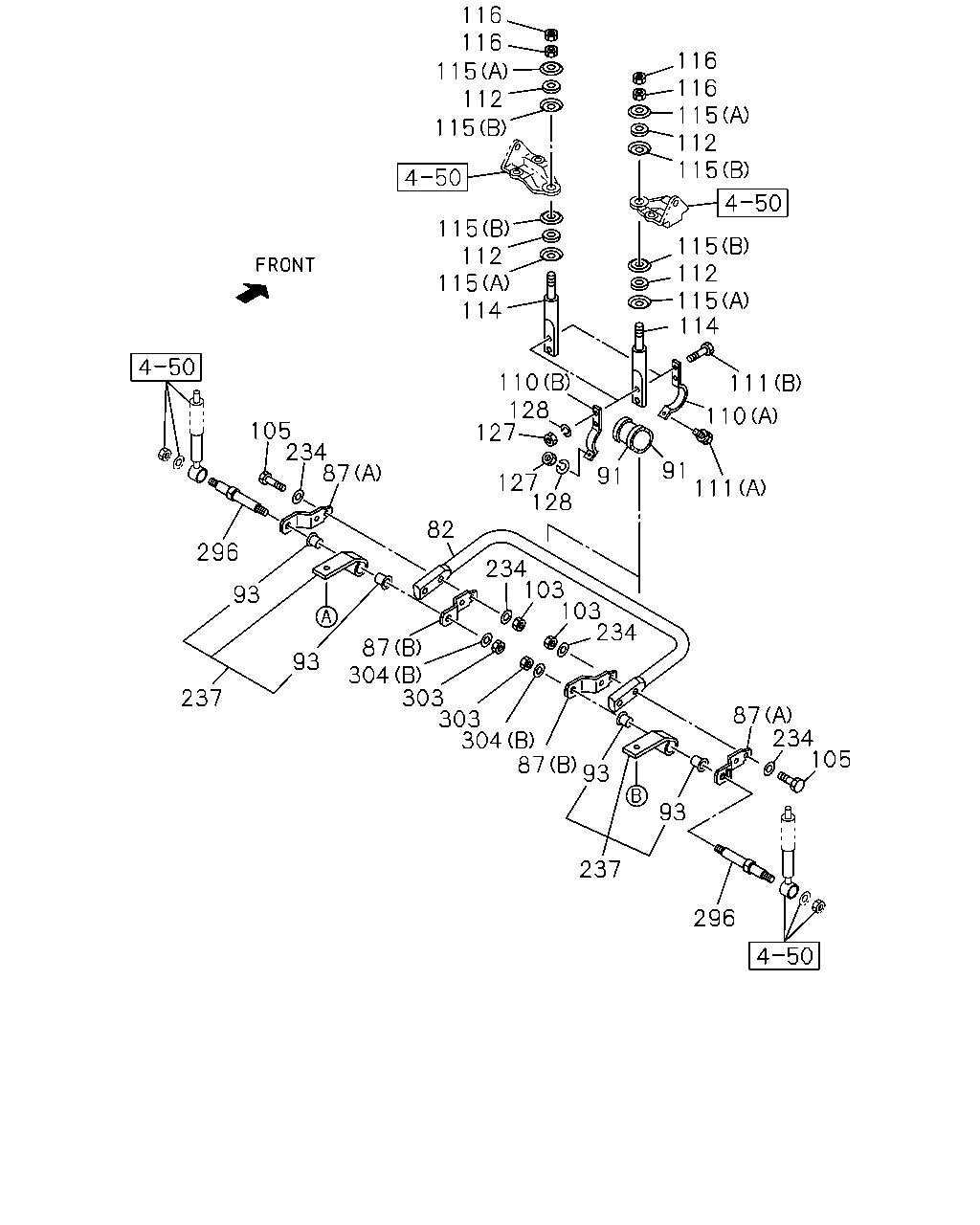

304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0711	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0712-	●	●
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98052-291-0	02	1	0712-	●

48 21 44 45 3 8 6 34 33 21 32 44 48 45 21 37 8 6 21 37 25 6 8 8 5 36 305 18 17 60 11 80 66 40 80 58 2 6 8 8 59 66 305 81 58 11 61 30 74 304 32 34 33 275 1 30 68 61 25 2 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-		●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	8-98061-842-0	01	1	0710-0711	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT (A)	8-98061-842-2	01	1	0712-1011		●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-		●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-1	01	1	0712-		●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-1	01	1	0712-		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-		●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-87831-302-2	02	1	0712-	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0710-0711	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0712-0801		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET (B)	1-87831-349-1	02	1	0802-1011		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-	●
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-		●
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09740-072-0	02	1	0712-	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0710-0711	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0712-	●	●
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09950-204-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0712-		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0712-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0712-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-0711	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0710-0711	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0710-0711	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0712-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0710-0711	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0712-	●	●
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-0711	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0712-1011	●	●
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0710-0711	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0712-		●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X179	8-98052-380-1	01	1	0712-	●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X167	8-98052-381-1	01	1	0712-	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0710-0711	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0712-	●	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-43175-014-1	02	1	0712-	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0711	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0712-0801		●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0710-0711	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-		●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0712-		●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0712-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-0711	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0712-	●	●
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X193	8-98052-379-1	04	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0710-0711	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-0711	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0712-1009		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-0711	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0712-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-0711	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0712-	●	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43151-119-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98193-965-0	01	1	1110-	●
81	ROD; TIE (A)	1-43151-157-0	01	1	0710-0711	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE (A)	1-43151-157-0	01	1	0712-1009		●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98171-947-0	01	1	1010-	●
81	ROD; TIE (A)	8-98171-947-0	01	1	1010-		●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-0711	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0712-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0710-0711	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0712-1009		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-	●	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0711	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0712-	●	●
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98052-291-0	02	1	0712-	●

2 1 33 34 30 313 18 17 21 48 30 80 295 25 66 32 48 40 220 36 44 58 275 45 59 80 59 61 66 68 58 81 313 9 8 73 18 17 6 68 304 74 2 3 275 74 17 18 21 61 73 8 6 8 304 48 295 48 44 45 44 45 8 6 33 21 48 32 25 34 6 8 8 45 48 44 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-		●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	8-98061-842-0	01	1	0710-0711	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT (A)	8-98061-842-2	01	1	0712-1011		●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-		●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-1	01	1	0712-		●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-1	01	1	0712-		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-		●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-87831-302-2	02	1	0712-	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0710-0711	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0712-0801		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET (B)	1-87831-349-1	02	1	0802-1011		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-	●
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	0710-0711	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0712-	●	●
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0712-		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0712-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0712-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-0711	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0710-0711	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0710-0711	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0712-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0710-0711	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0712-	●	●
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-0711	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0712-1011	●	●
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0710-0711	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0712-		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0710-0711	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0712-	●	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-43175-014-1	02	1	0712-	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0711	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0712-0801		●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0710-0711	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-		●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0712-		●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0712-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-0711	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0712-	●	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0710-0711	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-0711	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0712-1009		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-0711	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0712-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-0711	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0712-	●	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43151-119-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98193-965-0	01	1	1110-	●
81	ROD; TIE (A)	1-43151-157-0	01	1	0710-0711	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE (A)	1-43151-157-0	01	1	0712-1009		●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98171-947-0	01	1	1010-	●
81	ROD; TIE (A)	8-98171-947-0	01	1	1010-		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-0	02	1	0710-0711	●
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	02	1	0712-	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0712-		●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-0711	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0712-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-0711	●
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0710-0711	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0712-1009		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-	●	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0711	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0712-	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-0	04	1	0710-0711	●
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	04	1	0712-	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0712-		●

21 48 2 295 48 1 45 48 44 33 34 30 18 17 313 295 80 30 25 21 66 59 44 58 32 40 220 36 61 59 8 6 275 80 66 58 313 9 18 17 68 81 2 304 74 304 74 68 17 18 61 3 8 3 6 8 21 48 295 295 48 21 48 44 21 45 44 44 48 45 8 6 33 8 6 33 44 32 32 21 25 34 6 8 25 34 6 8 48 8 8 45 21 44 48 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-		●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	8-98061-842-0	01	1	0710-0711	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT (A)	8-98061-842-2	01	1	0712-1011		●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-		●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-118-1	01	1	0712-		●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-0	01	1	0710-0711	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-101-1	01	1	0712-		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-		●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-87831-302-2	02	1	0712-	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0710-0711	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0712-0801		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET (B)	1-87831-349-1	02	1	0802-1011		●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-	●
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	0710-0711	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0712-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-0711	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0712-	●	●
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0712-		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0710-0711	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0712-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0710-0711	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0712-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-0711	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0710-0711	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0710-0711	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0710-0711	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0712-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0710-0711	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0712-	●	●
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-0711	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0712-1011	●	●
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0710-0711	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0712-		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0710-0711	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0712-	●	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-43175-014-1	02	1	0712-	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0711	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0712-0801		●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	0802-		●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0710-0711	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	0712-		●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0712-		●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0710-0711	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0712-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-0711	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0712-	●	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0710-0711	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0712-1009		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1010-1306		●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0710-0711	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-0711	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X65	8-98053-922-0	04	1	0712-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0712-1009		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-0711	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0712-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-0711	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0712-	●	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43151-119-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98193-965-0	01	1	1110-	●
81	ROD; TIE (A)	1-43151-157-0	01	1	0710-0711	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE (A)	1-43151-157-0	01	1	0712-1009		●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98171-947-0	01	1	1010-	●
81	ROD; TIE (A)	8-98171-947-0	01	1	1010-		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-0	02	1	0710-0711	●
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	02	1	0712-	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0712-		●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-0711	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0712-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-0711	●
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0710-0711	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0712-1009		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-	●	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0711	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0712-	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-0	04	1	0710-0711	●
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	04	1	0712-	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0712-		●

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 237 87 234 105 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	0710-0711	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	0712-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	0710-0711	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	0712-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	0710-0711	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	0712-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0710-0711	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0712-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0710-0711	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0712-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0710-0711	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0712-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0710-0711	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0712-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0710-0711	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0712-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0710-0711	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0712-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0710-0711	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0712-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0710-0711	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0712-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0710-0711	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0712-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	0710-0711	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	0712-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0710-0711	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0712-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0710-0711	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0712-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0710-0711	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0712-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0710-0711	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0712-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0710-0711	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0712-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0710-0711	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0712-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0710-0711	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0712-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98013-020-1	02	1	0710-0711	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98013-020-1	02	1	0712-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0710-0711	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0712-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0710-0711	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	0712-1009		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-	●	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0711	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0712-	●	●

267 274 272 265 295 274 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM	8-98073-525-0	01	1	0710-0711	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	0712-	●
265	BRACKET; CLIP I BEAM	8-98073-525-0	01	1	0712-		●
265	BRACKET; CLIP I BEAM	8-98073-526-0	01	1	0710-0711	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	0712-	●
265	BRACKET; CLIP I BEAM	8-98073-526-0	01	1	0712-		●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0710-0711	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	0712-	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0712-		●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	04	1	0710-0711	●
267	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	04	1	0712-	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	04	1	0712-		●
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	0710-0711	●
272	NUT; CLIP ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-110-0	04	1	0712-	●
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	0712-		●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	04	1	0710-0711	●
274	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	04	1	0712-	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	04	1	0712-		●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-0711	●
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
