◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#65559) — 257 parça

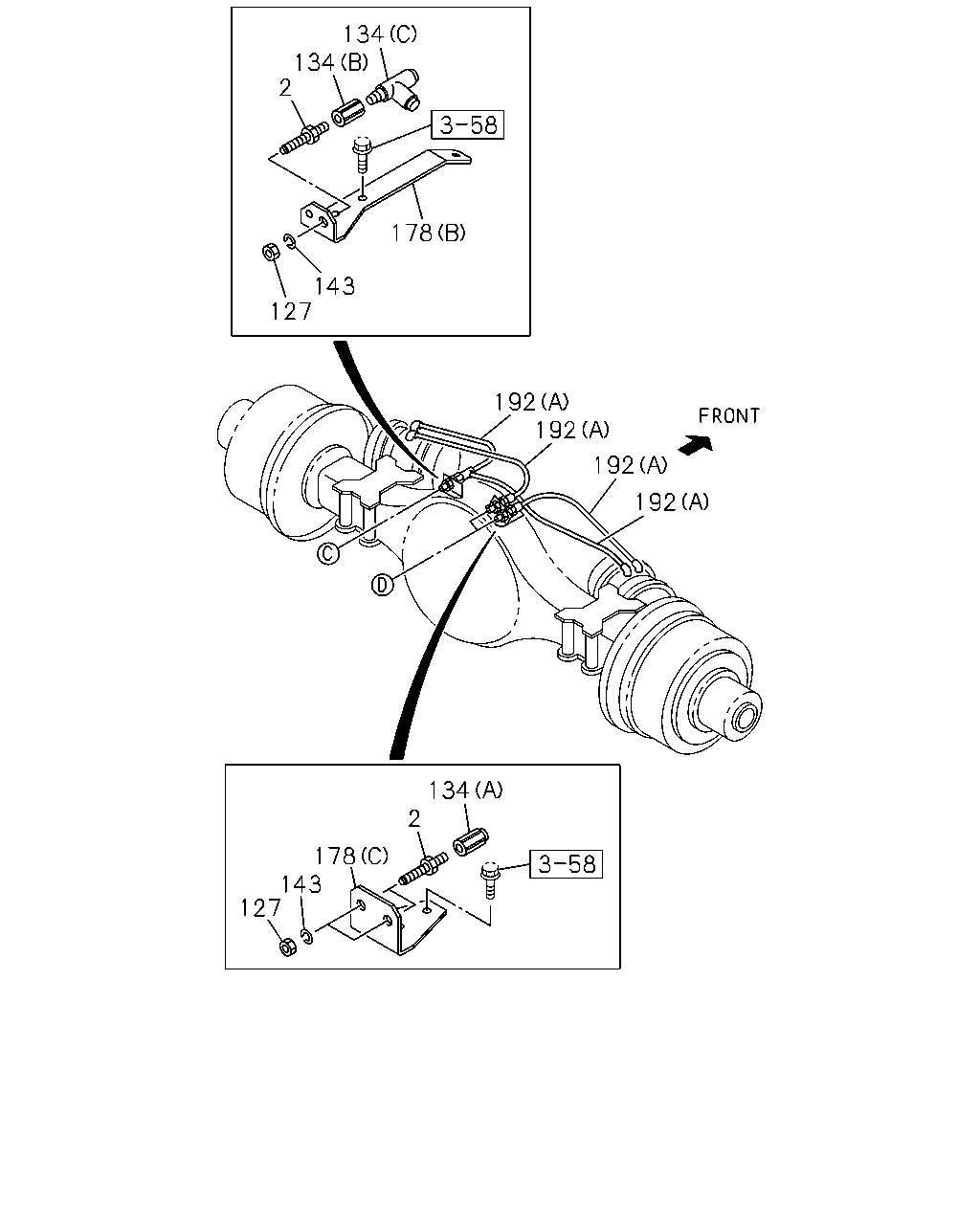

çizim 122175
134 134 2 178 143 127 192 192 192 192 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 03 1 0710-0711 ●
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 03 1 0712- ●
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 03 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 03 1 0710-0711 ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 03 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 03 1 0712- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0710-0711 ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0712- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0712- ●
134 CONNECTOR
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-0711 ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0712- ●
134 CONNECTOR
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0712- ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0710-0711 ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0712- ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0712- ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 03 1 0710-0711 ●
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 03 1 0712- ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 03 1 0712- ●
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-052-1 01 1 0712- ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0710-0711 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 02 1 0712-0804 ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0712-0804 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 0805- ●
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 0805- ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0710-0711 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 0710-0711 ●
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0712- ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98085-803-0 01 1 0802- ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98085-806-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98099-892-0 01 1 0712-0712 ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0712-0712 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98109-777-0 01 1 0801-0801 ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0801-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98109-777-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0802- ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98099-893-0 01 1 0712-0712 ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0712-0712 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98109-778-0 01 1 0801-0801 ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0801-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98109-778-0 01 1 0802- ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0802- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●

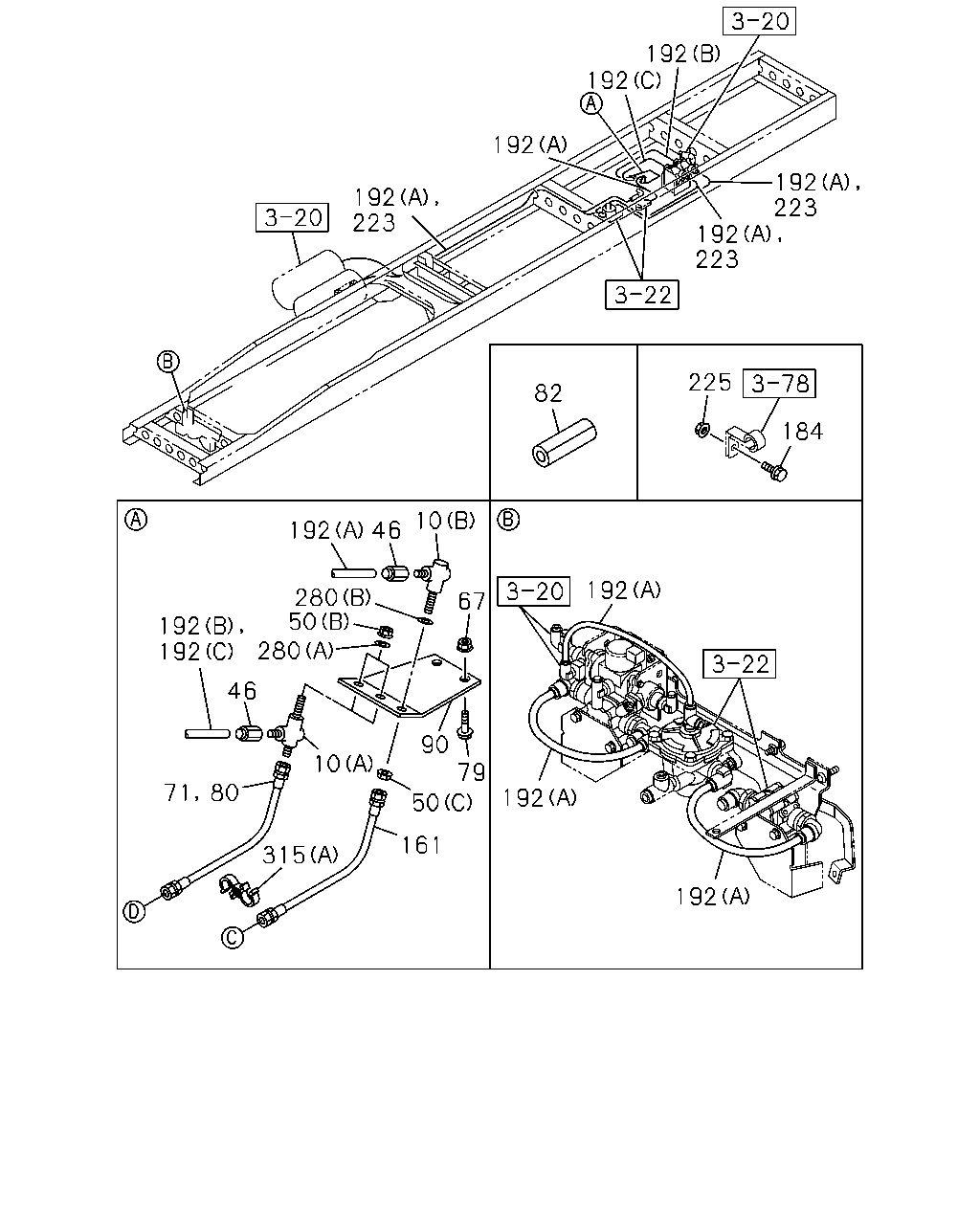

çizim 122358
192 192 192 192 223 192 223 192 223 225 82 184 10 192 46 192 280 50 280 67 192 192 46 90 79 10 71 80 192 50 161 315 192
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 0710-0711 ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M16 ELBOW 		0-92135-210-0 01 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(B13) (B) M16 ELBOW 		0-92135-210-0 01 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M16 ELBOW 		0-92135-210-0 01 1 0802- ●
10 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) M16 ELBOW 		0-92135-210-0 01 1 0802- ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) M16 ELBOW 		0-92135-210-0 01 1 0802- ●
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 0802- ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 0710-0711 ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0802- ●
10 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0802- ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 2WAY 		1-09650-182-1 02 1 0802- ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 0802- ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0710-0711 ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0712-0801 ●
46 NIPPLE; AIR PIPE
EXC. AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0712-0801 ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0712-0801 ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0802- ●
46 NIPPLE; AIR PIPE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0802- ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0802- ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0802- ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0710-0711 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-1110 ● ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
50 NUT; UNION BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
67 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
71 HOSE; FLEX,RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=660 		1-09363-814-0 02 1 0802-0806 ●
71 HOSE; FLEX,RWD RR
L=580 		1-09363-772-0 02 1 0710-0711 ●
71 HOSE; FLEX,RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=580 		1-09363-772-0 02 1 0712-0712 ●
71 HOSE; FLEX,RWD RR
L=580 		1-09363-772-0 02 1 0712-0712 ●
71 HOSE; FLEX,RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 02 1 0801-0910 ●
71 HOSE; FLEX,RWD RR
L=580 		1-09363-772-0 02 1 0801-0910 ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
79 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
80 HOSE; FLEX,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 02 1 0911- ●
80 HOSE; FLEX,POWER CHAMBER
L=580 		1-09363-772-0 02 1 0911- ●
82 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0711 ●
82 SLEEVE; RUBBER,NYLON TUBE
AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0801 ●
82 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0802-0804 ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 0710-0711 ●
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0712-0801 ●
90 BRACKET; PIPE UNION
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0712-0801 ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 0712-0801 ●
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0802- ●
90 BRACKET; PIPE UNION
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0802- ●
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> 		1-47477-851-1 01 1 0802- ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 0802- ●
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=740 		1-09363-756-0 01 1 0802-0803 ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		1-09363-772-0 01 1 0710-0711 ●
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=580 		1-09363-772-0 01 1 0712-0712 ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		1-09363-772-0 01 1 0712-0712 ●
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 0801- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		1-09363-772-0 01 1 0801- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98085-803-0 01 1 0802- ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98085-806-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98099-892-0 01 1 0712-0712 ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0712-0712 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98109-777-0 01 1 0801-0801 ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0801-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98109-777-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0802- ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98099-893-0 01 1 0712-0712 ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0712-0712 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98109-778-0 01 1 0801-0801 ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0801-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98109-778-0 01 1 0802- ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0802- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=25 		1-87411-032-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 0710-0711 ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=12.2 		0-91510-812-0 02 1 0712-0801 ●
280 WASHER; LK
EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=12.2 		0-91510-812-0 02 1 0712-0801 ●
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 0712-0801 ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=12.2 		0-91510-812-0 02 1 0802- ●
280 WASHER; LK
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=12.2 		0-91510-812-0 02 1 0802- ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) ID=12.2 		0-91510-812-0 02 1 0802- ●
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 0802- ●
280 WASHER; LK
(B) ID=16.2 		0-91510-816-0 01 1 0710-0711 ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=16.2 		0-91510-816-0 01 1 0712-0801 ●
280 WASHER; LK
EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=16.2 		0-91510-816-0 01 1 0712-0801 ●
280 WASHER; LK
(B) ID=16.2 		0-91510-816-0 01 1 0712-0801 ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=16.2 		0-91510-816-0 01 1 0802- ●
280 WASHER; LK
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=16.2 		0-91510-816-0 01 1 0802- ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) ID=16.2 		0-91510-816-0 01 1 0802- ●
280 WASHER; LK
(B) ID=16.2 		0-91510-816-0 01 1 0802- ●
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710-0711 ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0712-0801 ● ●
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 0802- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0802- ●

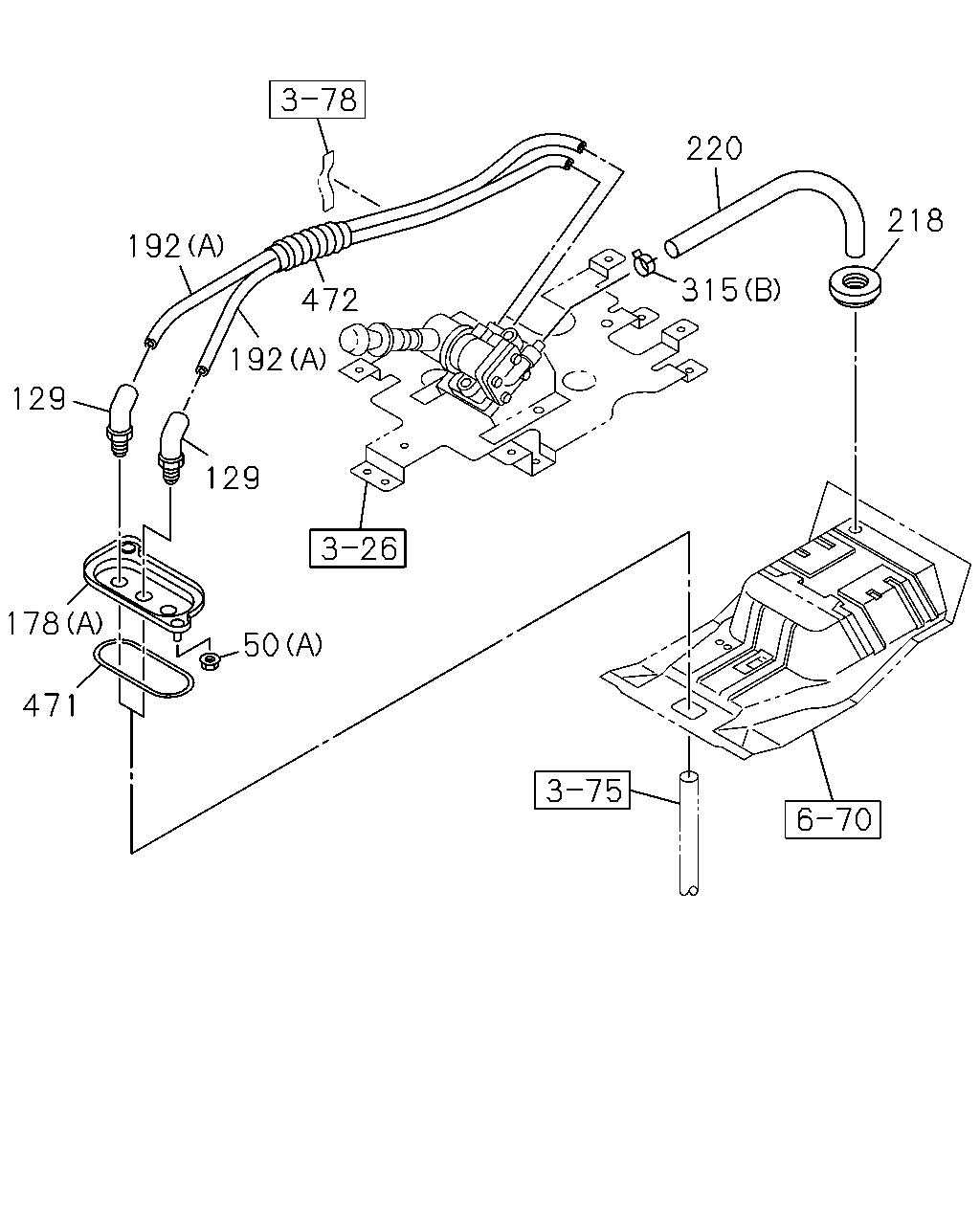

çizim 192340
220 218 192 315 472 192 129 129 178 50 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0710-0711 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-1110 ● ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
50 NUT; UNION BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-0 01 1 0710-0711 ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-0 01 1 0710-0711 ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712- ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712- ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712- ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712- ●
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-052-1 01 1 0712- ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0710-0711 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 02 1 0712-0804 ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0712-0804 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 0805- ●
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 0805- ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0710-0711 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 0710-0711 ●
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0712- ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98085-803-0 01 1 0802- ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98085-806-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98099-892-0 01 1 0712-0712 ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0712-0712 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98109-777-0 01 1 0801-0801 ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0801-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) 		8-98109-777-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0802- ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98099-893-0 01 1 0712-0712 ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0712-0712 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98109-778-0 01 1 0801-0801 ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0801-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) 		8-98109-778-0 01 1 0802- ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0802- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0912- ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0912- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ●
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710-0711 ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0712-0801 ● ●
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 0802- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0802- ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710-0711 ●
471 SEAL; BRKT 1-79738-832-0 01 1 0712-1110 ● ●
471 SEAL; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-832-0 01 1 1111- ●
471 SEAL; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-832-0 01 1 1111- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1111- ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710-0711 ●
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0712-1110 ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0712-1110 ●
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 1111- ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1111- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
