Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#65558) — 173 parça

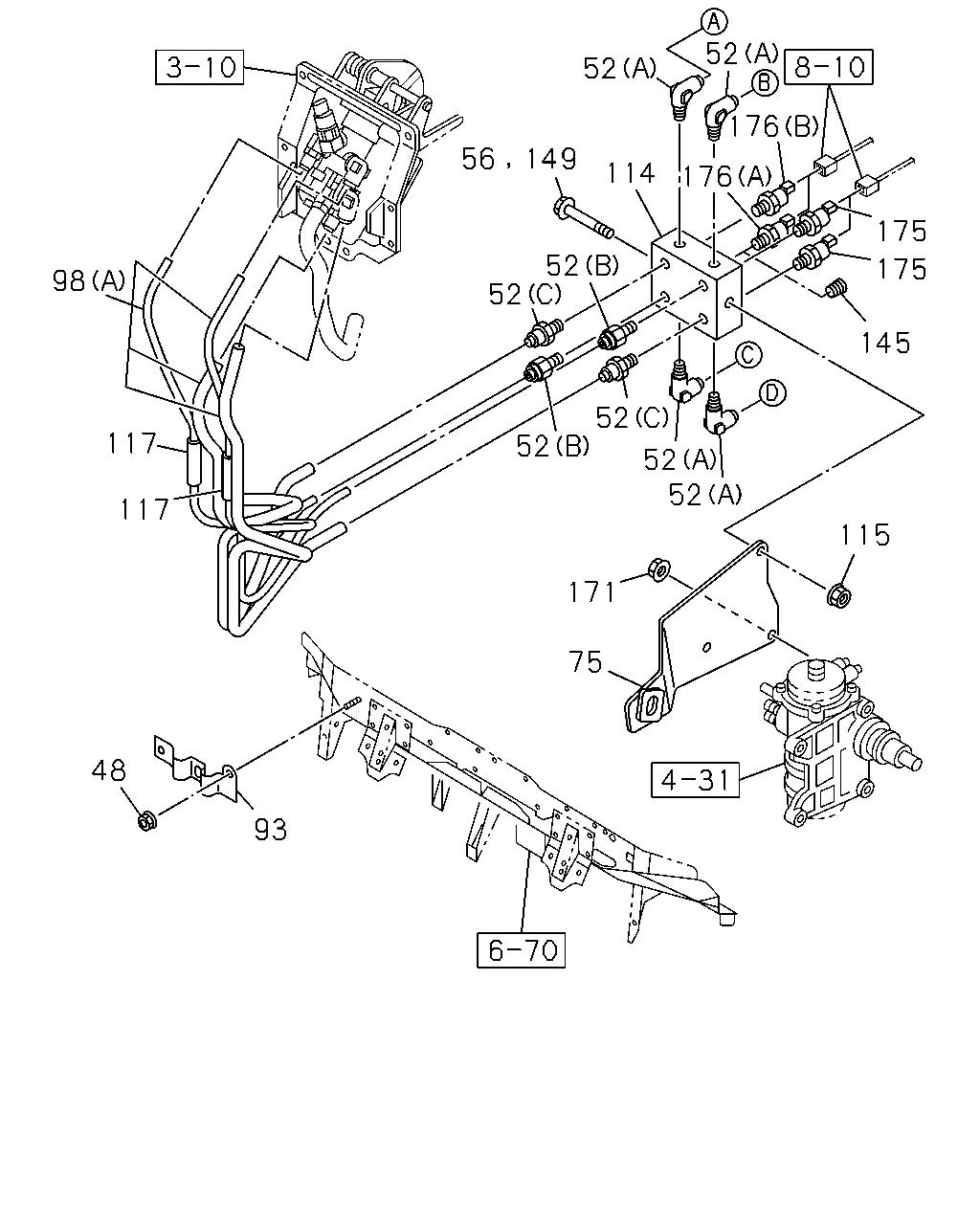

52 52 176 176 56 149 114 175 52 52 175 98 145 52 52 117 52 52 117 115 171 75 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	0802-	●
48	NUT; UNION BRKT M6 FLANGE	0-91180-106-0	02	1	0710-0711	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6 FLANGE	0-91180-106-0	02	1	0712-	●
48	NUT; UNION BRKT M6 FLANGE	0-91180-106-0	02	1	0712-		●
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	0802-	●
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	0802-	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0710-0711	●
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0712-	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0712-		●
52	CONNECTOR; NYLON TUBE (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0710-0711	●
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0712-	●
52	CONNECTOR; NYLON TUBE (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0712-		●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-0711	●
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0712-	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0712-		●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	0710-0711	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X100 FLANGE	0-28050-800-0	01	1	0712-	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	0712-		●
75	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98099-485-0	01	1	0803-0803	●
75	BRACKET; UNION	8-98099-485-1	01	1	0804-	●	●
75	BRACKET; UNION	8-98075-871-1	01	1	0710-0711	●
75	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98075-871-1	01	1	0712-0801	●
75	BRACKET; UNION	8-98075-871-1	01	1	0712-0801		●
75	BRACKET; UNION	8-98075-871-1	01	1	0802-0802	●	●
75	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98075-871-1	01	1	0803-0803	●
75	BRACKET; UNION	8-98075-871-1	01	1	0803-0803		●
93	BRACKET; UNION,TUBE	8-98044-013-0	01	1	0710-0711	●
93	BRACKET; UNION,TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98044-013-0	01	1	0712-	●
93	BRACKET; UNION,TUBE	8-98044-013-0	01	1	0712-		●
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-97625-675-0	01	1	0802-	●
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98111-287-0	01	1	0802-	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98091-308-0	01	1	0712-	●
98	TUBE; NYLON (A)	8-98091-308-0	01	1	0712-		●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0710-0711	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98091-307-0	01	1	0712-	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0710-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0710-0711	●
114	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98057-394-1	01	1	0712-0801	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0712-0801		●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0802-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
115	NUT; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0712-0801	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0712-0801		●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0802-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0710-	●	●
145	PLUG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4	9-99204-513-0	01	1	0710-0711	●
145	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4	9-99204-513-0	01	1	0712-0801	●
145	PLUG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4	9-99204-513-0	01	1	0712-0801		●
145	PLUG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4	9-99204-513-0	01	1	0802-	●	●
149	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X100 FLANGE	0-28050-800-0	01	1	0802-	●
171	NUT; BRACKET M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
171	NUT; BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0712-	●
171	NUT; BRACKET M10 FLANGE	0-91180-210-0	02	1	0712-		●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0710-0711	●
175	SENSOR; AIR PRESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) THREAD R1/4	1-80220-023-1	02	1	0712-0801	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0712-0801		●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0802-	●	●
176	SWITCH; AIR PRESS (B) STAMP 0.3	8-98010-857-0	01	1	0710-0711	●
176	SWITCH; AIR PRESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 0.3	8-98010-857-0	01	1	0712-0801	●
176	SWITCH; AIR PRESS (B) STAMP 0.3	8-98010-857-0	01	1	0712-0801		●
176	SWITCH; AIR PRESS (B) STAMP 0.3	8-98010-857-0	01	1	0802-	●	●
176	SWITCH; AIR PRESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 2.2	8-98010-858-0	01	1	0710-0711	●
176	SWITCH; AIR PRESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 2.2	8-98010-858-0	01	1	0712-0801	●
176	SWITCH; AIR PRESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 2.2	8-98010-858-0	01	1	0712-0801		●
176	SWITCH; AIR PRESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 2.2	8-98010-858-0	01	1	0802-	●	●

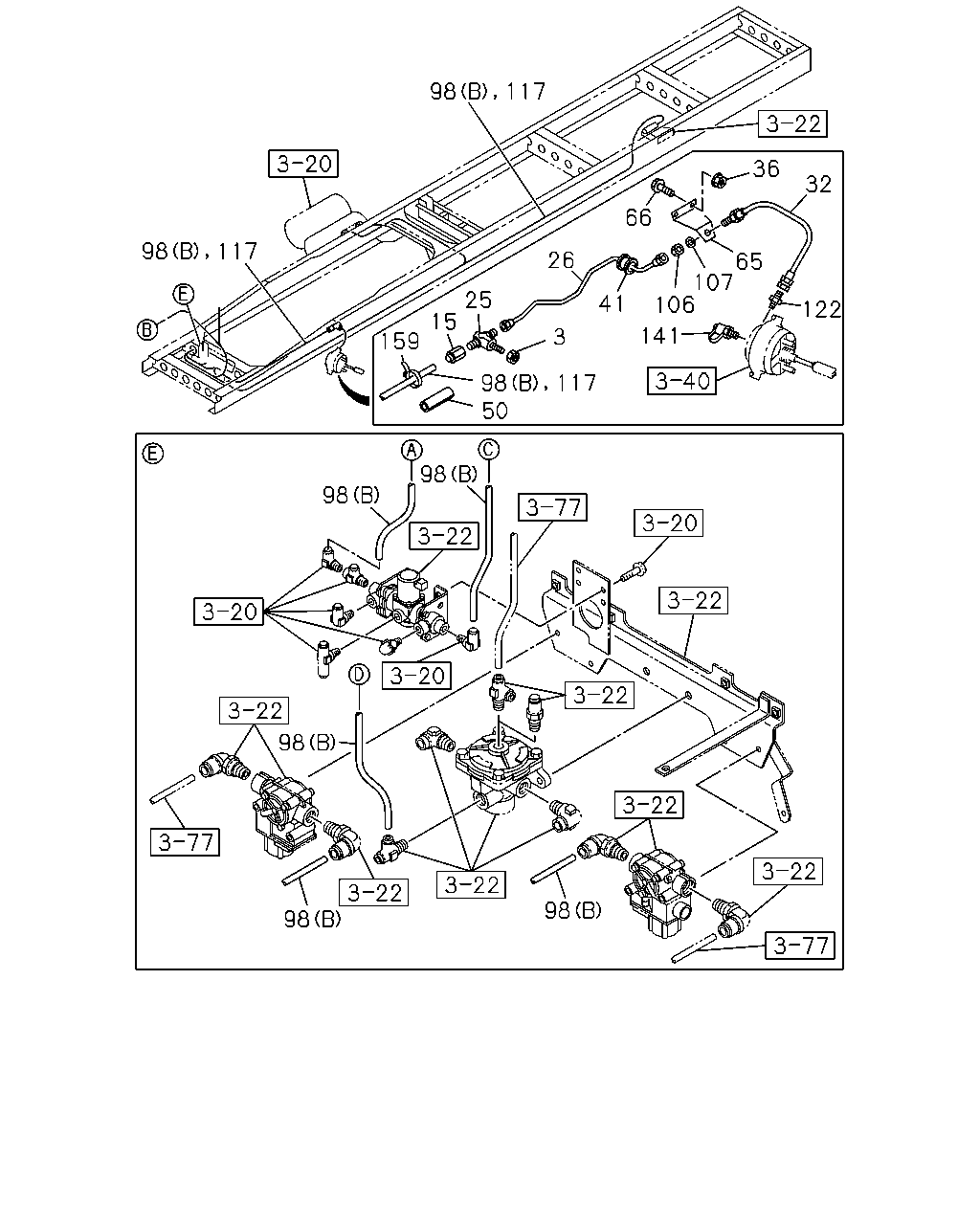

98 117 36 32 66 98 117 26 65 107 106 25 15 41 122 141 3 159 98 50 117 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; PIPE UNION M12	0-91111-512-0	02	1	0710-0711	●
3	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	0-91111-512-0	02	1	0712-	●
3	NUT; PIPE UNION M12	0-91111-512-0	02	1	0712-		●
15	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0710-0711	●
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0712-	●
15	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0712-		●
25	UNION; AIR PIPE M16X2 2WAY ELBOW	1-09654-148-1	02	1	0710-0711	●
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	0712-	●
25	UNION; AIR PIPE M16X2 2WAY ELBOW	1-09654-148-1	02	1	0712-		●
26	PIPE; AIR,UNION TO FLEX HOSE L=495	8-98105-383-0	01	1	0712-		●
26	PIPE; AIR,UNION TO FLEX HOSE L=507	8-98105-384-0	01	1	0712-		●
26	PIPE; AIR,UNION TO FLEX HOSE L=659	8-98091-273-0	01	1	0710-0711	●
26	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=659	8-98091-273-0	01	1	0712-0806	●
26	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=657	8-98126-150-1	01	1	0807-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=500	8-98091-274-0	01	1	0710-0711	●
26	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	8-98091-274-1	01	1	0712-	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	0710-0711	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98090-844-0	02	1	0712-	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	0712-		●
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
36	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0712-	●
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	0712-		●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0710-0711	●
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0712-	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0712-		●
50	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0806-0811	●
50	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	04	1	0710-0711	●
50	SLEEVE; RUBBER,NYLON TUBE AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	04	1	0712-0804	●
50	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	04	1	0712-0804		●
50	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	04	1	0712-		●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0710-0711	●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	0712-	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0712-		●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0710-0711	●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	0712-	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0712-		●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	0710-0711	●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0712-	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	0712-		●
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-97625-675-0	01	1	0802-	●
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98111-287-0	01	1	0802-	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98091-308-0	01	1	0712-	●
98	TUBE; NYLON (A)	8-98091-308-0	01	1	0712-		●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0710-0711	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98091-307-0	01	1	0712-	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0710-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0710-0711	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0712-	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0712-		●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0710-0711	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	02	1	0712-1009	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0712-1009		●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	02	1	1010-	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-816-0	02	1	1010-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0710-	●	●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0710-0711	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0712-	●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0712-		●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0710-0711	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0712-1105	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0712-1105	●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0712-1105		●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1106-	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1106-	●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1106-		●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-0711	●
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-		●
159	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	0812-	●
159	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0710-0711	●
159	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	01	1	0712-0811	●
159	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0712-0811		●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	02	1	0812-	●
159	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	0812-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
