◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#65557) — 721 parça

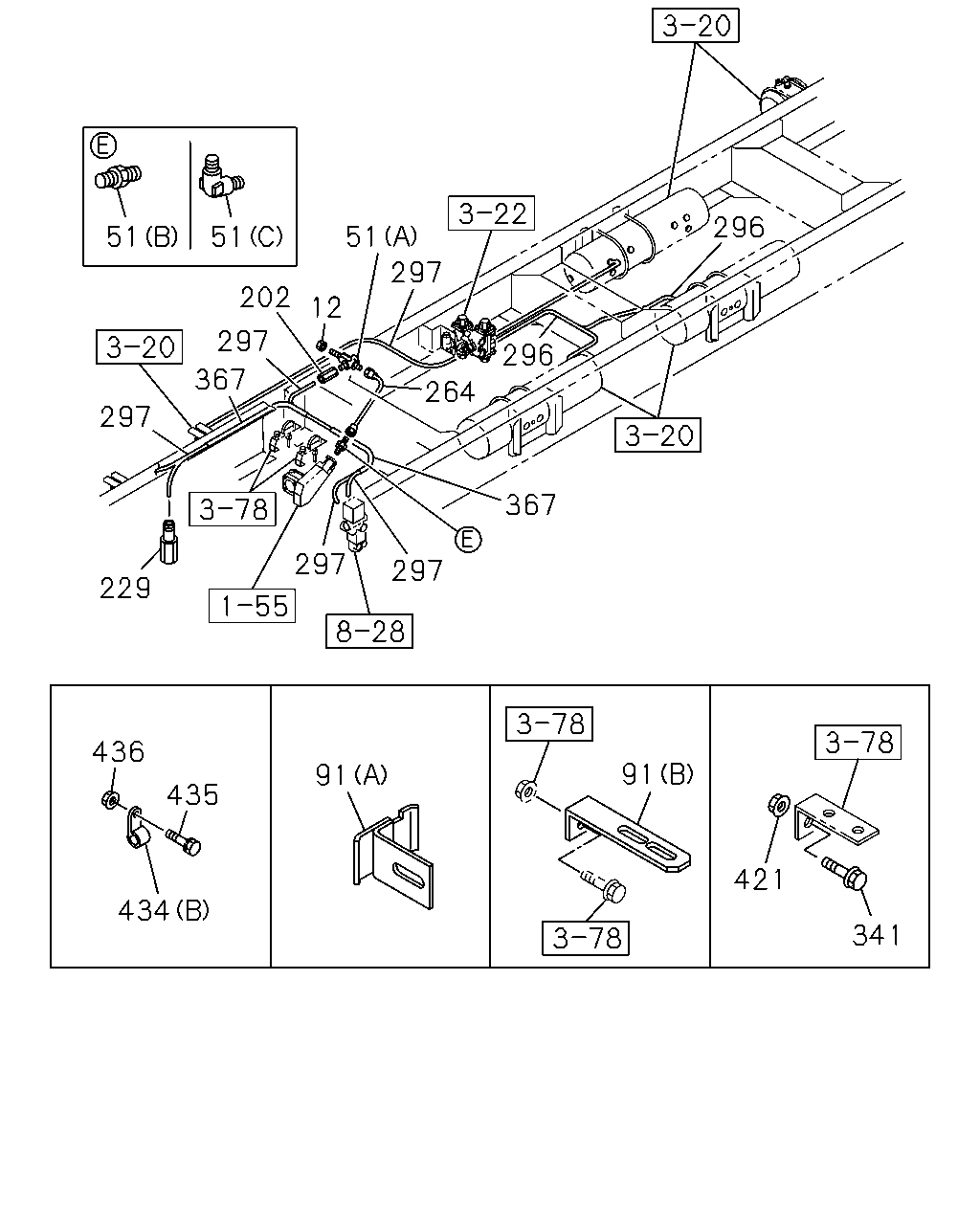

çizim 121217
296 51 51 51 297 202 12 297 296 367 264 297 367 297 297 229 436 91 91 435 421 434 341
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		0-91111-512-0 01 1 0710-0711 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0808 ● ●
12 NUT; UNION
EURO4 SPECIFICATION<NT4> M12 		0-91111-512-0 01 1 0809-1107 ●
12 NUT; UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 0809-1107 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0809-1107 ●
12 NUT; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1108- ●
12 NUT; UNION
EURO4 SPECIFICATION<NT4> M12 		0-91111-512-0 01 1 1108- ●
12 NUT; UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1108- ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 1108- ●
51 UNION
WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
51 UNION
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0712 ●
51 UNION
EXC. AUSTRALIA EQUIPMENT(B13) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0712 ●
51 UNION
WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0712 ●
51 UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0712 ●
51 UNION
WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0712 ●
51 UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801-0801 ●
51 UNION
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801-0801 ●
51 UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801-0801 ●
51 UNION
WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801-0801 ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801-0808 ●
51 UNION
EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809- ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0710 ●
51 UNION
WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0711 ●
51 UNION
WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0712 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0712 ●
51 UNION
WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0712 ●
51 UNION
WHEEL BASE 5000MM(50W) EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0712 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0712 ●
51 UNION
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801-0801 ●
51 UNION
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801-0801 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801-0801 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801- ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0710-0711 ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712-0808 ● ●
51 UNION
EURO4 SPECIFICATION<NT4> (A) M12 2WAY 		1-09654-059-2 01 1 0809- ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0809- ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0710-0711 ●
91 BRACKET; TUBE CLIP
AUSTRALIA EQUIPMENT(B13) (A) 		1-47479-693-0 01 1 0712-0712 ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0712-0712 ●
91 BRACKET; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) 		1-47479-693-0 01 1 0801-0803 ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0801-0803 ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0710-0711 ●
91 BRACKET; TUBE CLIP
AUSTRALIA EQUIPMENT(B13) (B) L=150 H=30 		1-47477-629-2 01 1 0712-0712 ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0712-0712 ●
91 BRACKET; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) L=150 H=30 		1-47477-629-2 01 1 0801- ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0801- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0808 ● ●
202 ADAPTER
EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
202 ADAPTER
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
202 ADAPTER
EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1112- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1112- ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0812-1107 ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0812-1107 ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108- ●
229 ADAPTER; NYLON TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108- ●
264 HOSE; FLEX
MZX6P M/T(RSW) EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0712-0712 ●
264 HOSE; FLEX
MZX6P M/T(RSW) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0801-0805 ●
264 HOSE; FLEX
MZX6P M/T(RSW) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0806-0808 ●
264 HOSE; FLEX
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0806-0808 ●
264 HOSE; FLEX
MZX6P M/T(RSW) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0809-0906 ●
264 HOSE; FLEX
MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0809-0906 ●
264 HOSE; FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0907- ●
264 HOSE; FLEX
MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310 		1-09363-713-0 01 1 0907- ●
264 HOSE; FLEX
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) L=280 		1-09363-672-0 01 1 0710-0711 ●
264 HOSE; FLEX
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) L=280 		1-09363-672-0 01 1 0712-0712 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0712-0712 ●
264 HOSE; FLEX
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=280 		1-09363-672-0 01 1 0801-0805 ●
264 HOSE; FLEX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=280 		1-09363-672-0 01 1 0801-0805 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0801-0805 ●
264 HOSE; FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=280 		1-09363-672-0 01 1 0806-0808 ●
264 HOSE; FLEX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=280 		1-09363-672-0 01 1 0806-0808 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0806-0808 ●
264 HOSE; FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> L=280 		1-09363-672-0 01 1 0809-0906 ●
264 HOSE; FLEX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> L=280 		1-09363-672-0 01 1 0809-0906 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0809-0906 ●
264 HOSE; FLEX
WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> L=280 		1-09363-672-0 01 1 0907-0907 ●
264 HOSE; FLEX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> L=280 		1-09363-672-0 01 1 0907-0907 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0907-0907 ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> L=280 		1-09363-672-0 01 1 0908- ●
264 HOSE; FLEX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> L=280 		1-09363-672-0 01 1 0908- ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0908- ●
264 HOSE; FLEX
MZX6P M/T(RSW) L=350 		1-09363-877-0 01 1 0710-0710 ●
264 HOSE; FLEX
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W) L=250 		1-09363-618-0 01 1 0710-0711 ●
264 HOSE; FLEX
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) L=250 		1-09363-618-0 01 1 0712-0712 ●
264 HOSE; FLEX
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		1-09363-618-0 01 1 0801-0805 ●
264 HOSE; FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		1-09363-618-0 01 1 0806-0808 ●
264 HOSE; FLEX
MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) L=250 		1-09363-618-0 01 1 0806-0808 ●
264 HOSE; FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> L=250 		1-09363-618-0 01 1 0809-0906 ●
264 HOSE; FLEX
MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> L=250 		1-09363-618-0 01 1 0809-0906 ●
264 HOSE; FLEX
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> L=250 		1-09363-618-0 01 1 0907- ●
264 HOSE; FLEX
MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> L=250 		1-09363-618-0 01 1 0907- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0908- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0908- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) M8X30 FLANGE 		0-28650-830-0 02 1 0801-0801 ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8X30 FLANGE 		0-28650-830-0 02 1 0801- ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0710 ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0711-0711 ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X30 FLANGE 		0-28650-830-0 02 1 0711-0711 ●
341 BOLT; BRKT
AUSTRALIA EQUIPMENT(B13) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0712 ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0712 ●
341 BOLT; BRKT
AUSTRALIA EQUIPMENT(B13) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0801 ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0802 ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0801-0801 ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0801- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0711-0711 ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0711-0711 ●
421 NUT; BRKT
AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0712-0712 ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0712-0712 ●
421 NUT; BRKT
AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
421 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 01 1 0801-0802 ●
421 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 01 1 0803- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1009- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 08 1 0801-0805 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 03 1 0806-0808 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350 		1-09707-183-0 03 1 0809- ●
434 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0712-0712 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0801-0801 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350 		1-09707-183-0 01 1 0801-0809 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0712 ● ●
434 CLIP
AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0802-0808 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ●

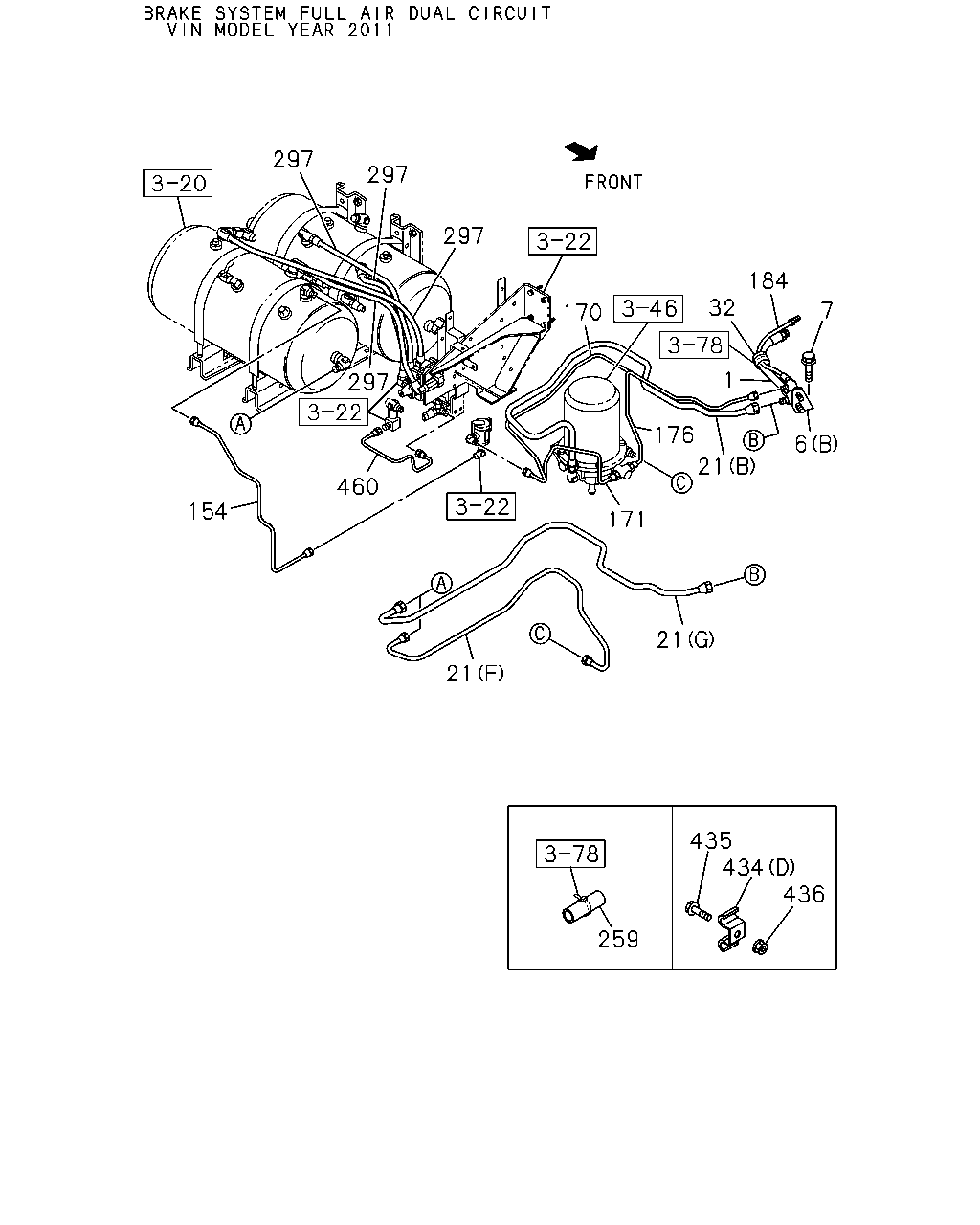

çizim 121251
297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> L=310 		8-97607-730-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0710-0711 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0712-0808 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> L=320 		8-98067-411-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (B) 		8-98117-117-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
TURBO - CONVENTIONAL<Q5T> (B) 		8-98117-117-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0710-0711 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0808 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98076-344-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 1009- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98173-546-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98184-503-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523 		8-98173-570-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526 		8-98184-504-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691 		8-98120-178-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540 		8-98117-033-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540 		8-98117-033-0 01 1 1009-1009 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548 		8-98174-993-0 01 1 1010- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98117-819-0 01 1 0809-0904 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98147-087-0 01 1 0905-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		8-98147-087-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98147-087-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630 		8-98120-164-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1782 		8-98105-419-1 01 1 0712-1010 ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1772 		8-98181-782-0 01 1 1011- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1705 		8-98101-992-0 01 1 0802-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1823 		8-98120-240-0 01 1 0804-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823 		8-98120-240-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-98094-948-1 01 1 0710-0711 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) 		8-98094-948-1 01 1 0712-0806 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) L=2033 		8-98126-152-1 01 1 0807- ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0801-0801 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0802-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715 		8-98095-083-0 01 1 1009- ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-1008 ●
32 SLEEVE; RUBBER,AIR PIPE
TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1009- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-547-0 01 1 1012-1012 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98127-306-0 01 1 0809-0904 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98145-853-0 01 1 0905-1008 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98167-337-0 01 1 1009-1110 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> 		8-98167-337-0 01 1 1111- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98127-353-0 01 1 0809-1110 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98127-353-0 01 1 1111- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98120-165-0 01 1 0809-0907 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 0908-1008 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 1009- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1110 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 1111- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1008 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1009- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620 		1-47428-820-0 01 1 0809-1110 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620 		1-47428-820-0 01 1 1111- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-1008 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1009- ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=350 		1-09363-624-0 01 1 0809-1008 ●
184 HOSE; FLEX,AIR GOV
TURBO - CONVENTIONAL<Q5T> L=350 		1-09363-624-0 01 1 1009- ●
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1012- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0711 ●
259 SLEEVE; RUBBER,NYLON TUBE
AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0712 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0712 ●
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0801-0804 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0801-0804 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0908- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0908- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1009- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 08 1 0801-0805 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 03 1 0806-0808 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350 		1-09707-183-0 03 1 0809- ●
434 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0712-0712 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0801-0801 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350 		1-09707-183-0 01 1 0801-0809 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0712 ● ●
434 CLIP
AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0802-0808 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
460 PIPE; AIR,PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-460-0 01 1 1012-1012 ●
460 PIPE; AIR,PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98184-394-0 01 1 1012- ●

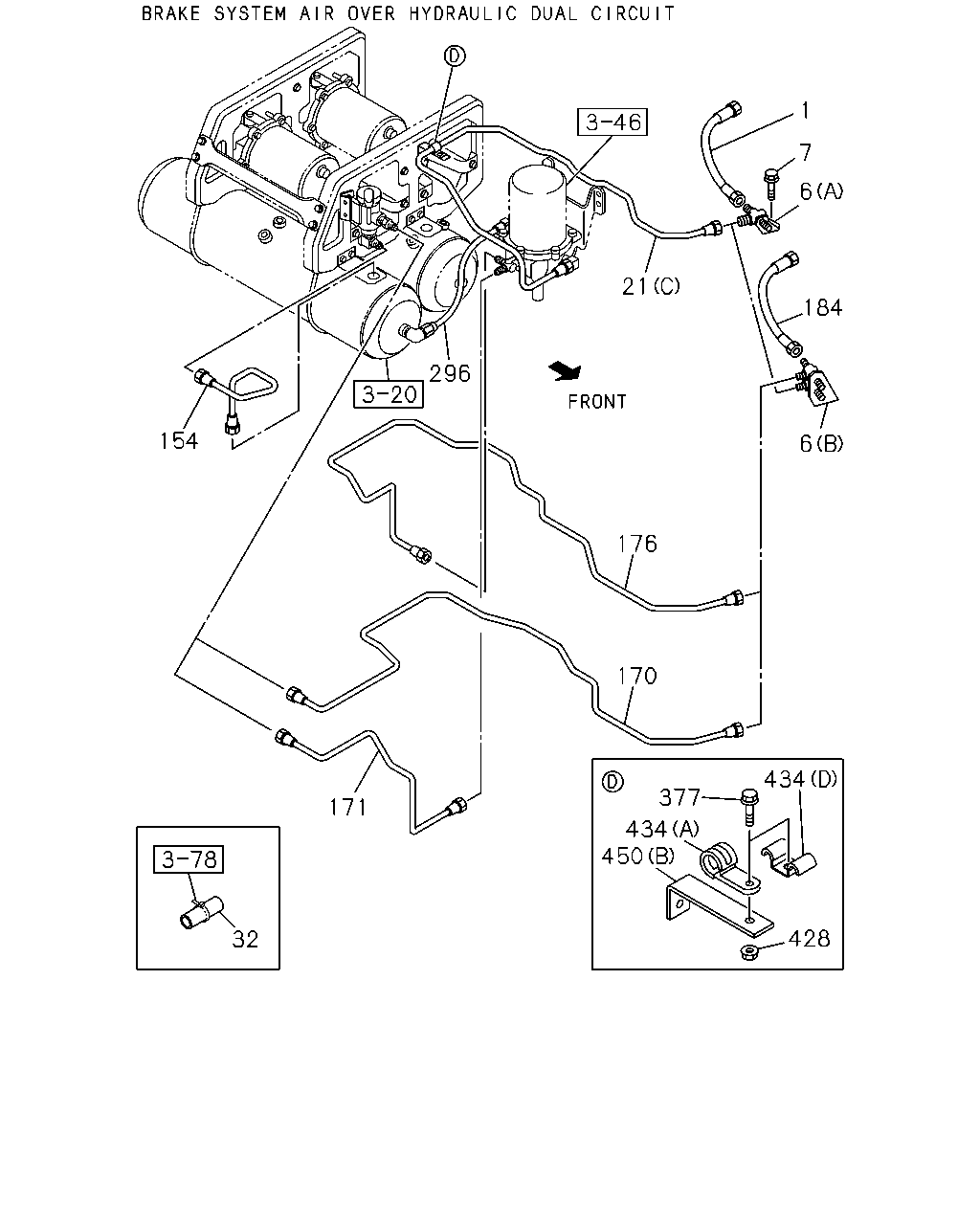

çizim 121392
1 7 6 21 184 296 154 6 176 170 434 377 171 434 450 428 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> L=310 		8-97607-730-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0710-0711 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0712-0808 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> L=320 		8-98067-411-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (B) 		8-98117-117-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
TURBO - CONVENTIONAL<Q5T> (B) 		8-98117-117-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0710-0711 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0808 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98076-344-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 1009- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98173-546-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98184-503-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523 		8-98173-570-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526 		8-98184-504-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691 		8-98120-178-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540 		8-98117-033-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540 		8-98117-033-0 01 1 1009-1009 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548 		8-98174-993-0 01 1 1010- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98117-819-0 01 1 0809-0904 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98147-087-0 01 1 0905-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		8-98147-087-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98147-087-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630 		8-98120-164-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1782 		8-98105-419-1 01 1 0712-1010 ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1772 		8-98181-782-0 01 1 1011- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1705 		8-98101-992-0 01 1 0802-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1823 		8-98120-240-0 01 1 0804-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823 		8-98120-240-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-98094-948-1 01 1 0710-0711 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) 		8-98094-948-1 01 1 0712-0806 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) L=2033 		8-98126-152-1 01 1 0807- ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0801-0801 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0802-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715 		8-98095-083-0 01 1 1009- ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-1008 ●
32 SLEEVE; RUBBER,AIR PIPE
TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1009- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-547-0 01 1 1012-1012 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98127-306-0 01 1 0809-0904 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98145-853-0 01 1 0905-1008 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98167-337-0 01 1 1009-1110 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> 		8-98167-337-0 01 1 1111- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98127-353-0 01 1 0809-1110 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98127-353-0 01 1 1111- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98120-165-0 01 1 0809-0907 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 0908-1008 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 1009- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1110 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 1111- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1008 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1009- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620 		1-47428-820-0 01 1 0809-1110 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620 		1-47428-820-0 01 1 1111- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-1008 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1009- ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=350 		1-09363-624-0 01 1 0809-1008 ●
184 HOSE; FLEX,AIR GOV
TURBO - CONVENTIONAL<Q5T> L=350 		1-09363-624-0 01 1 1009- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0801-0809 ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0801- ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 02 1 0802-0803 ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 01 1 0804- ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 02 1 0802-0803 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 0804-0809 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0804-0809 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1009- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 08 1 0801-0805 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 03 1 0806-0808 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350 		1-09707-183-0 03 1 0809- ●
434 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0712-0712 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0801-0801 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350 		1-09707-183-0 01 1 0801-0809 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0712 ● ●
434 CLIP
AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0802-0808 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98106-046-0 01 1 0801- ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98074-610-0 01 1 0801- ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) L=65 		1-47477-713-0 01 1 0801-0809 ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25 		1-47475-530-0 02 1 0802-0803 ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25 		1-47475-530-0 01 1 0804- ●

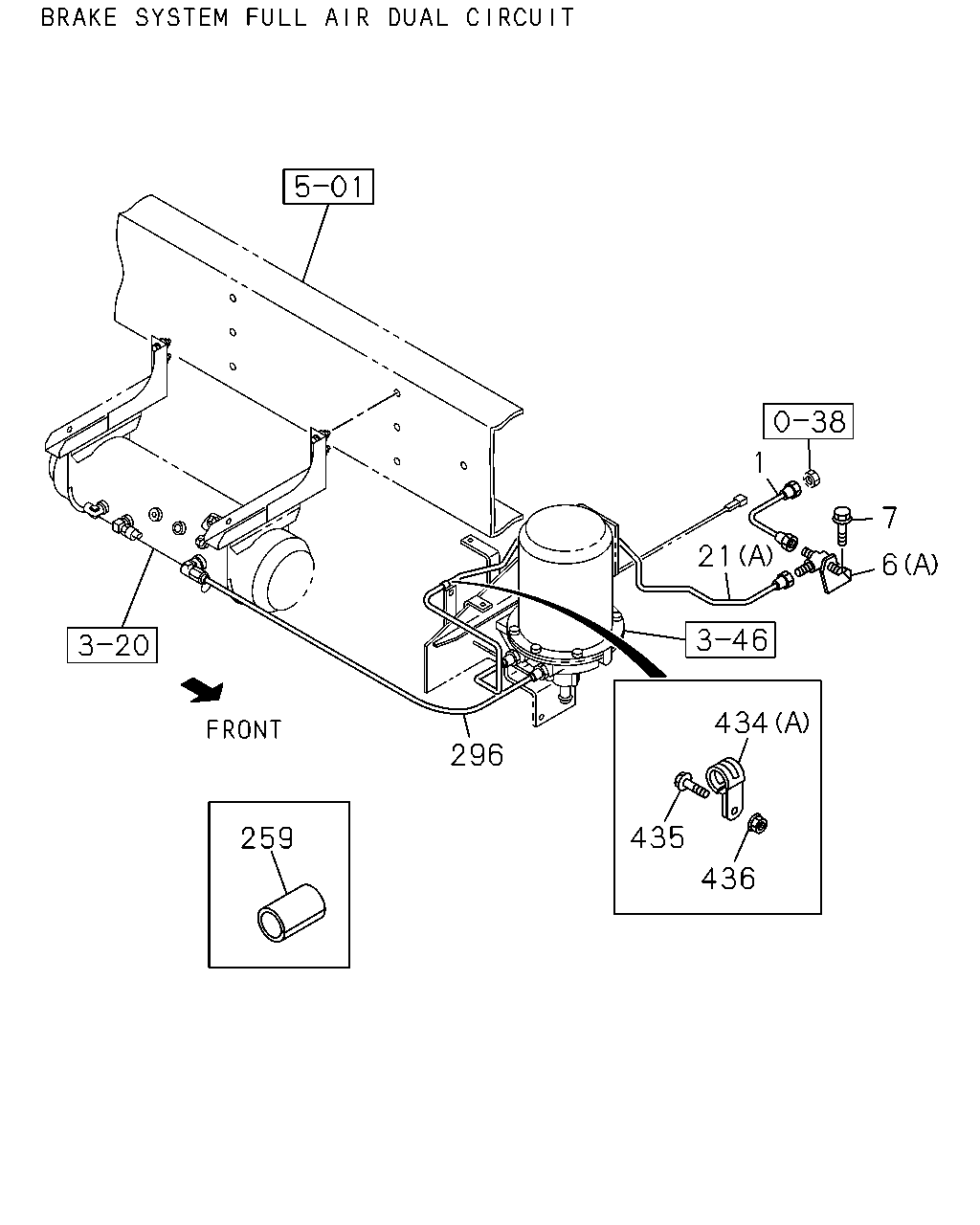

çizim 121423
1 7 21 6 434 296 435 259 436
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> L=310 		8-97607-730-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0710-0711 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0712-0808 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> L=320 		8-98067-411-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (B) 		8-98117-117-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
TURBO - CONVENTIONAL<Q5T> (B) 		8-98117-117-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0710-0711 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0808 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98076-344-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 1009- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98173-546-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98184-503-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523 		8-98173-570-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526 		8-98184-504-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691 		8-98120-178-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540 		8-98117-033-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540 		8-98117-033-0 01 1 1009-1009 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548 		8-98174-993-0 01 1 1010- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98117-819-0 01 1 0809-0904 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98147-087-0 01 1 0905-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		8-98147-087-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98147-087-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630 		8-98120-164-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1782 		8-98105-419-1 01 1 0712-1010 ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1772 		8-98181-782-0 01 1 1011- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1705 		8-98101-992-0 01 1 0802-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1823 		8-98120-240-0 01 1 0804-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823 		8-98120-240-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-98094-948-1 01 1 0710-0711 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) 		8-98094-948-1 01 1 0712-0806 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) L=2033 		8-98126-152-1 01 1 0807- ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0801-0801 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0802-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715 		8-98095-083-0 01 1 1009- ●
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1012- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0711 ●
259 SLEEVE; RUBBER,NYLON TUBE
AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0712 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0712 ●
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0801-0804 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0801-0804 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1009- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 08 1 0801-0805 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 03 1 0806-0808 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350 		1-09707-183-0 03 1 0809- ●
434 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0712-0712 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0801-0801 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350 		1-09707-183-0 01 1 0801-0809 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0712 ● ●
434 CLIP
AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0802-0808 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ●

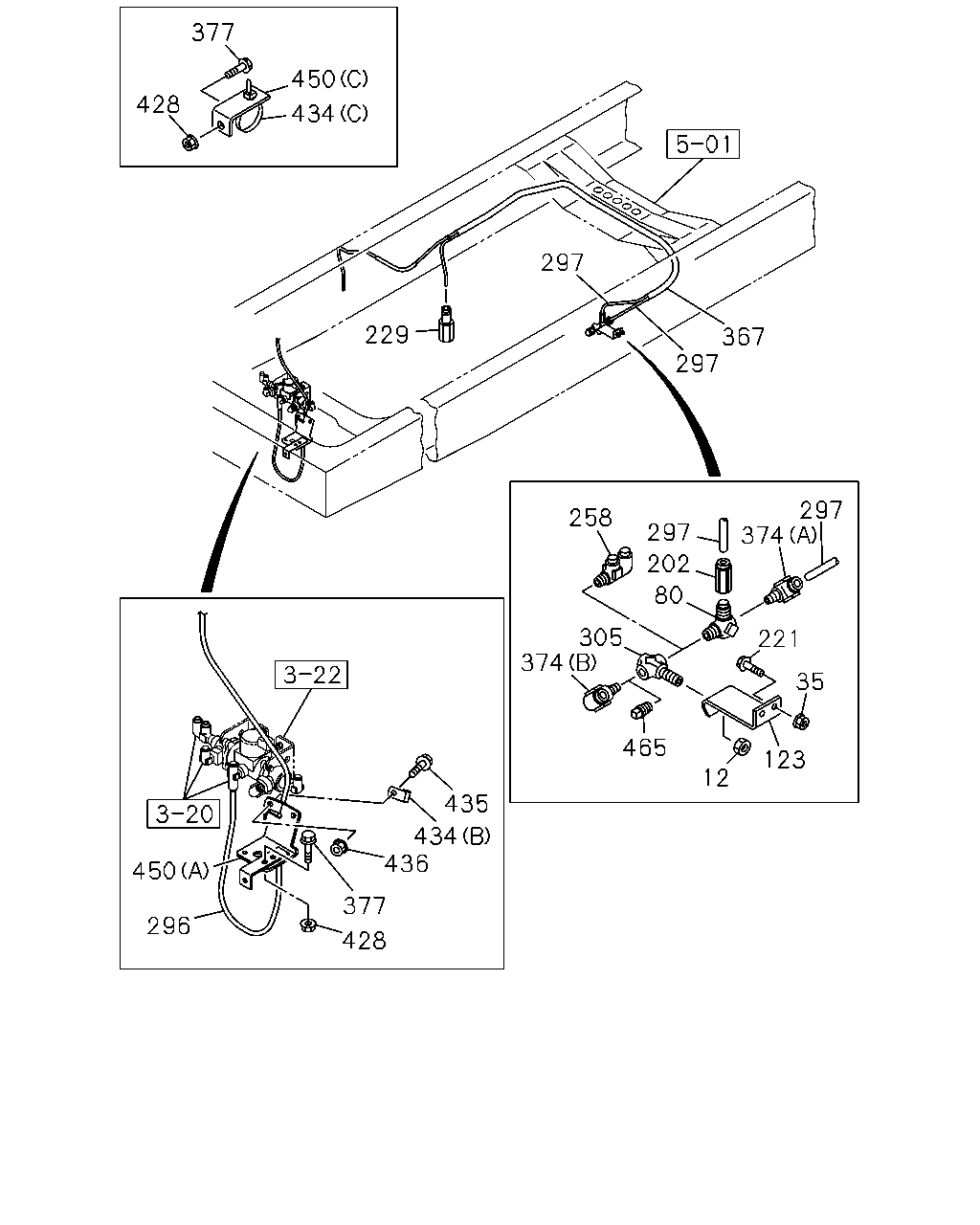

çizim 121432
377 450 428 434 297 229 367 297 297 374 258 297 202 80 305 374 221 35 465 123 12 435 434 436 450 377 296 428
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		0-91111-512-0 01 1 0710-0711 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0808 ● ●
12 NUT; UNION
EURO4 SPECIFICATION<NT4> M12 		0-91111-512-0 01 1 0809-1107 ●
12 NUT; UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 0809-1107 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0809-1107 ●
12 NUT; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1108- ●
12 NUT; UNION
EURO4 SPECIFICATION<NT4> M12 		0-91111-512-0 01 1 1108- ●
12 NUT; UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1108- ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 1108- ●
35 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0809- ●
80 UNION; 3 WAY
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1107 ●
80 UNION; 3 WAY
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1108-1111 ●
123 BRACKET; UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 0809-1107 ●
123 BRACKET; UNION
EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98118-545-0 01 1 1108- ●
123 BRACKET; UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98118-545-0 01 1 1108- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0808 ● ●
202 ADAPTER
EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
202 ADAPTER
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
202 ADAPTER
EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1112- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1112- ●
221 BOLT; BRKT
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809 ●
221 BOLT; BRKT
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0810- ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0812-1107 ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0812-1107 ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108- ●
229 ADAPTER; NYLON TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108- ●
258 CONNECTOR; NYLON TUBE
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0908- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0908- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
305 UNION ASM; NYLON TUBE
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 0809-1107 ●
305 UNION ASM; NYLON TUBE
EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1108- ●
305 UNION ASM; NYLON TUBE
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1108- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ●
374 CONNECTOR
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1107 ●
374 CONNECTOR
EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1108-1111 ●
374 CONNECTOR
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1108-1111 ●
374 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
374 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-0906 ●
374 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-0906 ●
374 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-0906 ●
374 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-0906 ●
374 CONNECTOR
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907-1107 ●
374 CONNECTOR
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907-1107 ●
374 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1108- ●
374 CONNECTOR
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1108- ●
374 CONNECTOR
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1108- ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0801-0809 ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0801- ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 02 1 0802-0803 ●
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 01 1 0804- ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 02 1 0802-0803 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 0804-0809 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0804-0809 ●
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1009- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 08 1 0801-0805 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 03 1 0806-0808 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350 		1-09707-183-0 03 1 0809- ●
434 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0712-0712 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0801-0801 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350 		1-09707-183-0 01 1 0801-0809 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0712 ● ●
434 CLIP
AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0802-0808 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98106-046-0 01 1 0801- ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98074-610-0 01 1 0801- ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) L=65 		1-47477-713-0 01 1 0801-0809 ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25 		1-47475-530-0 02 1 0802-0803 ●
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25 		1-47475-530-0 01 1 0804- ●
465 PLUG
EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809- ●
çizim 121664
184 170 21 7 1 296 296 296 6 176 171 21 21 435 434 436 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> L=310 		8-97607-730-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0710-0711 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0712-0808 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0809-1008 ●
1 HOSE; FLEX,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> L=320 		8-98067-411-0 01 1 1009- ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (B) 		8-98117-117-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
TURBO - CONVENTIONAL<Q5T> (B) 		8-98117-117-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0710-0711 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0808 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0809-1008 ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98076-344-0 01 1 1009- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 1009- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98173-546-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F) 		8-98184-503-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523 		8-98173-570-0 01 1 1012-1012 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526 		8-98184-504-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691 		8-98120-178-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540 		8-98117-033-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540 		8-98117-033-0 01 1 1009-1009 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548 		8-98174-993-0 01 1 1010- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98117-819-0 01 1 0809-0904 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		8-98147-087-0 01 1 0905-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		8-98147-087-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98147-087-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630 		8-98120-164-0 01 1 1009-1011 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630 		8-98120-164-0 01 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1782 		8-98105-419-1 01 1 0712-1010 ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1772 		8-98181-782-0 01 1 1011- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1705 		8-98101-992-0 01 1 0802-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1823 		8-98120-240-0 01 1 0804-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823 		8-98120-240-0 01 1 0809- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-98094-948-1 01 1 0710-0711 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) 		8-98094-948-1 01 1 0712-0806 ●
21 PIPE; AIR,UNION TO AIR DRYER
AUSTRALIA EQUIPMENT(B13) (A) L=2033 		8-98126-152-1 01 1 0807- ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0712-0712 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730 		8-98105-723-0 01 1 0801-0801 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0802-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715 		8-98095-083-0 01 1 0809-1008 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715 		8-98095-083-0 01 1 1009- ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-1008 ●
32 SLEEVE; RUBBER,AIR PIPE
TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1009- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98127-353-0 01 1 0809-1110 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98127-353-0 01 1 1111- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98120-165-0 01 1 0809-0907 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 0908-1008 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 1009- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1110 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 1111- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1008 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1009- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620 		1-47428-820-0 01 1 0809-1110 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620 		1-47428-820-0 01 1 1111- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-1008 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1009- ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=350 		1-09363-624-0 01 1 0809-1008 ●
184 HOSE; FLEX,AIR GOV
TURBO - CONVENTIONAL<Q5T> L=350 		1-09363-624-0 01 1 1009- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1009-1110 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1111- ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0809-1008 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1009- ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 08 1 0801-0805 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350 		1-09707-183-0 03 1 0806-0808 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350 		1-09707-183-0 03 1 0809- ●
434 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0712-0712 ●
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28 		0-95235-556-0 02 1 0801-0801 ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350 		1-09707-183-0 01 1 0801-0809 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0712 ● ●
434 CLIP
AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0802-0808 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0809-1008 ●
434 CLIP
EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1009- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
