3-55 — BRAKE PIPING; OIL,REAR (#65555) — 48 parça

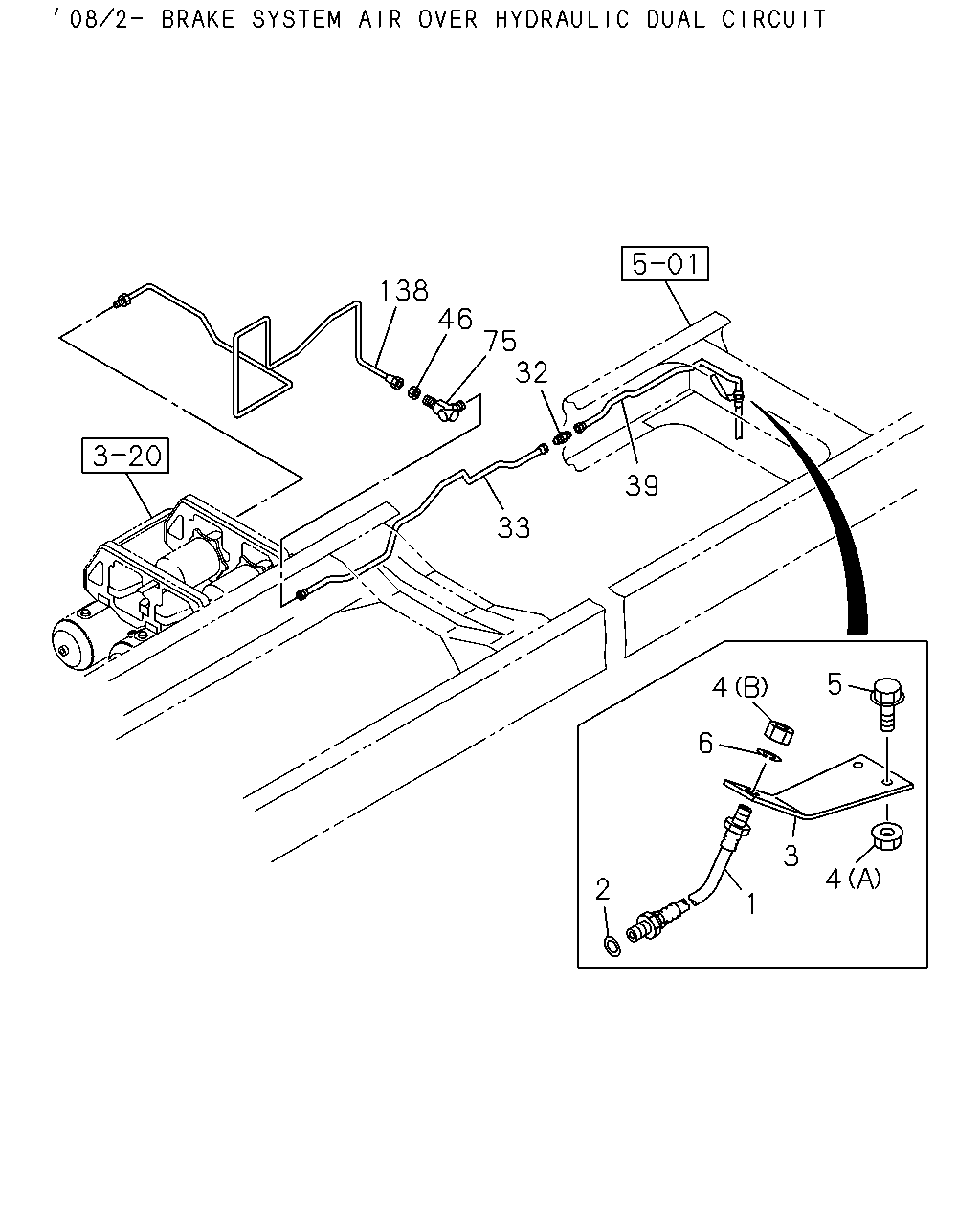

çizim 119932
138 46 75 32 39 33 5 4 6 3 4 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700 		0-05312-700-0 01 1 0802-0907 ●
1 HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700 		0-05212-700-0 01 1 0908- ●
2 GASKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17 		9-09920-472-0 01 1 0905- ●
3 BRACKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47465-251-0 01 1 0802- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE 		0-91180-108-0 02 1 0802- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 		9-09840-280-0 01 1 0802- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28650-825-0 02 1 0802- ●
6 WASHER; LK,FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		0-91510-512-0 01 1 0802- ●
32 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40 		0-92113-006-0 01 1 0802- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=940 SERVICED BY L=1000 		1-47428-730-0 01 1 0809-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=941 SERVICED BY L=1000 		1-47428-730-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1717 SERVICED BY L=1820 		1-47428-738-0 01 1 0809-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1708 SERVICED BY L=1820 		1-47428-738-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2866 SERVICED BY L=2900 		1-47428-744-0 01 1 0809-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2856 SERVICED BY L=2900 		1-47428-744-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98109-539-0 01 1 0802-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1341 SERVICED BY L=1370 		1-47428-734-0 01 1 0804-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1342 SERVICED BY L=1370 		1-47428-734-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2140 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2141 SERVICED BY L=2200 		1-47428-740-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2644 SERVICED BY L=2650 		1-47428-743-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2649 SERVICED BY L=2650 		1-47428-743-0 01 1 0809-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2650 SERVICED BY L=2650 		1-47428-743-0 01 1 0901- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2336 SERVICED BY L=2350 		1-47428-741-0 01 1 0809- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2140 SERVICED BY L=2200 		1-47428-740-0 01 1 0802-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0804 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2086 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0808 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2086 SERVICED BY L=2200 		1-47428-740-0 01 1 0809- ●
46 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 0802- ●
75 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 ELBOW 		0-92125-206-0 01 1 0802- ●
138 PIPE; HYDRAULIC UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=504 SERVICED BY L=550 		1-47428-724-0 01 1 0802-0803 ●
138 PIPE; HYDRAULIC UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=994 SERVICED BY L=1000 		1-47428-730-0 01 1 0804-0806 ●
138 PIPE; HYDRAULIC UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=504 SERVICED BY L=550 		1-47428-724-0 01 1 0807- ●

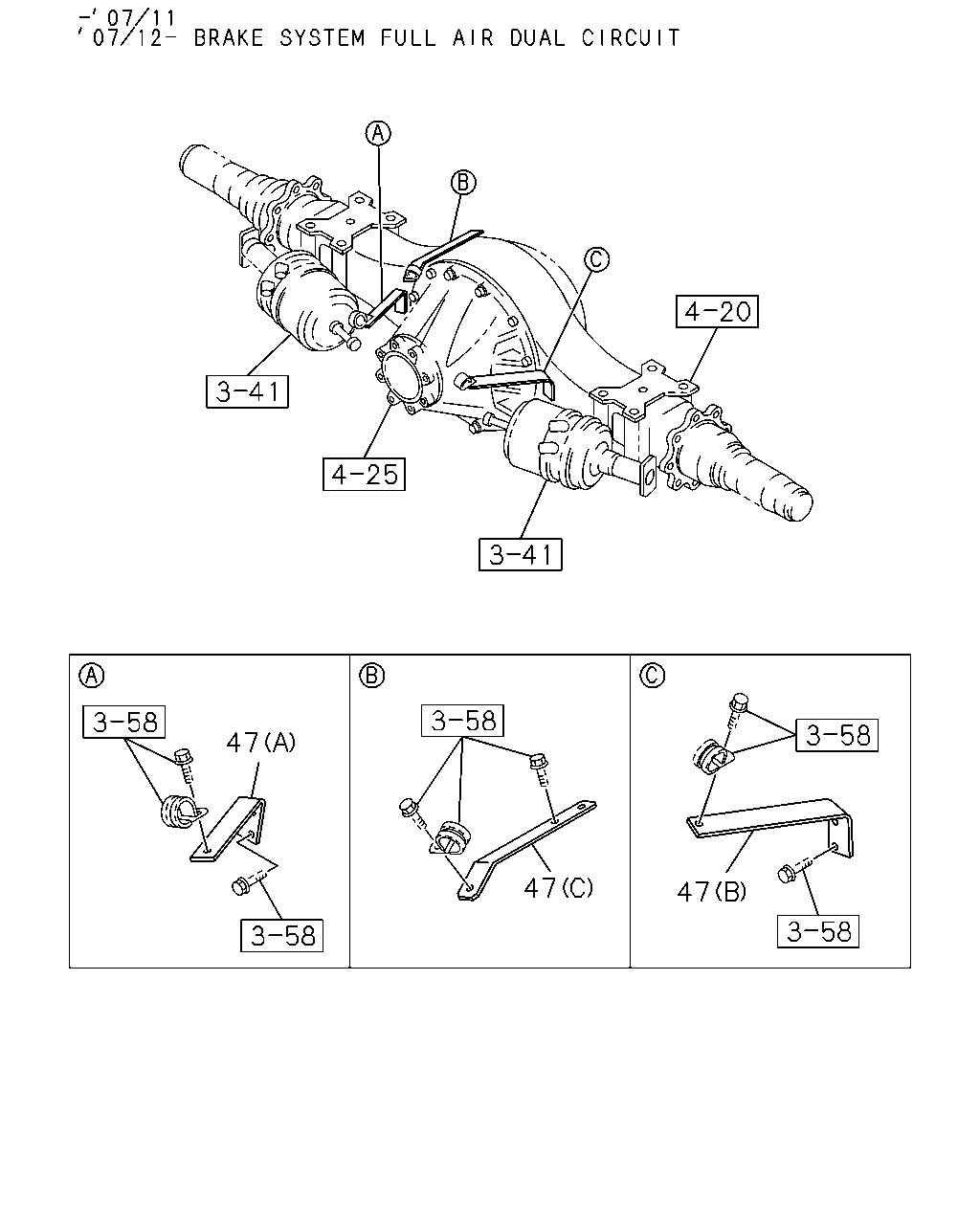

çizim 192338
47 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 BRACKET
(A) 		1-42129-515-2 01 1 0710-0711 ●
47 BRACKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-515-2 01 1 0712- ●
47 BRACKET
(A) 		1-42129-515-2 01 1 0712- ●
47 BRACKET
(B) 		1-42129-516-2 01 1 0710-0711 ●
47 BRACKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-516-2 01 1 0712- ●
47 BRACKET
(B) 		1-42129-516-2 01 1 0712- ●
47 BRACKET
(C) 		8-98057-873-0 01 1 0710-0711 ●
47 BRACKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-873-0 01 1 0712- ●
47 BRACKET
(C) 		8-98057-873-0 01 1 0712- ●

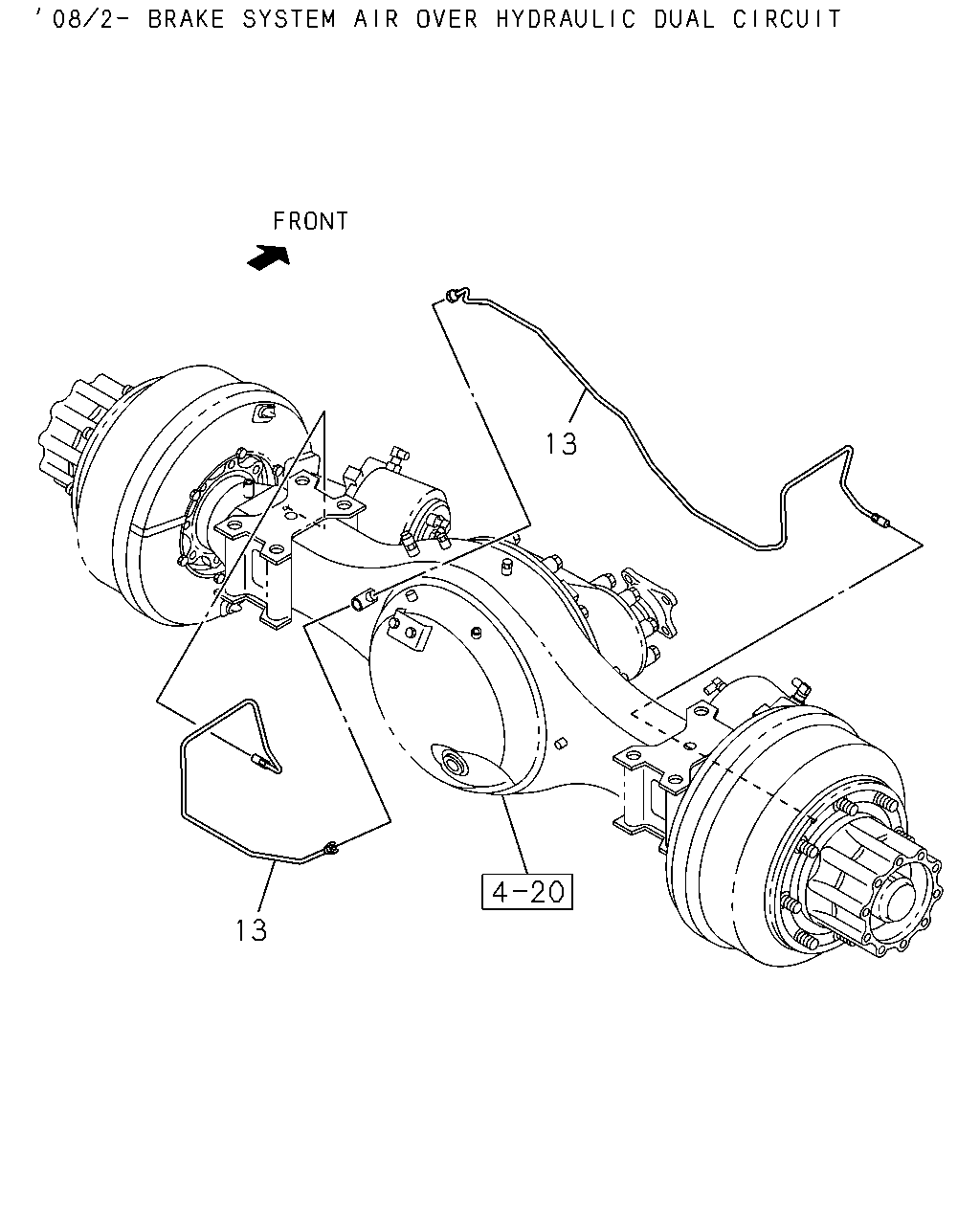

çizim 192401
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98053-665-0 01 1 0712-0802 ●
13 PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98115-431-0 01 1 0803-0810 ●
13 PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98134-989-0 01 1 0811- ●
13 PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98053-666-0 01 1 0712-0802 ●
13 PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98115-432-0 01 1 0803-0810 ●
13 PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98134-990-0 01 1 0811- ●
