1 |

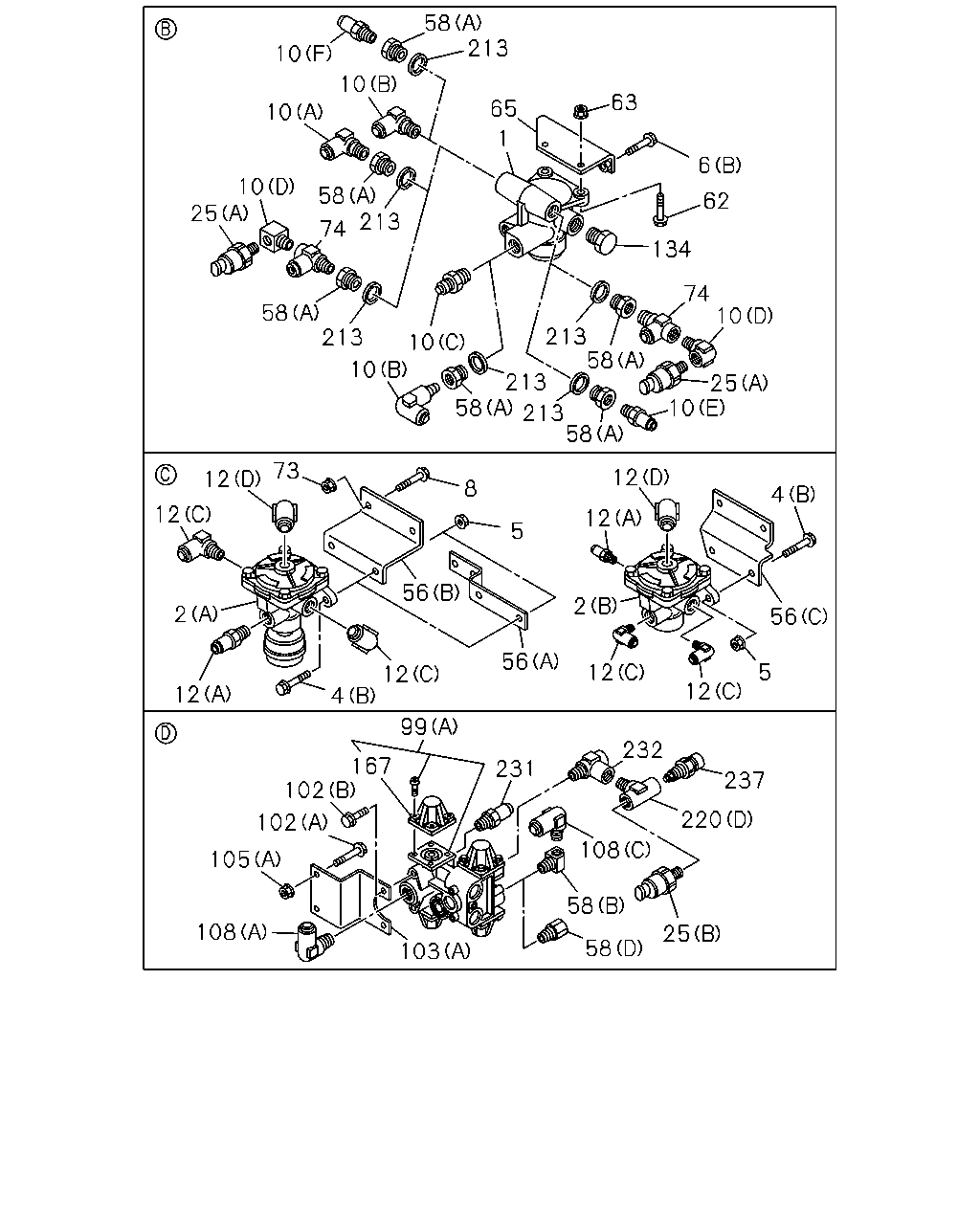

VALVE; RELAY RWD RR
|
1-48240-354-1 |
01 |
1 |
0710-0711 |
● |
|
| |
1 |
VALVE; RELAY RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
|
1-48240-354-1 |
01 |
1 |
0712-0712 |
● |
|
| |
1 |
VALVE; RELAY RWD RR
EXC. AUSTRALIA EQUIPMENT(B13)
|
1-48240-354-1 |
01 |
1 |
0712-0712 |
● |
|
| |
1 |
VALVE; RELAY RWD RR
|
1-48240-354-1 |
01 |
1 |
0712-0712 |
|
● |
| |
1 |
VALVE; RELAY RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48240-354-1 |
01 |
1 |
0801- |
● |
|
| |
1 |
VALVE; RELAY RWD RR
|
1-48240-354-1 |
01 |
1 |
0801- |
|
● |
| |
2 |

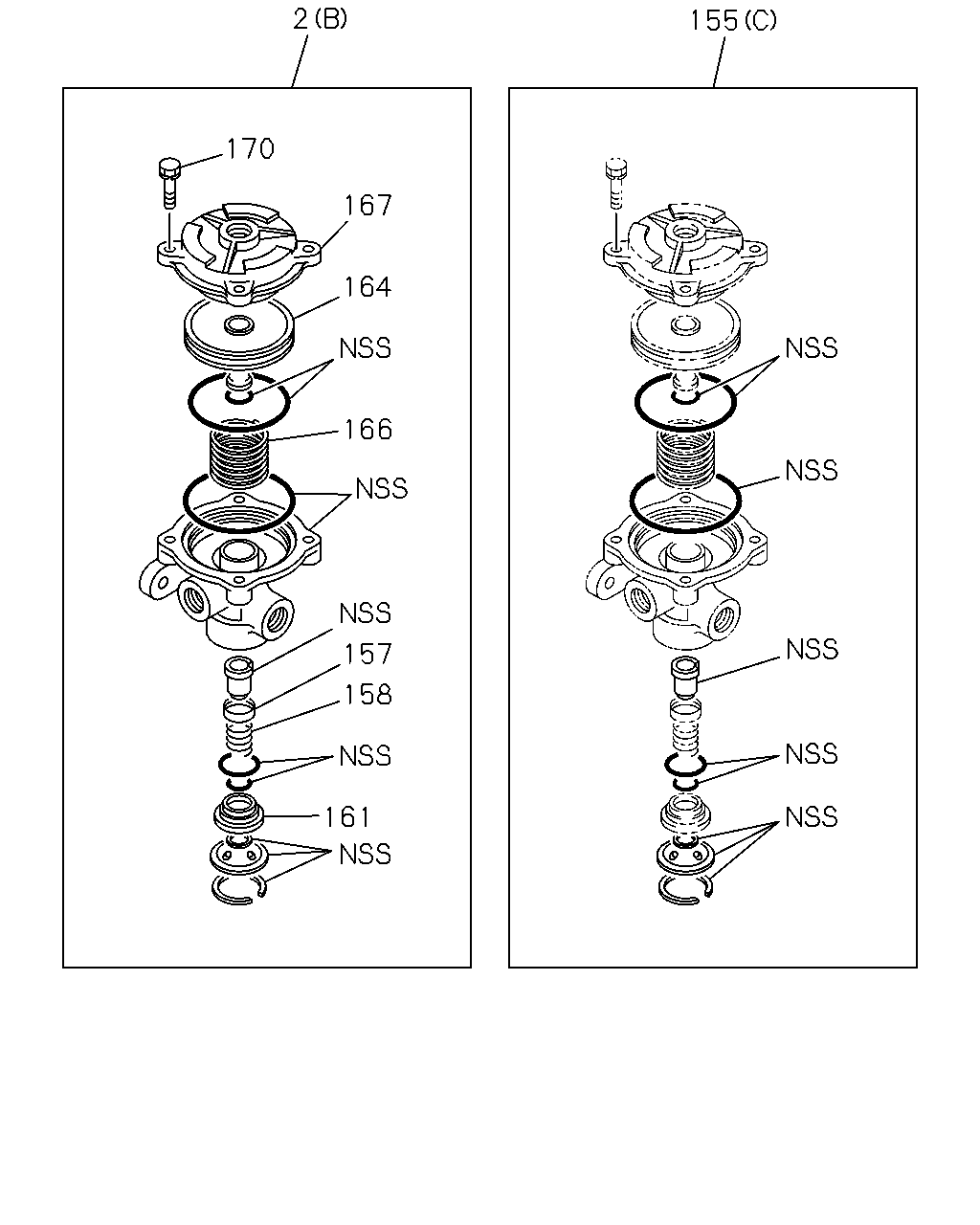

VALVE; RELAY
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-48210-875-0 |
01 |
1 |
0801-0801 |
● |
|
| |
2 |
VALVE; RELAY
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-48210-875-0 |
01 |
1 |
0801-0801 |
● |
|
| |
2 |
VALVE; RELAY
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-48210-875-0 |
01 |
1 |
0801-0808 |
● |
|
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-48210-875-0 |
01 |
1 |
0801-0808 |
● |
|
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
|
1-48210-875-0 |
01 |
1 |
0809-0907 |
● |
|
| |
2 |
VALVE; RELAY
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
(B)
|
1-48210-875-0 |
01 |
1 |
0809-0907 |
● |
|
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-48210-875-0 |
01 |
1 |
0809-0907 |
● |
|
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
|
1-48210-875-0 |
01 |
1 |
0908-1107 |
● |
|
| |
2 |
VALVE; RELAY
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
(B)
|
1-48210-875-0 |
01 |
1 |
0908-1107 |
● |
|
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
|
1-48210-875-0 |
01 |
1 |
0908-1107 |
● |
|
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
|
1-48210-875-0 |
01 |
1 |
1108- |
● |
|
| |
2 |
VALVE; RELAY
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
|
1-48210-875-0 |
01 |
1 |
1108- |
● |
|
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
|
1-48210-875-0 |
01 |
1 |
1108- |
● |
|
| |
2 |

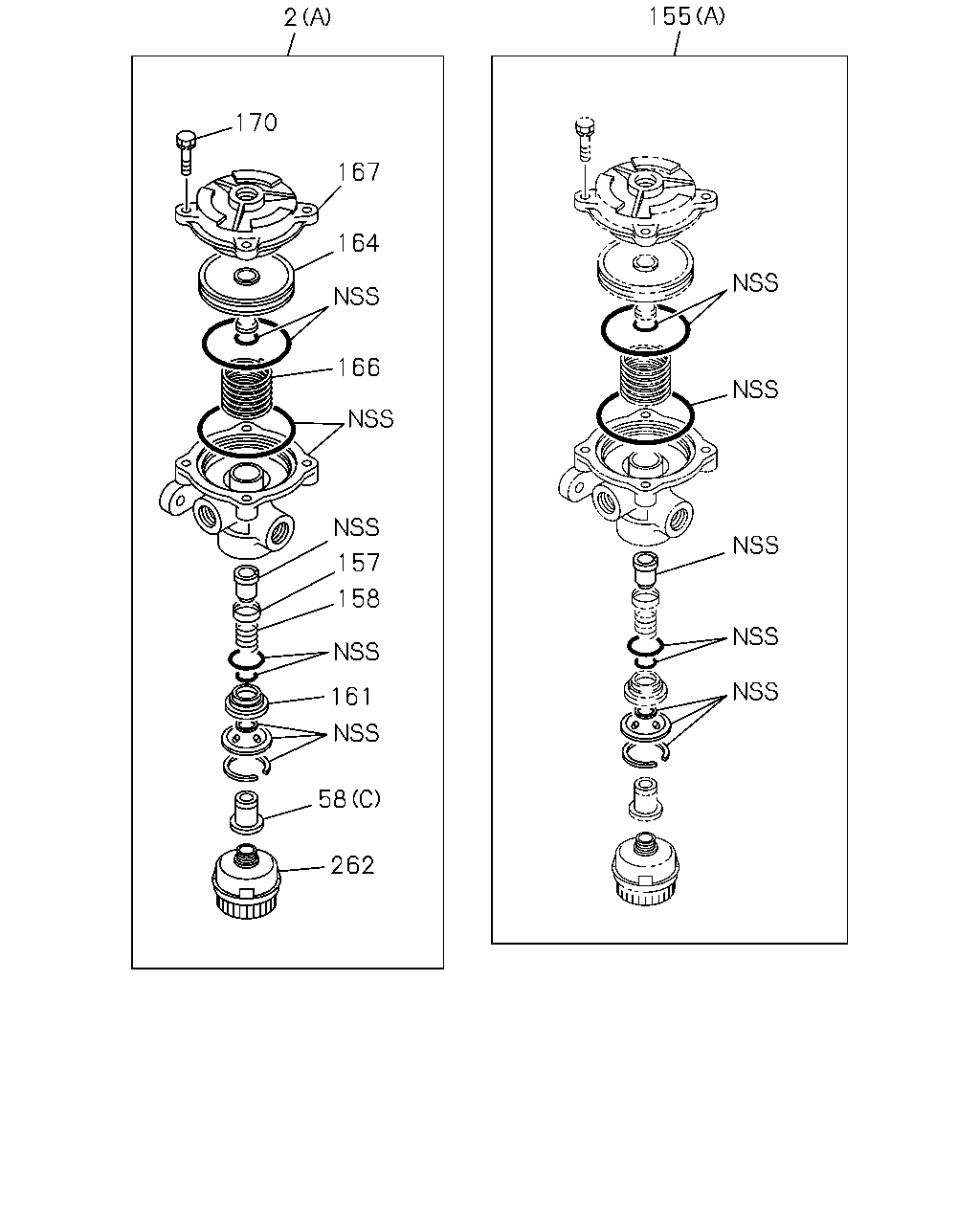

VALVE; RELAY
(A)
|
1-48210-997-0 |
01 |
1 |
0710-0711 |
● |
|
| |
2 |
VALVE; RELAY
(A)
|
1-48210-997-0 |
01 |
1 |
0710-0711 |
● |
|
| |
2 |
VALVE; RELAY
(A)
|
1-48210-997-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
2 |
VALVE; RELAY
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
1-48210-997-0 |
01 |
1 |
0712-0712 |
● |
|
| |
2 |
VALVE; RELAY
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
1-48210-997-0 |
01 |
1 |
0801-0801 |
● |
|
| |
2 |
VALVE; RELAY
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
1-48210-997-0 |
01 |
1 |
0801-0801 |
● |
|
| |
2 |
VALVE; RELAY
(A)
|
1-48210-997-0 |
01 |
1 |
0801-0801 |
|
● |
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
1-48210-997-0 |
01 |
1 |
0801-0907 |
● |
|
| |
2 |
VALVE; RELAY
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
1-48210-997-0 |
01 |
1 |
0801-0907 |
● |
|
| |
2 |
VALVE; RELAY
(A)
|
1-48210-997-0 |
01 |
1 |
0801-0907 |
|
● |
| |
2 |
VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-48210-997-0 |
01 |
1 |
0908- |
● |
|
| |
2 |
VALVE; RELAY
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-48210-997-0 |
01 |
1 |
0908- |
● |
|
| |
2 |
VALVE; RELAY
(A)
|
1-48210-997-0 |
01 |
1 |
0908- |
|
● |
| |
4 |

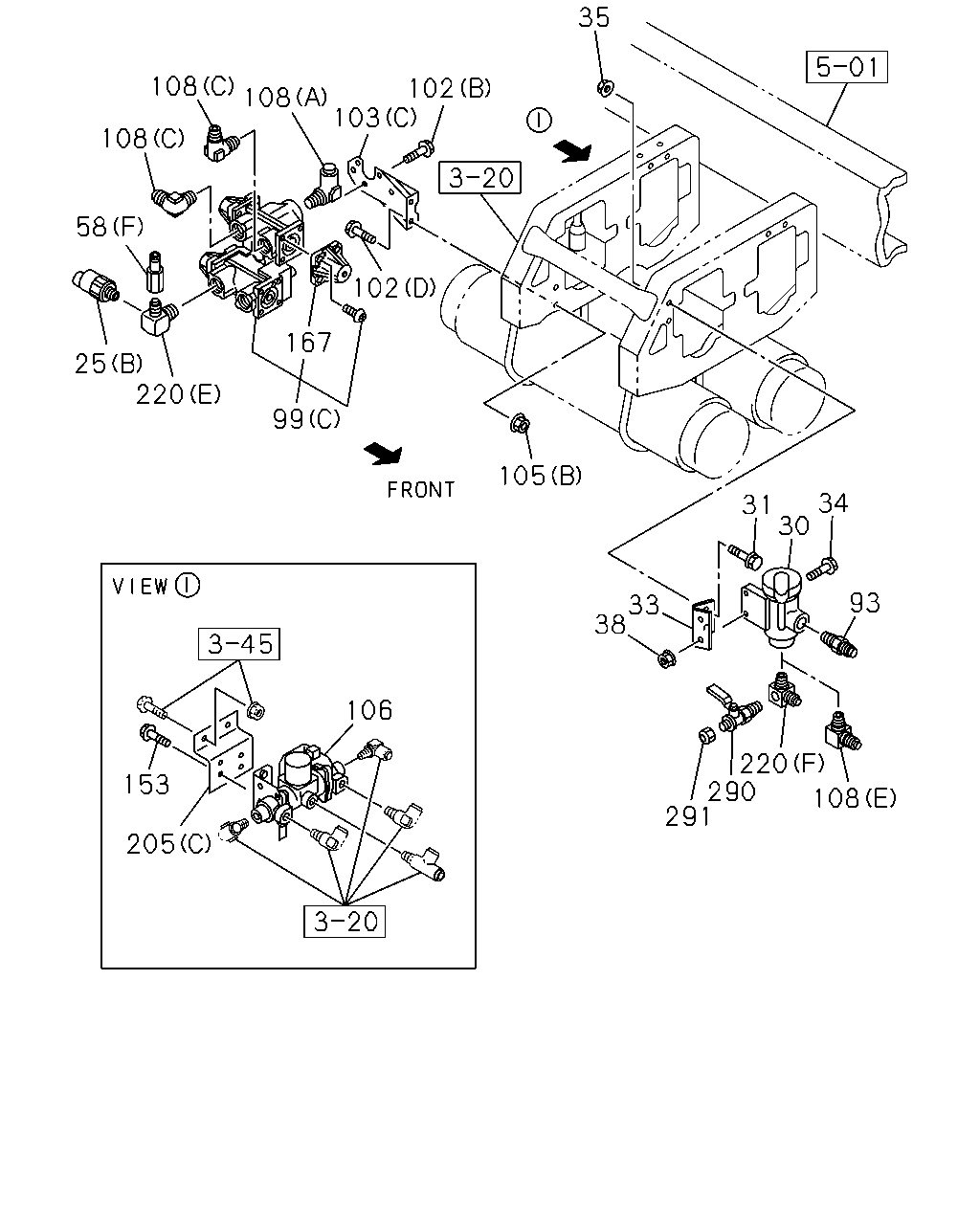

BOLT; RELAY VLV TO BRKT
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0710-0711 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0712-0712 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0712-0712 |
|
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0801 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0801 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0801 |
|
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0805 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0805 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(A)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0805 |
|
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0710-0711 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0712-0712 |
● |
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0801-0805 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0801-0805 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0801-0805 |
|
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0806-0808 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0806-0808 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0806-0808 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0806-0808 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0806-0808 |
|
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0809-0907 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0809-0907 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0809-0907 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0809-0907 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0809-0907 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0809-0907 |
|
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1107 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1107 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1107 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1107 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1107 |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1107 |
|
● |
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1108- |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1108- |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1108- |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1108- |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1108- |
● |
|
| |
4 |
BOLT; RELAY VLV TO BRKT
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1108- |
|
● |
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0710-0711 |
● |
|
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0710-0711 |
● |
|
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0712 |
● |
● |
| |
5 |
NUT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0712 |
● |
|
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0801 |
● |
● |
| |
5 |
NUT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0801 |
● |
|
| |
5 |
NUT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0801 |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0808 |
● |
|
| |
5 |
NUT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0808 |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0808 |
● |
|
| |
5 |
NUT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0808 |
● |
|
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0808 |
|
● |
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0907 |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0907 |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0907 |
● |
|
| |
5 |
NUT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0907 |
● |
|
| |
5 |
NUT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0907 |
● |
|
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0907 |
|
● |
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0908-1107 |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0908-1107 |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0908-1107 |
● |
|
| |
5 |
NUT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0908-1107 |
● |
|
| |
5 |
NUT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0908-1107 |
● |
|
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0908-1107 |
|
● |
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1108- |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1108- |
● |
|
| |
5 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1108- |
● |
|
| |
5 |
NUT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1108- |
● |
|
| |
5 |
NUT
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1108- |
● |
|
| |
5 |
NUT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1108- |
|
● |
| |
6 |
BOLT; VLV
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0712-0712 |
● |
|
| |
6 |
BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0801- |
● |
|
| |
6 |
BOLT; VLV
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0710-0711 |
● |
|
| |
6 |
BOLT; VLV
AUSTRALIA EQUIPMENT(B13)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0712 |
● |
|
| |
6 |
BOLT; VLV
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0712 |
|
● |
| |
6 |
BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0801- |
● |
|
| |
6 |
BOLT; VLV
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0801- |
|
● |
| |
6 |
BOLT; VLV
(A)
M8X80 FLANGE
|
0-28050-880-0 |
04 |
1 |
0710-0711 |
● |
|
| |
6 |
BOLT; VLV
(A)
M8X80 FLANGE
|
0-28050-880-0 |
04 |
1 |
0712-0712 |
● |
● |
| |
6 |
BOLT; VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X80 FLANGE
|
0-28050-880-0 |
04 |
1 |
0801-1410 |
● |
|
| |
6 |
BOLT; VLV
(A)
M8X80 FLANGE
|
0-28050-880-0 |
04 |
1 |
0801-1410 |
|
● |
| |
6 |
BOLT; VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X85
|
1-09044-074-0 |
04 |
1 |
1411- |
● |
|
| |
6 |
BOLT; VLV
(A)
M8X85
|
1-09044-074-0 |
04 |
1 |
1411- |
|
● |
| |
8 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0710-0711 |
● |
|
| |
8 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0712- |
● |
|
| |
8 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0712- |
|
● |
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(G)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
1012- |
● |
|
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(H)
M12 & PT1/4 3WAY
|
1-09656-586-1 |
01 |
1 |
1012- |
● |
|
| |
10 |
CONNECTOR
EXC. AUSTRALIA EQUIPMENT(B13)
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0712-0712 |
● |
|
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0801- |
● |
|
| |
10 |
CONNECTOR
EXC. AUSTRALIA EQUIPMENT(B13)
(F)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0712-0712 |
● |
|
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(F)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801- |
● |
|
| |
10 |
CONNECTOR
(D)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0710-0711 |
● |
|
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(D)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0712-0712 |
● |
|
| |
10 |
CONNECTOR
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0712-0712 |
● |
|
| |
10 |
CONNECTOR
(D)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0712-0712 |
|
● |
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0801- |
● |
|
| |
10 |
CONNECTOR
(D)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0801- |
|
● |
| |
10 |
CONNECTOR
(A)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0710-0711 |
● |
|
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0712- |
● |
|
| |
10 |
CONNECTOR
(A)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0712- |
|
● |
| |
10 |
CONNECTOR
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0710-0711 |
● |
|
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0712-0712 |
● |
|
| |
10 |
CONNECTOR
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0712-0712 |
● |
|
| |
10 |
CONNECTOR
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0712-0712 |
|
● |
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0801- |
● |
|
| |
10 |
CONNECTOR
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0801- |
|
● |
| |
10 |
CONNECTOR
(C)
DIN12 & M22 STRAIGHT
|
1-09661-050-0 |
01 |
1 |
0710-0711 |
● |
|
| |
10 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
DIN12 & M22 STRAIGHT
|
1-09661-050-0 |
01 |
1 |
0712- |
● |
|
| |
10 |
CONNECTOR
(C)
DIN12 & M22 STRAIGHT
|
1-09661-050-0 |
01 |
1 |
0712- |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0710-0711 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0712-0712 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0712-0712 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0801-0801 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0801-0801 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0801-0801 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0801-0808 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0809-0907 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0908-1107 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(D)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
1108- |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0710-0711 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0710-0711 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0712-0712 |
● |
● |
| |
12 |
CONNECTOR; RELAY VLV
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0712-0712 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0801 |
● |
● |
| |
12 |
CONNECTOR; RELAY VLV
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0801 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0801 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801-0808 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0809-0907 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0908-1107 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
1108- |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0710-0711 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0712-0712 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0712-0712 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0801 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0801 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0801 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0808 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0808 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-0907 |
● |
|
| |
12 |

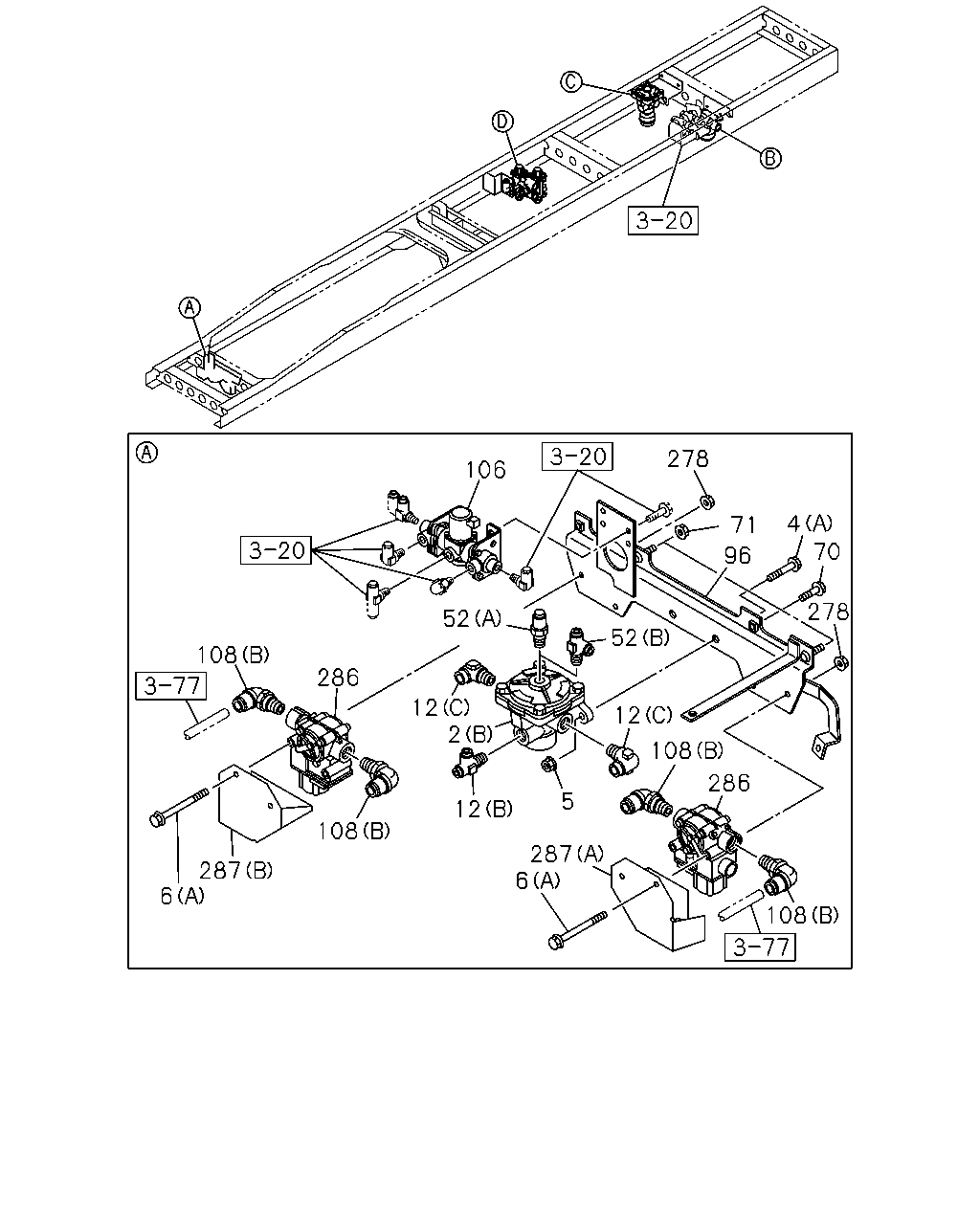

CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-0907 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0908-1107 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0908-1107 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1108- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1108- |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0710-0711 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0801-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0801-0907 |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0801-0907 |
|
● |
| |
12 |
CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0908- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0908- |
● |
|
| |
12 |
CONNECTOR; RELAY VLV
(B)
M12 & M8 & RC3/8 3WAY
|
1-09661-207-0 |
01 |
1 |
0908- |
|
● |
| |
25 |
SWITCH; PRESSURE
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0710-0711 |
● |
|
| |
25 |
SWITCH; PRESSURE
EXC. BRAKE REGULATION ADR(TDU)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0712-0712 |
● |
|
| |
25 |
SWITCH; PRESSURE
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0712-0712 |
● |
|
| |
25 |
SWITCH; PRESSURE
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0712-0712 |
|
● |
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0801-0808 |
● |
|
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0801-0808 |
● |
|
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0801-0808 |
● |
|
| |
25 |
SWITCH; PRESSURE
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0801-0808 |
|
● |
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0809- |
● |
|
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0809- |
● |
|
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0809- |
● |
|
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0809- |
● |
|
| |
25 |
SWITCH; PRESSURE
(B)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0809- |
|
● |
| |
25 |
SWITCH; PRESSURE
(A)
STAMP 2.0
|
8-98010-856-1 |
01 |
1 |
0710-0711 |
● |
|
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
STAMP 2.0
|
8-98010-856-1 |
01 |
1 |
0712-0712 |
● |
|
| |
25 |
SWITCH; PRESSURE
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
STAMP 2.0
|
8-98010-856-1 |
01 |
1 |
0712-0712 |
● |
|
| |
25 |
SWITCH; PRESSURE
(A)
STAMP 2.0
|
8-98010-856-1 |
01 |
1 |
0712-0712 |
|
● |
| |
25 |
SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
STAMP 2.0
|
8-98010-856-2 |
01 |
1 |
0801- |
● |
|
| |
25 |
SWITCH; PRESSURE
(A)
STAMP 2.0
|
8-98010-856-2 |
01 |
1 |
0801- |
|
● |
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
|
8-98126-366-0 |
01 |
1 |
0809- |
● |
|
| |
56 |
BRACKET; RELAY VLV
NEW ZEALAND EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0712-0712 |
● |
|
| |
56 |
BRACKET; RELAY VLV
NEW ZEALAND EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0801-0801 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0801-0801 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0801-0802 |
● |
|
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
NEW ZEALAND EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0801-0802 |
● |
|
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
NEW ZEALAND EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0803-0808 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0803-0808 |
● |
|
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
NEW ZEALAND EQUIPMENT(E13)
(A)
|
8-98031-257-0 |
01 |
1 |
0809-0907 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
(A)
|
8-98031-257-0 |
01 |
1 |
0809-0907 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
(A)
|
8-98031-257-0 |
01 |
1 |
0908-1107 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
|
8-98031-257-0 |
01 |
1 |
1108- |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
0710-0711 |
● |
|
| |
56 |
BRACKET; RELAY VLV
AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
0712-0712 |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
0712-0712 |
|
● |
| |
56 |
BRACKET; RELAY VLV
AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
0801-0801 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-47478-233-0 |
01 |
1 |
0801-0801 |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
0801-0801 |
|
● |
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
0801-0802 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-47478-233-0 |
01 |
1 |
0801-0802 |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
0801-0802 |
|
● |
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
0803-0808 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(B)
|
1-47478-233-0 |
01 |
1 |
0803-0808 |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
0803-0808 |
|
● |
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
0809-0907 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
(B)
|
1-47478-233-0 |
01 |
1 |
0809-0907 |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
0809-0907 |
|
● |
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
0908-1107 |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
(B)
|
1-47478-233-0 |
01 |
1 |
0908-1107 |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
0908-1107 |
|
● |
| |
56 |
BRACKET; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
1108- |
● |
|
| |
56 |
BRACKET; RELAY VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
|
1-47478-233-0 |
01 |
1 |
1108- |
● |
|
| |
56 |
BRACKET; RELAY VLV
(B)
|
1-47478-233-0 |
01 |
1 |
1108- |
|
● |
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(G)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1012- |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(H)
DIN17 & RC3/8 & R1/2 3WAY
|
8-98031-238-0 |
01 |
1 |
1012- |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(I)
|
8-98148-475-0 |
01 |
1 |
1012- |
● |
|
| |
58 |
ADAPTER
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
INNER PT3/8,OUTER M22
|
1-09650-494-1 |
04 |
1 |
0712-0712 |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
INNER PT3/8,OUTER M22
|
1-09650-494-1 |
04 |
1 |
0801- |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(F)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0801- |
● |
|
| |
58 |
ADAPTER
(D)
PT3/8
|
1-09664-210-0 |
01 |
1 |
0710-0711 |
● |
|
| |
58 |
ADAPTER
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(D)
PT3/8
|
1-09664-210-0 |
01 |
1 |
0712-0712 |
● |
|
| |
58 |
ADAPTER
(D)
PT3/8
|
1-09664-210-0 |
01 |
1 |
0712-0712 |
|
● |
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(D)
PT3/8
|
1-09664-210-0 |
01 |
1 |
0801- |
● |
|
| |
58 |
ADAPTER
(D)
PT3/8
|
1-09664-210-0 |
01 |
1 |
0801- |
|
● |
| |
58 |
ADAPTER
EXC. BRAKE REGULATION ADR(TDU)
(E)
M20 & RC3/8 STRAIGHT
|
1-09660-883-0 |
01 |
1 |
0712-0712 |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(E)
M20 & RC3/8 STRAIGHT
|
1-09660-883-0 |
01 |
1 |
0801-0808 |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(E)
M20 & RC3/8 STRAIGHT
|
1-09660-883-0 |
01 |
1 |
0809- |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(E)
M20 & RC3/8 STRAIGHT
|
1-09660-883-0 |
01 |
1 |
0809- |
● |
|
| |
58 |
ADAPTER
(B)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0710-0711 |
● |
|
| |
58 |
ADAPTER
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0712-0712 |
● |
|
| |
58 |
ADAPTER
(B)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0712-0712 |
|
● |
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0801- |
● |
|
| |
58 |
ADAPTER
(B)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0801- |
|
● |
| |
58 |
ADAPTER
(A)
INNER PT3/8,OUTER M22
|
1-09650-494-1 |
03 |
1 |
0710-0711 |
● |
|
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
INNER PT3/8,OUTER M22
|
1-09650-494-1 |
03 |
1 |
0712- |
● |
|
| |
58 |
ADAPTER
(A)
INNER PT3/8,OUTER M22
|
1-09650-494-1 |
03 |
1 |
0712- |
|
● |
| |
58 |
ADAPTER
(C)
|
1-48219-154-0 |
01 |
1 |
0710-0711 |
● |
|
| |
58 |
ADAPTER
(C)
|
1-48219-154-0 |
01 |
1 |
0710-0711 |
● |
|
| |
58 |
ADAPTER
(C)
|
1-48219-154-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
58 |
ADAPTER
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
|
1-48219-154-0 |
01 |
1 |
0712-0712 |
● |
|
| |
58 |
ADAPTER
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
|
1-48219-154-0 |
01 |
1 |
0801-0801 |
● |
|
| |
58 |
ADAPTER
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
|
1-48219-154-0 |
01 |
1 |
0801-0801 |
● |
|
| |
58 |
ADAPTER
(C)
|
1-48219-154-0 |
01 |
1 |
0801-0801 |
|
● |
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
|
1-48219-154-0 |
01 |
1 |
0801-0907 |
● |
|
| |
58 |
ADAPTER
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
(C)
|
1-48219-154-0 |
01 |
1 |
0801-0907 |
● |
|
| |
58 |
ADAPTER
(C)
|
1-48219-154-0 |
01 |
1 |
0801-0907 |
|
● |
| |
58 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
|
1-48219-154-0 |
01 |
1 |
0908- |
● |
|
| |
58 |
ADAPTER
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
|
1-48219-154-0 |
01 |
1 |
0908- |
● |
|
| |
58 |
ADAPTER
(C)
|
1-48219-154-0 |
01 |
1 |
0908- |
|
● |
| |
62 |
BOLT; BRKT FIX
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0710-0711 |
● |
|
| |
62 |
BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0712 |
● |
|
| |
62 |
BOLT; BRKT FIX
EXC. AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0712 |
● |
|
| |
62 |
BOLT; BRKT FIX
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0712 |
|
● |
| |
62 |
BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0801- |
● |
|
| |
62 |
BOLT; BRKT FIX
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0801- |
|
● |
| |
63 |
NUT; BRKT FIX
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
● |
|
| |
63 |
NUT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0712 |
● |
|
| |
63 |
NUT; BRKT FIX
EXC. AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0712 |
● |
|
| |
63 |
NUT; BRKT FIX
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0712 |
|
● |
| |
63 |
NUT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0801- |
● |
|
| |
63 |
NUT; BRKT FIX
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0801- |
|
● |
| |
65 |
BRACKET; RELAY VLV RR
|
1-47471-032-0 |
01 |
1 |
0710-0711 |
● |
|
| |
65 |
BRACKET; RELAY VLV RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
|
1-47471-032-0 |
01 |
1 |
0712-0712 |
● |
|
| |
65 |
BRACKET; RELAY VLV RR
EXC. AUSTRALIA EQUIPMENT(B13)
|
1-47471-032-0 |
01 |
1 |
0712-0712 |
● |
|
| |
65 |
BRACKET; RELAY VLV RR
|
1-47471-032-0 |
01 |
1 |
0712-0712 |
|
● |
| |
65 |
BRACKET; RELAY VLV RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47471-032-0 |
01 |
1 |
0801- |
● |
|
| |
65 |
BRACKET; RELAY VLV RR
|
1-47471-032-0 |
01 |
1 |
0801- |
|
● |
| |
73 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0710-0711 |
● |
|
| |
73 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712- |
● |
|
| |
73 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712- |
|
● |
| |
74 |
CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY
|
1-09661-536-0 |
01 |
1 |
0710-0711 |
● |
|
| |
74 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09661-536-0 |
01 |
1 |
0712-0712 |
● |
|
| |
74 |
CONNECTOR; 3WAY
EXC. AUSTRALIA EQUIPMENT(B13)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09661-536-0 |
01 |
1 |
0712-0712 |
● |
|
| |
74 |
CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY
|
1-09661-536-0 |
01 |
1 |
0712-0712 |
|
● |
| |
74 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09661-536-0 |
01 |
1 |
0801- |
● |
|
| |
74 |
CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY
|
1-09661-536-0 |
01 |
1 |
0801- |
|
● |
| |
99 |
VALVE; PROTECTION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
1-48110-287-3 |
01 |
1 |
0801- |
● |
|
| |
99 |
VALVE; PROTECTION
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
1-48110-288-0 |
01 |
1 |
0712-0712 |
● |
|
| |
99 |
VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
1-48110-288-0 |
01 |
1 |
0801-0808 |
● |
|
| |
99 |
VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
1-48110-288-3 |
01 |
1 |
0809- |
● |
|
| |
99 |
VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
|
1-48110-288-3 |
01 |
1 |
0809- |
● |
|
| |
99 |
VALVE; PROTECTION
(A)
|
1-48110-294-0 |
01 |
1 |
0710-0711 |
● |
|
| |
99 |
VALVE; PROTECTION
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(A)
|
1-48110-294-0 |
01 |
1 |
0712-0712 |
● |
|
| |
99 |
VALVE; PROTECTION
(A)
|
1-48110-294-0 |
01 |
1 |
0712-0712 |
|
● |
| |
99 |
VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(A)
|
1-48110-294-3 |
01 |
1 |
0801- |
● |
|
| |
99 |
VALVE; PROTECTION
(A)
|
1-48110-294-3 |
01 |
1 |
0801- |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(E)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1012- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0801- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
M10X40 FLANGE
|
0-28051-040-0 |
02 |
1 |
0712-0712 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0712-0712 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0801- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0710-0711 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0712-0712 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0712-0712 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0712-0712 |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0801-0808 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0801-0808 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0801-0808 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0801-0808 |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0809- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0809- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0809- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0809- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0809- |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0710-0711 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
AUSTRALIA EQUIPMENT(B13)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0712 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0712 |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0801- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0801- |
|
● |
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(D)
|
8-98177-510-0 |
01 |
1 |
1111- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(D)
|
8-98173-454-0 |
01 |
1 |
1012-1110 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
(D)
|
8-98173-454-0 |
01 |
1 |
1111- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
|
8-98116-826-0 |
01 |
1 |
0809-1011 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(B)
|
8-98116-826-0 |
01 |
1 |
1012- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
8-98098-183-0 |
01 |
1 |
0801- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
8-98100-094-0 |
01 |
1 |
0712-0712 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
8-98100-094-0 |
01 |
1 |
0801-0801 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
8-98073-219-1 |
01 |
1 |
0802-0805 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
8-98119-704-0 |
01 |
1 |
0806-0808 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
8-98119-704-0 |
01 |
1 |
0809- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
(A)
|
8-98090-802-0 |
01 |
1 |
0710-0711 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(A)
|
8-98090-802-0 |
01 |
1 |
0712-0712 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
(A)
|
8-98090-802-0 |
01 |
1 |
0712-0712 |
|
● |
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(A)
|
8-98090-802-0 |
01 |
1 |
0801- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
(A)
|
8-98090-802-0 |
01 |
1 |
0801- |
|
● |
| |
105 |
NUT; BRKT,VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0712 |
● |
|
| |
105 |
NUT; BRKT,VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0808 |
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0801-0808 |
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0905 |
● |
|
| |
105 |
NUT; BRKT,VALVE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-0905 |
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0906- |
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0906- |
● |
|
| |
105 |
NUT; BRKT,VALVE
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
● |
|
| |
105 |
NUT; BRKT,VALVE
AUSTRALIA EQUIPMENT(B13)
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0712 |
● |
|
| |
105 |
NUT; BRKT,VALVE
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0712 |
|
● |
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0801- |
● |
|
| |
105 |
NUT; BRKT,VALVE
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0801- |
|
● |
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
02 |
1 |
1012-1012 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(F)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0809-1008 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
(F)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
1009-1011 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(F)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
1012-1012 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
EXC. VIN MODEL YEAR 2011<VZB>
(F)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
1012-1012 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(F)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
1012- |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
(F)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
1012- |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
EXC. TIRE INFLATOR DEVICE<SG4>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0809-1008 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0809-1008 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
EXC. TIRE INFLATOR DEVICE<SG4>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1009-1011 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1009-1011 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
EXC. TIRE INFLATOR DEVICE<SG4>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1012-1012 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
EXC. VIN MODEL YEAR 2011<VZB>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1012-1012 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
EXC. TIRE INFLATOR DEVICE<SG4>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1012-1110 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1012-1110 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1111- |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
EXC. TIRE INFLATOR DEVICE<SG4>
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1111- |
● |
|
| |
108 |
CONNECTOR; ELBOW
EXC. BRAKE REGULATION ADR(TDU)
(D)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0712-0712 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(D)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0801-0808 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(D)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0809- |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(D)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0809- |
● |
|
| |
108 |
CONNECTOR; ELBOW
EXC. BRAKE REGULATION ADR(TDU)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
03 |
1 |
0712-0712 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
03 |
1 |
0801-0808 |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
03 |
1 |
0809- |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
03 |
1 |
0809- |
● |
|
| |
108 |
CONNECTOR; ELBOW
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0710-0711 |
● |
|
| |
108 |
CONNECTOR; ELBOW
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0712-0712 |
● |
|
| |
108 |
CONNECTOR; ELBOW
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0712-0712 |
|
● |
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801- |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801- |
● |
|
| |
108 |
CONNECTOR; ELBOW
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0801- |
|
● |
| |
108 |
CONNECTOR; ELBOW
(A)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0710-0711 |
● |
|
| |
108 |
CONNECTOR; ELBOW
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(A)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0712-0712 |
● |
|
| |
108 |
CONNECTOR; ELBOW
(A)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0712-0712 |
|
● |
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0801- |
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(A)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0801- |
● |
|
| |
108 |
CONNECTOR; ELBOW
(A)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0801- |
|
● |
| |
108 |
CONNECTOR; ELBOW
(B)
DIN12 & M22 ELBOW
|
1-09661-497-0 |
04 |
1 |
0710-0711 |
● |
|
| |
108 |
CONNECTOR; ELBOW
(B)
DIN12 & M22 ELBOW
|
1-09661-497-0 |
04 |
1 |
0712-0712 |
● |
● |
| |
108 |
CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
DIN12 & M22 ELBOW
|
1-09661-497-0 |
04 |
1 |
0801- |
● |
|
| |
108 |
CONNECTOR; ELBOW
(B)
DIN12 & M22 ELBOW
|
1-09661-497-0 |
04 |
1 |
0801- |
|
● |
| |
134 |
PLUG; RELAY VALVE
M22
|
1-09661-502-0 |
01 |
1 |
0710-0711 |
● |
|
| |
134 |
PLUG; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M22
|
1-09661-502-0 |
01 |
1 |
0712-0712 |
● |
|
| |
134 |
PLUG; RELAY VALVE
EXC. AUSTRALIA EQUIPMENT(B13)
M22
|
1-09661-502-0 |
01 |
1 |
0712-0712 |
● |
|
| |
134 |
PLUG; RELAY VALVE
M22
|
1-09661-502-0 |
01 |
1 |
0712-0712 |
|
● |
| |
134 |
PLUG; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M22
|
1-09661-502-0 |
01 |
1 |
0801- |
● |
|
| |
134 |
PLUG; RELAY VALVE
M22
|
1-09661-502-0 |
01 |
1 |
0801- |
|
● |
| |
167 |
COVER; VALVE
|
1-48119-625-0 |
04 |
1 |
0710-0711 |
● |
|
| |
167 |
COVER; VALVE
EXC. BRAKE REGULATION ADR(TDU)
|
1-48119-625-0 |
04 |
1 |
0712-0712 |
● |
|
| |
167 |
COVER; VALVE
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
|
1-48119-625-0 |
04 |
1 |
0712-0712 |
● |
|
| |
167 |
COVER; VALVE
|
1-48119-625-0 |
04 |
1 |
0712-0712 |
|
● |
| |
167 |
COVER; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48119-625-0 |
03 |
1 |
0801- |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
|
1-48119-625-0 |
04 |
1 |
0801-0808 |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
|
1-48119-625-0 |
04 |
1 |
0801-0808 |
● |
|
| |
167 |
COVER; VALVE
|
1-48119-625-0 |
04 |
1 |
0801-0808 |
|
● |
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
|
1-48119-625-0 |
04 |
1 |
0809- |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
|
1-48119-625-0 |
04 |
1 |
0809- |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
|
1-48119-625-0 |
04 |
1 |
0809- |
● |
|
| |
167 |
COVER; VALVE
|
1-48119-625-0 |
04 |
1 |
0809- |
|
● |
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
0710-0711 |
● |
|
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
0710-0711 |
● |
|
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
167 |
COVER; VALVE
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
|
1-48219-070-0 |
01 |
1 |
0712-0712 |
● |
|
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
0801-0801 |
● |
● |
| |
167 |
COVER; VALVE
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
|
1-48219-070-0 |
01 |
1 |
0801-0801 |
● |
|
| |
167 |
COVER; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
|
1-48219-070-0 |
01 |
1 |
0801-0801 |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
|
1-48219-070-0 |
01 |
1 |
0801-0808 |
● |
|
| |
167 |
COVER; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
|
1-48219-070-0 |
01 |
1 |
0801-0808 |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
|
1-48219-070-0 |
01 |
1 |
0801-0808 |
● |
|
| |
167 |
COVER; VALVE
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48219-070-0 |
01 |
1 |
0801-0808 |
● |
|
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
0801-0808 |
|
● |
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
|
1-48219-070-0 |
01 |
1 |
0809-0907 |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13)
|
1-48219-070-0 |
01 |
1 |
0809-0907 |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),ANTI LOCK BRAKE<JE5>
|
1-48219-070-0 |
01 |
1 |
0809-0907 |
● |
|
| |
167 |
COVER; VALVE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND
EQUIPMENT(E13),EURO2 SPECIFICATION<NT2>
|
1-48219-070-0 |
01 |
1 |
0809-0907 |
● |
|
| |
167 |
COVER; VALVE
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48219-070-0 |
01 |
1 |
0809-0907 |
● |
|
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
0809-0907 |
|
● |
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
|
1-48219-070-0 |
01 |
1 |
0908-1107 |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
|
1-48219-070-0 |
01 |
1 |
0908-1107 |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
|
1-48219-070-0 |
01 |
1 |
0908-1107 |
● |
|
| |
167 |
COVER; VALVE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),EURO2
SPECIFICATION<NT2>
|
1-48219-070-0 |
01 |
1 |
0908-1107 |
● |
|
| |
167 |
COVER; VALVE
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48219-070-0 |
01 |
1 |
0908-1107 |
● |
|
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
0908-1107 |
|
● |
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
|
1-48219-070-0 |
01 |
1 |
1108- |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
|
1-48219-070-0 |
01 |
1 |
1108- |
● |
|
| |
167 |
COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>
|
1-48219-070-0 |
01 |
1 |
1108- |
● |
|
| |
167 |
COVER; VALVE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL
BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
1-48219-070-0 |
01 |
1 |
1108- |
● |
|
| |
167 |
COVER; VALVE
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48219-070-0 |
01 |
1 |
1108- |
● |
|
| |
167 |
COVER; VALVE
|
1-48219-070-0 |
01 |
1 |
1108- |
|
● |
| |
213 |
GASKET
EXC. AUSTRALIA EQUIPMENT(B13)
ID=22.5
|
9-09571-422-0 |
04 |
1 |
0712-0712 |
● |
|
| |
213 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
ID=22.5
|
9-09571-422-0 |
04 |
1 |
0801- |
● |
|
| |
213 |
GASKET
ID=22.5
|
9-09571-422-0 |
03 |
1 |
0710-0711 |
● |
|
| |
213 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
ID=22.5
|
9-09571-422-0 |
03 |
1 |
0712- |
● |
|
| |
213 |
GASKET
ID=22.5
|
9-09571-422-0 |
03 |
1 |
0712- |
|
● |
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
TIRE INFLATOR DEVICE<SG4>
(F)
PT1/4 & M12 ELBOW
|
1-09656-665-0 |
01 |
1 |
0809-1110 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
TIRE INFLATOR DEVICE<SG4>
(F)
PT1/4 & M12 ELBOW
|
1-09656-665-0 |
01 |
1 |
1111- |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
DIN6 & PT1/4 & M12 3WAY
|
1-09656-698-0 |
01 |
1 |
0801- |
● |
|
| |
220 |
CONNECTOR; 3WAY
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
1-09656-708-0 |
01 |
1 |
0712-0712 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
1-09656-708-0 |
01 |
1 |
0801-0808 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
1-09656-708-0 |
01 |
1 |
0809-1011 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
|
1-09656-708-0 |
01 |
1 |
0809-1011 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(B)
|
1-09656-708-0 |
01 |
1 |
1012-1101 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(B)
|
1-09656-708-0 |
01 |
1 |
1012-1101 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(B)
R3/8 & RC3/8 & RC1/4 3WAY
|
8-98166-127-0 |
01 |
1 |
1102- |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(B)
R3/8 & RC3/8 & RC1/4 3WAY
|
8-98166-127-0 |
01 |
1 |
1102- |
● |
|
| |
220 |
CONNECTOR; 3WAY
EXC. BRAKE REGULATION ADR(TDU)
(A)
DIN8X2 & PT3/8 DOUBLE ELBOW
|
1-09661-025-0 |
01 |
1 |
0712-0712 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(A)
DIN8X2 & PT3/8 DOUBLE ELBOW
|
1-09661-025-0 |
01 |
1 |
0801-0808 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(A)
DIN8X2 & PT3/8 DOUBLE ELBOW
|
1-09661-025-0 |
01 |
1 |
0809-1011 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(A)
DIN8X2 & PT3/8 DOUBLE ELBOW
|
1-09661-025-0 |
01 |
1 |
0809-1011 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(A)
DIN8X2 & PT3/8 DOUBLE ELBOW
|
1-09661-025-0 |
01 |
1 |
1012- |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(A)
DIN8X2 & PT3/8 DOUBLE ELBOW
|
1-09661-025-0 |
01 |
1 |
1012- |
● |
|
| |
220 |
CONNECTOR; 3WAY
EXC. BRAKE REGULATION ADR(TDU)
(C)
DIN17 & RC3/8 & R1/2 3WAY
|
8-98031-238-0 |
01 |
1 |
0712-0712 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
(C)
DIN17 & RC3/8 & R1/2 3WAY
|
8-98031-238-0 |
01 |
1 |
0801-0808 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(C)
DIN17 & RC3/8 & R1/2 3WAY
|
8-98031-238-0 |
01 |
1 |
0809-1011 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
DIN17 & RC3/8 & R1/2 3WAY
|
8-98031-238-0 |
01 |
1 |
0809-1011 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(C)
DIN17 & RC3/8 & R1/2 3WAY
|
8-98031-238-0 |
01 |
1 |
1012- |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(C)
DIN17 & RC3/8 & R1/2 3WAY
|
8-98031-238-0 |
01 |
1 |
1012- |
● |
|
| |
220 |
CONNECTOR; 3WAY
(D)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09660-988-1 |
01 |
1 |
0710-0711 |
● |
|
| |
220 |
CONNECTOR; 3WAY
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(D)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09660-988-1 |
01 |
1 |
0712-0712 |
● |
|
| |
220 |
CONNECTOR; 3WAY
(D)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09660-988-1 |
01 |
1 |
0712-0712 |
|
● |
| |
220 |
CONNECTOR; 3WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(D)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09660-988-1 |
01 |
1 |
0801- |
● |
|
| |
220 |
CONNECTOR; 3WAY
(D)
DIN8 & RC1/4 & R3/8 3WAY
|
1-09660-988-1 |
01 |
1 |
0801- |
|
● |
| |
231 |
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0710-0711 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
EXC. BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0712-0712 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0712-0712 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0712-0712 |
|
● |
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0808 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0808 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0801-0808 |
|
● |
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-1011 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-1011 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-1011 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-1011 |
|
● |
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1012- |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1012- |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1012- |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1012- |
|
● |
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0710-0711 |
● |
|
| |
232 |
VALVE; CHECK
EXC. BRAKE REGULATION ADR(TDU)
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0712-0712 |
● |
|
| |
232 |
VALVE; CHECK
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0712-0712 |
● |
|
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0712-0712 |
|
● |
| |
232 |
VALVE; CHECK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR(TDU)
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0801-0808 |
● |
|
| |
232 |
VALVE; CHECK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0801-0808 |
● |
|
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0801-0808 |
|
● |
| |
232 |
VALVE; CHECK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0809- |
● |
|
| |
232 |
VALVE; CHECK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0809- |
● |
|
| |
232 |
VALVE; CHECK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0809- |
● |
|
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0809- |
|
● |
| |
237 |
VALVE; SAFETY
|
1-48320-012-2 |
01 |
1 |
0710-0711 |
● |
|
| |
237 |
VALVE; SAFETY
|
1-48320-012-2 |
01 |
1 |
0712-0712 |
● |
● |
| |
237 |
VALVE; SAFETY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48320-012-2 |
01 |
1 |
0801-0807 |
● |
|
| |
237 |
VALVE; SAFETY
|
1-48320-012-2 |
01 |
1 |
0801-0807 |
|
● |
| |
237 |
VALVE; SAFETY
|
1-48320-012-2 |
01 |
1 |
0808- |
● |
● |
