Sayfa 3-05 - Isuzu EPC

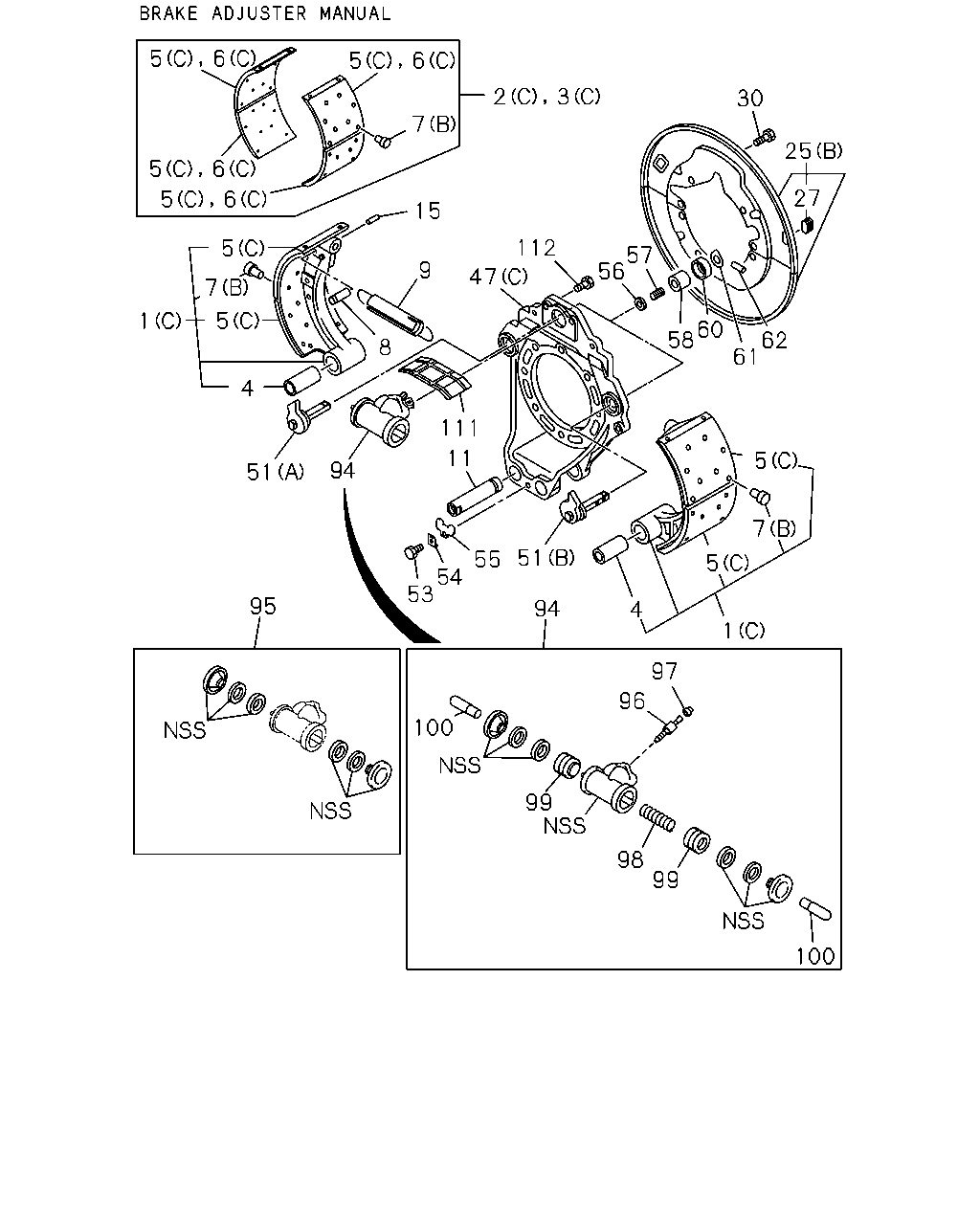

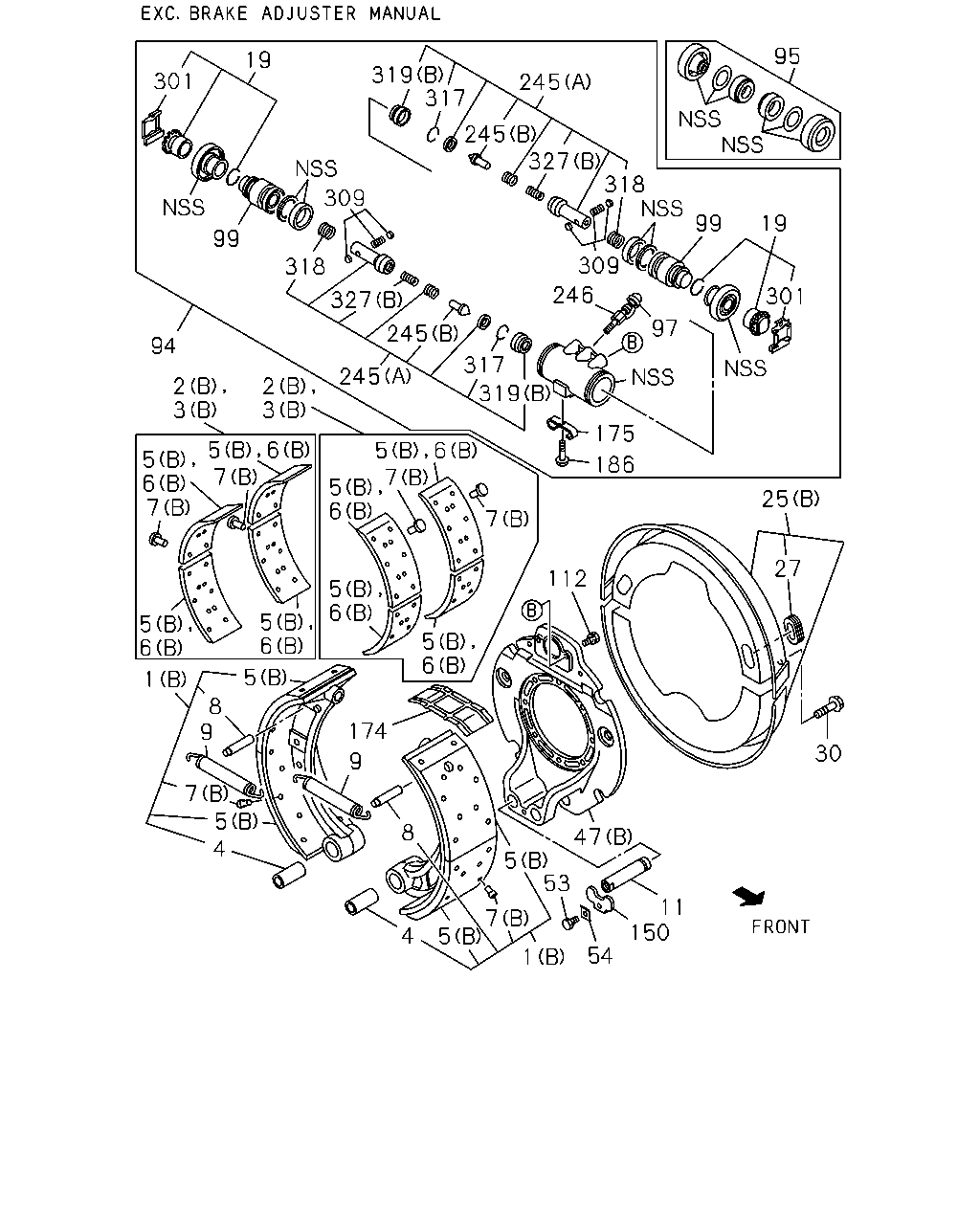

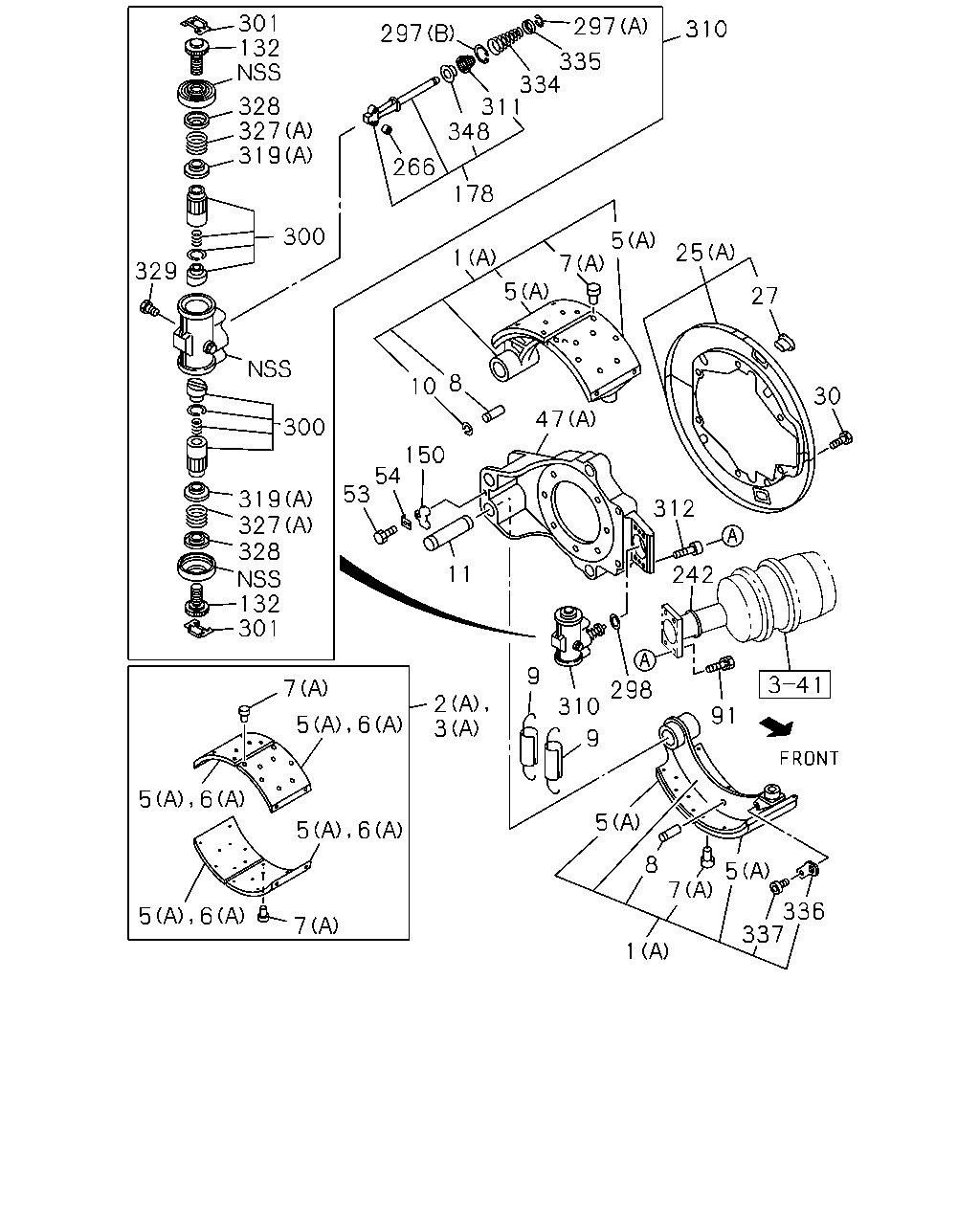

3-05 — REAR WHEEL BRAKE (#65541) — 546 parça

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
297	RING; SNAP (A)	1-47649-031-0	02	1	0710-0711	●
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0712-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	0712-		●
297	RING; SNAP (B)	1-47649-034-1	02	1	0710-0711	●
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0712-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	0712-		●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0710-0711	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0712-		●
311	BOOT; WEDGE	1-47649-042-0	02	1	0710-0711	●
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0712-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	0712-		●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-120-0	04	1	0712-0905	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-120-0	04	1	0906-	●
319	RING; DRIVE (A)	1-47629-200-0	04	1	0710-0711	●
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-200-0	04	1	0712-	●
319	RING; DRIVE (A)	1-47629-200-0	04	1	0712-		●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09580-543-0	04	1	0712-0905	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09580-543-0	04	1	0906-	●
327	SPRING; ADJ (A)	1-47629-196-0	04	1	0710-0711	●
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-196-0	04	1	0712-	●
327	SPRING; ADJ (A)	1-47629-196-0	04	1	0712-		●
328	CAGE; SPRING	1-47629-192-0	04	1	0710-0711	●
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0712-	●
328	CAGE; SPRING	1-47629-192-0	04	1	0712-		●
329	SCREW; LOCATING	1-47619-149-1	04	1	0710-0711	●
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0712-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	0712-		●
334	SPRING; ROD	1-47649-041-0	02	1	0710-0711	●
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0712-	●
334	SPRING; ROD	1-47649-041-0	02	1	0712-		●
335	RETAINER; SPRING	1-47649-020-0	02	1	0710-0711	●
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0712-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	0712-		●
346	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	0710-0711	●
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	0712-	●
346	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	0712-		●
347	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	0710-0711	●
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	0712-	●
347	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	0712-		●
348	CAP; EXPANDER	1-47649-044-0	02	1	0710-0711	●
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0712-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	0712-		●

5 6 5 6 30 7 25 6 5 27 5 6 15 112 5 57 56 9 47 7 5 1 60 58 62 61 8 4 111 11 5 94 51 7 51 55 5 54 53 95 94 4 1 97 96 100 99 98 99 100 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-506-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	0712-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-506-0	01	1	0712-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-507-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	0712-	●
1	SHOE; BRK,RR (A) TRAILING	1-47170-507-0	01	1	0712-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-504-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	0712-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-504-0	01	1	0712-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-505-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	0712-	●
1	SHOE; BRK,RR (A) TRAILING	1-47170-505-0	01	1	0712-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-390-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-394-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD (A)	1-88311-392-0	02	1	0710-0711	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-392-0	02	1	0712-0712	●
2	LINING SET; RR BRK,STANDARD (A)	1-88311-392-0	02	1	0712-0712		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-773-1	02	1	0712-	●
2	LINING SET; RR BRK,STANDARD (A)	1-88310-773-1	02	1	0712-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-391-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-395-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-393-0	02	1	0710-0711	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-393-0	02	1	0712-0712	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-393-0	02	1	0712-0712		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-774-1	02	1	0712-	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88310-774-1	02	1	0712-		●
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0712-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-758-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-812-0	08	1	0712-0905	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-812-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-816-0	08	1	0710-0711	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-816-0	08	1	0712-0712	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-816-0	08	1	0712-0712		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-091-0	08	1	0712-	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-091-0	08	1	0712-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-759-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-813-0	08	1	0712-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-813-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-817-0	08	1	0710-0711	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-817-0	08	1	0712-0712	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-817-0	08	1	0712-0712		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-092-0	08	1	0712-	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-092-0	08	1	0712-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING L=15.5	1-09732-053-0	40	1	0906-	●
7	RIVET; LINING,RR BRK (A) L=15.5	1-09732-053-0	AR	1	0710-0711	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	AR	1	0712-	●
7	RIVET; LINING,RR BRK (A) L=15.5	1-09732-053-0	AR	1	0712-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-175-0	04	1	0710-0711	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	0712-	●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-175-0	04	1	0712-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-359-0	04	1	0712-0905	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	0906-	●
9	SPRING; RETURN,BRK SHOE	1-09583-376-0	02	1	0710-0711	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	0712-	●
9	SPRING; RETURN,BRK SHOE	1-09583-376-0	02	1	0712-		●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0710-0711	●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0712-		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	0906-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-807-0	01	1	0710-0711	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-807-0	01	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-807-0	01	1	0712-		●
25	COVER SET; RR BRK DRUM (A)	1-47151-806-0	01	1	0710-0711	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-806-0	01	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-806-0	01	1	0712-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0710-0711	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0712-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0710-0711	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0712-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-112-4	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-577-0	02	1	0712-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-577-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-47137-472-0	02	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-550-0	01	1	0710-0711	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	1-47137-550-0	01	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-550-0	01	1	0712-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	8-98091-255-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-549-0	01	1	0710-0711	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	1-47137-549-0	01	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-549-0	01	1	0712-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	8-98091-254-1	01	1	1307-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	0906-	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	0906-	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0710-0711	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0712-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0710-0711	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0712-	●	●
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	0906-	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	0906-	●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	0906-	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	0906-	●
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	0906-	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-183-0	02	1	0712-0905	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-985-0	02	1	0712-0905	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	0906-	●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	0906-	●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0712-	●
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	0906-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	0906-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-371-0	04	1	0712-0905	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	0906-	●
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	0906-	●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50551-232-0	04	1	0906-0906	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50551-232-0	04	1	0907-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50051-232-0	04	1	0712-0905	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50051-232-0	04	1	0906-0906	●

301 132 297 310 297 335 334 311 348 328 327 319 266 178 300 5 25 1 7 329 5 27 8 10 30 47 300 150 54 53 319 327 328 132 301 312 11 242 9 7 298 2 3 310 91 5 6 9 5 6 5 5 6 8 7 5 336 337 5 6 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-506-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	0712-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-506-0	01	1	0712-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-507-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	0712-	●
1	SHOE; BRK,RR (A) TRAILING	1-47170-507-0	01	1	0712-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-504-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	0712-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-504-0	01	1	0712-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-505-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	0712-	●
1	SHOE; BRK,RR (A) TRAILING	1-47170-505-0	01	1	0712-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-390-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-394-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD (A)	1-88311-392-0	02	1	0710-0711	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-392-0	02	1	0712-0712	●
2	LINING SET; RR BRK,STANDARD (A)	1-88311-392-0	02	1	0712-0712		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-773-1	02	1	0712-	●
2	LINING SET; RR BRK,STANDARD (A)	1-88310-773-1	02	1	0712-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-391-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-395-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-393-0	02	1	0710-0711	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-393-0	02	1	0712-0712	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-393-0	02	1	0712-0712		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-774-1	02	1	0712-	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88310-774-1	02	1	0712-		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-758-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-812-0	08	1	0712-0905	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-812-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-816-0	08	1	0710-0711	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-816-0	08	1	0712-0712	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-816-0	08	1	0712-0712		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-091-0	08	1	0712-	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-091-0	08	1	0712-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-759-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-813-0	08	1	0712-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-813-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-817-0	08	1	0710-0711	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-817-0	08	1	0712-0712	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-817-0	08	1	0712-0712		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-092-0	08	1	0712-	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-092-0	08	1	0712-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING L=15.5	1-09732-053-0	40	1	0906-	●
7	RIVET; LINING,RR BRK (A) L=15.5	1-09732-053-0	AR	1	0710-0711	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	AR	1	0712-	●
7	RIVET; LINING,RR BRK (A) L=15.5	1-09732-053-0	AR	1	0712-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-175-0	04	1	0710-0711	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	0712-	●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-175-0	04	1	0712-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-359-0	04	1	0712-0905	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	0906-	●
9	SPRING; RETURN,BRK SHOE	1-09583-376-0	02	1	0710-0711	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	0712-	●
9	SPRING; RETURN,BRK SHOE	1-09583-376-0	02	1	0712-		●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	04	1	0710-0711	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	0712-	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	04	1	0712-		●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0710-0711	●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0712-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-807-0	01	1	0710-0711	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-807-0	01	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-807-0	01	1	0712-		●
25	COVER SET; RR BRK DRUM (A)	1-47151-806-0	01	1	0710-0711	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-806-0	01	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-806-0	01	1	0712-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0710-0711	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0712-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0710-0711	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0712-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-112-4	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-577-0	02	1	0712-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-577-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-47137-472-0	02	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-550-0	01	1	0710-0711	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	1-47137-550-0	01	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-550-0	01	1	0712-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	8-98091-255-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-549-0	01	1	0710-0711	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	1-47137-549-0	01	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-549-0	01	1	0712-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	8-98091-254-1	01	1	1307-		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0710-0711	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0712-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0710-0711	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0712-	●	●
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50051-045-0	08	1	0710-0711	●
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50051-045-0	08	1	0712-0906	●
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50051-045-0	08	1	0712-0906		●
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-1306	●
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-1306		●
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45	1-47139-174-0	08	1	1307-	●
91	BOLT; CHAMBER M10X45	1-47139-174-0	08	1	1307-		●
132	SCREW; ADJ,RR BRK	1-47623-035-1	04	1	0710-0711	●
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	0712-	●
132	SCREW; ADJ,RR BRK	1-47623-035-2	04	1	0712-		●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	0712-0905	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	0710-0711	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0712-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	0712-		●
178	WEDGE; RR WHEEL CYL	1-47640-012-0	02	1	0710-0711	●
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	0712-	●
178	WEDGE; RR WHEEL CYL	1-47640-012-0	02	1	0712-		●
242	SEAL	1-47159-186-0	04	1	0710-0711	●
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-186-0	04	1	0712-	●
242	SEAL	1-47159-186-0	04	1	0712-		●
266	ROLLER; WEDGE	1-47643-007-0	04	1	0710-0711	●
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47643-007-0	04	1	0712-	●
266	ROLLER; WEDGE	1-47643-007-0	04	1	0712-		●
297	RING; SNAP (A)	1-47649-031-0	02	1	0710-0711	●
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0712-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	0712-		●
297	RING; SNAP (B)	1-47649-034-1	02	1	0710-0711	●
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0712-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	0712-		●
298	GASKET	1-48259-231-0	02	1	0710-0711	●
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	0712-	●
298	GASKET	1-48259-231-0	02	1	0712-		●
300	SLEEVE	1-47629-247-0	04	1	0710-0711	●
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	0712-	●
300	SLEEVE	1-47629-247-1	04	1	0712-		●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0710-0711	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0712-		●
310	EXPANDER	1-47601-087-0	02	1	0710-0711	●
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	0712-	●
310	EXPANDER	1-47601-087-0	02	1	0712-		●
311	BOOT; WEDGE	1-47649-042-0	02	1	0710-0711	●
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0712-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	0712-		●
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0710-0711	●
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0712-	●
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0712-		●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-120-0	04	1	0712-0905	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-120-0	04	1	0906-	●
319	RING; DRIVE (A)	1-47629-200-0	04	1	0710-0711	●
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-200-0	04	1	0712-	●
319	RING; DRIVE (A)	1-47629-200-0	04	1	0712-		●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09580-543-0	04	1	0712-0905	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09580-543-0	04	1	0906-	●
327	SPRING; ADJ (A)	1-47629-196-0	04	1	0710-0711	●
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-196-0	04	1	0712-	●
327	SPRING; ADJ (A)	1-47629-196-0	04	1	0712-		●
328	CAGE; SPRING	1-47629-192-0	04	1	0710-0711	●
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0712-	●
328	CAGE; SPRING	1-47629-192-0	04	1	0712-		●
329	SCREW; LOCATING	1-47619-149-1	04	1	0710-0711	●
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0712-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	0712-		●
334	SPRING; ROD	1-47649-041-0	02	1	0710-0711	●
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0712-	●
334	SPRING; ROD	1-47649-041-0	02	1	0712-		●
335	RETAINER; SPRING	1-47649-020-0	02	1	0710-0711	●
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0712-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	0712-		●
336	PLATE; PIVOT	1-47119-152-0	04	1	0710-0711	●
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-152-0	04	1	0712-	●
336	PLATE; PIVOT	1-47119-152-0	04	1	0712-		●
337	BOLT; PLATE	1-47119-153-0	04	1	0710-0711	●
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	0712-	●
337	BOLT; PLATE	1-47119-153-0	04	1	0712-		●
348	CAP; EXPANDER	1-47649-044-0	02	1	0710-0711	●
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0712-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	0712-		●

95 19 319 317 301 245 245 327 318 309 99 19 99 309 318 327 246 301 97 245 94 317 245 2 3 2 3 319 175 7 7 5 6 5 6 7 186 25 7 27 112 5 6 5 6 5 6 5 6 5 1 8 9 174 30 9 7 5 4 8 47 5 53 11 150 7 5 4 54 1 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-506-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	0712-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-506-0	01	1	0712-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-507-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	0712-	●
1	SHOE; BRK,RR (A) TRAILING	1-47170-507-0	01	1	0712-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-504-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	0712-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-504-0	01	1	0712-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-505-0	01	1	0710-0711	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	0712-	●
1	SHOE; BRK,RR (A) TRAILING	1-47170-505-0	01	1	0712-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-390-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-394-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD (A)	1-88311-392-0	02	1	0710-0711	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-392-0	02	1	0712-0712	●
2	LINING SET; RR BRK,STANDARD (A)	1-88311-392-0	02	1	0712-0712		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-773-1	02	1	0712-	●
2	LINING SET; RR BRK,STANDARD (A)	1-88310-773-1	02	1	0712-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-391-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-395-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-393-0	02	1	0710-0711	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-393-0	02	1	0712-0712	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-393-0	02	1	0712-0712		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-774-1	02	1	0712-	●
3	LINING SET; RR BRK,OVER SIZE (A)	1-88310-774-1	02	1	0712-		●
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0712-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-758-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-812-0	08	1	0712-0905	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-812-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-816-0	08	1	0710-0711	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-816-0	08	1	0712-0712	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-816-0	08	1	0712-0712		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-091-0	08	1	0712-	●
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-091-0	08	1	0712-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-759-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-813-0	08	1	0712-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-813-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-817-0	08	1	0710-0711	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-817-0	08	1	0712-0712	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-817-0	08	1	0712-0712		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-092-0	08	1	0712-	●
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-092-0	08	1	0712-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING L=15.5	1-09732-053-0	40	1	0906-	●
7	RIVET; LINING,RR BRK (A) L=15.5	1-09732-053-0	AR	1	0710-0711	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	AR	1	0712-	●
7	RIVET; LINING,RR BRK (A) L=15.5	1-09732-053-0	AR	1	0712-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-175-0	04	1	0710-0711	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	0712-	●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-175-0	04	1	0712-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-359-0	04	1	0712-0905	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	0906-	●
9	SPRING; RETURN,BRK SHOE	1-09583-376-0	02	1	0710-0711	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	0712-	●
9	SPRING; RETURN,BRK SHOE	1-09583-376-0	02	1	0712-		●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0710-0711	●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0712-		●
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-015-0	04	1	0712-0905	●
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-807-0	01	1	0710-0711	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-807-0	01	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-807-0	01	1	0712-		●
25	COVER SET; RR BRK DRUM (A)	1-47151-806-0	01	1	0710-0711	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-806-0	01	1	0712-	●
25	COVER SET; RR BRK DRUM (A)	1-47151-806-0	01	1	0712-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0710-0711	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0712-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0710-0711	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0712-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-112-4	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-577-0	02	1	0712-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-577-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-47137-472-0	02	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-550-0	01	1	0710-0711	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	1-47137-550-0	01	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-550-0	01	1	0712-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	8-98091-255-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-549-0	01	1	0710-0711	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	1-47137-549-0	01	1	0712-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	1-47137-549-0	01	1	0712-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK (A)	8-98091-254-1	01	1	1307-		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0710-0711	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0712-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0710-0711	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0712-	●	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-183-0	02	1	0712-0905	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-985-0	02	1	0712-0905	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	0906-	●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0712-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	0906-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-371-0	04	1	0712-0905	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50551-232-0	04	1	0906-0906	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50551-232-0	04	1	0907-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50051-232-0	04	1	0712-0905	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50051-232-0	04	1	0906-0906	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	0712-0905	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	0710-0711	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0712-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	0712-		●
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-197-0	02	1	0712-0905	●
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	0906-	●
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47619-145-0	02	1	0712-0905	●
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	0906-	●
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50540-816-0	02	1	0712-0905	●
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47623-027-1	04	1	0712-0905	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	0906-	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-121-0	04	1	0712-0905	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	0906-	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	02	1	0712-0905	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0710-0711	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0712-		●
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-544-0	04	1	0712-0905	●
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	0906-	●
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47629-119-0	04	1	0712-0905	●
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	0906-	●
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-542-0	04	1	0712-0905	●
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	0906-	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-120-0	04	1	0712-0905	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-120-0	04	1	0906-	●
319	RING; DRIVE (A)	1-47629-200-0	04	1	0710-0711	●
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-200-0	04	1	0712-	●
319	RING; DRIVE (A)	1-47629-200-0	04	1	0712-		●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09580-543-0	04	1	0712-0905	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09580-543-0	04	1	0906-	●
327	SPRING; ADJ (A)	1-47629-196-0	04	1	0710-0711	●
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-196-0	04	1	0712-	●
327	SPRING; ADJ (A)	1-47629-196-0	04	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
