Sayfa 3-01 - Isuzu EPC

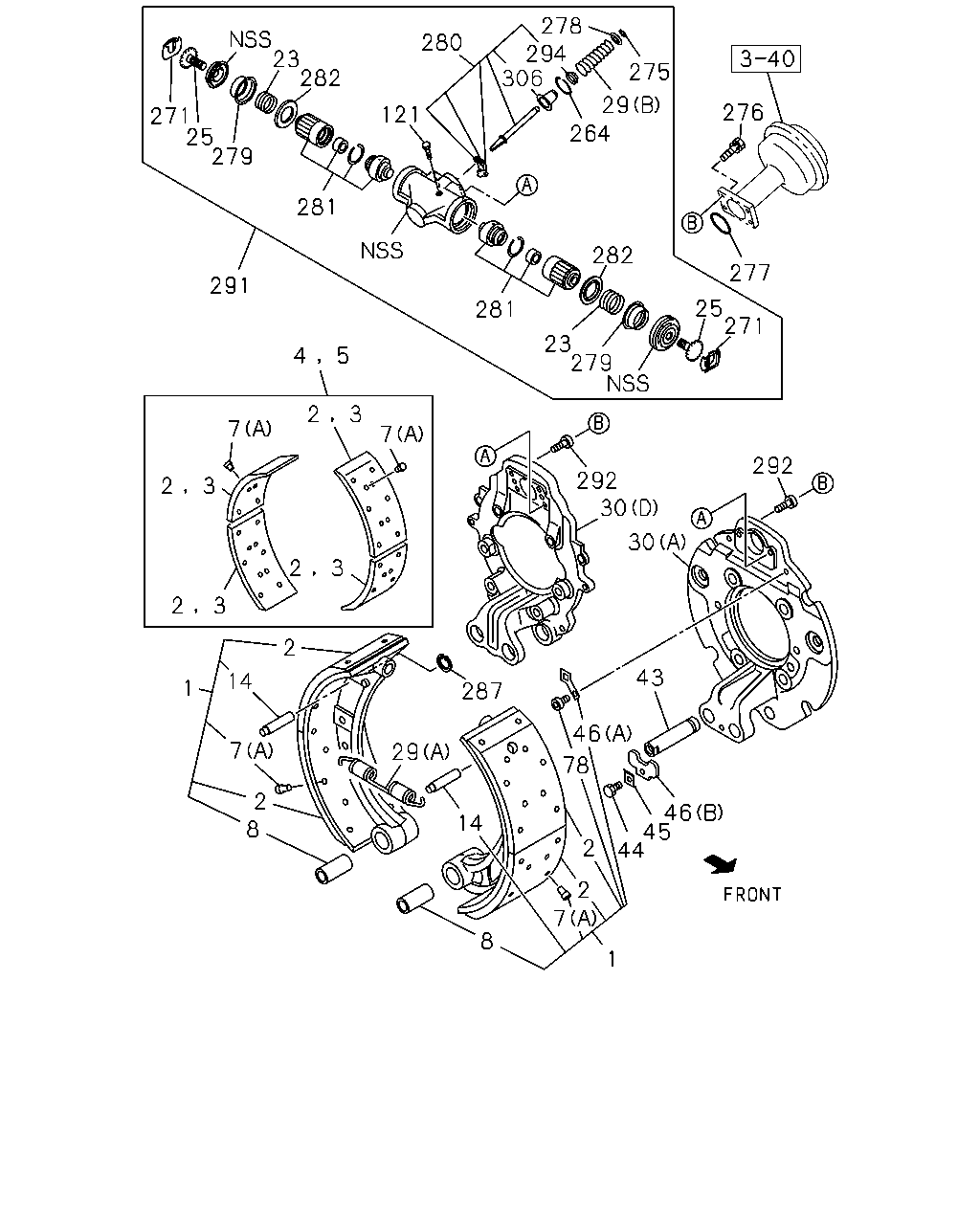

3-01 — FRONT WHEEL BRAKE (#65540) — 512 parça

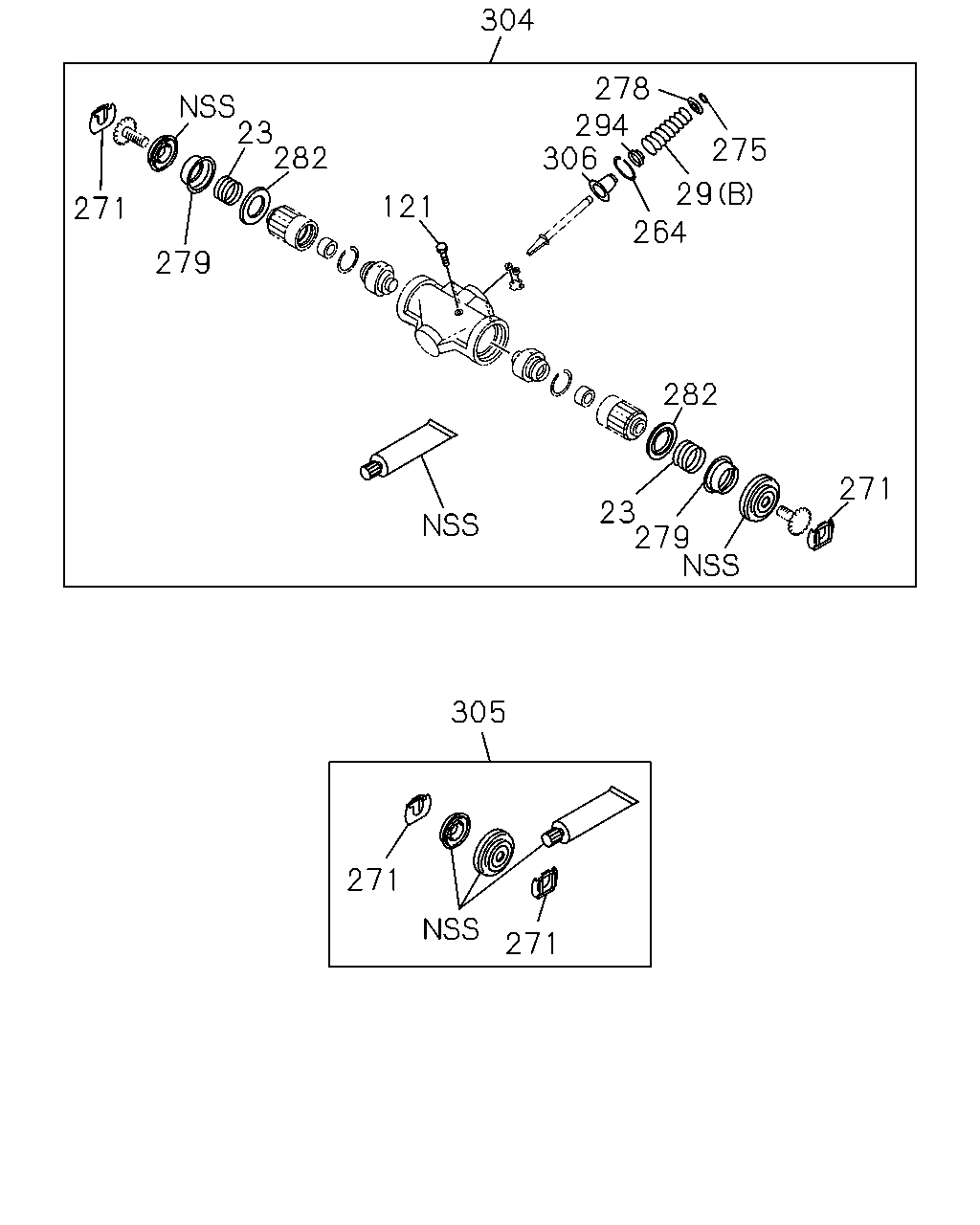

304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-	●
23	SPRING; COIL	1-47629-196-0	04	1	0710-0711	●
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0712-	●
23	SPRING; COIL	1-47629-196-0	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0712-		●
121	SCREW; LK SPR FRT WHEEL CYL	1-47619-149-1	04	1	0710-0711	●
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0712-	●
121	SCREW; LK SPR FRT WHEEL CYL	1-47619-149-1	04	1	0712-		●
264	RING; SNAP,SPR PIN	1-47649-034-1	02	1	0710-0711	●
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	0712-	●
264	RING; SNAP,SPR PIN	1-47649-034-1	02	1	0712-		●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
271	CLIP; ADJ	1-47621-017-0	04	1	0710-0711	●
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-	●
271	CLIP; ADJ	1-47621-017-0	04	1	0712-		●
275	RING; RETAINER	1-47649-031-0	02	1	0710-0711	●
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	0712-	●
275	RING; RETAINER	1-47649-031-0	02	1	0712-		●
278	RETAINER; SPRING	1-47649-020-0	02	1	0710-0711	●
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0712-	●
278	RETAINER; SPRING	1-47649-020-0	02	1	0712-		●
279	CAGE; SPRING	1-47629-192-0	04	1	0710-0711	●
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0712-	●
279	CAGE; SPRING	1-47629-192-0	04	1	0712-		●
282	RING; DRIVE	1-47629-200-0	04	1	0710-0711	●
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0712-	●
282	RING; DRIVE	1-47629-200-0	04	1	0712-		●
294	BOOT; WEDGE	1-47649-042-0	02	1	0710-0711	●
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0712-	●
294	BOOT; WEDGE	1-47649-042-0	02	1	0712-		●
304	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	0710-0711	●
304	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	0712-	●
304	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	0712-		●
305	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	0710-0711	●
305	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	0712-	●
305	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	0712-		●
306	CAP; EXPANDER	1-47649-044-0	02	1	0710-0711	●
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0712-	●
306	CAP; EXPANDER	1-47649-044-0	02	1	0712-		●

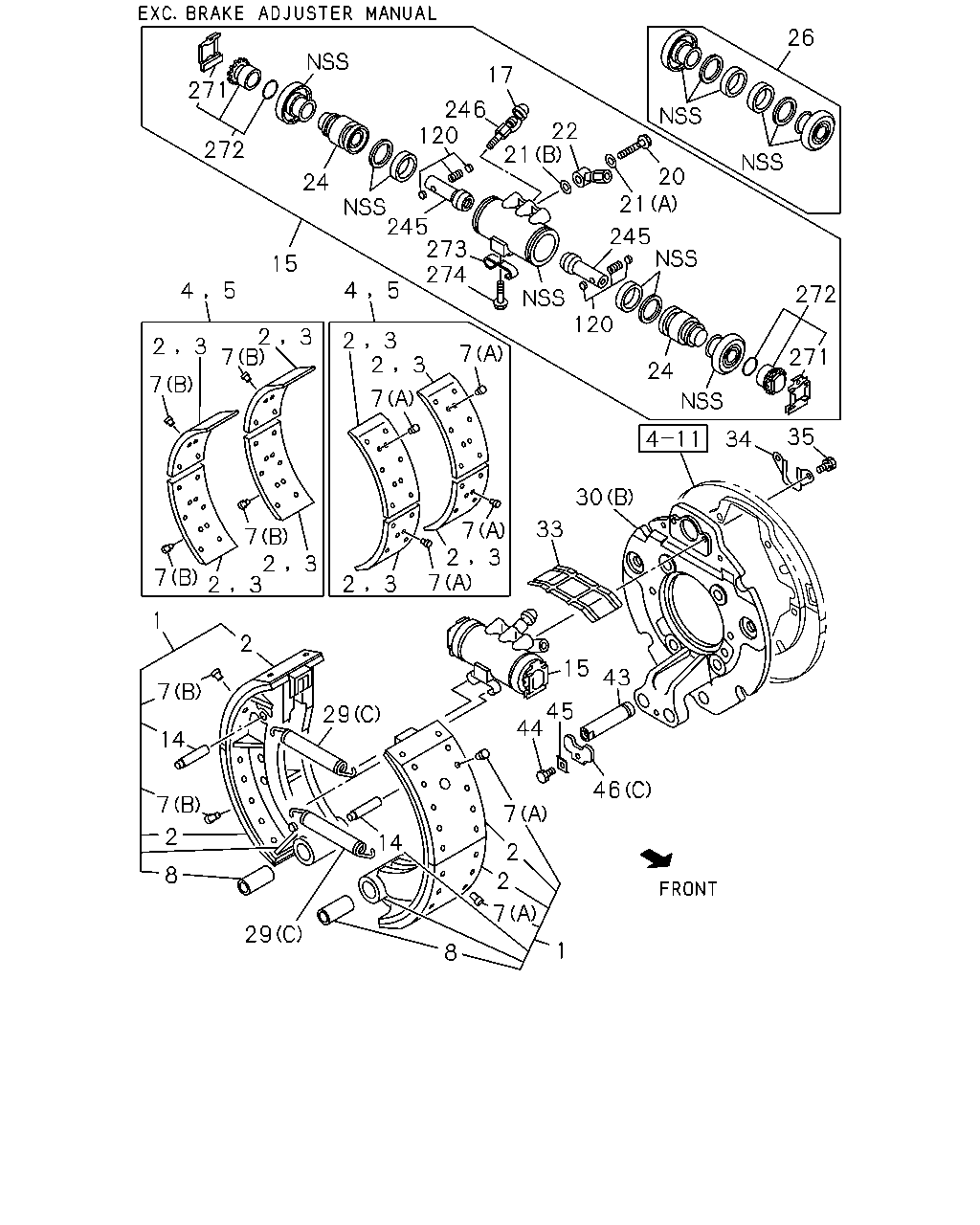

26 17 271 246 120 22 21 272 20 21 24 245 273 274 245 15 5 4 5 4 272 120 2 7 3 2 3 2 2 3 7 271 3 24 7 7 35 34 7 23 7 30 33 7 2 3 3 7 2 2 3 1 2 15 43 7 45 44 29 14 46 7 7 2 14 2 8 2 7 29 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	0906-1007	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1008-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,FRT LEADING	1-47170-318-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT LEADING	1-47170-318-0	01	1	0712-		●
1	SHOE; BRK,FRT TRAILING	1-47170-319-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT TRAILING	1-47170-319-0	01	1	0712-		●
1	SHOE; BRK,FRT LEADING	1-47170-316-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT LEADING	1-47170-316-0	01	1	0712-		●
1	SHOE; BRK,FRT TRAILING	1-47170-317-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT TRAILING	1-47170-317-0	01	1	0712-		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-812-0	08	1	0712-0905	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	0710-0711	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	0712-		●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-813-0	08	1	0712-0905	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	0710-0711	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	0712-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	0712-		●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0710-0711	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	0712-	●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0712-		●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-88311-390-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-88311-394-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0710-0711	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	0712-	●
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0712-		●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-88311-391-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-88311-395-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0710-0711	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0712-		●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	0710-0711	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	0712-	●
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	0712-		●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0712-	●
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	0710-0711	●
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	0712-	●
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	0712-		●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0712-0905	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-	●
14	PIN; SHOE RETURN SPR	1-47119-177-0	04	1	0710-0711	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	0712-	●
14	PIN; SHOE RETURN SPR	1-47119-177-1	04	1	0712-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-041-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-042-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	0906-	●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0712-	●
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	0712-	●
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	0712-	●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-	●
23	SPRING; COIL	1-47629-196-0	04	1	0710-0711	●
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0712-	●
23	SPRING; COIL	1-47629-196-0	04	1	0712-		●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	0906-	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-370-0	04	1	0712-0905	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-931-0	02	1	0712-0905	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0712-		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-519-0	02	1	0712-0905	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0710-0711	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0712-1005		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT (D)	8-98091-252-0	02	1	1006-		●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	0906-	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-197-0	02	1	0712-0905	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	0906-	●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	0712-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50551-235-0	04	1	0906-0906	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	0712-0905	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50051-235-0	04	1	0906-0906	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0712-	●
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	0710-0711	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	0712-		●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	0911-	●
44	BOLT; LOCK,ANCHOR PIN M10X16	1-47139-173-0	02	1	0911-		●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0710-0711	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0712-0910	●	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	0911-	●
45	WASHER; LK	1-47133-011-0	02	1	0710-0711	●
45	WASHER; LK	1-47133-011-0	02	1	0712-	●	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	0712-	●
46	PLATE; LOCK (A)	1-47119-152-0	04	1	0710-0711	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	0712-	●
46	PLATE; LOCK (A)	1-47119-152-0	04	1	0712-		●
46	PLATE; LOCK (B)	1-47133-010-0	02	1	0710-0711	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	0712-	●
46	PLATE; LOCK (B)	1-47133-010-0	02	1	0712-		●
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-544-0	04	1	0712-0905	●
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	0906-	●
245	SHAFT; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47623-027-1	04	1	0712-0905	●
245	SHAFT; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47623-027-1	04	1	0906-	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	02	1	0712-0905	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
271	CLIP; ADJ	1-47621-017-0	04	1	0710-0711	●
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-	●
271	CLIP; ADJ	1-47621-017-0	04	1	0712-		●
272	ADJUSTER; MANUAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-015-0	04	1	0712-0905	●
272	ADJUSTER; MANUAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-	●
273	HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47619-145-0	02	1	0712-0905	●
273	HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	0906-	●
274	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50540-816-0	02	1	0712-0905	●
274	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-	●

278 294 306 23 282 280 275 29 264 276 121 271 25 279 281 282 277 291 25 271 281 23 279 5 4 2 3 7 7 292 292 30 2 3 2 30 3 2 3 2 43 14 1 287 46 7 29 78 2 8 46 45 44 14 2 2 7 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	0906-1007	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1008-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,FRT LEADING	1-47170-318-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT LEADING	1-47170-318-0	01	1	0712-		●
1	SHOE; BRK,FRT TRAILING	1-47170-319-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT TRAILING	1-47170-319-0	01	1	0712-		●
1	SHOE; BRK,FRT LEADING	1-47170-316-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT LEADING	1-47170-316-0	01	1	0712-		●
1	SHOE; BRK,FRT TRAILING	1-47170-317-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT TRAILING	1-47170-317-0	01	1	0712-		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-812-0	08	1	0712-0905	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	0710-0711	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	0712-		●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-813-0	08	1	0712-0905	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	0710-0711	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	0712-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	0712-		●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0710-0711	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	0712-	●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0712-		●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-88311-390-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-88311-394-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0710-0711	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	0712-	●
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0712-		●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-88311-391-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-88311-395-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0710-0711	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0712-		●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	0710-0711	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	0712-	●
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	0712-		●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0712-	●
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	0710-0711	●
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	0712-	●
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	0712-		●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0712-0905	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-	●
14	PIN; SHOE RETURN SPR	1-47119-177-0	04	1	0710-0711	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	0712-	●
14	PIN; SHOE RETURN SPR	1-47119-177-1	04	1	0712-		●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-	●
23	SPRING; COIL	1-47629-196-0	04	1	0710-0711	●
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0712-	●
23	SPRING; COIL	1-47629-196-0	04	1	0712-		●
25	SCREW; ADJ,FRT WHEEL CYL	1-47623-035-1	04	1	0710-0711	●
25	SCREW; ADJ,FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	0712-	●
25	SCREW; ADJ,FRT WHEEL CYL	1-47623-035-2	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0712-		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-519-0	02	1	0712-0905	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0710-0711	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0712-1005		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT (D)	8-98091-252-0	02	1	1006-		●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0712-	●
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	0710-0711	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	0712-		●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	0911-	●
44	BOLT; LOCK,ANCHOR PIN M10X16	1-47139-173-0	02	1	0911-		●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0710-0711	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0712-0910	●	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	0911-	●
45	WASHER; LK	1-47133-011-0	02	1	0710-0711	●
45	WASHER; LK	1-47133-011-0	02	1	0712-	●	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	0712-	●
46	PLATE; LOCK (A)	1-47119-152-0	04	1	0710-0711	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	0712-	●
46	PLATE; LOCK (A)	1-47119-152-0	04	1	0712-		●
46	PLATE; LOCK (B)	1-47133-010-0	02	1	0710-0711	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	0712-	●
46	PLATE; LOCK (B)	1-47133-010-0	02	1	0712-		●
78	BOLT; LK,PLATE	1-47119-153-0	04	1	0710-0711	●
78	BOLT; LK,PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	0712-	●
78	BOLT; LK,PLATE	1-47119-153-0	04	1	0712-		●
121	SCREW; LK SPR FRT WHEEL CYL	1-47619-149-1	04	1	0710-0711	●
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0712-	●
121	SCREW; LK SPR FRT WHEEL CYL	1-47619-149-1	04	1	0712-		●
264	RING; SNAP,SPR PIN	1-47649-034-1	02	1	0710-0711	●
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	0712-	●
264	RING; SNAP,SPR PIN	1-47649-034-1	02	1	0712-		●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
271	CLIP; ADJ	1-47621-017-0	04	1	0710-0711	●
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-	●
271	CLIP; ADJ	1-47621-017-0	04	1	0712-		●
275	RING; RETAINER	1-47649-031-0	02	1	0710-0711	●
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	0712-	●
275	RING; RETAINER	1-47649-031-0	02	1	0712-		●
276	BOLT; CHAMBER M10X42.5	1-47139-163-0	08	1	0710-0711	●
276	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X42.5	1-47139-163-0	08	1	0712-	●
276	BOLT; CHAMBER M10X42.5	1-47139-163-0	08	1	0712-		●
277	RING; CHAMBER	1-48259-231-0	02	1	0710-0711	●
277	RING; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	0712-	●
277	RING; CHAMBER	1-48259-231-0	02	1	0712-		●
278	RETAINER; SPRING	1-47649-020-0	02	1	0710-0711	●
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0712-	●
278	RETAINER; SPRING	1-47649-020-0	02	1	0712-		●
279	CAGE; SPRING	1-47629-192-0	04	1	0710-0711	●
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0712-	●
279	CAGE; SPRING	1-47629-192-0	04	1	0712-		●
280	WEDGE; FRT WHEEL CYL	1-47640-012-0	02	1	0710-0711	●
280	WEDGE; FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	0712-	●
280	WEDGE; FRT WHEEL CYL	1-47640-012-0	02	1	0712-		●
281	SLEEVE	1-47629-247-0	04	1	0710-0711	●
281	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	0712-	●
281	SLEEVE	1-47629-247-1	04	1	0712-		●
282	RING; DRIVE	1-47629-200-0	04	1	0710-0711	●
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0712-	●
282	RING; DRIVE	1-47629-200-0	04	1	0712-		●
287	RING; SNAP ID=10	0-91805-510-0	08	1	0710-0711	●
287	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	08	1	0712-	●
287	RING; SNAP ID=10	0-91805-510-0	08	1	0712-		●
291	EXPANDER	1-47601-087-0	02	1	0710-0711	●
291	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	0712-	●
291	EXPANDER	1-47601-087-0	02	1	0712-		●
292	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0710-0711	●
292	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0712-	●
292	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0712-		●
294	BOOT; WEDGE	1-47649-042-0	02	1	0710-0711	●
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0712-	●
294	BOOT; WEDGE	1-47649-042-0	02	1	0712-		●
306	CAP; EXPANDER	1-47649-044-0	02	1	0710-0711	●
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0712-	●
306	CAP; EXPANDER	1-47649-044-0	02	1	0712-		●

2 3 2 3 7 5 4 2 3 3 2 35 28 34 2 29 41 40 39 38 37 7 33 14 2 42 30 8 1 43 15 36 2 7 36 46 45 44 2 8 26 15 1 17 16 27 20 21 22 21 24 23 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	0906-1007	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1008-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,FRT LEADING	1-47170-318-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT LEADING	1-47170-318-0	01	1	0712-		●
1	SHOE; BRK,FRT TRAILING	1-47170-319-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT TRAILING	1-47170-319-0	01	1	0712-		●
1	SHOE; BRK,FRT LEADING	1-47170-316-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT LEADING	1-47170-316-0	01	1	0712-		●
1	SHOE; BRK,FRT TRAILING	1-47170-317-0	01	1	0710-0711	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT TRAILING	1-47170-317-0	01	1	0712-		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-812-0	08	1	0712-0905	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	0710-0711	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	0712-		●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-813-0	08	1	0712-0905	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	0710-0711	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	0712-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	0712-		●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0710-0711	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	0712-	●
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0712-		●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-88311-390-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-88311-394-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0710-0711	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	0712-	●
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0712-		●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LEADING	1-88311-391-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRAILING	1-88311-395-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0710-0711	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0712-		●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	0710-0711	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	0712-	●
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	0712-		●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0712-	●
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	0710-0711	●
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	0712-	●
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	0712-		●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0712-0905	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-	●
14	PIN; SHOE RETURN SPR	1-47119-177-0	04	1	0710-0711	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	0712-	●
14	PIN; SHOE RETURN SPR	1-47119-177-1	04	1	0712-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-041-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-042-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	0906-	●
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	0906-	●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0712-	●
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	0712-	●
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	0712-	●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-	●
23	SPRING; COIL	1-47629-196-0	04	1	0710-0711	●
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0712-	●
23	SPRING; COIL	1-47629-196-0	04	1	0712-		●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	0906-	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-370-0	04	1	0712-0905	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-931-0	02	1	0712-0905	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	0906-	●
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	0906-	●
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0710-0711	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	0712-		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-519-0	02	1	0712-0905	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0710-0711	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0712-1005		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT (D)	8-98091-252-0	02	1	1006-		●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	0906-	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-197-0	02	1	0712-0905	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	0906-	●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	0712-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50551-235-0	04	1	0906-0906	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	0712-0905	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50051-235-0	04	1	0906-0906	●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	0906-	●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	0906-	●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	0906-	●
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	0906-	●
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	0906-	●
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	0906-	●
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	0906-	●
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	0906-	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0712-	●
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	0710-0711	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	0712-		●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	0911-	●
44	BOLT; LOCK,ANCHOR PIN M10X16	1-47139-173-0	02	1	0911-		●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0710-0711	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0712-0910	●	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	0911-	●
45	WASHER; LK	1-47133-011-0	02	1	0710-0711	●
45	WASHER; LK	1-47133-011-0	02	1	0712-	●	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	0712-	●
46	PLATE; LOCK (A)	1-47119-152-0	04	1	0710-0711	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	0712-	●
46	PLATE; LOCK (A)	1-47119-152-0	04	1	0712-		●
46	PLATE; LOCK (B)	1-47133-010-0	02	1	0710-0711	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	0712-	●
46	PLATE; LOCK (B)	1-47133-010-0	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
