Sayfa 2-85 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶

2-85 — POWER TAKE OFF CONTROL (#65539) — 20 parça

3 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

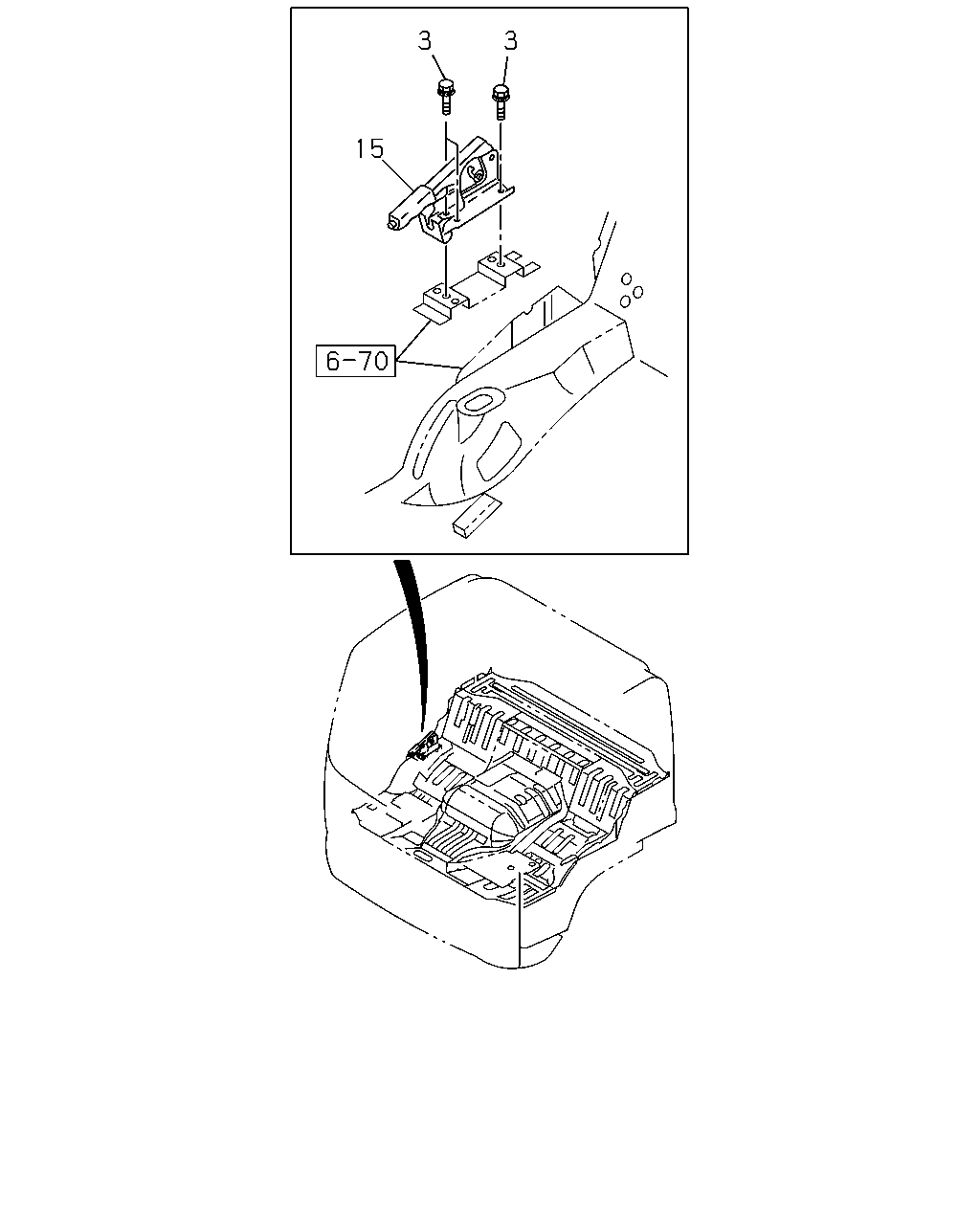

3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0710-0711	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0712-	●	●
15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	0710-0711	●
15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	0712-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

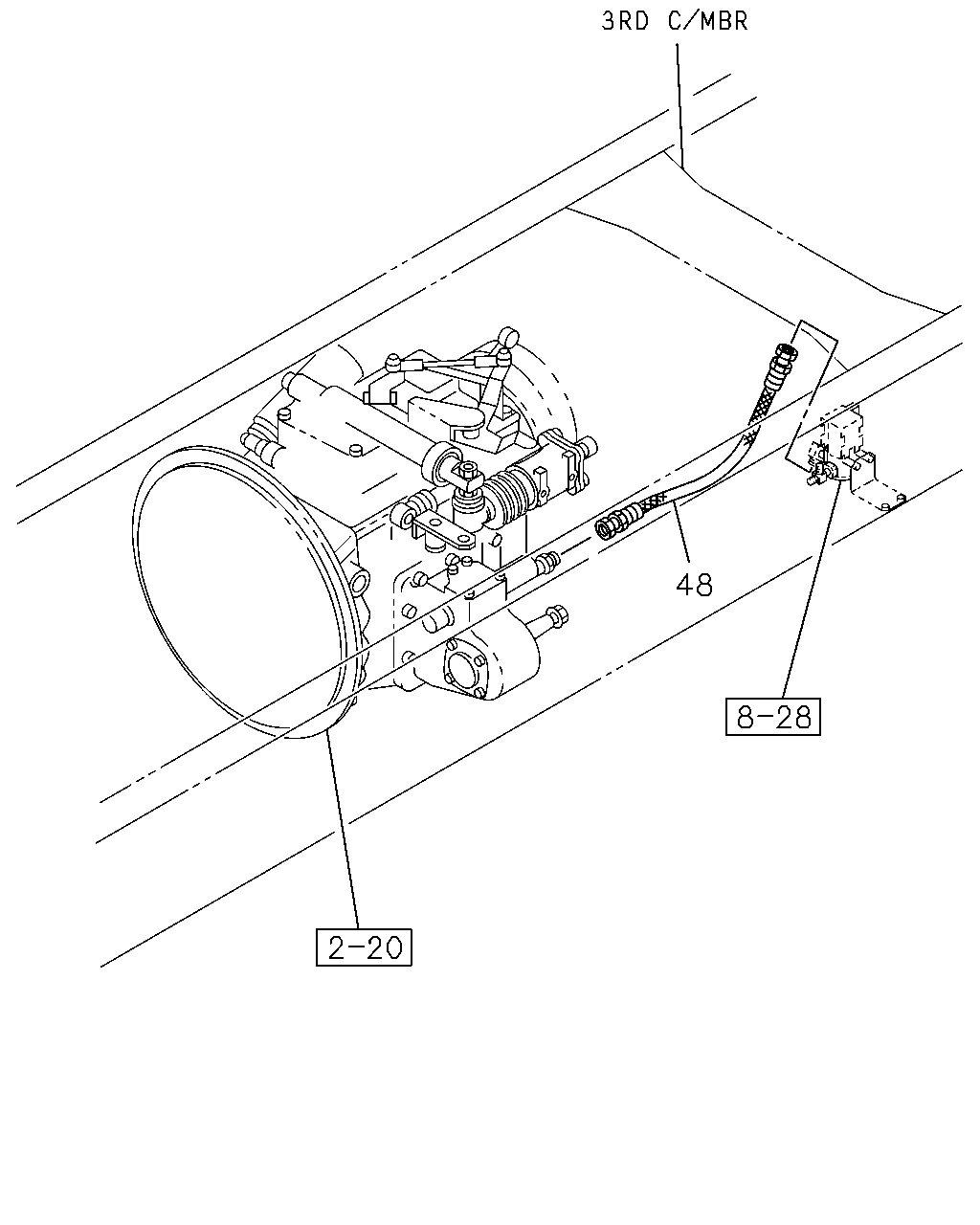

48	HOSE; FLEX,PTO MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=470	1-09363-714-0	01	1	0907-	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=380	1-09363-919-0	01	1	0907-	●	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=450	1-09363-965-0	01	1	0809-0906	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=450	1-09363-965-0	01	1	0907-	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=450	1-09363-965-0	01	1	0907-	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=480	1-09363-659-0	01	1	0802-0802	●	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=410	1-09363-895-0	01	1	0802-0803	●	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410	1-09363-895-0	01	1	0804-0808	●	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410	1-09363-895-0	01	1	0809-	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410	1-09363-895-0	01	1	0809-		●
48	HOSE; FLEX,PTO MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=430	1-09363-677-0	01	1	0806-	●	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=420	1-09363-615-0	01	1	0710-0711	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=420	1-09363-615-0	01	1	0712-0801	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=420	1-09363-615-0	01	1	0712-0801		●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=420	1-09363-615-0	01	1	0802-0802	●	●
48	HOSE; FLEX,PTO MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=350	1-09363-877-0	01	1	0802-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
