◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#65533) — 143 parça

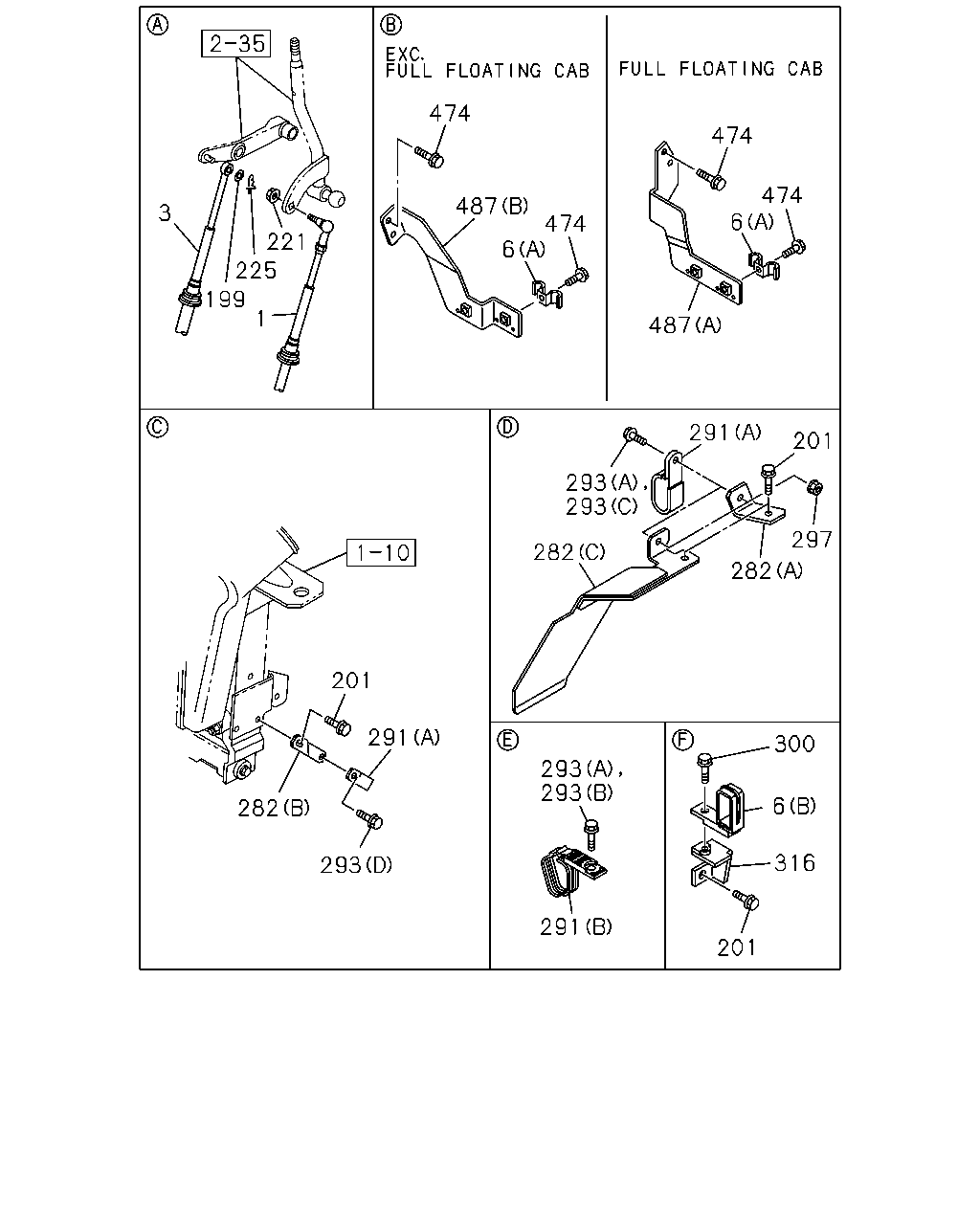

çizim 113795
474 474 474 6 487 3 474 221 6 225 199 1 487 291 201 293 293 297 282 282 201 291 300 293 293 6 282 316 293 291 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3590 		8-98111-795-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3525 		8-98113-108-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3525 		8-98113-108-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98121-075-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3555 		8-98121-073-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-073-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-1 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3730 		8-98121-076-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3665 		8-98121-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98121-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3630 		8-98113-109-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3630 		8-98113-109-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-1 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0907- ●
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ●
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-0805 ● ●
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806- ● ●
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710-0711 ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712- ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0710-0711 ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0712- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ● ●
201 BOLT; BRKT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ● ●
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 0712- ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0710-0711 ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0712- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82699-199-0 01 1 0710-0711 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82699-199-0 01 1 0712-1103 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98171-762-0 01 1 1104- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98010-418-0 01 1 0710-0711 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98010-418-0 01 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0802-0906 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0802-0906 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0907- ● ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
300 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
300 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0805 ● ●
300 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0806- ● ●
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0806- ● ●
316 BRACKET; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98086-439-0 01 1 0806- ● ●
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0710-0711 ●
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0712-0805 ● ●
316 BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0806-0806 ● ●
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0806-0906 ● ●
316 BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0907- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0712- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CABSUSPENSION FULL FLOATING<W16> (B) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CABSUSPENSION FULL FLOATING<W16> (B) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-923-2 01 1 0710-0711 ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-923-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98021-923-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98180-729-0 01 1 1101- ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98180-729-0 01 1 1101- ●

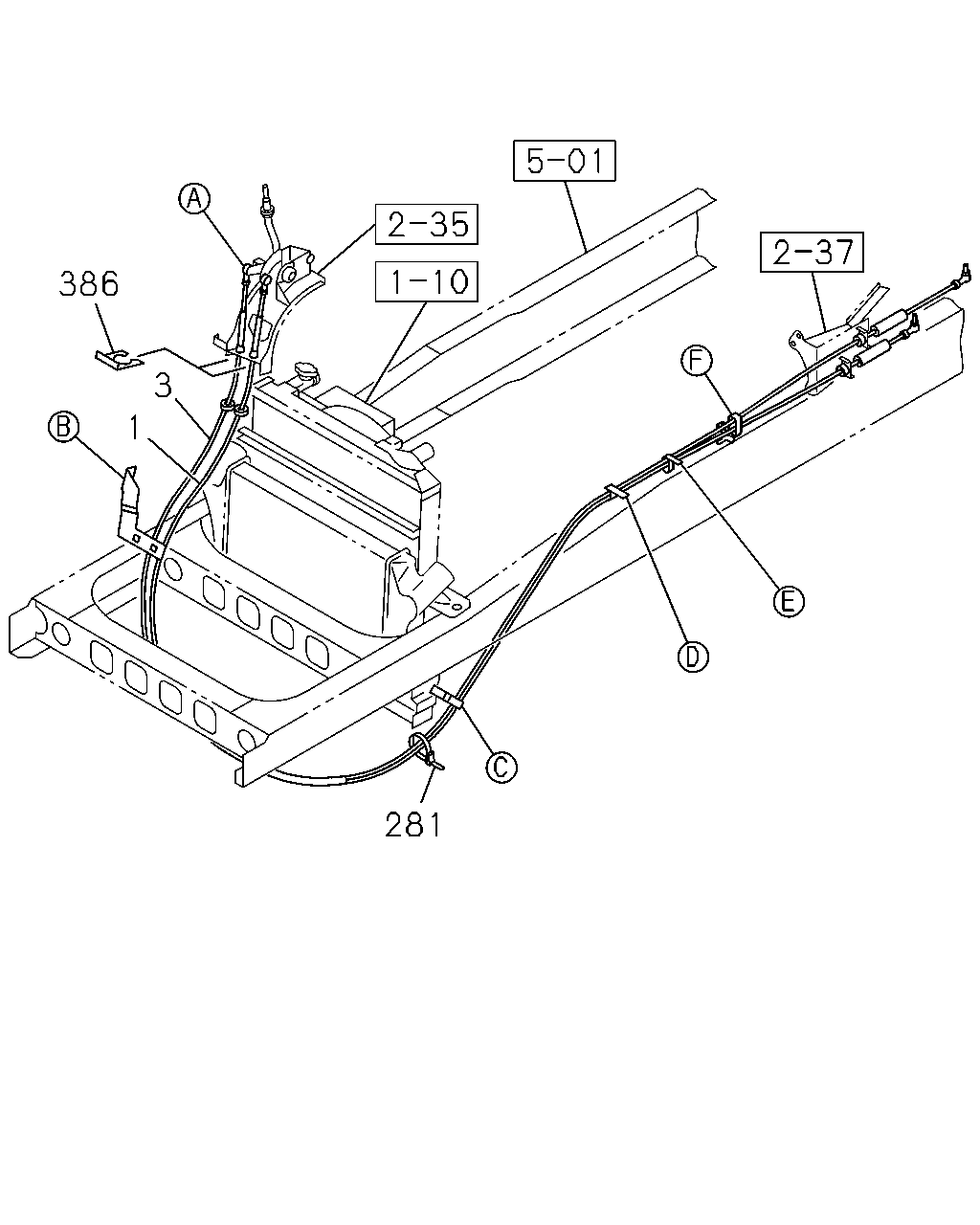

çizim 192331
386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3590 		8-98111-795-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3525 		8-98113-108-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3525 		8-98113-108-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98121-075-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3555 		8-98121-073-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-073-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-1 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3730 		8-98121-076-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3665 		8-98121-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98121-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3630 		8-98113-109-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3630 		8-98113-109-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-1 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0907- ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0807- ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0710-0711 ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
