◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#65532) — 107 parça

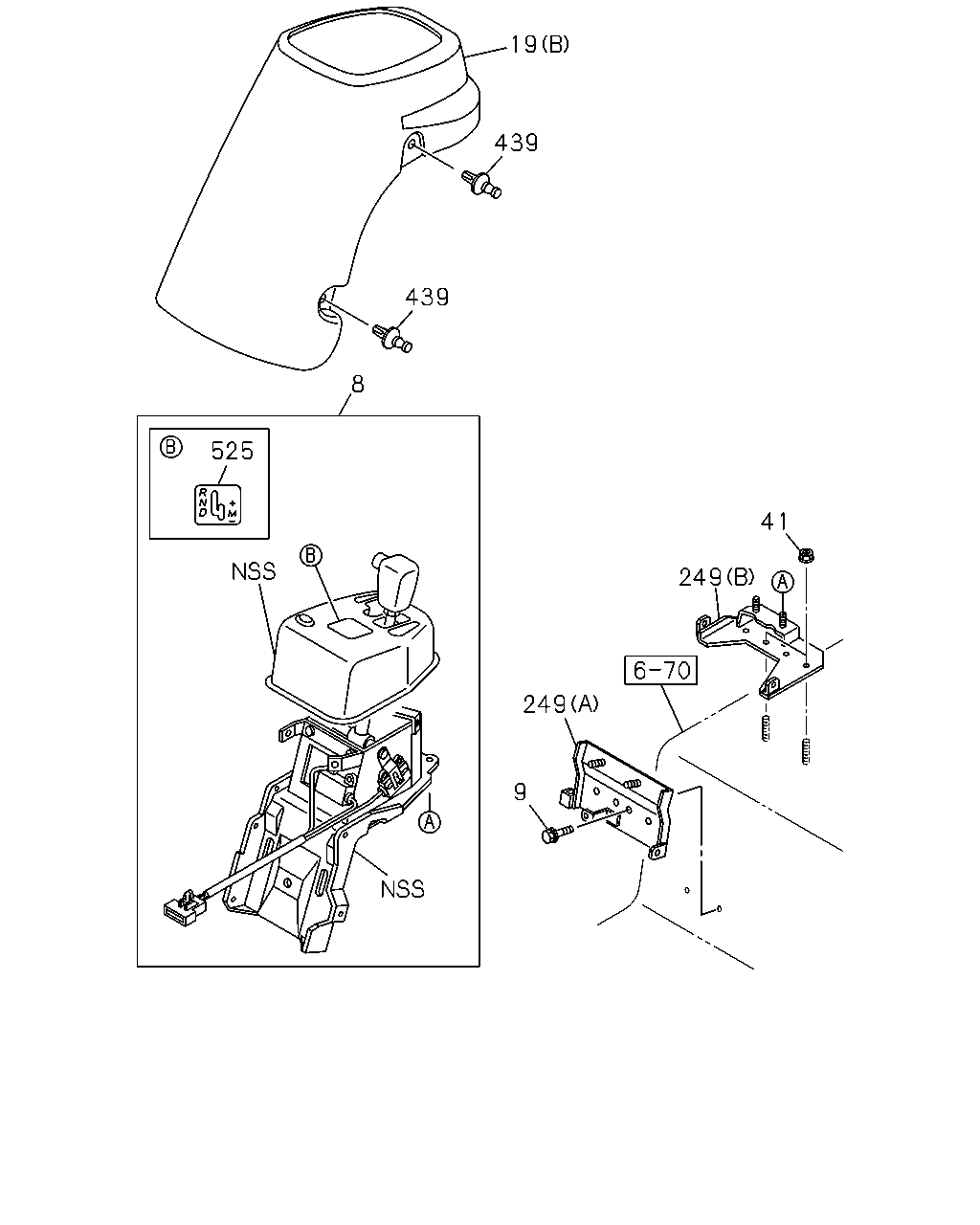

çizim 113818
19 439 439 8 525 41 249 249 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-457-0 01 1 0710-0711 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-457-0 01 1 0712-0805 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 0806-1112 ● ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1201- ● ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-303-0 01 1 0710-0711 ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-303-0 01 1 0712-0805 ● ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 0806-1112 ● ●
8 LEVER; CHANGE
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ● ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97405-354-6 01 1 0710-0711 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97405-354-6 01 1 0712-1101 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1102-1311 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1312-1408 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0710-0711 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0712- ● ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-954-0 01 1 0710-0711 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-954-0 01 1 0712- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-502-0 01 1 0710-0711 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-502-0 01 1 0712- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710-0711 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0712- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 0710-0711 ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 0712- ● ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 0710-0711 ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 0712- ● ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98016-952-3 01 1 0710-0711 ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98016-952-3 01 1 0712- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0710-0711 ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0712- ● ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 0710-0711 ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 0712- ● ●

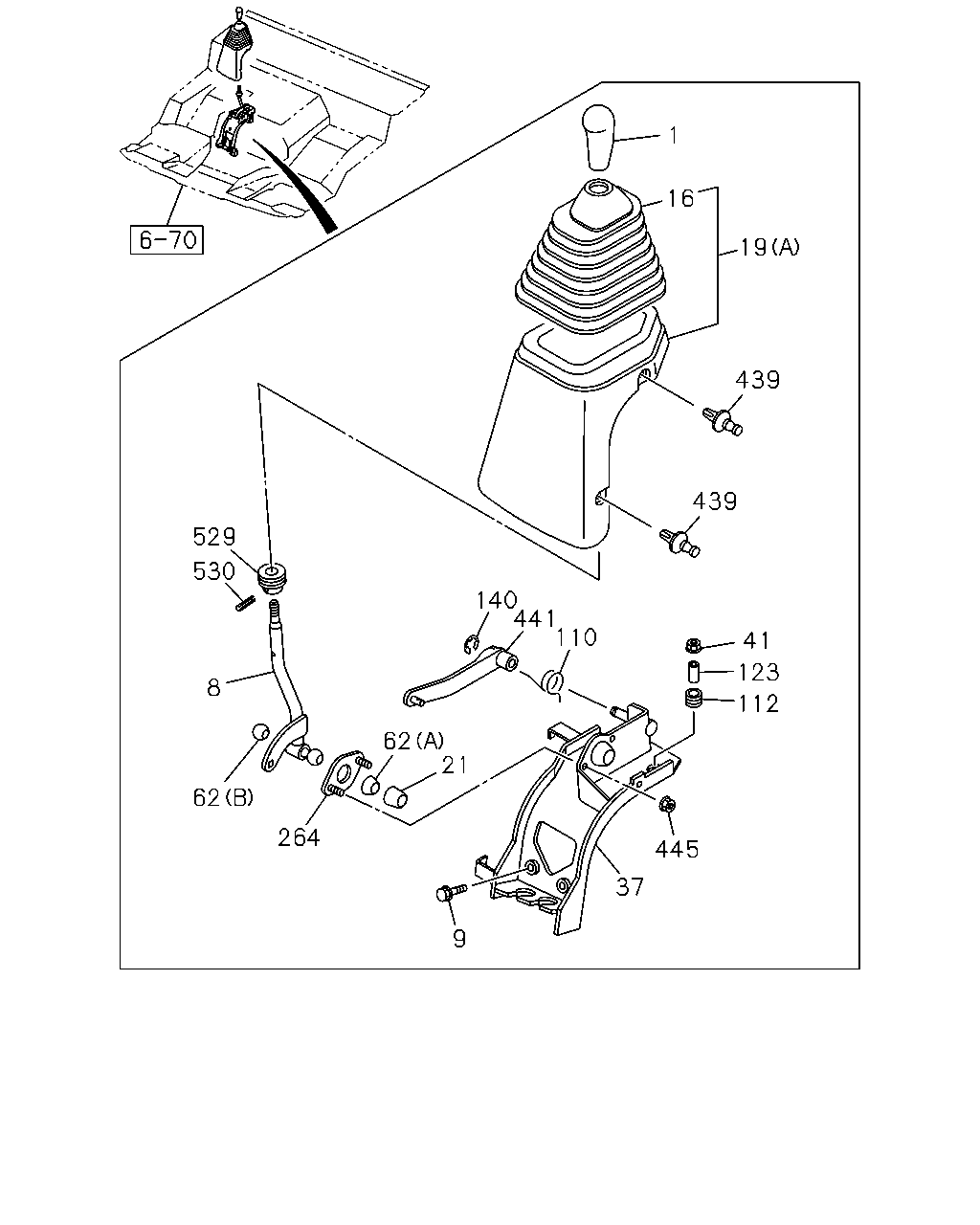

çizim 113913
1 16 19 439 439 529 530 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 0710-0711 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 0712- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-457-0 01 1 0710-0711 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-457-0 01 1 0712-0805 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 0806-1112 ● ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1201- ● ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-303-0 01 1 0710-0711 ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-303-0 01 1 0712-0805 ● ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 0806-1112 ● ●
8 LEVER; CHANGE
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ● ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97405-354-6 01 1 0710-0711 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97405-354-6 01 1 0712-1101 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1102-1311 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1312-1408 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0710-0711 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0712- ● ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 0710-0711 ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 0712- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-954-0 01 1 0710-0711 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-954-0 01 1 0712- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-502-0 01 1 0710-0711 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-502-0 01 1 0712- ● ●
21 SEAT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-429-0 01 1 0710-0711 ●
21 SEAT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-429-0 01 1 0712- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 0710-0711 ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 0712-1112 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 1201- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-302-0 01 1 0710-0711 ●
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-302-0 01 1 0712-1112 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-302-0 01 1 1201- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-302-0 01 1 1201- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710-0711 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0712- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 0710-0711 ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 0712- ● ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 0710-0711 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 0712- ● ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 0710-0711 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 0712- ● ●
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0710-0711 ●
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0712-1112 ● ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1201- ● ●
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 0710-0711 ●
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 0712-1112 ● ●
110 SPRING; RETURN,CHANGE LEVER
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1201- ● ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1201- ● ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-442-0 04 1 0710-0711 ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-442-0 04 1 0712- ● ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-443-0 04 1 0710-0711 ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-443-0 04 1 0712- ● ●
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 0710-0711 ●
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 0712- ● ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 0710-0711 ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 0712- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0710-0711 ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0712- ● ●
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 0710-0711 ●
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 0712-1112 ● ●
441 LEVER; SELECT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1201- ● ●
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 0710-0711 ●
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 0712-1112 ● ●
441 LEVER; SELECT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ● ●
441 LEVER; SELECT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ● ●
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-504-0 01 1 0710-0711 ●
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-504-0 01 1 0712- ● ●
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-505-0 01 1 0710-0711 ●
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-505-0 01 1 0712- ● ●
