Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#65528) — 427 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

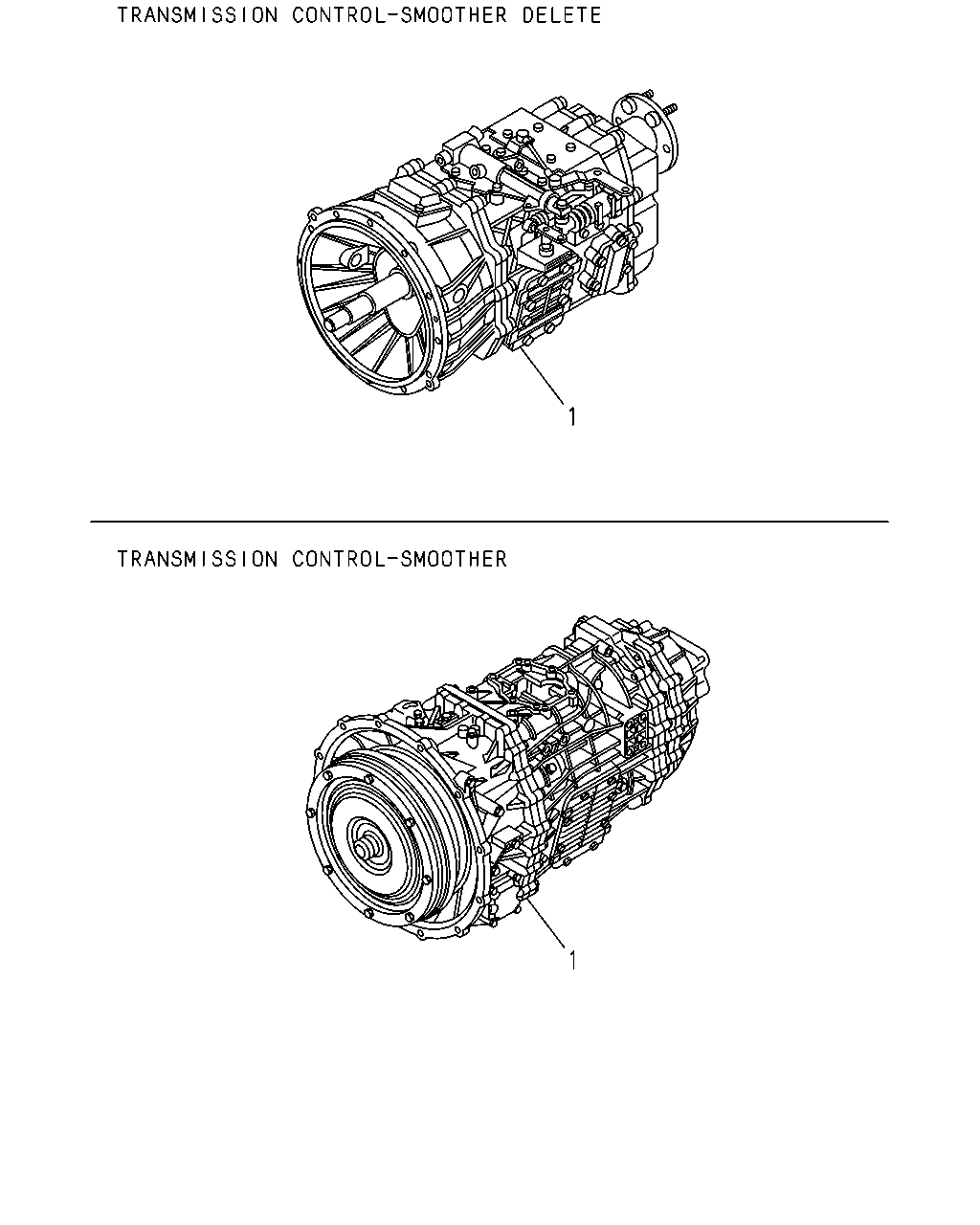

1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	1108-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	1108-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-518-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-569-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-569-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33044-307-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-307-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-342-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98065-508-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-801-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98065-508-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-536-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98059-801-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-545-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98065-506-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98065-506-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-556-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98041-813-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98041-813-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-549-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-809-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98041-809-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-809-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98041-809-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-548-0	01	1	0804-			●

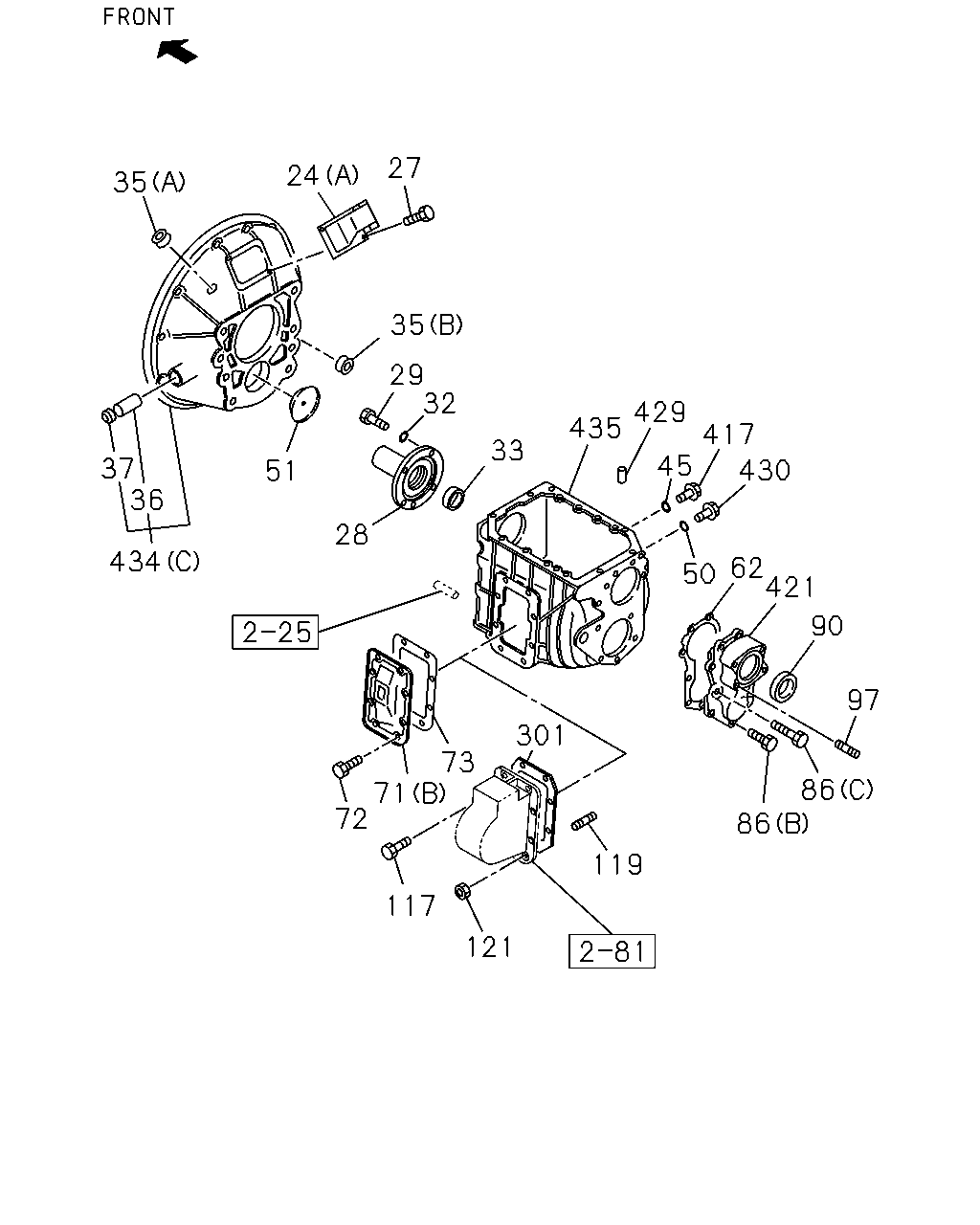

24 27 35 35 29 33 32 51 28 37 434 36 72 117 71 121 73 119 301 86 97 90 421 62 50 430 45 435 429 417 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	0710-0805			●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	0806-0906			●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0806-0906		●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	0907-1410	●		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0907-1410		●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98283-062-0	01	1	1411-	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-1410		●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0710-0906			●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0806-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0806-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0710-0906			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0907-	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0710-0906			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0907-	●		●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0806-		●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0806-		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0806-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0806-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0806-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0710-0901			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0710-0803			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0710-0805			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-		●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0710-0906			●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0710-0805			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0906		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-		●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0806-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0710-0711			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0712-0805			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0906			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0906		●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0710-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0710-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0710-0805			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-		●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0806-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0710-0906			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0710-0906			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-	●		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0806-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0710-0906			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
434	HOUSING; CLU (C)	1-31110-169-0	01	1	0806-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-404-3	01	1	0710-0906			●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	0907-	●		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	0710-0906			●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	0907-	●		●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	1-33111-355-0	01	1	0806-		●
435	CASE; TRANS	8-97388-872-4	01	1	0710-			●

11 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

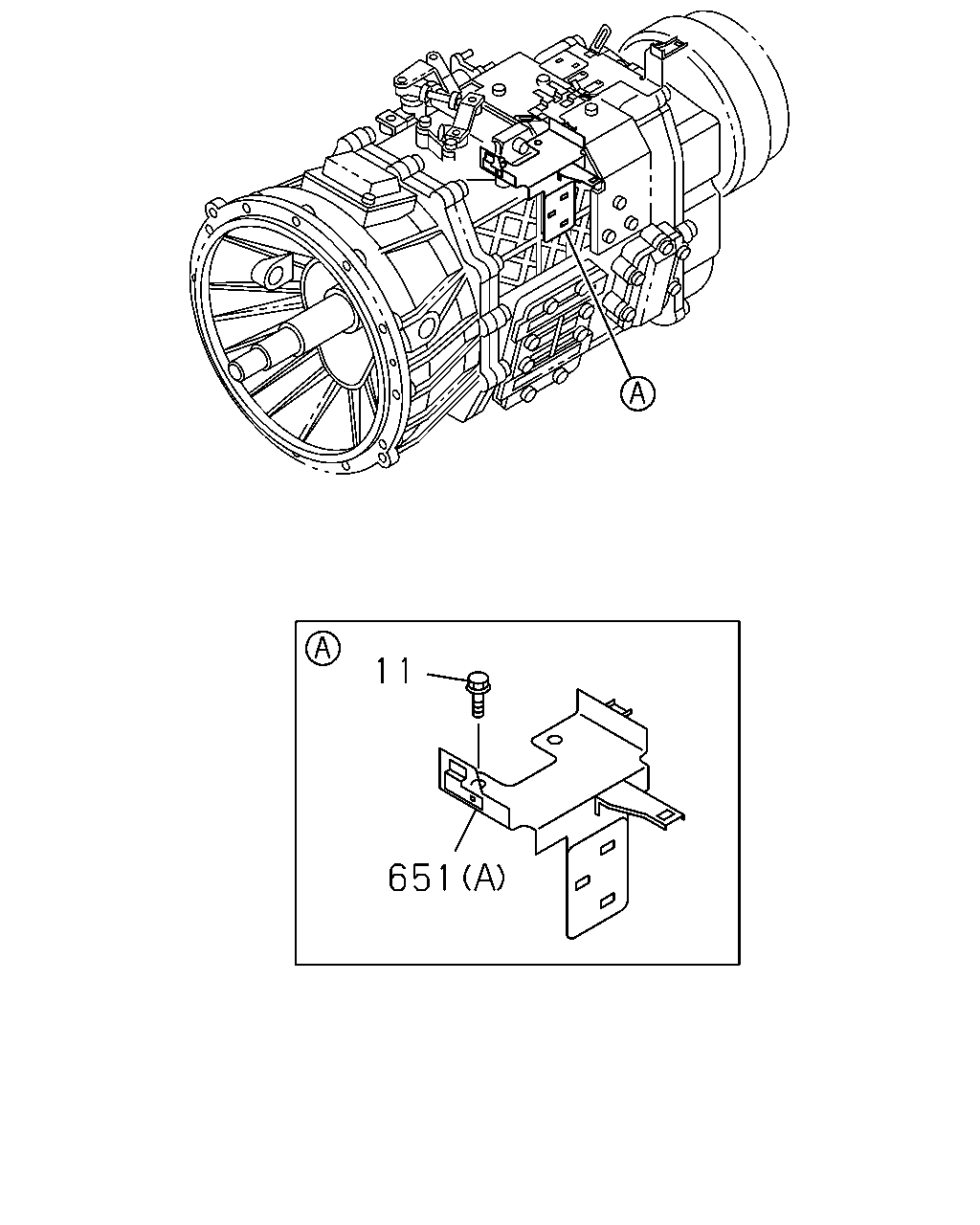

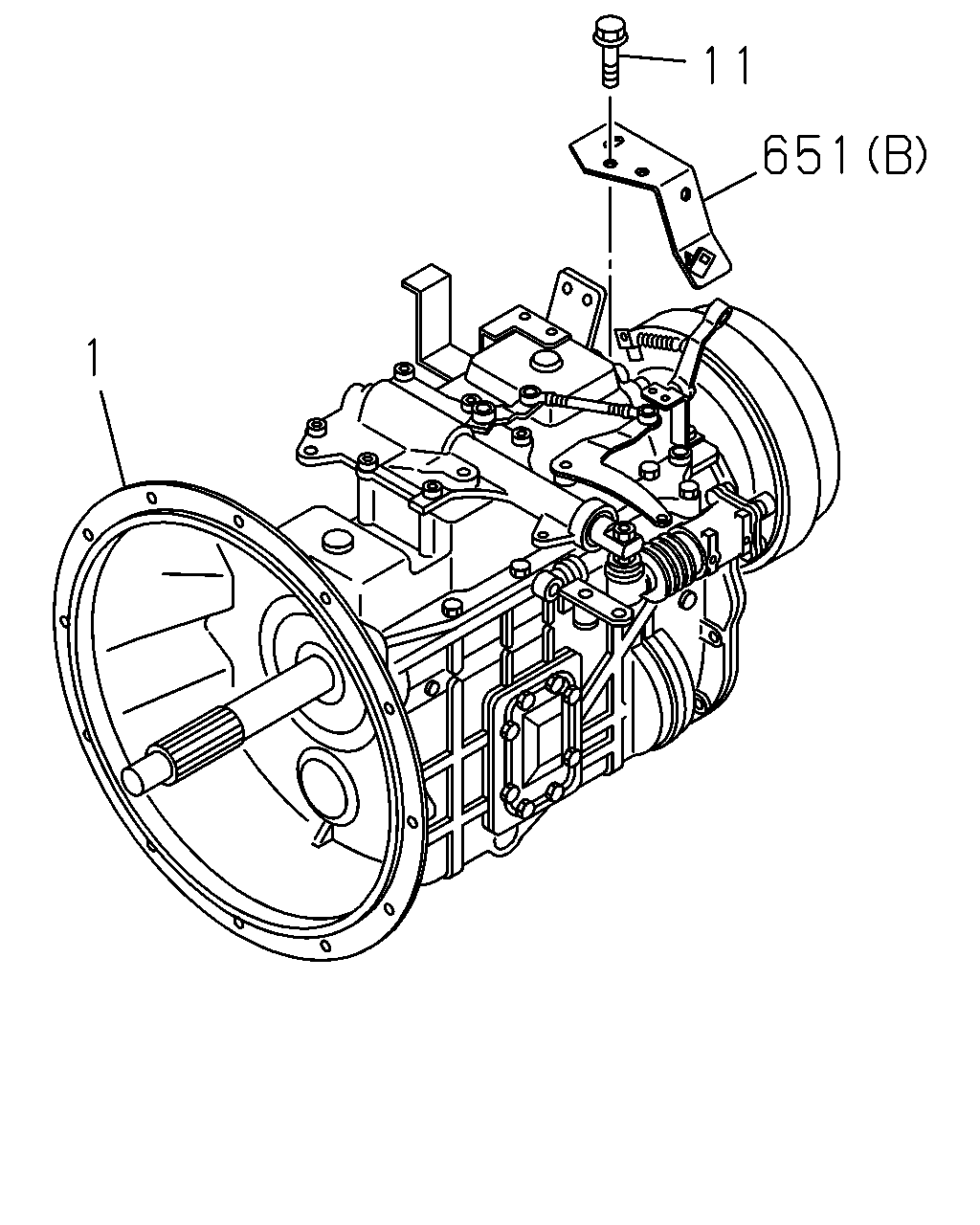

11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0806-		●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0710-0906			●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0907-	●		●
651	BRACKET; T/M HARNESS PARKING BRAKE DRUM 10"(B1T) (B)	8-98120-315-0	01	1	0806-		●
651	BRACKET; T/M HARNESS EXC. PARKING BRAKE DRUM 10"(B1T) (B)	8-97627-300-0	01	1	0806-		●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0710-0906			●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0907-	●		●

11 651 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	1108-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	1108-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-518-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-569-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-569-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33044-307-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-307-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-342-0	01	1	0806-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98065-508-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-801-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98065-508-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-536-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98059-801-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-545-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98065-506-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98065-506-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-556-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98041-813-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98041-813-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-549-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-809-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98041-809-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-809-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98041-809-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-548-0	01	1	0804-			●
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0806-		●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0710-0906			●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0907-	●		●
651	BRACKET; T/M HARNESS PARKING BRAKE DRUM 10"(B1T) (B)	8-98120-315-0	01	1	0806-		●
651	BRACKET; T/M HARNESS EXC. PARKING BRAKE DRUM 10"(B1T) (B)	8-97627-300-0	01	1	0806-		●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0710-0906			●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0907-	●		●

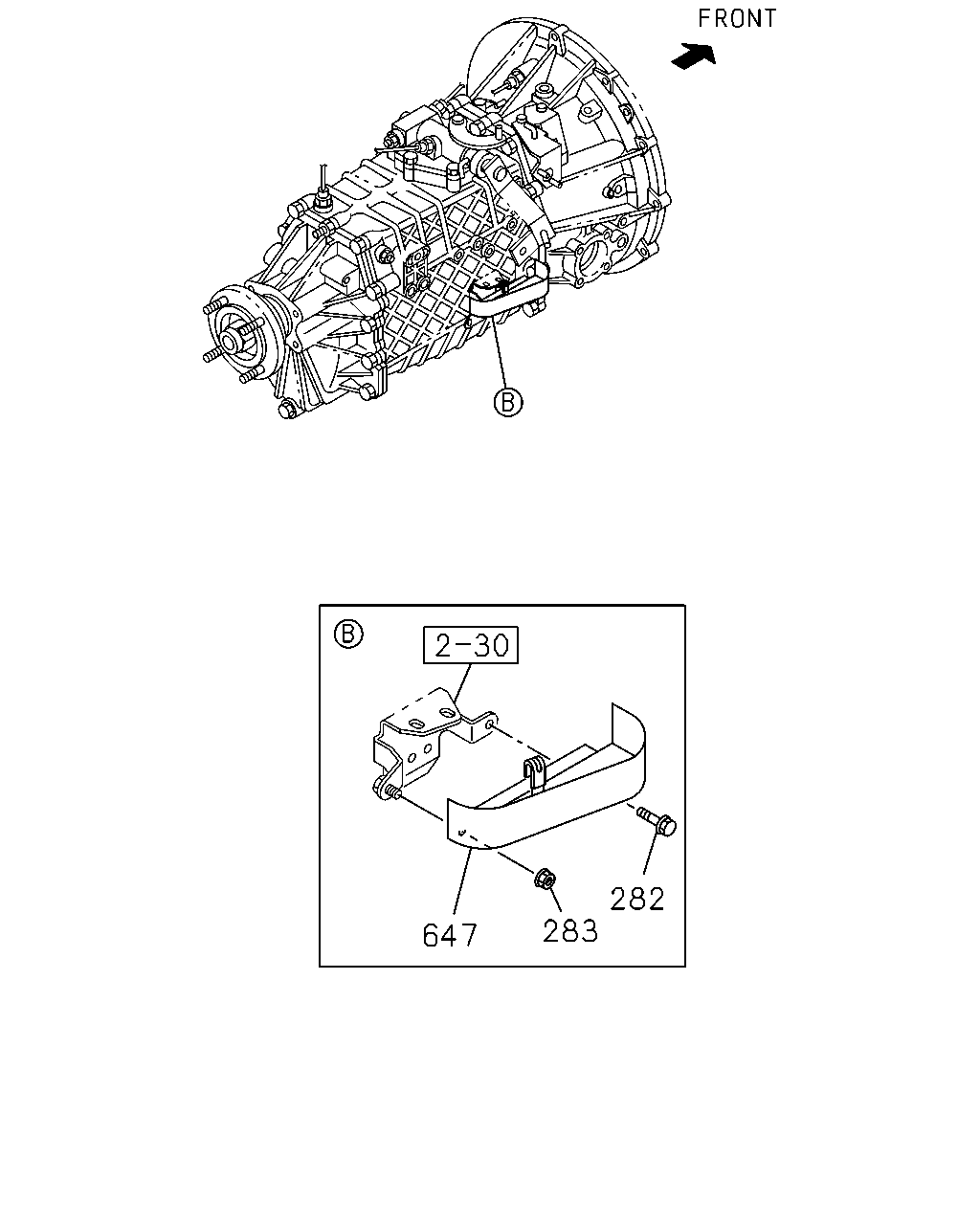

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906		●
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-0906		●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0710-0906		●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0907-	●	●

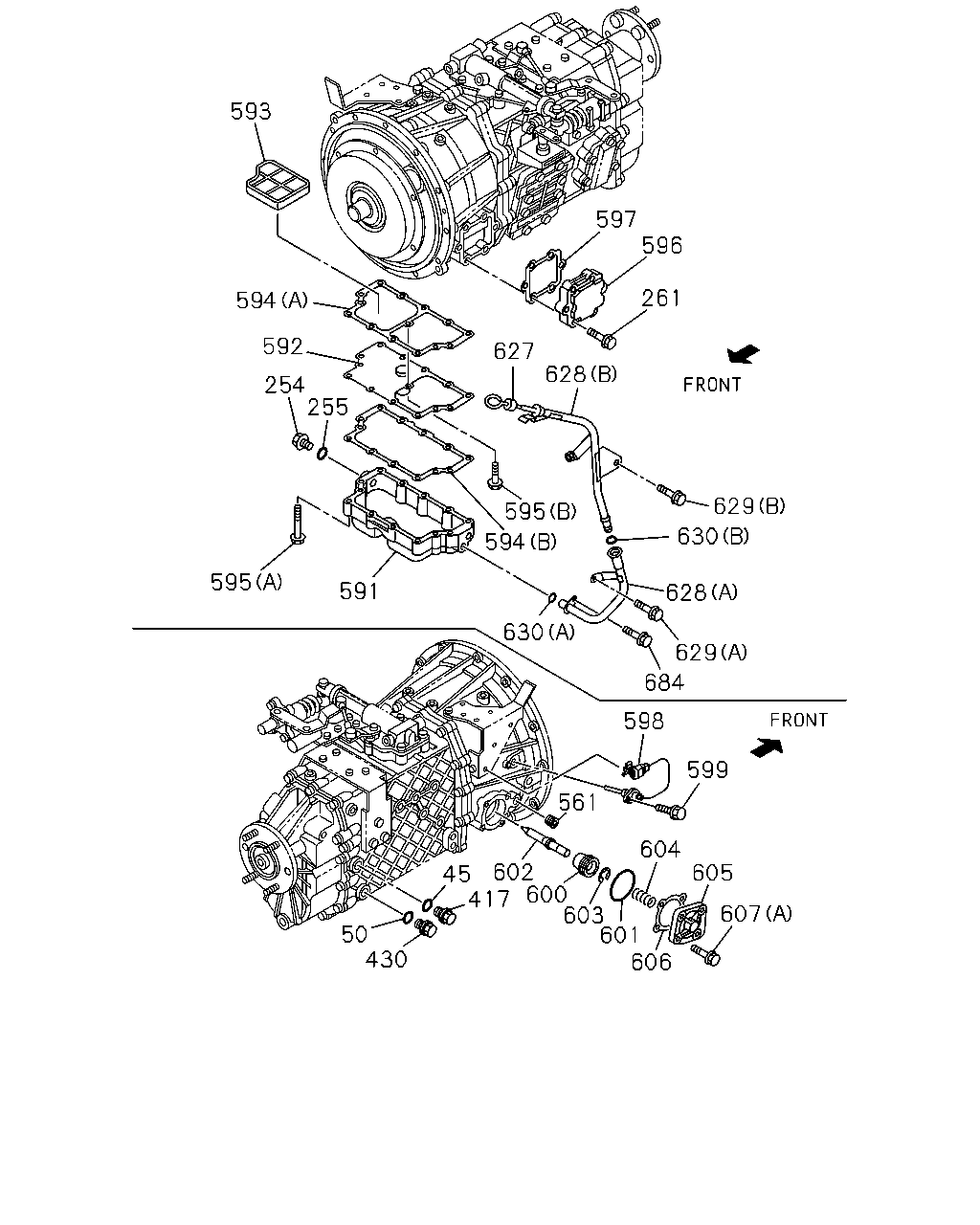

593 597 596 261 594 592 627 628 254 255 629 595 630 594 595 591 628 630 629 684 598 599 561 604 600 417 603 601 606 605 607 50 430 45 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-377-0	01	1	0710-0801			●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	0802-0906			●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	0907-	●		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0710-0906			●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0907-	●		●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	0710-0906			●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	0907-	●		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0710-0906			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0710-0906			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0710-0906			●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0907-	●		●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0710-0906			●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0907-	●		●
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0710-0906			●
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0907-	●		●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0710-0906			●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0907-	●		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0710-0906			●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0907-	●		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0710-0906			●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0907-	●		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906			●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	0710-0906			●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	0907-	●		●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0710-0906			●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0907-	●		●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0710-0906			●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0907-	●		●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0710-0906			●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0907-	●		●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906			●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●		●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0710-0906			●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0907-	●		●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0710-0906			●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0907-	●		●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	0710-0906			●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	0907-	●		●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	0710-0906			●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	0907-	●		●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	0710-0906			●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	0907-	●		●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0710-0906			●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0907-	●		●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0710-0906			●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0907-	●		●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0906			●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●		●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-0906			●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0907-	●		●
627	GAUGE; OIL LEVEL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-240-0	01	1	0712-0906			●
627	GAUGE; OIL LEVEL DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-240-0	01	1	0907-	●		●
627	GAUGE; OIL LEVEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	0710-0711			●
627	GAUGE; OIL LEVEL SGL CAB(FG*M) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	0712-0906			●
627	GAUGE; OIL LEVEL SGL CAB(FG*M) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	0907-	●		●
628	TUBE; OIL FILLER DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-328-0	01	1	0712-0906			●
628	TUBE; OIL FILLER DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-328-0	01	1	0907-	●		●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	0710-0906			●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	0907-	●		●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	0710-0711			●
628	TUBE; OIL FILLER SGL CAB(FG*M) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	0712-0906			●
628	TUBE; OIL FILLER SGL CAB(FG*M) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	0907-	●		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE	0-28151-016-0	01	1	0710-0906			●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE	0-28151-016-0	01	1	0907-	●		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906			●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	0710-0906			●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	0907-	●		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	0710-0906			●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	0907-	●		●
684	BOLT; OIL FILLER TUBE DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	01	1	0712-0906			●
684	BOLT; OIL FILLER TUBE DBL CAB(FG*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	01	1	0907-	●		●
684	BOLT; OIL FILLER TUBE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	0710-0711			●
684	BOLT; OIL FILLER TUBE SGL CAB(FG*M) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	0712-0906			●
684	BOLT; OIL FILLER TUBE SGL CAB(FG*M) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	0907-	●		●

86 90 97 86 421 692 315 119 257 121 117 72 257 265 71 72 73 609 73 71 692 41 435 692 256 417 45 686 72 692 50 430 688 316 434 33 33 607 685 587 691 202 688 316 434 685 33 607 24 318 27 27 24 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	0710-0805			●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	0806-0906			●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0806-0906		●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	0907-1410	●		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0907-1410		●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98283-062-0	01	1	1411-	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-1410		●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0710-0906			●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0710-0906			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0907-	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0710-0906			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0907-	●		●
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	0710-0906			●
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	0907-	●		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0710-0901			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0710-0803			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0710-0805			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-		●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0710-0906			●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0710-0805			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0906		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-		●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0806-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0710-0711			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0712-0805			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0906			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0906		●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0710-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0710-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0710-0805			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-		●	●
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906			●
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0710-0906			●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-	●		●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	8-97329-633-0	01	1	0710-0906			●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	8-97329-633-0	01	1	0907-			●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	0907-	●
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	0907-	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0804-			●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0710-0906			●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-	●		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0710-0906			●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-	●		●
318	GASKET; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31139-023-0	01	1	1411-	●		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0710-0906			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0710-0906			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0710-0906			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
434	HOUSING; CLU (C)	1-31110-169-0	01	1	0806-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-404-3	01	1	0710-0906			●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	0907-	●		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	0710-0906			●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	0907-	●		●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	1-33111-355-0	01	1	0806-		●
435	CASE; TRANS	8-97388-872-4	01	1	0710-			●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	0710-0906			●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	0907-	●		●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0906			●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●		●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-0906			●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0907-	●		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0710-0906			●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-	●		●
685	COVER; OIL PORT	8-98018-864-1	01	1	0710-0906			●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-	●		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0710-0906			●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-	●		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0710-0906			●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110	●		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●		●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●		●
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	0710-0906			●
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	0907-	●		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0710-0906			●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-	●		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0710-0906			●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
