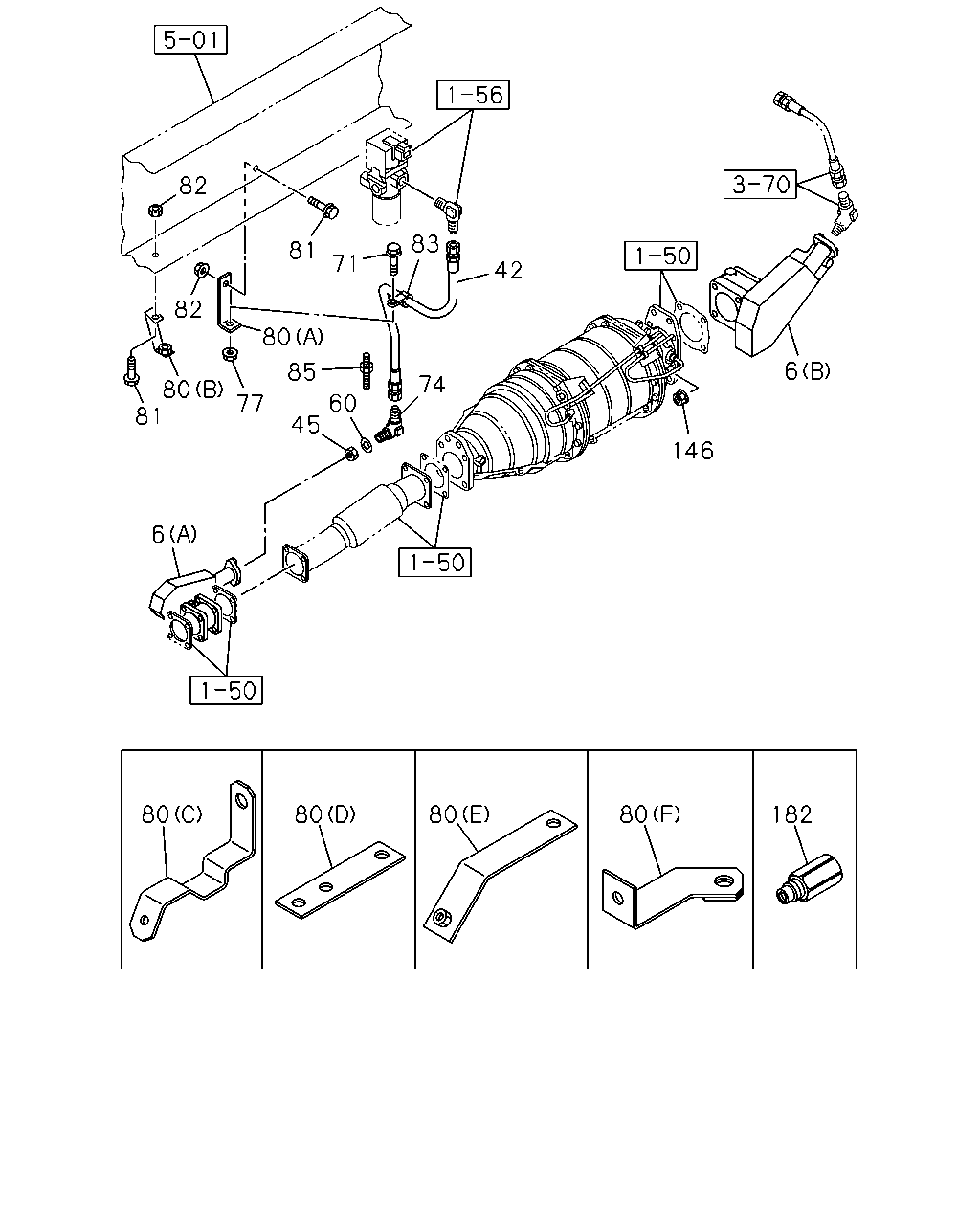

6 |
VALVE; EXH BRAKE
(A)
|
8-98054-173-2 |
01 |
1 |
0710-0711 |
● |
|
| |
6 |
VALVE; EXH BRAKE
(A)
|
8-98054-173-6 |
01 |
1 |
0712-1302 |
● |
● |
| |
6 |
VALVE; EXH BRAKE
(A)
|
8-98233-801-0 |
01 |
1 |
1303- |
● |
● |
| |
6 |
VALVE; EXH BRAKE
(B)
|
8-98054-186-2 |
01 |
1 |
0710-0711 |
● |
|
| |
6 |
VALVE; EXH BRAKE
(B)
|
8-98054-186-2 |
01 |
1 |
0712-0808 |
● |
● |
| |
6 |
VALVE; EXH BRAKE
CATALYSIS CONTROL WITH DPD<8JM>
(B)
|
8-98054-186-6 |
01 |
1 |
0809- |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
L=360
|
1-09363-637-0 |
01 |
1 |
1012- |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
L=460
|
1-09363-648-0 |
01 |
1 |
0809-0811 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
L=460
|
1-09363-648-0 |
01 |
1 |
0812-0903 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=540
|
1-09363-612-1 |
01 |
1 |
0801- |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
DBL CAB(FG**W*)
L=780
|
8-98106-396-0 |
01 |
1 |
0712-0802 |
● |
|
| |
42 |
HOSE; FLEX,EXH BRK
DBL CAB(FG**W*)
L=780
|
8-98114-706-0 |
01 |
1 |
0803- |
● |
|
| |
42 |
HOSE; FLEX,EXH BRK
L=680
|
8-98097-508-0 |
01 |
1 |
0710-0710 |
● |
|
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW)
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
L=720
|
8-98100-570-0 |
01 |
1 |
0710-0712 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW)
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
L=600
|
8-98107-431-0 |
01 |
1 |
0801-0801 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW)
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=600
|
8-98107-431-0 |
01 |
1 |
0801-0805 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW),MLD6W M/T(Y2C)
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=600
|
8-98107-431-0 |
01 |
1 |
0806-0808 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW),MLD6W M/T(Y2C)
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
L=600
|
8-98107-431-0 |
01 |
1 |
0809-0906 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
L=600
|
8-98107-431-0 |
01 |
1 |
0907-0907 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
L=600
|
8-98107-431-0 |
01 |
1 |
0908-1112 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
EURO4 SPECIFICATION<NT4>
L=600
|
8-98107-431-0 |
01 |
1 |
1201- |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW)
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
0801-0805 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
0806-0808 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
0809-0903 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
0904-0906 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
0907-1008 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
L=480
|
1-09363-659-0 |
01 |
1 |
1009-1011 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
1009-1011 |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
L=480
|
1-09363-659-0 |
01 |
1 |
1012- |
● |
● |
| |
42 |
HOSE; FLEX,EXH BRK
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
L=480
|
1-09363-659-0 |
01 |
1 |
1012- |
● |
● |
| |
45 |
NUT; FLEX HOSE
M12
|
9-09840-280-0 |
01 |
1 |
0710-0711 |
● |
|
| |
45 |
NUT; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M12
|
9-09840-280-0 |
01 |
1 |
0712-0712 |
● |
|
| |
45 |
NUT; FLEX HOSE
DBL CAB(FG**W*)
M12
|
9-09840-280-0 |
01 |
1 |
0712-0712 |
● |
|
| |
45 |
NUT; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-09840-280-0 |
01 |
1 |
0801- |
● |
|
| |
45 |
NUT; FLEX HOSE
DBL CAB(FG**W*)
M12
|
9-09840-280-0 |
01 |
1 |
0801- |
● |
|
| |
60 |
WASHER; PL
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0710-0711 |
● |
|
| |
60 |
WASHER; PL
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0712-0712 |
● |
|
| |
60 |
WASHER; PL
DBL CAB(FG**W*)
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0712-0712 |
● |
|
| |
60 |
WASHER; PL
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0801- |
● |
|
| |
60 |
WASHER; PL
DBL CAB(FG**W*)
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0801- |
● |
|
| |
71 |
BOLT; CLIP
DBL CAB(FG**W*)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0801- |
● |
|
| |
71 |
BOLT; CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0710-0711 |
● |
|
| |
71 |
BOLT; CLIP
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0712-0712 |
● |
|
| |
71 |
BOLT; CLIP
DBL CAB(FG**W*)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0712-0712 |
● |
|
| |
71 |
BOLT; CLIP
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
● |
| |
71 |
BOLT; CLIP
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0808 |
● |
● |
| |
71 |
BOLT; CLIP
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0808 |
● |
|
| |
71 |
BOLT; CLIP
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809-0809 |
● |
● |
| |
71 |
BOLT; CLIP
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809-0809 |
● |
● |
| |
71 |
BOLT; CLIP
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810- |
● |
● |
| |
71 |
BOLT; CLIP
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810- |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M12 L=56.5
|
0-92113-106-0 |
01 |
1 |
0801-0801 |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
DBL CAB(FG**W*)
M12 L=56.5
|
0-92113-106-0 |
01 |
1 |
0801-0801 |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12 L=56.5
|
0-92113-106-0 |
01 |
1 |
0801- |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
DBL CAB(FG**W*)
M12 L=56.5
|
0-92113-106-0 |
01 |
1 |
0801- |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0710-0711 |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0710-0711 |
● |
|
| |
74 |
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0712-0905 |
● |
● |
| |
74 |
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0712-0905 |
● |
● |
| |
74 |
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0906- |
● |
● |
| |
77 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
● |
|
| |
77 |
NUT; CLIP
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
| |
77 |
NUT; CLIP
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
| |
77 |
NUT; CLIP
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801- |
● |
|
| |
80 |
BRACKET; FLEX HOSE
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
8-98078-153-0 |
01 |
1 |
0801-0812 |
● |
● |
| |
80 |
BRACKET; FLEX HOSE
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
8-98140-791-0 |
01 |
1 |
0901- |
● |
● |
| |
80 |
BRACKET; FLEX HOSE
DBL CAB(FG**W*)
(D)
L=105
|
1-47477-409-0 |
01 |
1 |
0712-0802 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
DBL CAB(FG**W*)
(E)
|
8-98113-377-0 |
01 |
1 |
0803- |
● |
|
| |
80 |
BRACKET; FLEX HOSE
DBL CAB(FG**W*)
(F)
|
8-98114-273-0 |
01 |
1 |
0803- |
● |
|
| |
80 |
BRACKET; FLEX HOSE
(A)
L=105 B=25
|
1-47476-161-0 |
01 |
1 |
0710-0711 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
(A)
L=105 B=25
|
1-47476-161-0 |
01 |
1 |
0712-0712 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
(B)
|
8-98078-153-0 |
01 |
1 |
0710-0710 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
(B)
|
8-98100-228-0 |
01 |
1 |
0710-0711 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
(B)
|
8-98100-228-0 |
01 |
1 |
0712-0712 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
DBL CAB(FG**W*)
(B)
|
8-98100-228-0 |
01 |
1 |
0712-0712 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
8-98100-228-0 |
01 |
1 |
0801-0802 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
DBL CAB(FG**W*)
(B)
|
8-98100-228-0 |
01 |
1 |
0801-0802 |
● |
|
| |
80 |
BRACKET; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
8-98100-228-0 |
01 |
1 |
0803- |
● |
|
| |
81 |
BOLT; HOSE BRKT
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0801-0801 |
● |
● |
| |
81 |
BOLT; HOSE BRKT
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X25 FLANGE
|
0-28051-025-0 |
01 |
1 |
0802-0809 |
● |
● |
| |
81 |
BOLT; HOSE BRKT
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X35 FLANGE
|
0-28051-035-0 |
01 |
1 |
0810- |
● |
● |
| |
81 |
BOLT; HOSE BRKT
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0710-0710 |
● |
|
| |
81 |
BOLT; HOSE BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0710-0711 |
● |
|
| |
81 |
BOLT; HOSE BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0710-0711 |
● |
|
| |
81 |
BOLT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0712-0712 |
● |
|
| |
81 |
BOLT; HOSE BRKT
DBL CAB(FG**W*)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0712-0712 |
● |
|
| |
81 |
BOLT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0712-0712 |
● |
|
| |
81 |
BOLT; HOSE BRKT
DBL CAB(FG**W*)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0712-0712 |
● |
|
| |
81 |
BOLT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0801-0801 |
● |
|
| |
81 |
BOLT; HOSE BRKT
DBL CAB(FG**W*)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0801-0801 |
● |
|
| |
81 |
BOLT; HOSE BRKT
DBL CAB(FG**W*)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0801-0801 |
● |
|
| |
81 |
BOLT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0801- |
● |
|
| |
81 |
BOLT; HOSE BRKT
DBL CAB(FG**W*)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0801- |
● |
|
| |
81 |
BOLT; HOSE BRKT
DBL CAB(FG**W*)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0801- |
● |
|
| |
82 |
NUT; HOSE BRKT
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0801- |
● |
● |
| |
82 |
NUT; HOSE BRKT
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0710-0710 |
● |
|
| |
82 |
NUT; HOSE BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
● |
|
| |
82 |
NUT; HOSE BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
● |
|
| |
82 |
NUT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
| |
82 |
NUT; HOSE BRKT
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
| |
82 |
NUT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
| |
82 |
NUT; HOSE BRKT
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
| |
82 |
NUT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
| |
82 |
NUT; HOSE BRKT
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
| |
82 |
NUT; HOSE BRKT
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
| |
82 |
NUT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0802 |
● |
|
| |
82 |
NUT; HOSE BRKT
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0802 |
● |
|
| |
82 |
NUT; HOSE BRKT
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0802 |
● |
|
| |
82 |
NUT; HOSE BRKT
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0803- |
● |
|
| |
82 |
NUT; HOSE BRKT
DBL CAB(FG**W*)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0803- |
● |
|
| |
83 |
CLIP; FLEX HOSE
DBL CAB(FG**W*)
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
0712-0712 |
● |
|
| |
83 |
CLIP; FLEX HOSE
DBL CAB(FG**W*)
ID=13
|
1-09701-030-1 |
02 |
1 |
0801- |
● |
|
| |
83 |
CLIP; FLEX HOSE
ID=13
|
1-09701-030-1 |
01 |
1 |
0710-0711 |
● |
|
| |
83 |
CLIP; FLEX HOSE
ID=13
|
1-09701-030-1 |
01 |
1 |
0712-0712 |
● |
● |
| |
83 |
CLIP; FLEX HOSE
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=13
|
1-09701-030-1 |
01 |
1 |
0801-0808 |
● |
● |
| |
83 |
CLIP; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=13
|
1-09701-030-1 |
01 |
1 |
0801-0808 |
● |
|
| |
83 |
CLIP; FLEX HOSE
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
ID=13
|
1-09701-030-1 |
01 |
1 |
0809-0809 |
● |
● |
| |
83 |
CLIP; FLEX HOSE
SGL CAB(FG**M*)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
ID=13
|
1-09701-030-1 |
01 |
1 |
0809-0809 |
● |
● |
| |
83 |
CLIP; FLEX HOSE
SGL CAB(FG**M*)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=13
|
1-09701-030-1 |
01 |
1 |
0810- |
● |
● |
| |
83 |
CLIP; FLEX HOSE
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=13
|
1-09701-030-1 |
01 |
1 |
0810- |
● |
|
| |
85 |
UNION; FLEX HOSE,EXH BRAKE
|
1-09654-381-0 |
01 |
1 |
0710-0711 |
● |
|
| |
85 |
UNION; FLEX HOSE,EXH BRAKE
|
1-09654-381-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
146 |
NUT; EXH BRK VLV
M10
|
0-91110-510-0 |
04 |
1 |
0710-0711 |
● |
|
| |
146 |
NUT; EXH BRK VLV
M10
|
0-91110-510-0 |
04 |
1 |
0712-0712 |
● |
● |
| |
146 |
NUT; EXH BRK VLV
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0801-0808 |
● |
● |
| |
146 |
NUT; EXH BRK VLV
EURO4 SPECIFICATION<NT4>
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0809- |
● |
● |
| |
182 |
CONNECTOR
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0801-0801 |
● |
|
| |
182 |
CONNECTOR
DBL CAB(FG**W*)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0801-0801 |
● |
|
| |
182 |
CONNECTOR
SGL CAB(FG**M*)
AUSTRALIA EQUIPMENT(B13)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0801- |
● |
|
| |
182 |
CONNECTOR
DBL CAB(FG**W*)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0801- |
● |
|
