Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#65517) — 332 parça

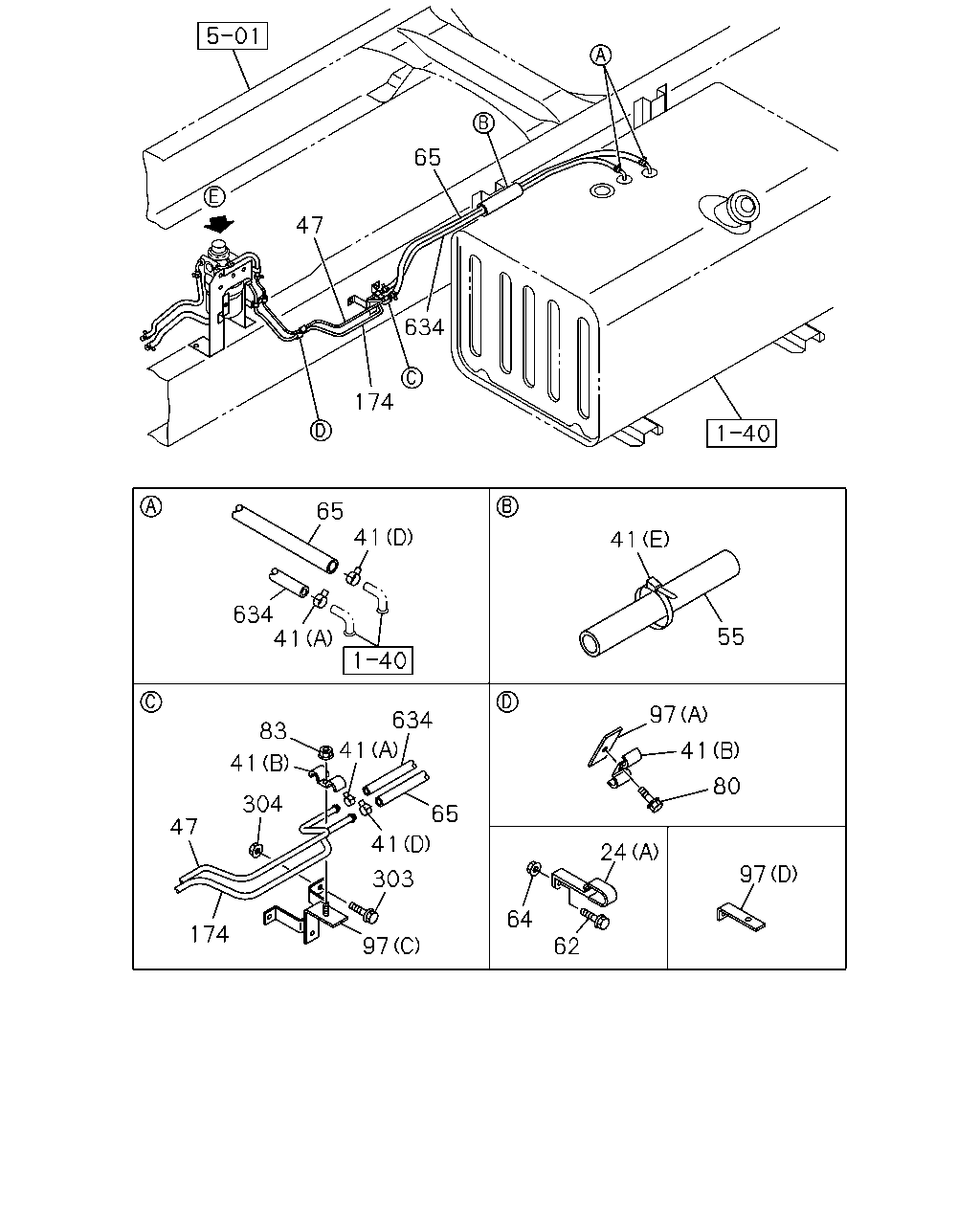

65 47 634 174 65 41 41 634 41 55 97 634 83 41 41 41 80 304 65 47 41 24 97 303 64 174 97 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	02	1	0712-0802	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	0803-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0809-0906	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	03	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0907-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0710-0710		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0712-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0804-0808	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0712-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0712-	●	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> L=539	8-98117-709-0	01	1	0809-		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0710-0711		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0712-0808	●	●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-0906		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-0906	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0907-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0907-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0711		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0712-0803	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0712-0802	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	0803-	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-	●
65	HOSE; FUEL,DELIVERY PIPE L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0712-	●
65	HOSE; FUEL,DELIVERY PIPE L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711		●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906		●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0907-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0711		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0711		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0712-0808	●	●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-		●
97	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (F)	8-98126-612-0	01	1	0810-0812		●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (F)	8-98126-612-0	01	1	0901-		●
97	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0810-0812		●
97	BRACKET; CLIP (D) L=68.5	1-47475-591-0	01	1	0803-	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0710-0711		●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0712-0808	●	●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (A) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0710-0711		●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0712-	●	●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0710-0711		●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0712-0808	●	●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0711		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0712-0808	●	●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
303	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0711		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0812	●	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-0711		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-	●	●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-		●
634	HOSE; RUBBER RETURN L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0712-	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711		●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●

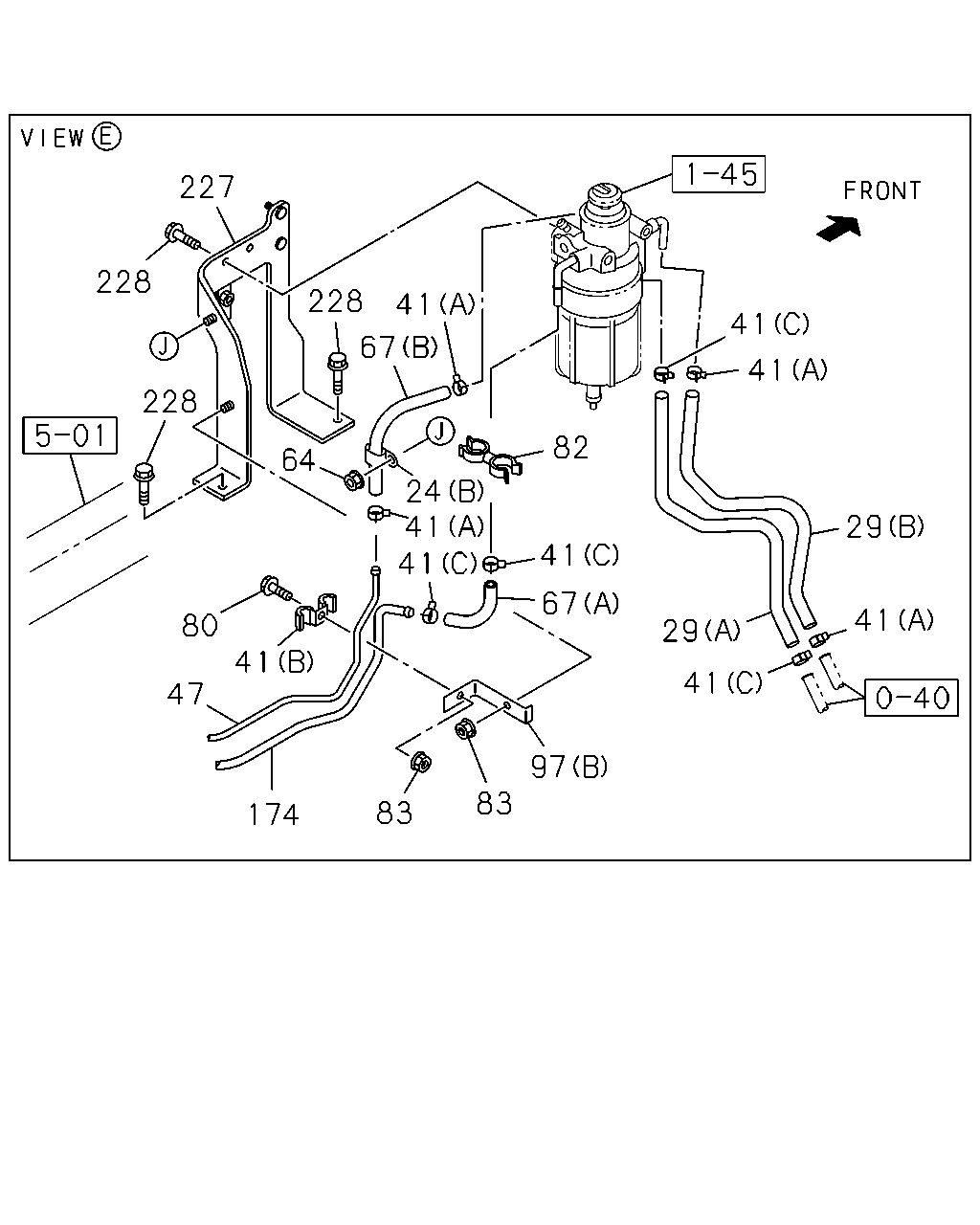

227 228 228 228 41 67 64 80 47 41 174 83 83 97 41 29 67 41 41 41 24 82 41 41 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	02	1	0712-0802	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	0803-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-0711		●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0712-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-0711		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0712-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0809-0906	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	03	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0907-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0710-0710		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0712-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0804-0808	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0712-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0712-	●	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> L=539	8-98117-709-0	01	1	0809-		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0710-0711		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0712-0808	●	●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0809-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711		●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0712-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711		●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0712-	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0711		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0809-		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0711		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0712-0808	●	●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-		●
97	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (F)	8-98126-612-0	01	1	0810-0812		●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (F)	8-98126-612-0	01	1	0901-		●
97	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0810-0812		●
97	BRACKET; CLIP (D) L=68.5	1-47475-591-0	01	1	0803-	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0710-0711		●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0712-0808	●	●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (A) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0710-0711		●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0712-	●	●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0710-0711		●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0712-0808	●	●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0711		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0712-0808	●	●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-0711		●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-		●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-0711		●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-0711		●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●

634 67 47 174 67 67 41 634 41 41 55 83 41 47 304 303 80 174 41 634 41 97 67 304 97 623

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0809-0906	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	03	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0907-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0710-0710		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0712-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0804-0808	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0712-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0712-	●	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> L=539	8-98117-709-0	01	1	0809-		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0710-0711		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0712-0808	●	●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN L=717	8-98086-241-0	01	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-0906		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-0906	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0907-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0907-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0711		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0712-0803	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711		●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0712-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711		●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0712-	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0711		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0711		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0712-0808	●	●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-		●
97	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (F)	8-98126-612-0	01	1	0810-0812		●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (F)	8-98126-612-0	01	1	0901-		●
97	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0810-0812		●
97	BRACKET; CLIP (D) L=68.5	1-47475-591-0	01	1	0803-	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0710-0711		●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0712-0808	●	●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (A) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0710-0711		●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0712-	●	●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0710-0711		●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0712-0808	●	●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0711		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0712-0808	●	●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
303	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0711		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0812	●	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-0711		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-	●	●
623	PLATE; STUD BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0810-0812		●
623	PLATE; STUD BOLT EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0901-		●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-		●
634	HOSE; RUBBER RETURN L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0712-	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711		●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●

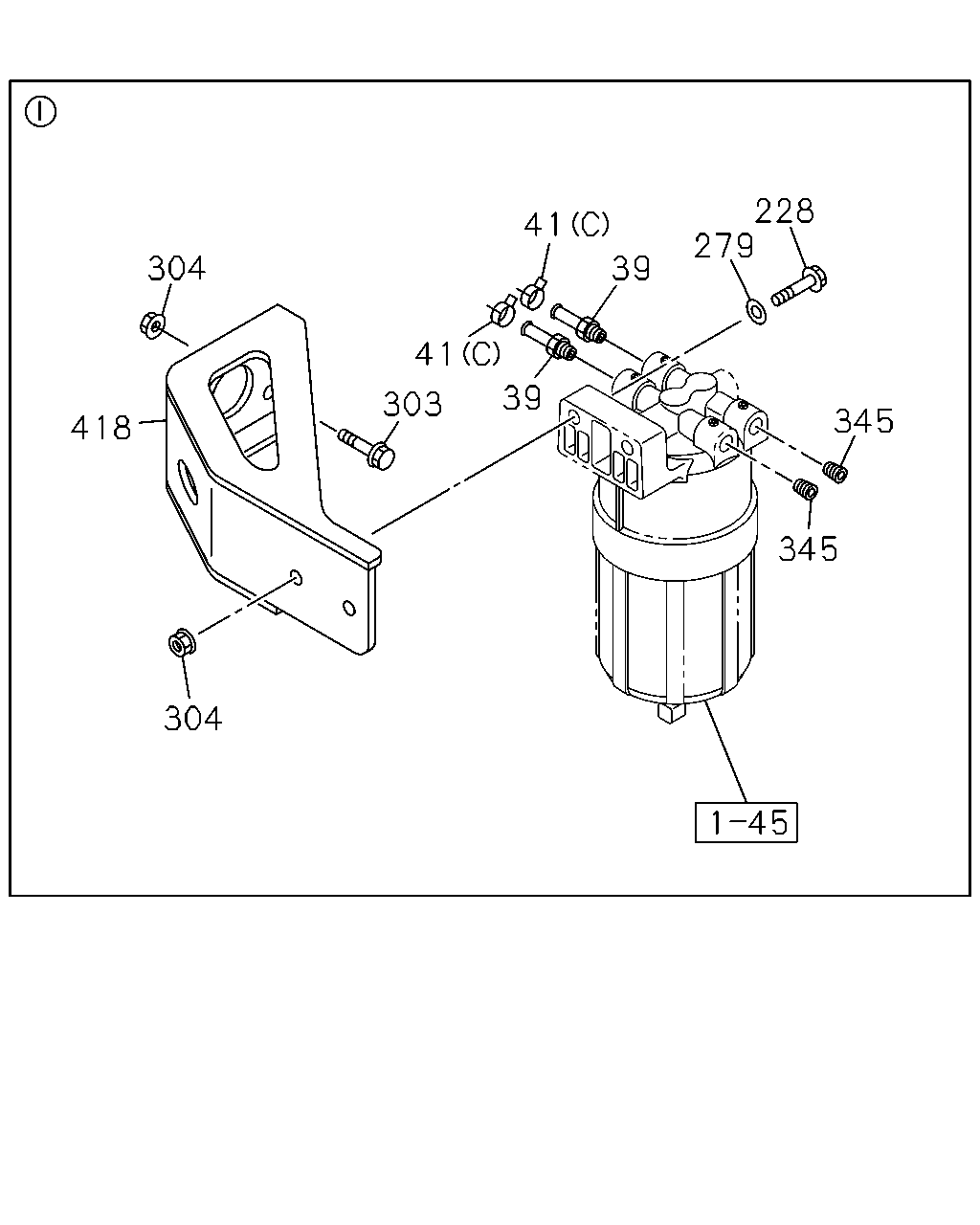

228 279 41 304 39 41 39 303 345 418 345 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL EURO2 SPECIFICATION<NT2>	8-97358-699-0	02	1	0809-0903		●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0809-0906	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	03	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0907-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0712-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0710-0710		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0712-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0804-0808	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0907-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0712-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-		●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-0711		●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-0711		●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0809-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
303	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0711		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0812	●	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-0711		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-	●	●
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0809-		●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98128-254-0	01	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
