1-40 — FUEL TANK (#65516) — 49 parça

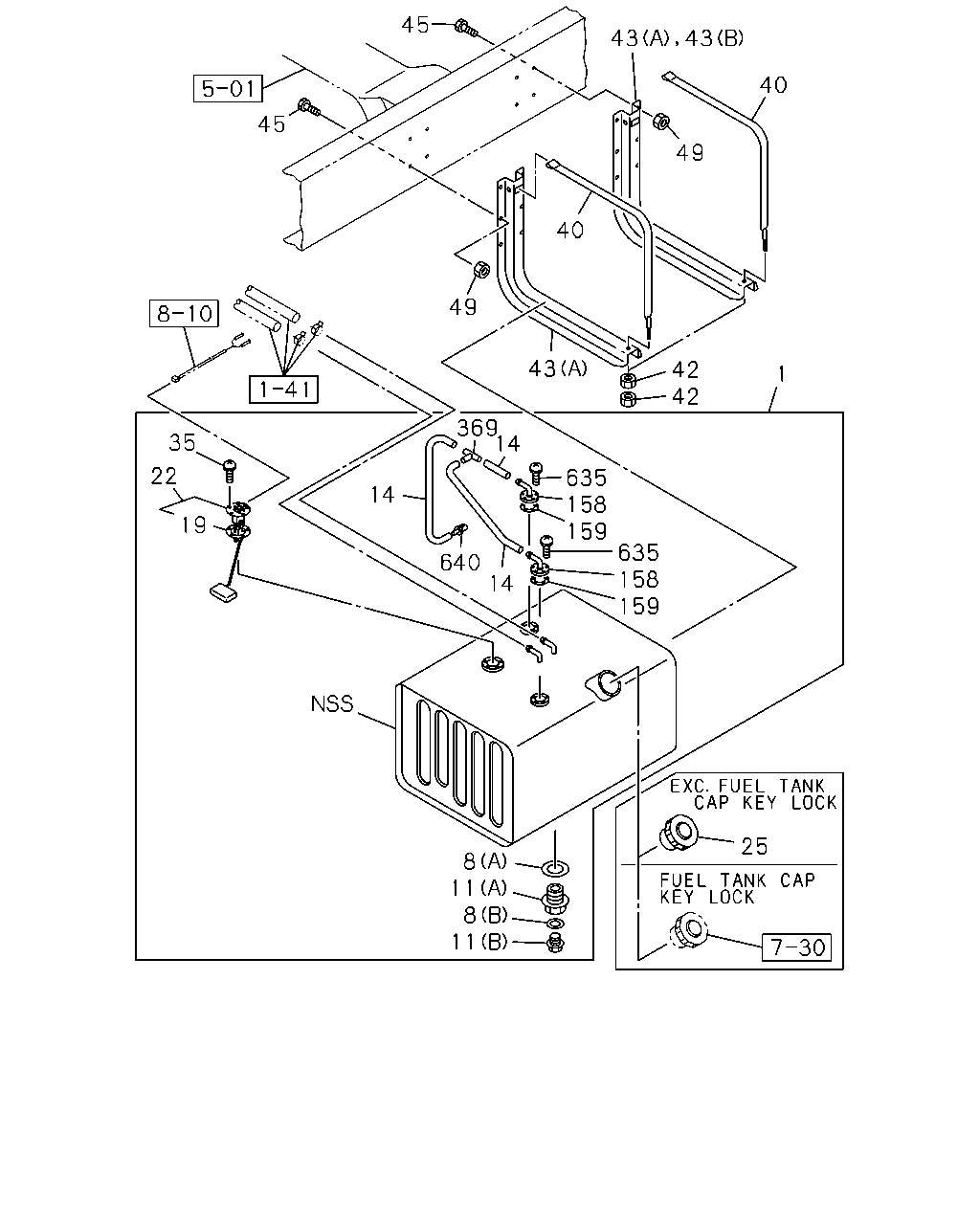

çizim 93325
45 43 43 40 45 49 40 49 43 42 42 1 369 14 35 22 635 158 159 14 19 635 158 159 640 14 25 8 11 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
855X603X453 200L 		8-98097-036-0 01 1 0710-0710 ●
1 TANK; FUEL
855X603X453 200L 		8-98099-833-0 01 1 0710-0711 ●
1 TANK; FUEL
855X603X453 200L 		8-98099-833-0 01 1 0712-0809 ● ●
1 TANK; FUEL
855X603X453 200L 		8-98122-995-1 01 1 0810-1211 ● ●
1 TANK; FUEL
885X603X453 200L 		8-98187-002-1 01 1 1212- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30 		8-98067-041-0 01 1 0710-0711 ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30 		8-98067-041-0 01 1 0712- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710-0711 ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0712- ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M30 		8-98067-038-0 01 1 0710-0711 ●
11 PLUG; DRAIN,FUEL TANK
(A) M30 		8-98067-038-0 01 1 0712- ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 01 1 0710-0711 ●
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 01 1 0712- ● ●
14 HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000 		0-01256-300-0 01 1 0810- ● ●
14 HOSE; BREATHER,OUTLET
L=270 SERVICED BY L=3000 		0-01256-300-0 02 1 0710-0711 ●
14 HOSE; BREATHER,OUTLET
L=270 SERVICED BY L=3000 		0-01256-300-0 02 1 0712-0809 ● ●
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 0810- ● ●
14 HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000 		0-01256-300-0 01 1 0710-0711 ●
14 HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000 		0-01256-300-0 01 1 0712-1003 ● ●
14 HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000 		0-01256-300-0 01 1 1004- ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710-0711 ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0712- ● ●
22 UNIT; FUEL TANK 8-98096-922-0 01 1 0710-0710 ●
22 UNIT; FUEL TANK 8-98099-321-0 01 1 0710-0711 ●
22 UNIT; FUEL TANK 8-98099-321-0 01 1 0712- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 0712- ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710-0711 ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0712- ● ●
40 BELT; SUPPORT,FUEL TANK
L=1070 		8-98067-501-0 02 1 0710-0711 ●
40 BELT; SUPPORT,FUEL TANK
L=1070 		8-98067-501-1 02 1 0712- ● ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 0710-0711 ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 0712- ● ●
43 BRACKET; FUEL TANK
(B) 		8-98122-884-0 01 1 0810- ● ●
43 BRACKET; FUEL TANK
(A) 		8-98010-733-0 02 1 0710-0711 ●
43 BRACKET; FUEL TANK
(A) 		8-98010-733-0 02 1 0712-0809 ● ●
43 BRACKET; FUEL TANK
(A) 		8-98010-733-0 01 1 0810- ● ●
45 BOLT; BRKT,FUEL TANK
M12X35 FLANGE 		0-28651-235-0 08 1 0710-0711 ●
45 BOLT; BRKT,FUEL TANK
M12X35 FLANGE 		0-28651-235-0 08 1 0712- ● ●
49 NUT; BRKT
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ●
49 NUT; BRKT
M12 FLANGE 		0-91180-212-0 08 1 0712- ● ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 0710-0711 ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 0712- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 0710-0711 ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 0712- ● ●
369 JOINT; HOSE 8-98067-080-0 01 1 0710-0711 ●
369 JOINT; HOSE 8-98067-080-0 01 1 0712- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 0710-0711 ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 0712- ● ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0810- ● ●
