Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#65514) — 234 parça

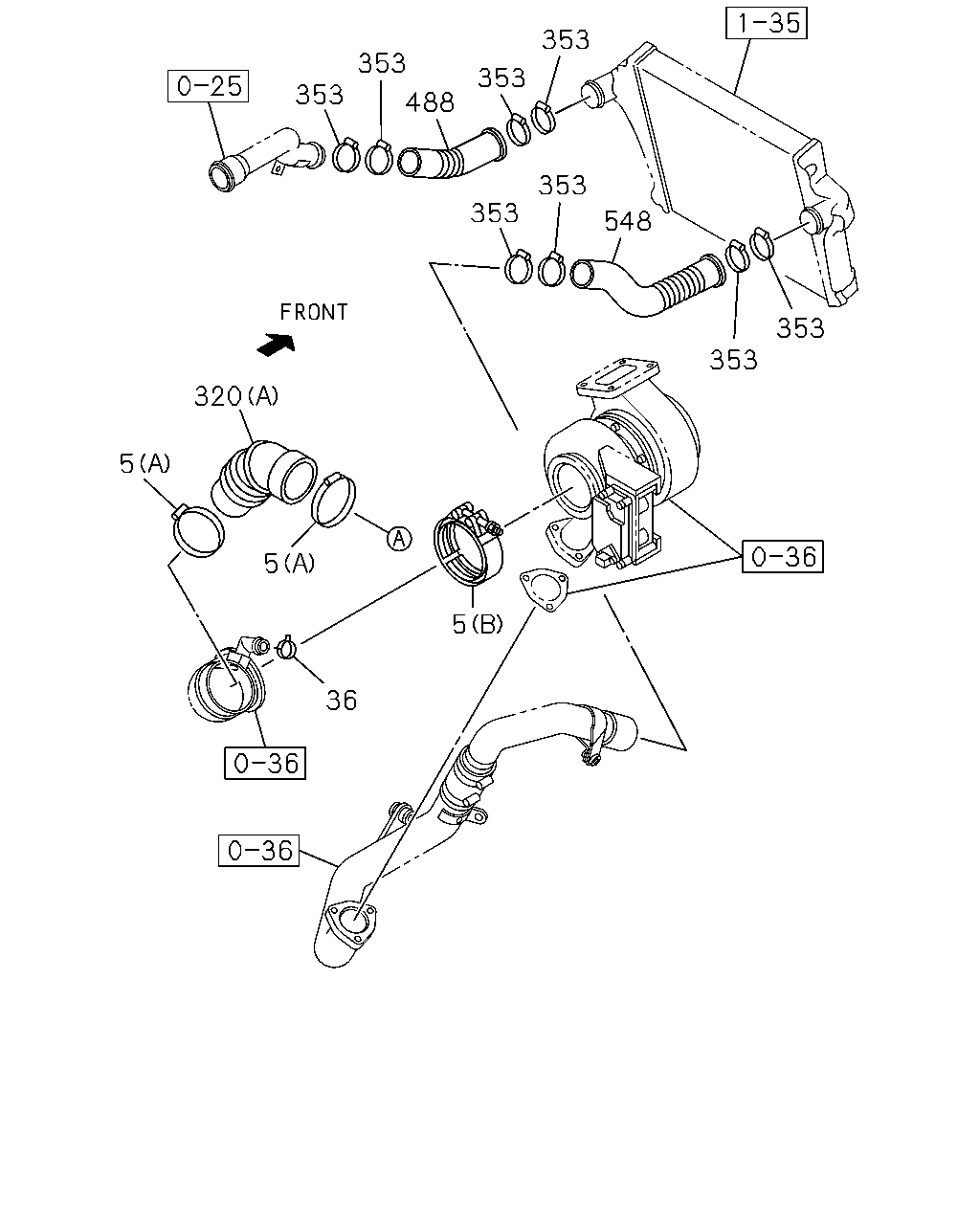

353 353 353 353 488 353 353 548 353 353 320 5 5 5 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116	1-09707-138-0	01	1	1002-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0901-1001	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=87-113	1-09707-199-0	01	1	0809-0811	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=90-110	8-98133-365-0	01	1	0812-1001	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1002-	●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=104-139	1-09707-200-0	02	1	0712-0812		●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=100-120	8-98133-366-0	02	1	0901-0904		●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=110-130	8-98133-359-0	02	1	0905-1001		●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=104-142	1-09707-139-0	02	1	1002-		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=100-120	8-98133-366-0	01	1	0901-1001	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0710-0711		●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0809-	●	●
36	COVER; INT DUCT ID=22	8-94382-401-0	01	1	0710-0711		●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	0809-	●
320	HOSE; CONN,ACL DBL CAB(FG*W) (B)	8-98092-944-1	01	1	0712-		●
320	HOSE; CONN,ACL (A)	8-98012-859-2	01	1	0710-0711		●
320	HOSE; CONN,ACL SGL CAB(FG*M) (A)	8-98012-859-2	01	1	0712-0808	●	●
320	HOSE; CONN,ACL SGL CAB(FG*M) EURO4 SPECIFICATION<NT4> (A)	8-98012-859-2	01	1	0809-	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1002-	●	●
353	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	08	1	0710-0711		●
353	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	08	1	0712-0811	●	●
353	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	08	1	0812-1001	●	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1002-	●	●
488	HOSE; RUBBER,PIPE	8-98012-936-1	01	1	0710-0711		●
488	HOSE; RUBBER,PIPE	8-98012-936-1	01	1	0712-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>	8-98181-974-1	01	1	1102-	●
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98065-044-0	01	1	0710-0711		●
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98065-044-0	01	1	0712-1101	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2>	8-98065-044-0	01	1	1102-	●	●

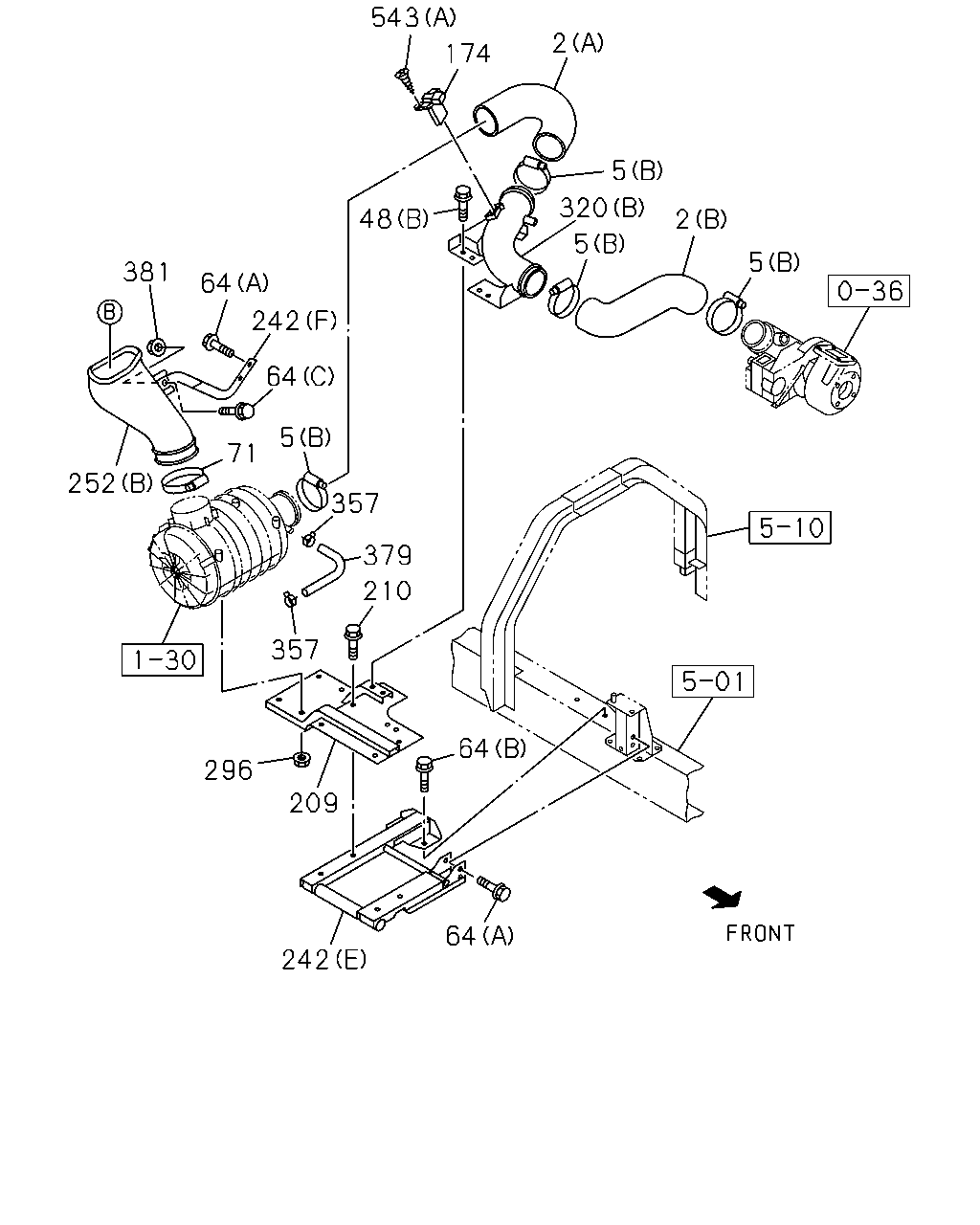

543 2 174 5 320 48 2 5 5 381 64 242 64 5 71 252 357 379 210 357 64 296 209 64 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL DBL CAB(FG*W) (A)	8-98050-682-0	01	1	0712-		●
2	HOSE; ACL DBL CAB(FG*W) (B)	8-98068-254-0	01	1	0712-		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116	1-09707-138-0	01	1	1002-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0901-1001	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=87-113	1-09707-199-0	01	1	0809-0811	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=90-110	8-98133-365-0	01	1	0812-1001	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110	8-98133-365-0	01	1	1002-	●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=104-139	1-09707-200-0	02	1	0712-0812		●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=100-120	8-98133-366-0	02	1	0901-0904		●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=110-130	8-98133-359-0	02	1	0905-1001		●
5	CLIP; AIR DUCT DBL CAB(FG*W) (A) ID=104-142	1-09707-139-0	02	1	1002-		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=100-120	8-98133-366-0	01	1	0901-1001	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0710-0711		●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0809-	●	●
48	BOLT; AIR DUCT DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●
64	BOLT; BRKT,AIR DUCT DBL CAB(FG*W) (A) M10X25 FLANGE	0-28651-025-0	05	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FG*W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FG*W) (C) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FG*W) (C) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-		●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0710-0711		●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-	●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-0711		●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-0808	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0809-	●	●
209	BRACKET; ACL DBL CAB(FG*W)	8-98089-455-1	01	1	0712-		●
209	BRACKET; ACL SGL CAB(FG*M)	8-98021-995-1	01	1	0710-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0710-0711	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0712-	●	●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (E)	8-98089-457-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (F)	8-98092-772-0	01	1	0712-		●
242	BRACKET; AIR DUCT SGL CAB(FG*M) (C)	8-98019-302-1	01	1	0710-0906	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0907-		●
242	BRACKET; AIR DUCT SGL CAB(FG*M) (A)	8-98019-304-1	01	1	0710-0906	●	●
242	BRACKET; AIR DUCT (A)	8-98019-304-1	01	1	0907-		●
242	BRACKET; AIR DUCT (B)	8-98019-301-2	01	1	0710-0711		●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●
252	DUCT; AIR INT DBL CAB(FG*W) (B)	8-98050-681-0	01	1	0712-		●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	0710-0711		●
252	DUCT; AIR INT SGL CAB(FG*M) (A)	8-98012-861-1	01	1	0712-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0710-0711		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	0809-	●
320	HOSE; CONN,ACL DBL CAB(FG*W) (B)	8-98092-944-1	01	1	0712-		●
320	HOSE; CONN,ACL (A)	8-98012-859-2	01	1	0710-0711		●
320	HOSE; CONN,ACL SGL CAB(FG*M) (A)	8-98012-859-2	01	1	0712-0808	●	●
320	HOSE; CONN,ACL SGL CAB(FG*M) EURO4 SPECIFICATION<NT4> (A)	8-98012-859-2	01	1	0809-	●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=26	1-09707-091-0	01	1	0712-	●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=29.5	8-97354-979-0	01	1	0712-	●	●
357	CLIP; RUBBER HOSE ID=26	1-09707-091-0	02	1	0710-0711		●
357	CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=26	1-09707-091-0	02	1	0712-	●	●
379	HOSE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-194-0	01	1	0712-	●	●
379	HOSE; RUBBER DBL CAB(FG*W)	8-98081-489-0	01	1	0712-		●
379	HOSE; RUBBER	8-98077-469-0	01	1	0710-0711		●
379	HOSE; RUBBER SGL CAB(FG*M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98077-469-0	01	1	0712-	●	●
381	NUT; BRKT,AIR DUCT DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	0712-		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-	●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0711		●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0808	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-	●	●

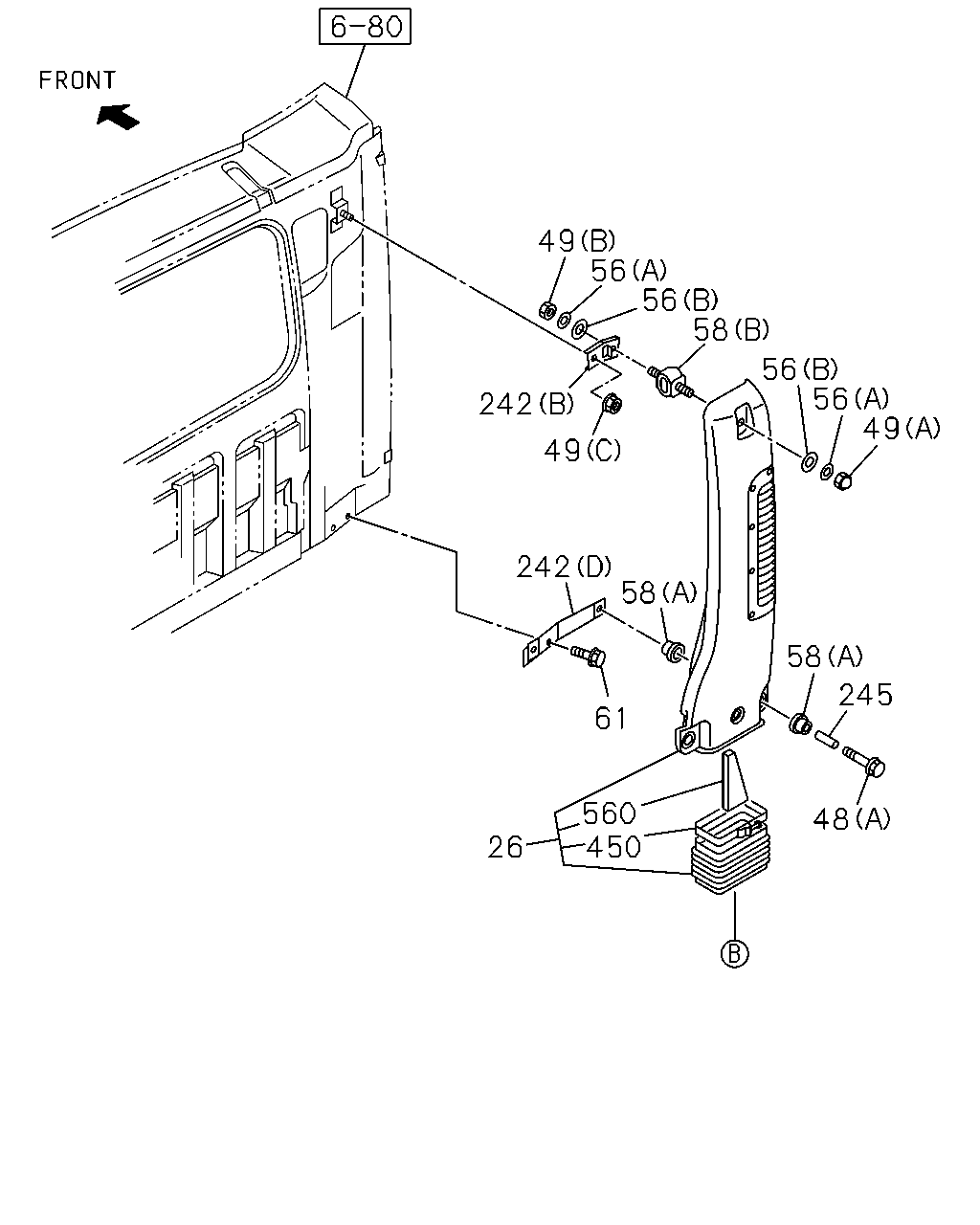

49 56 56 58 56 56 49 242 49 242 58 58 245 61 560 450 48 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0710-0711		●
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-	●	●
48	BOLT; AIR DUCT DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●
49	NUT; AIR DUCT DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-		●
49	NUT; AIR DUCT SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	0710-0906	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0907-		●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0710-0711		●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0710-0711		●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0710-0711		●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0710-0711		●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0710-0711		●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0710-0711		●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-	●	●
61	BOLT; BRKT,AIR DUCT SGL CAB(FG*M) M8X20 FLANGE	8-98061-920-0	02	1	0710-0711	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-	●	●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (E)	8-98089-457-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (F)	8-98092-772-0	01	1	0712-		●
242	BRACKET; AIR DUCT SGL CAB(FG*M) (C)	8-98019-302-1	01	1	0710-0906	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0907-		●
242	BRACKET; AIR DUCT SGL CAB(FG*M) (A)	8-98019-304-1	01	1	0710-0906	●	●
242	BRACKET; AIR DUCT (A)	8-98019-304-1	01	1	0907-		●
242	BRACKET; AIR DUCT (B)	8-98019-301-2	01	1	0710-0711		●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0710-0711		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0710-0711		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0710-0711		●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0712-	●	●

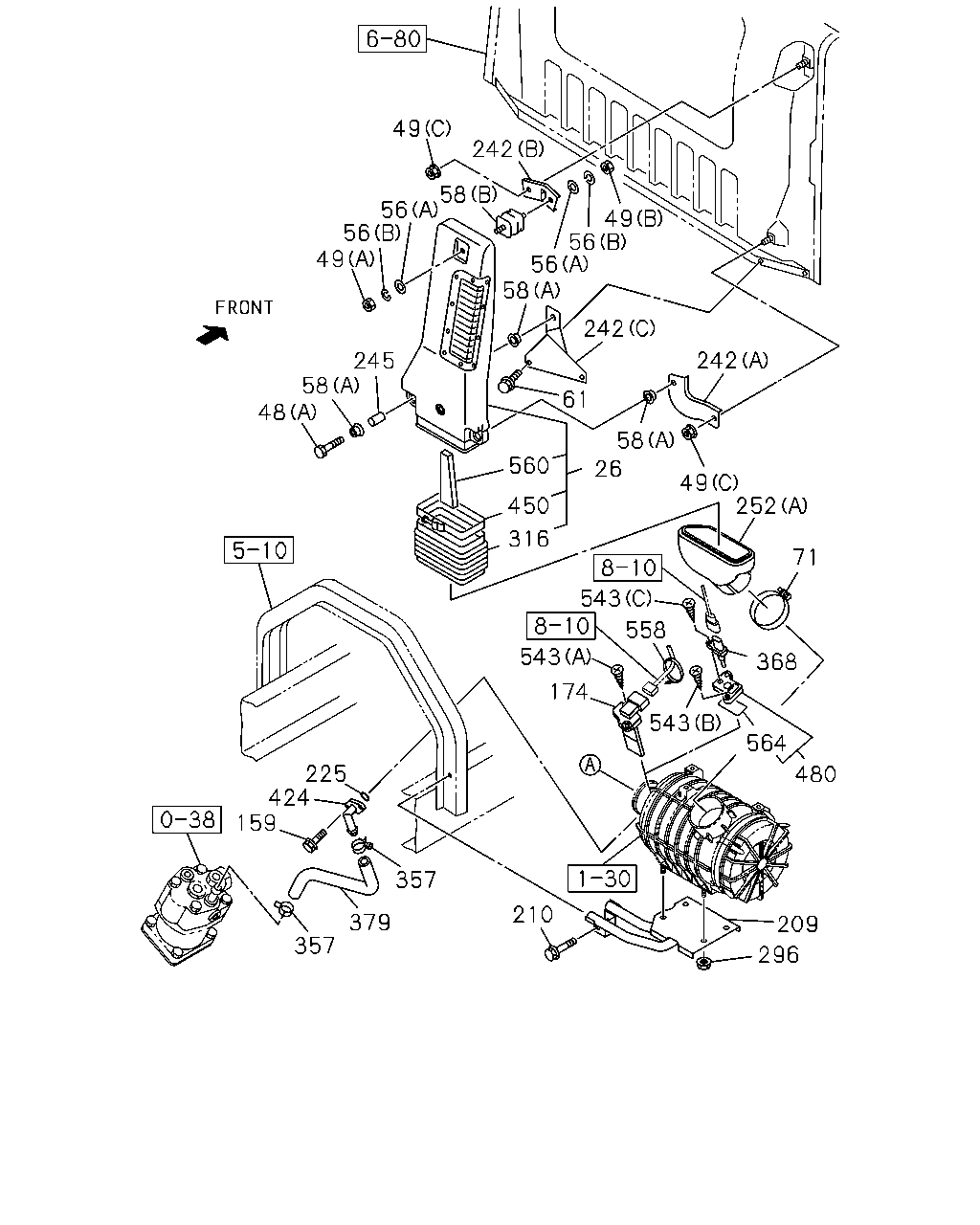

49 242 58 56 56 49 56 49 56 58 245 58 48 61 242 242 58 26 49 252 543 316 450 560 71 558 368 543 174 543 225 424 159 357 379 357 210 209 296 564 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0710-0711		●
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-	●	●
48	BOLT; AIR DUCT DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●
49	NUT; AIR DUCT DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-		●
49	NUT; AIR DUCT SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	0710-0906	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0907-		●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0710-0711		●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0710-0711		●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0710-0711		●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0710-0711		●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0710-0711		●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0710-0711		●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-	●	●
61	BOLT; BRKT,AIR DUCT SGL CAB(FG*M) M8X20 FLANGE	8-98061-920-0	02	1	0710-0711	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0710-0711		●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-	●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	0710-		●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-0711		●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-0808	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0809-	●	●
209	BRACKET; ACL DBL CAB(FG*W)	8-98089-455-1	01	1	0712-		●
209	BRACKET; ACL SGL CAB(FG*M)	8-98021-995-1	01	1	0710-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0710-0711	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0712-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0710-0711		●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-	●	●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (E)	8-98089-457-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FG*W) (F)	8-98092-772-0	01	1	0712-		●
242	BRACKET; AIR DUCT SGL CAB(FG*M) (C)	8-98019-302-1	01	1	0710-0906	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0907-		●
242	BRACKET; AIR DUCT SGL CAB(FG*M) (A)	8-98019-304-1	01	1	0710-0906	●	●
242	BRACKET; AIR DUCT (A)	8-98019-304-1	01	1	0907-		●
242	BRACKET; AIR DUCT (B)	8-98019-301-2	01	1	0710-0711		●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0710-0711		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-	●	●
252	DUCT; AIR INT DBL CAB(FG*W) (B)	8-98050-681-0	01	1	0712-		●
252	DUCT; AIR INT (A)	8-98012-861-1	01	1	0710-0711		●
252	DUCT; AIR INT SGL CAB(FG*M) (A)	8-98012-861-1	01	1	0712-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0710-0711		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-	●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=26	1-09707-091-0	01	1	0712-	●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=29.5	8-97354-979-0	01	1	0712-	●	●
357	CLIP; RUBBER HOSE ID=26	1-09707-091-0	02	1	0710-0711		●
357	CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=26	1-09707-091-0	02	1	0712-	●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	0809-	●
379	HOSE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-194-0	01	1	0712-	●	●
379	HOSE; RUBBER DBL CAB(FG*W)	8-98081-489-0	01	1	0712-		●
379	HOSE; RUBBER	8-98077-469-0	01	1	0710-0711		●
379	HOSE; RUBBER SGL CAB(FG*M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98077-469-0	01	1	0712-	●	●
424	PIPE; AIR,INL	8-98081-834-0	01	1	0710-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0710-0711		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	0809-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-	●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0711		●
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0808	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-	●	●
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	0712-		●
558	CLIP; AIR FLOW SENSOR DBL CAB(FG*W) L=250	5-09707-030-1	01	1	0712-		●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	03	1	0710-0711		●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	03	1	0712-0712	●	●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	0712-	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0710-0711		●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0712-	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	0809-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
