1-10 — RADIATOR (#65511) — 129 parça

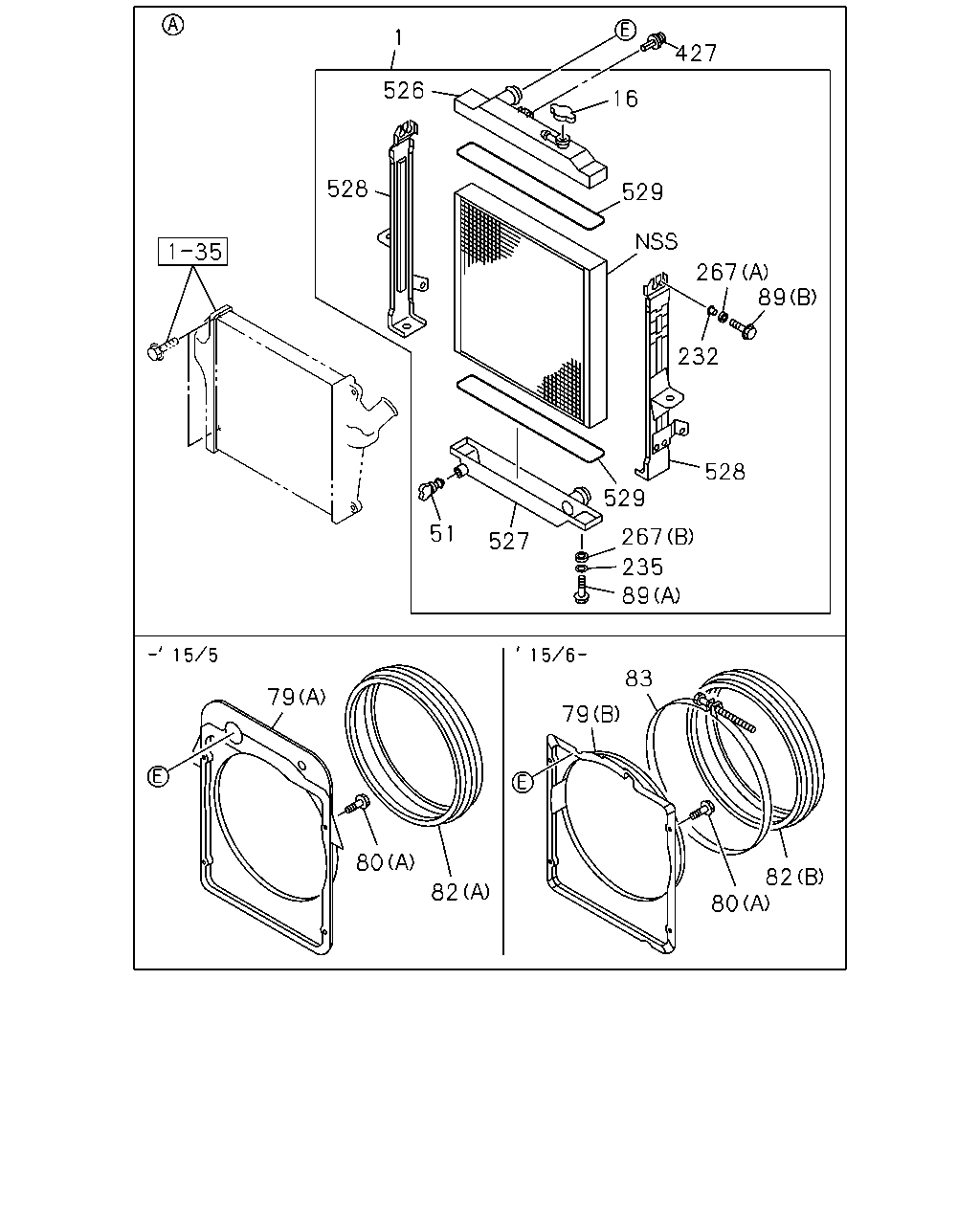

çizim 85485
1 526 528 16 427 51 527 529 235 89 528 267 79 80 82 80 79 83 82 232 89 267 529
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-843-3 01 1 0710-0711 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-843-3 01 1 0712-1505 ● ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-730-0 01 1 1506- ● ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-837-1 01 1 0710-0711 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-837-3 01 1 0712-1505 ● ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-728-0 01 1 1506- ● ●
16 CAP; RAD 8-97239-187-0 01 1 0710-0711 ●
16 CAP; RAD 8-97239-187-0 01 1 0712- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0710-0711 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0712- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0710-0711 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0712-1505 ● ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710-0711 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0712-1505 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0710-0711 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0712-1505 ● ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0710-0711 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0712- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0710-0711 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0712- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0710-0711 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0712- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0710-0711 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0712- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0710-0711 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0712- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0710-0711 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0712- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0710-0711 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0712-1505 ● ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0710-0711 ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0712- ● ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 0710-0711 ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 0712- ● ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 0710-0711 ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 0712- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-1 01 1 0710-0711 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0712- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-1 01 1 0710-0711 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0712- ● ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0710-0711 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0712- ● ●

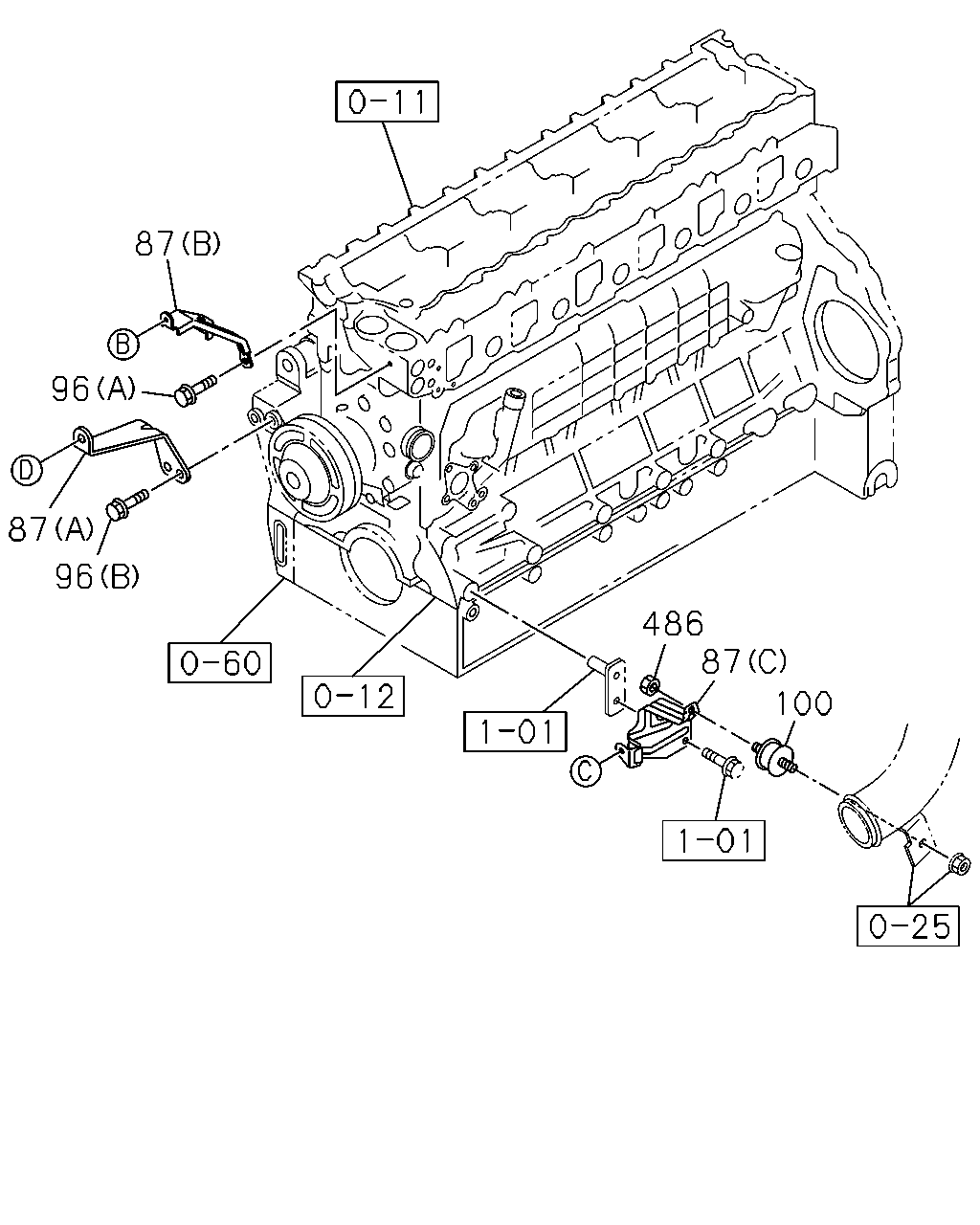

çizim 89165
87 96 87 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0710-0711 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0712- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0710-0711 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0712- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0710-0711 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0712- ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0710-0711 ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0712- ● ●
100 RUBBER; MTG 8-94394-268-1 01 1 0710-0711 ●
100 RUBBER; MTG 8-94394-268-1 01 1 0712-0910 ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●

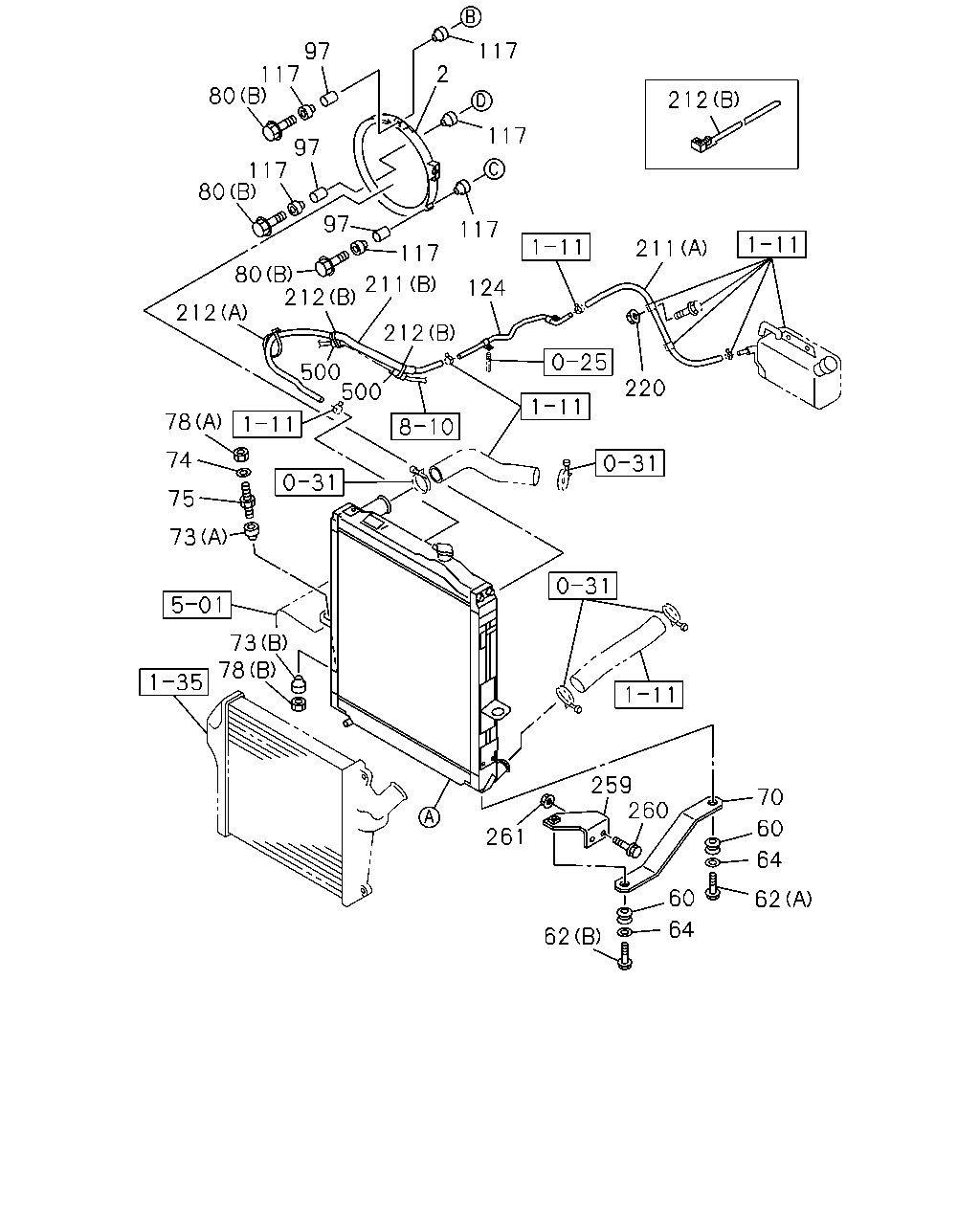

çizim 192307
117 97 117 80 2 212 117 97 117 80 97 117 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 259 260 70 60 261 64 60 62 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 0710-0711 ●
2 GUIDE; FAN 8-94393-779-1 01 1 0712- ● ●
60 GROMMET 1-09332-117-0 04 1 0710-0711 ●
60 GROMMET 1-09332-117-0 04 1 0712- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0710-0711 ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0712- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0710-0711 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0712- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0710-0711 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0712- ● ●
70 STAY; RAD 8-98004-132-2 02 1 0710-0711 ●
70 STAY; RAD 8-98004-132-2 02 1 0712- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0710-0711 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0712- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0710-0711 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0712- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0710-0711 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0712- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0710-0711 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0712- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0710-0711 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0712- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710-0711 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0712-1505 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0710-0711 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0712- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0710-0711 ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0712- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0710-0711 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0712- ● ●
211 HOSE; RAD TO PIPE
DBL CAB(FG**W*) (A) L=1100 SERVICED BY L=3000 		0-03557-300-0 01 1 0712-0712 ●
211 HOSE; RAD TO PIPE
DBL CAB(FG**W*) (A) L=1050 SERVICED BY L=3000 		0-03557-300-0 01 1 0801-0801 ●
211 HOSE; RAD TO PIPE
DBL CAB(FG**W*) (A) 		8-98113-423-0 01 1 0802-0805 ●
211 HOSE; RAD TO PIPE
DBL CAB(FG**W*) (A) L=1140 		8-98119-760-0 01 1 0806- ●
211 HOSE; RAD TO PIPE
SGL CAB(FG**M*) (A) L=560 		8-98067-261-2 01 1 0710-0805 ● ●
211 HOSE; RAD TO PIPE
SGL CAB(FG**M*) (A) L=560 		8-98119-375-0 01 1 0806- ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0710-0711 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0712- ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (B) L=140 		5-09707-031-1 02 1 0809- ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 01 1 0809- ● ●
212 CLIP; HOSE
DBL CAB(FG**W*) (A) L=250 		5-09707-030-1 01 1 0809- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0710-0711 ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0712-0808 ● ●
212 CLIP; HOSE
DBL CAB(FG**W*) (A) L=250 		5-09707-030-1 01 1 0712-0808 ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 02 1 0809- ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0710-0711 ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0712-0808 ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 0809- ●
220 NUT; CLIP
DBL CAB(FG**W*) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
220 NUT; CLIP
SGL CAB(FG**M*) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 0710-0711 ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 0712- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 0710-0711 ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 0712- ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-0711 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0712- ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0710-0711 ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0712-0808 ● ●
500 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40 		1-09337-012-0 02 1 0809- ● ●
