0-52 — OIL AND VACUUM PIPING; ENGINE (#65504) — 118 parça

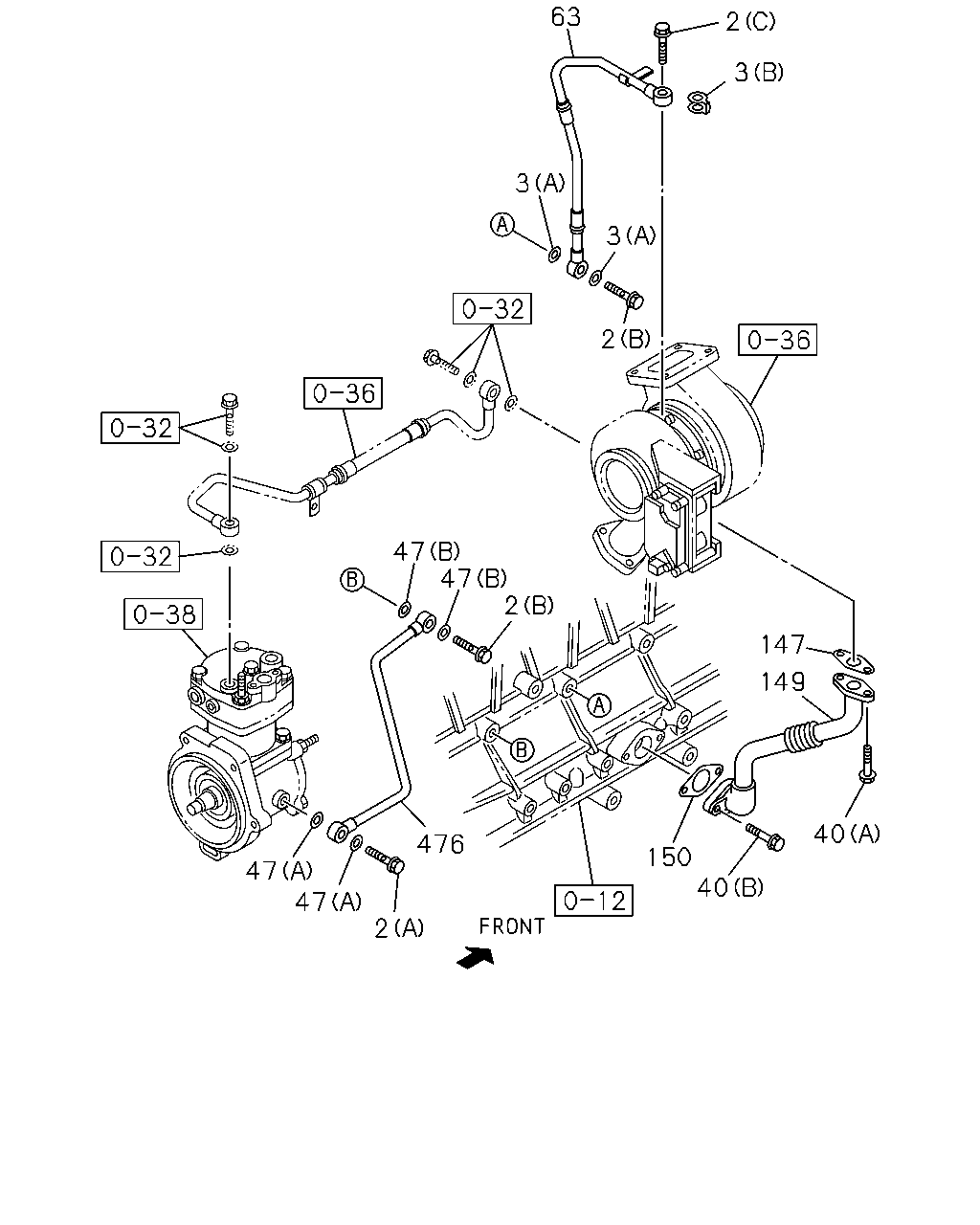

63 2 3 3 3 2 47 47 2 147 149 40 476 150 40 47 47 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	0809-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0710-0711		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0712-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0710-0711		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0712-	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0710-0711		●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0712-0803	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-0808	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0809-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0711		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	0809-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	8-98251-344-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0710-0711		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0712-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0809-	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711		●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-0808	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711		●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-0808	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-0711		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0712-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0711		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0809-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0710-0711		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0712-0808	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0809-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	0809-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0710-0711		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0712-0808	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	0809-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-94394-196-1	01	1	0809-0906	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	0907-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0710-0711		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0712-0808	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	0809-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0710-0711		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0712-	●	●
476	PIPE; OIL,C/BL TO AIR CMPR EURO2 SPECIFICATION<NT2>	8-97608-935-0	01	1	0809-0910	●
476	PIPE; OIL,C/BL TO AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97608-935-0	01	1	0911-1311	●
476	PIPE; OIL,C/BL TO AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97608-935-0	01	1	1312-	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0710-0711		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0712-0808	●	●
476	PIPE; OIL,C/BL TO AIR CMPR EURO4 SPECIFICATION<NT4>	8-97610-075-0	01	1	0809-0910	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97610-075-0	01	1	0911-	●	●

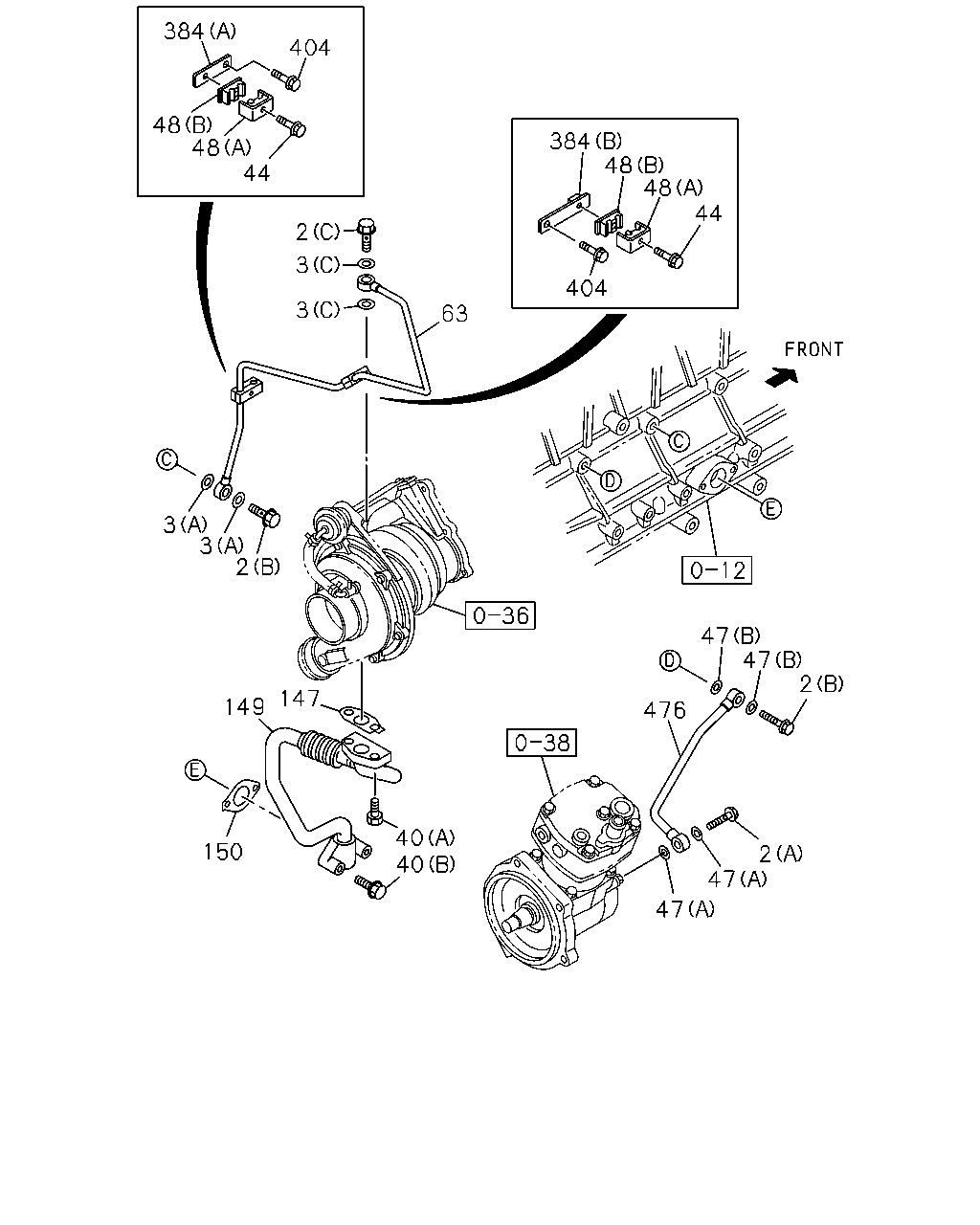

384 404 48 48 384 48 48 44 44 2 3 404 3 63 3 3 2 47 47 2 147 149 476 40 40 150 2 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	0809-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0710-0711		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0712-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0710-0711		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0712-	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0710-0711		●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0712-0803	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-0808	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0809-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0711		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	0809-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	8-98251-344-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0710-0711		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0712-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0809-	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711		●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-0808	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711		●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-0808	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-	●	●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<NT2> M6X30 FLANGE	0-28050-630-0	02	1	0809-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-0711		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0712-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0711		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	0809-	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	0809-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0809-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0710-0711		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0712-0808	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0809-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	0809-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0710-0711		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0712-0808	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	0809-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-94394-196-1	01	1	0809-0906	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	0907-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0710-0711		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0712-0808	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	0809-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0710-0711		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0712-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	1-13319-020-0	01	1	0809-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (B)	1-13319-041-0	01	1	0809-	●
404	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X15	1-09000-114-0	02	1	0809-	●
476	PIPE; OIL,C/BL TO AIR CMPR EURO2 SPECIFICATION<NT2>	8-97608-935-0	01	1	0809-0910	●
476	PIPE; OIL,C/BL TO AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97608-935-0	01	1	0911-1311	●
476	PIPE; OIL,C/BL TO AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97608-935-0	01	1	1312-	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0710-0711		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0712-0808	●	●
476	PIPE; OIL,C/BL TO AIR CMPR EURO4 SPECIFICATION<NT4>	8-97610-075-0	01	1	0809-0910	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97610-075-0	01	1	0911-	●	●
