0-50 — OIL COOLER AND OIL FILTER (#65502) — 169 parça

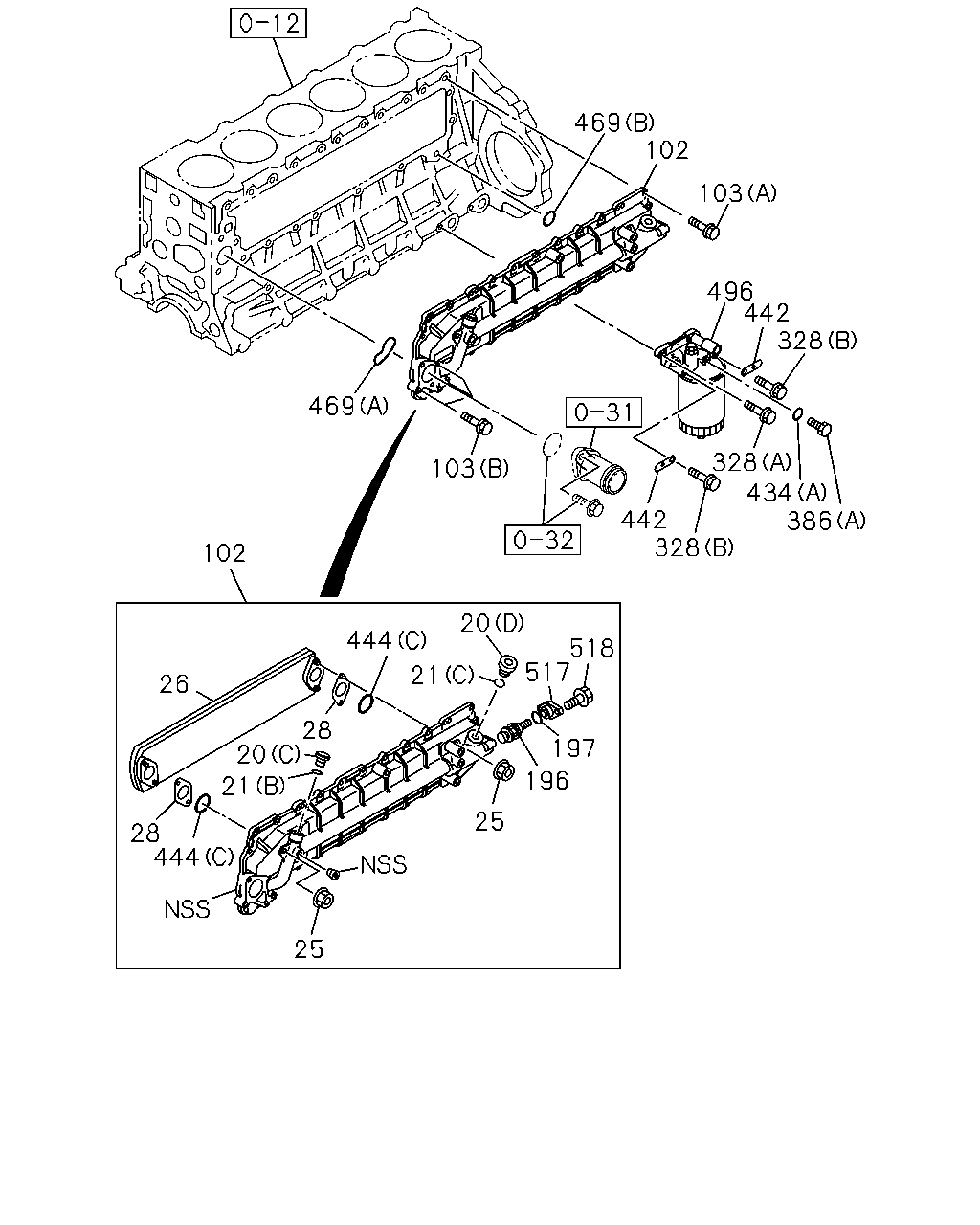

103 379 25 444 444 28 26 28 444 111 444 20 103 379 25 197 196 517 21 20 328 442 386 434 328 102 103 469 328 442 496 103 102 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0809-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0809-	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0710-0711		●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0712-0808	●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	0809-	●	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0710-0711		●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0712-0808	●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	0809-	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0809-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0809-	●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0710-0711		●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0712-0808	●	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (A) ID=17.8	8-97608-568-0	02	1	0809-	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0710-0711		●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0712-	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0809-	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0710-0711		●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0712-0808	●	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	0809-	●	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0809-1004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0710-0711		●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0712-0808	●	●
28	GASKET; CORE TO BODY EURO4 SPECIFICATION<NT4>	8-98063-865-0	02	1	0809-1004	●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0809-	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0710-0711		●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0712-0808	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98065-861-1	01	1	0809-0809	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	0809-1307	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (C) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0710-0711		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0712-0808	●	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0710-0711		●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0712-0808	●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-	●	●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0710-0711		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0712-	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0809-	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0710-0711		●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0712-0808	●	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	0809-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0710-0711		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0712-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0710-0711		●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0712-	●	●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0710-0711		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0712-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-0711		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-	●	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0710-0711		●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0712-1011	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B)	8-97601-801-0	02	1	1309-	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (A) ID=38.7	1-09623-299-0	02	1	0809-	●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (C)	8-94396-810-0	02	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0710-0711		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0712-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0710-0711		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0712-	●	●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0710-0711		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0712-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0809-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0710-0711		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0712-0808	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	0809-	●	●

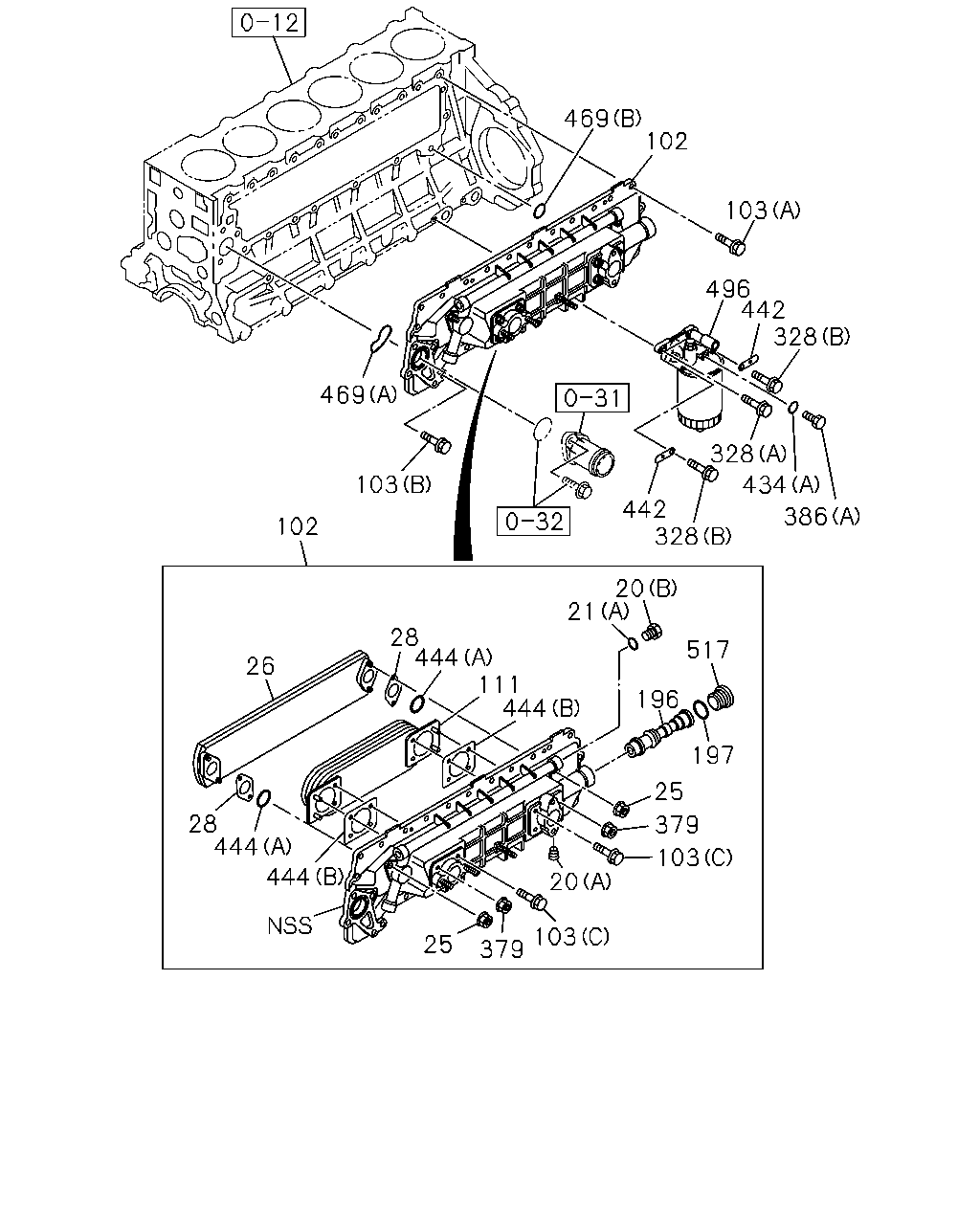

469 102 103 496 328 386 434 328 328 442 103 469 102 26 28 444 25 25 196 197 518 517 21 444 20 28 20 21 442

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0809-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0809-	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0710-0711		●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0712-0808	●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	0809-	●	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0710-0711		●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0712-0808	●	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	0809-	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0809-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0809-	●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0710-0711		●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0712-0808	●	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (A) ID=17.8	8-97608-568-0	02	1	0809-	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0710-0711		●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0712-	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0809-	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0710-0711		●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0712-0808	●	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	0809-	●	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0809-1004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0710-0711		●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0712-0808	●	●
28	GASKET; CORE TO BODY EURO4 SPECIFICATION<NT4>	8-98063-865-0	02	1	0809-1004	●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0809-	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0710-0711		●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0712-0808	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98065-861-1	01	1	0809-0809	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	0809-1307	●	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (C) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0710-0711		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0712-0808	●	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0710-0711		●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0712-0808	●	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0710-0711		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0712-	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0809-	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0710-0711		●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0712-0808	●	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	0809-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0710-0711		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0712-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0710-0711		●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0712-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0710-0711		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0712-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-0711		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-	●	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0710-0711		●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0712-1011	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B)	8-97601-801-0	02	1	1309-	●	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (A) ID=38.7	1-09623-299-0	02	1	0809-	●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (C)	8-94396-810-0	02	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0710-0711		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0712-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0710-0711		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0712-	●	●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0710-0711		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0712-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0809-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0710-0711		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0712-0808	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	0809-	●	●
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	0809-	●

496 386 434 66 13 265 307 308 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●	●
2	ELEMENT; OIL FILTER	8-94391-049-2	01	1	0710-0711		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0712-	●	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0710-0711		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0712-1307	●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0710-0711		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0712-1307	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0710-0711		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0712-1307	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0710-0711		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0712-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0710-0711		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0712-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0710-0711		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0712-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-0711		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-	●	●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0710-0711		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0712-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
