0-36 — TURBOCHARGER SYSTEM (#65496) — 272 parça

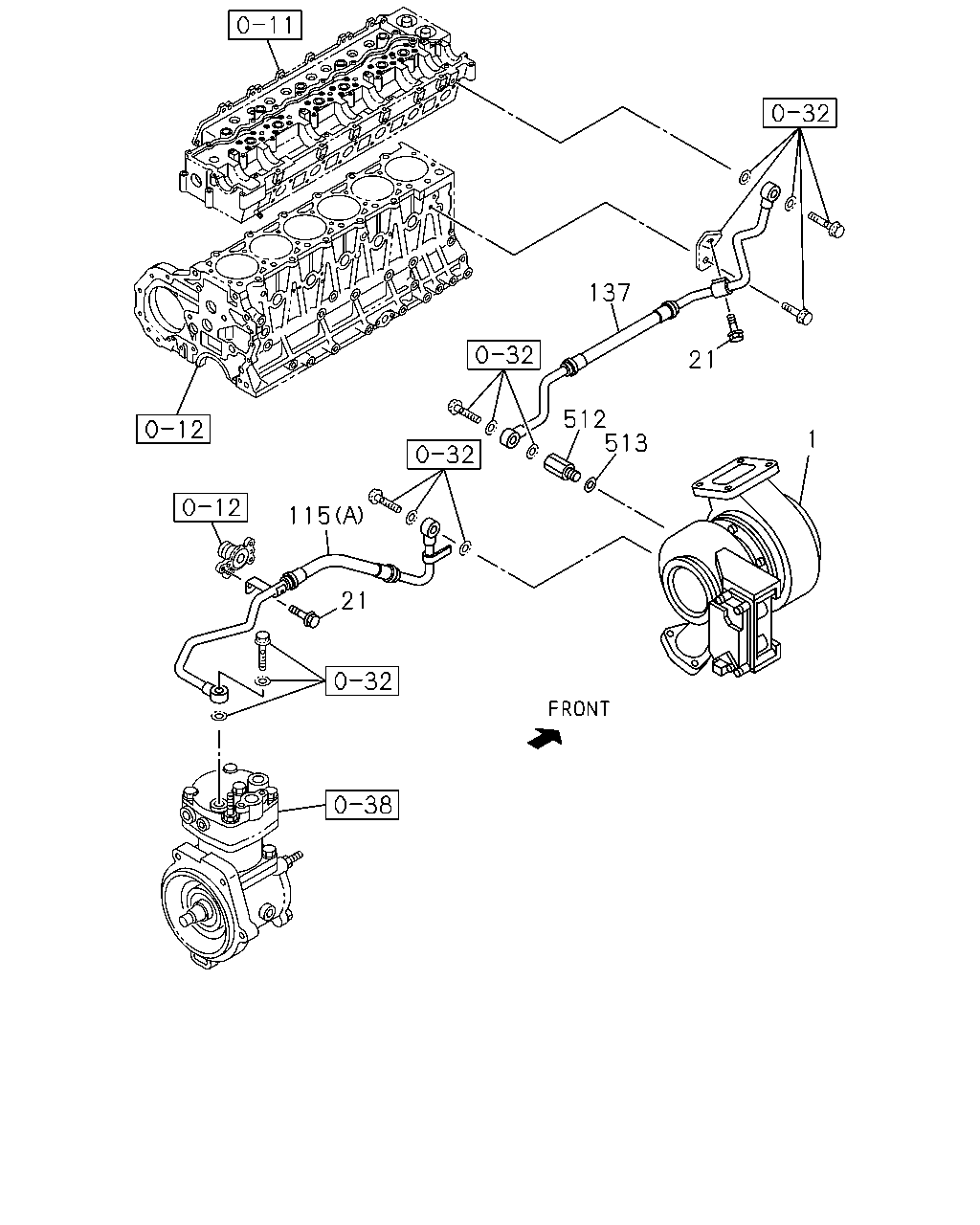

çizim 60763
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-3 01 1 0710-0711 ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0712-0808 ● ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ● ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0712-0808 ● ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97618-807-0 01 1 0911- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 0809-0910 ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97618-808-0 01 1 0911-1311 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97618-808-0 01 1 1312- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0710-0711 ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0712-0808 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97610-087-2 01 1 0809- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0710-0711 ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0712-0808 ● ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0809- ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0710-0711 ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0712-0808 ● ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 0809- ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0710-0711 ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0712-0808 ● ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-1312 ● ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●

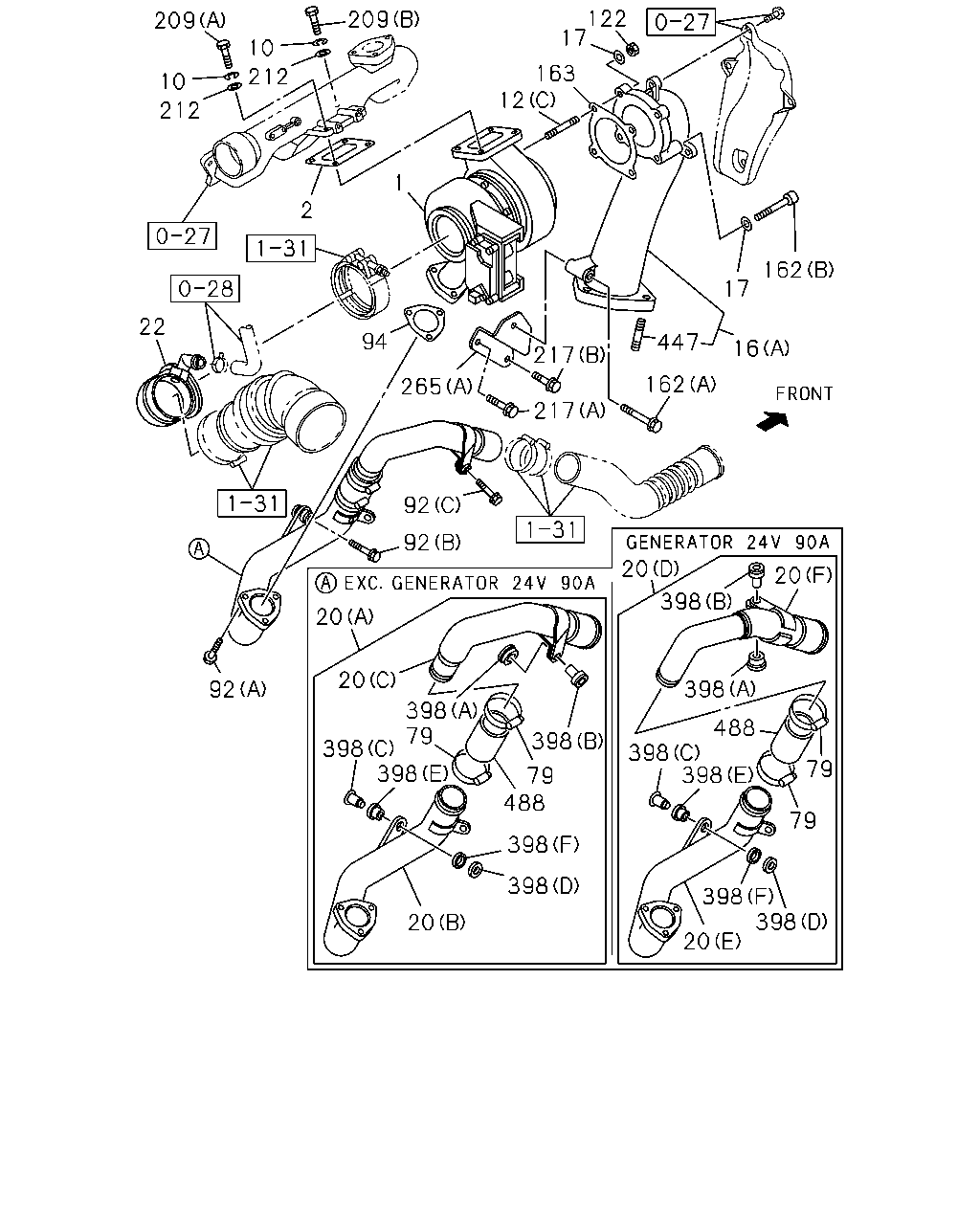

çizim 192298
398 398 398 398 398 398 398 398 398 398 398 398 20 20 20 20 20 20 92 92 92 217 217 447 162 17 162 16 265 94 1 12 163 17 122 209 212 10 209 10 22 212 79 488 488 79 79 2 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-3 01 1 0710-0711 ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0712-0808 ● ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0711 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0712-0808 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809- ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0711 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0712-0808 ● ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0711 ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0712-0808 ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809- ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0711 ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0712-0808 ● ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809- ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0711 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0712-0808 ● ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-1 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0712-0808 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98046-167-4 01 1 0809-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0712-0808 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B) 		8-98046-168-1 01 1 0809- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0712-0808 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C) 		8-98046-169-2 01 1 0809- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-0 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0712-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0712- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0712- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-0 01 1 0710-0711 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-0 01 1 0712-0808 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 0809- ● ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0711 ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0712-0808 ● ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0712- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710-0711 ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0712- ● ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 0710-0711 ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 0712-0808 ● ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 0809- ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0711 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0712-0808 ● ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809- ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0711 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0712-0808 ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0711 ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0712-0808 ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910 ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911- ● ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-0 01 1 0710-0711 ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-0 01 1 0712-0808 ● ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=83 		8-94392-553-2 01 1 0809- ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0710-0711 ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0712-0808 ● ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 0809- ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0710-0711 ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0712-0808 ● ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 0809- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710-0711 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0712- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0711 ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0712-0808 ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809- ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0711 ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0712-0808 ● ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809- ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710-0711 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0712- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-0 01 1 0710-0711 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0712- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710-0711 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0712- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710-0711 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0712- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710-0711 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0712- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710-0711 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0712- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0710-0711 ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0712-0808 ● ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 0809- ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0711 ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0712-0808 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ● ●

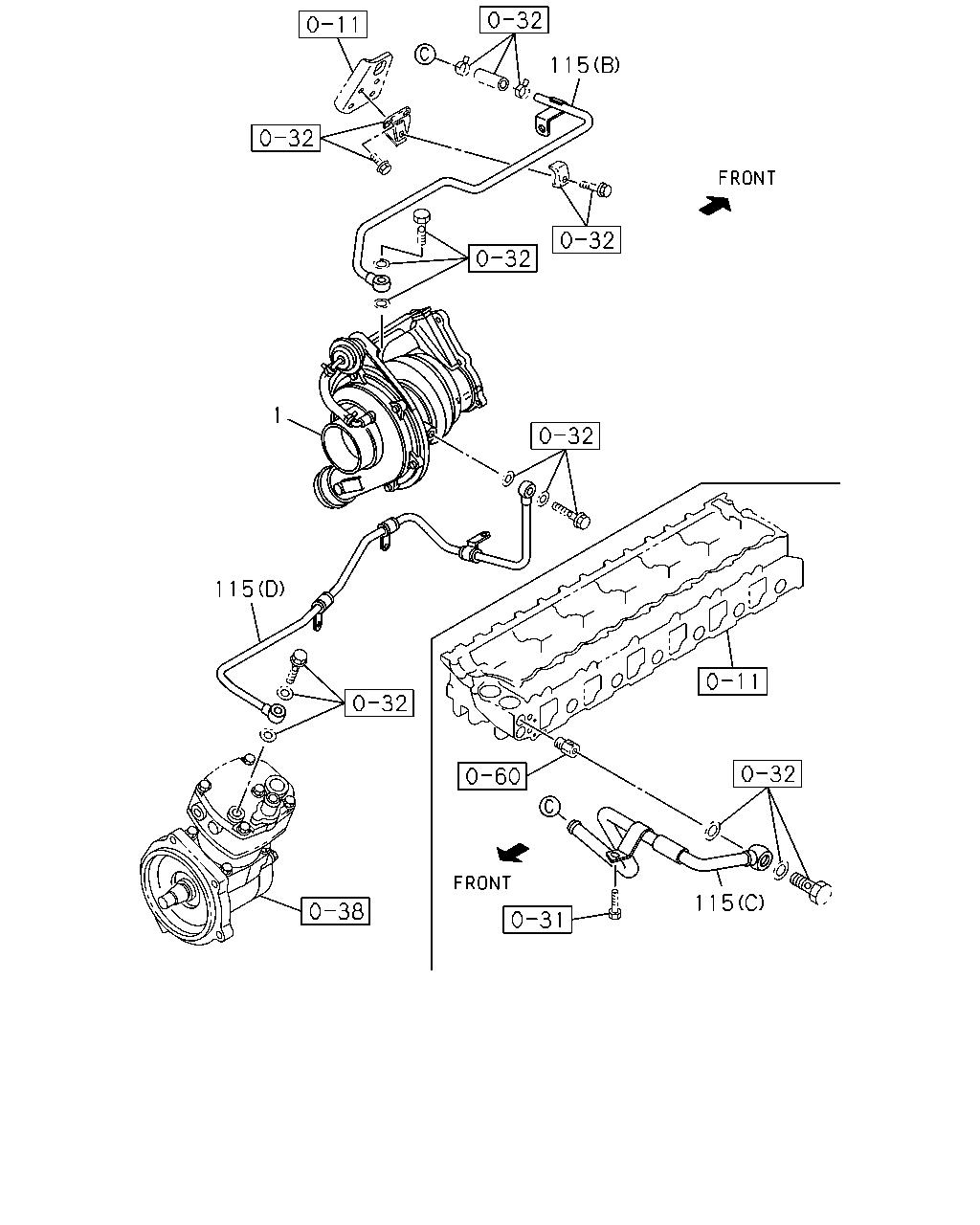

çizim 192402
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-3 01 1 0710-0711 ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0712-0808 ● ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97618-807-0 01 1 0911- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 0809-0910 ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97618-808-0 01 1 0911-1311 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97618-808-0 01 1 1312- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0710-0711 ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0712-0808 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97610-087-2 01 1 0809- ● ●

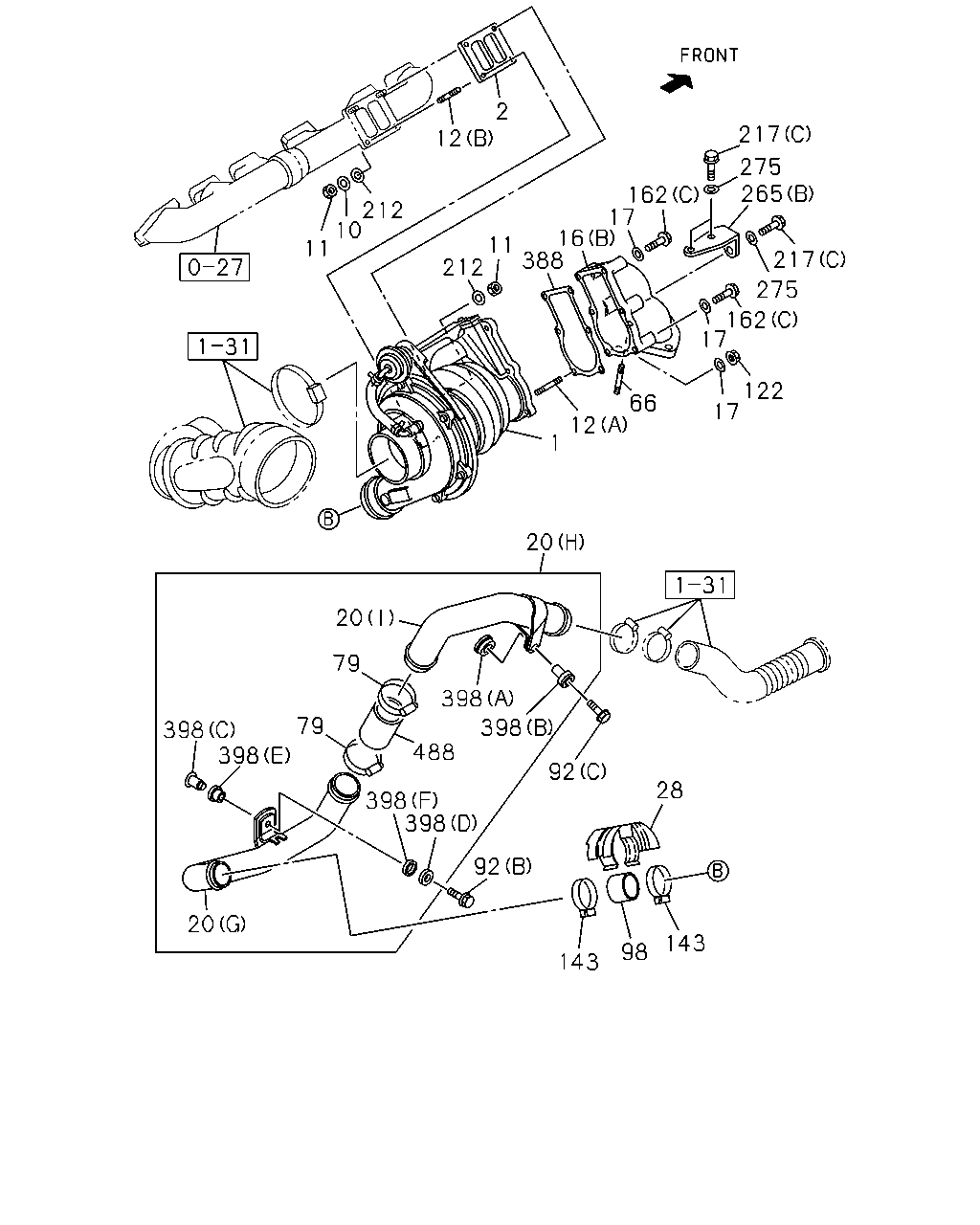

çizim 192403
2 12 217 275 265 162 17 16 388 212 10 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-3 01 1 0710-0711 ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0712-0808 ● ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0711 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0712-0808 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809- ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0711 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0712-0808 ● ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809- ● ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0711 ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0712-0808 ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809- ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0711 ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0712-0808 ● ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809- ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0711 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0712-0808 ● ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-1 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0712-0808 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98046-167-4 01 1 0809-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0712-0808 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B) 		8-98046-168-1 01 1 0809- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0712-0808 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C) 		8-98046-169-2 01 1 0809- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-0 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0712-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0712- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710-0711 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0712- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 0809- ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 0809- ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0711 ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0712-0808 ● ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0712- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710-0711 ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0712- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0711 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0712-0808 ● ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-76 		1-09707-203-0 02 1 0809-0902 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 0903- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0711 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0712-0808 ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0711 ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0712-0808 ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910 ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710-0711 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0712- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0711 ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0712-0808 ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809- ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0711 ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0712-0808 ● ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809- ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809- ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 0809- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 0809- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710-0711 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0712- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-0 01 1 0710-0711 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0712- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710-0711 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0712- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710-0711 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0712- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710-0711 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0712- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710-0711 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0712- ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0711 ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0712-0808 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
