4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#6549) — 54 parça

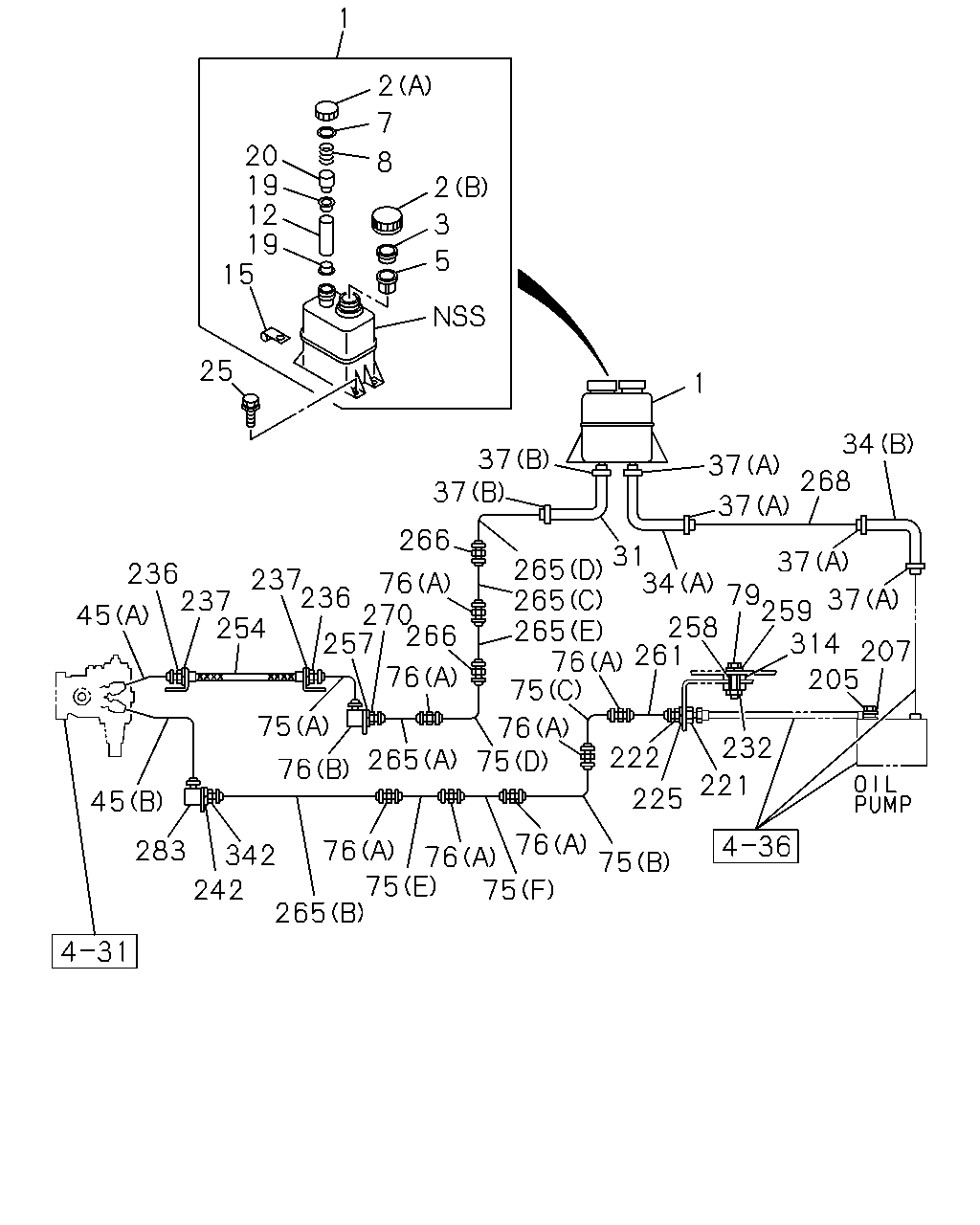

çizim 7889
1 2 7 20 19 12 19 15 8 2 3 5 25 1 34 37 37 37 268 37 266 31 265 34 265 79 259 265 258 314 261 76 75 37 236 237 254 237 76 236 270 266 257 76 37 45 207 205 75 76 75 232 222 265 76 221 225 45 76 75 283 76 342 242 76 75 75 265
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-193-1 01 1 9705-
2 CAP; OIL TANK,P/S
(A) WO/GAUGE 		1-21241-003-5 01 1 9705-
2 CAP; OIL TANK,P/S
(B) W/GAUGE 		1-21241-006-3 01 1 9705-
3 GASKET; OIL TANK,P/S 1-21249-006-2 01 1 9705-
5 STRAINER; OIL TANK,P/S 1-21235-006-1 01 1 9705-
7 RING; GASKET,OIL TANK,P/S 1-21249-005-0 01 1 9705-
8 SPRING; OIL TANK,P/S 1-09580-319-1 01 1 9705-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 9705-
15 PLATE; FILTER,OIL TANK 1-21249-009-0 04 1 9705-
19 SEAT; OIL TANK 1-21262-001-0 02 1 9705-
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-001-2 01 1 9705-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9705-
31 HOSE; P/S OIL TANK,INL 1-21115-101-0 01 1 9705-
34 HOSE; P/S OIL TANK,OUTLET
(B) 		1-21115-100-0 01 1 9705-
34 HOSE; P/S OIL TANK,OUTLET
(A) 		1-21115-142-0 01 1 9705-
37 CLIP; HOSE,P/S
(A) ID=38 		9-09915-666-1 04 1 9705-
37 CLIP; HOSE,P/S
(B) ID=28 		9-09915-672-1 02 1 9705-
45 PIPE; OIL,P/S UNIT TO UNION
(A) 		1-21115-623-0 01 1 9705-
45 PIPE; OIL,P/S UNIT TO UNION
(B) 		1-21115-625-0 01 1 9705-
75 PIPE; OIL,P/S,UNION TO UNION
(A) 		1-21115-624-0 01 1 9705-
75 PIPE; OIL,P/S,UNION TO UNION
(B) 		1-21115-632-0 01 1 9705-
75 PIPE; OIL,P/S,UNION TO UNION
(C) 		1-21115-635-0 01 1 9705-
75 PIPE; OIL,P/S,UNION TO UNION
(D) 		1-21115-867-0 01 1 9705-
75 PIPE; OIL,P/S,UNION TO UNION
(E) 		1-21115-868-0 01 1 9705-
75 PIPE; OIL,P/S,UNION TO UNION
(F) 		1-21115-870-0 01 1 9705-
76 UNION; OIL PIPE
(A) M22 		9-09233-015-1 07 1 9705-
76 UNION; OIL PIPE
(B) M22 		9-09235-215-1 01 1 9705-
79 BOLT; BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9705-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6 		1-09623-421-0 01 1 0205-
205 BOLT; EYE,FLEX HOSE,P/S
M18X39 		1-09675-114-0 01 1 9705-
207 GASKET; FLEX HOSE,P/S PUMP
ID=18.2 OD=24.4 		1-09630-087-0 02 1 9705-
221 CONNECTOR; OIL PIPE,P/S 1-09654-261-1 01 1 9705-
222 NUT; P/S OIL PIPE CONNECTOR
M22 		9-09111-422-0 01 1 9705-
225 WASHER; LK,CONNECTOR,P/S OIL PIPE
ID=22.5 		9-09150-522-0 01 1 9705-
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9705-
236 NUT; FLEX HOSE,P/S PIPING
M22 		9-09111-422-0 02 1 9705-
237 WASHER; LK,FLEX HOSE,P/S PIPE
ID=22.5 		9-09150-522-0 02 1 9705-
242 WASHER; LK,NIPPLE
ID=22.5 		9-09150-522-0 01 1 9705-
254 HOSE; FLEX,BOOSTER,RETURN
L=500 		1-09364-363-0 01 1 9705-
257 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9705-
258 TUBE; DISTANCE,BRKT 9-09651-072-0 02 1 9705-
259 WASHER; PL,BRKT
ID=8.4 OD=22 		9-09160-708-0 04 1 9705-
261 PIPE; OIL,UNION TO HOSE 1-21115-636-0 01 1 9705-
265 PIPE; OIL,UNION TO UNION
(A) 		1-21115-626-0 01 1 9705-
265 PIPE; OIL,UNION TO UNION
(B) 		1-21115-627-0 01 1 9705-
265 PIPE; OIL,UNION TO UNION
(C) 		1-21115-633-0 01 1 9705-
265 PIPE; OIL,UNION TO UNION
(D) 		1-21115-634-0 01 1 9705-
265 PIPE; OIL,UNION TO UNION
(E) 		1-21115-869-0 01 1 9705-
266 UNION; OIL PIPE,P/S
M22 		9-09233-015-1 02 1 9705-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 1-21115-637-0 01 1 9705-
270 NUT; UNION TO OIL PIPE
M22 		9-09111-422-0 01 1 9705-
283 NIPPLE; ELBOW
M22 		9-09235-215-1 01 1 9705-
314 RUBBER; CUSHION,BRKT 1-33619-148-0 04 1 9705-
342 NUT; NIPPLE
M22 		9-09111-422-0 01 1 9705-
