◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#65487) — 29 parça

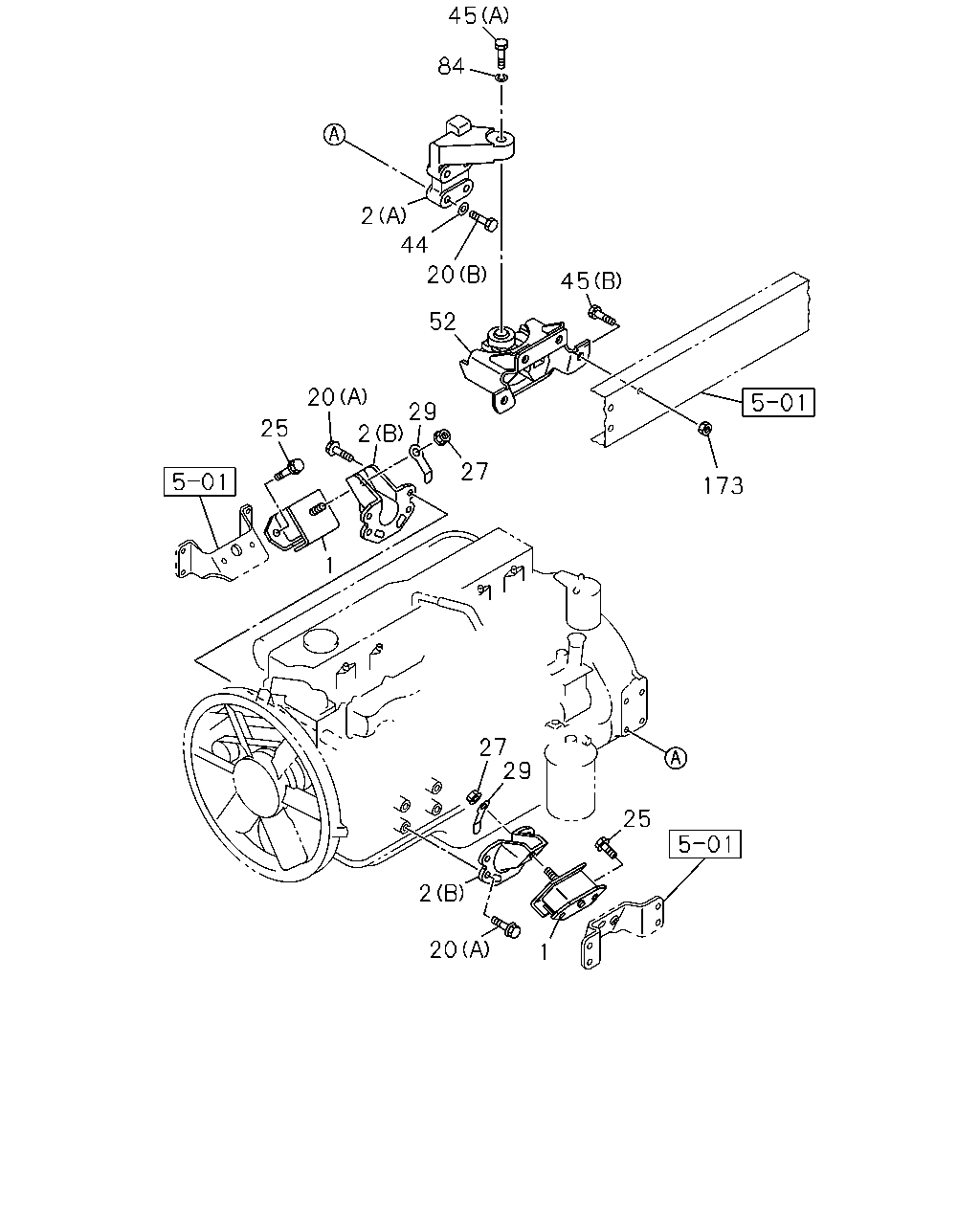

çizim 38959
45 84 2 20 44 45 52 173 20 29 2 25 27 1 27 29 25 2 20 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 0710-0711 ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 0712- ● ●
2 FOOT; ENG
(B) 		8-94392-141-3 02 1 0710-0711 ●
2 FOOT; ENG
(B) 		8-94392-141-3 02 1 0712-1008 ● ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1009- ● ●
2 FOOT; ENG
(A) 		8-97611-988-0 01 1 0710-0711 ●
2 FOOT; ENG
(A) 		8-97611-988-0 01 1 0712- ● ●
2 FOOT; ENG
(A) 		8-97611-989-0 01 1 0710-0711 ●
2 FOOT; ENG
(A) 		8-97611-989-0 01 1 0712- ● ●
20 BOLT; ENG FOOT
(B) M12X50 		0-16956-250-0 08 1 0710-0711 ●
20 BOLT; ENG FOOT
(B) M12X50 		0-16956-250-0 08 1 0712- ● ●
20 BOLT; ENG FOOT
(A) M10X30 		8-97011-732-0 08 1 0710-0711 ●
20 BOLT; ENG FOOT
(A) M10X30 		8-97011-732-0 08 1 0712-1008 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1009- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0710-0711 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0712- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0710-0711 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0712- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0710-0711 ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0712- ● ●
44 WASHER; LK,ENG FOOT
ID=12.5 		0-91614-512-0 08 1 0710-0711 ●
44 WASHER; LK,ENG FOOT
ID=12.5 		0-91614-512-0 08 1 0712- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M14X50 		0-29261-450-0 08 1 0710-0711 ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M14X50 		0-29261-450-0 08 1 0712- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M18X65 		8-94393-260-1 02 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-98013-021-1 02 1 0710- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36 		0-91614-618-0 02 1 0710- ● ●
173 NUT; ENG MTG RR TO FRAME
M14 FLANGE 		0-91180-214-0 08 1 0710-0711 ●
173 NUT; ENG MTG RR TO FRAME
M14 FLANGE 		0-91180-214-0 08 1 0712- ● ●
