◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#65476) — 52 parça

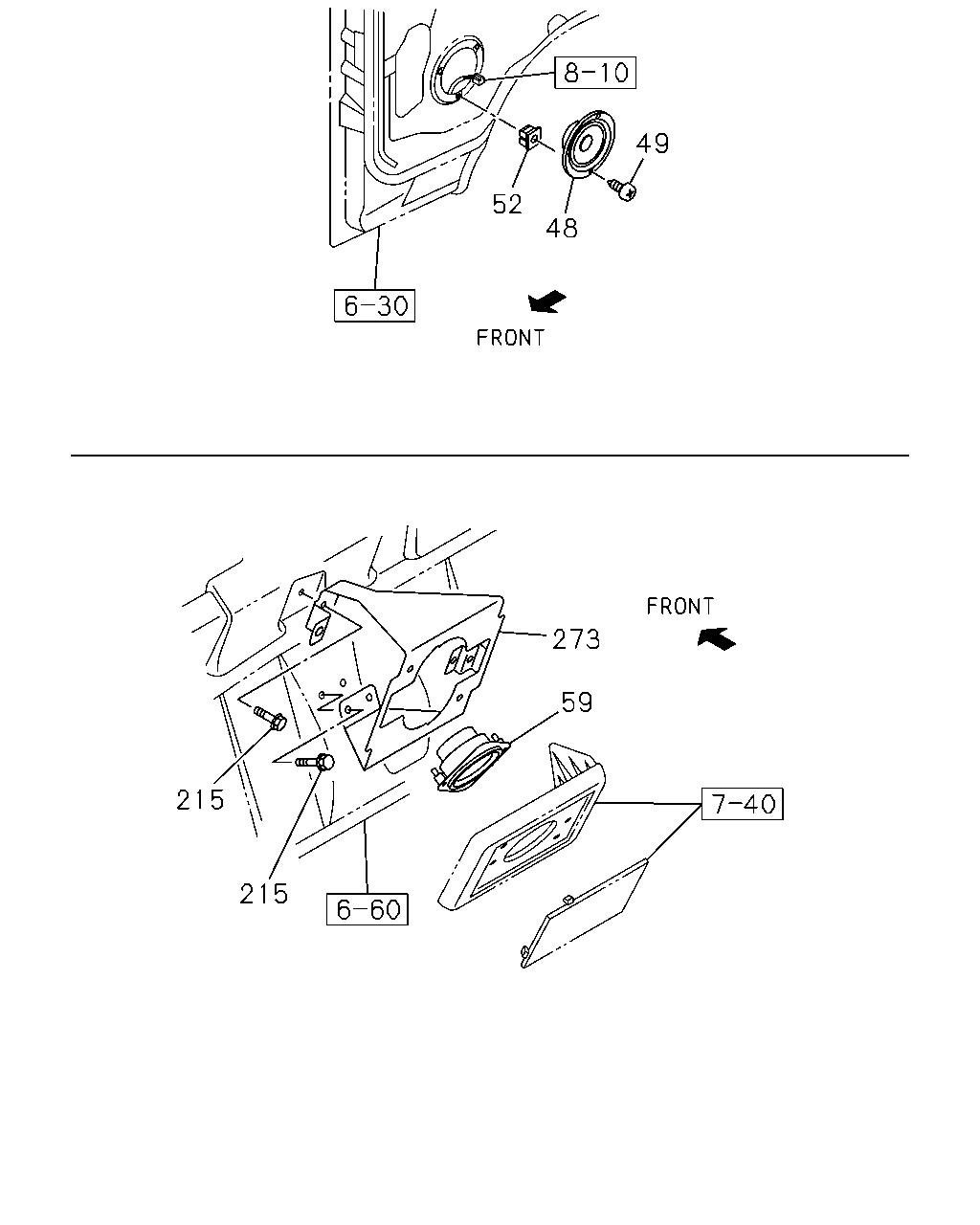

çizim 14433
49 52 48 273 59 215 215
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 0710-0711 ●
48 SPEAKER; AUDIO
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 0712- ● ●
49 SCREW; SPEAKER
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0710-0711 ●
49 SCREW; SPEAKER
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0712- ● ●
52 GROMMET; SCREW,SPEAKER
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0710-0711 ●
52 GROMMET; SCREW,SPEAKER
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0712- ● ●
59 SPEAKER; AUDIO
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-980-1 01 1 0710-0711 ●
59 SPEAKER; AUDIO
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-980-1 01 1 0712- ● ●
215 SCREW; BRKT,SPEAKER
3-SPEAKER SYSTEM FRT<NNR> M6X12 FLANGE 		0-28450-612-0 03 1 0710-0711 ●
215 SCREW; BRKT,SPEAKER
3-SPEAKER SYSTEM FRT<NNR> M6X12 FLANGE 		0-28450-612-0 03 1 0712-0810 ● ●
215 SCREW; BRKT,SPEAKER
3-SPEAKER SYSTEM FRT<NNR> M6X12 FLANGE 		8-97108-669-0 03 1 0811- ● ●
273 BRACKET; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-98022-847-3 01 1 0710-0711 ●
273 BRACKET; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-98022-847-3 01 1 0712- ● ●

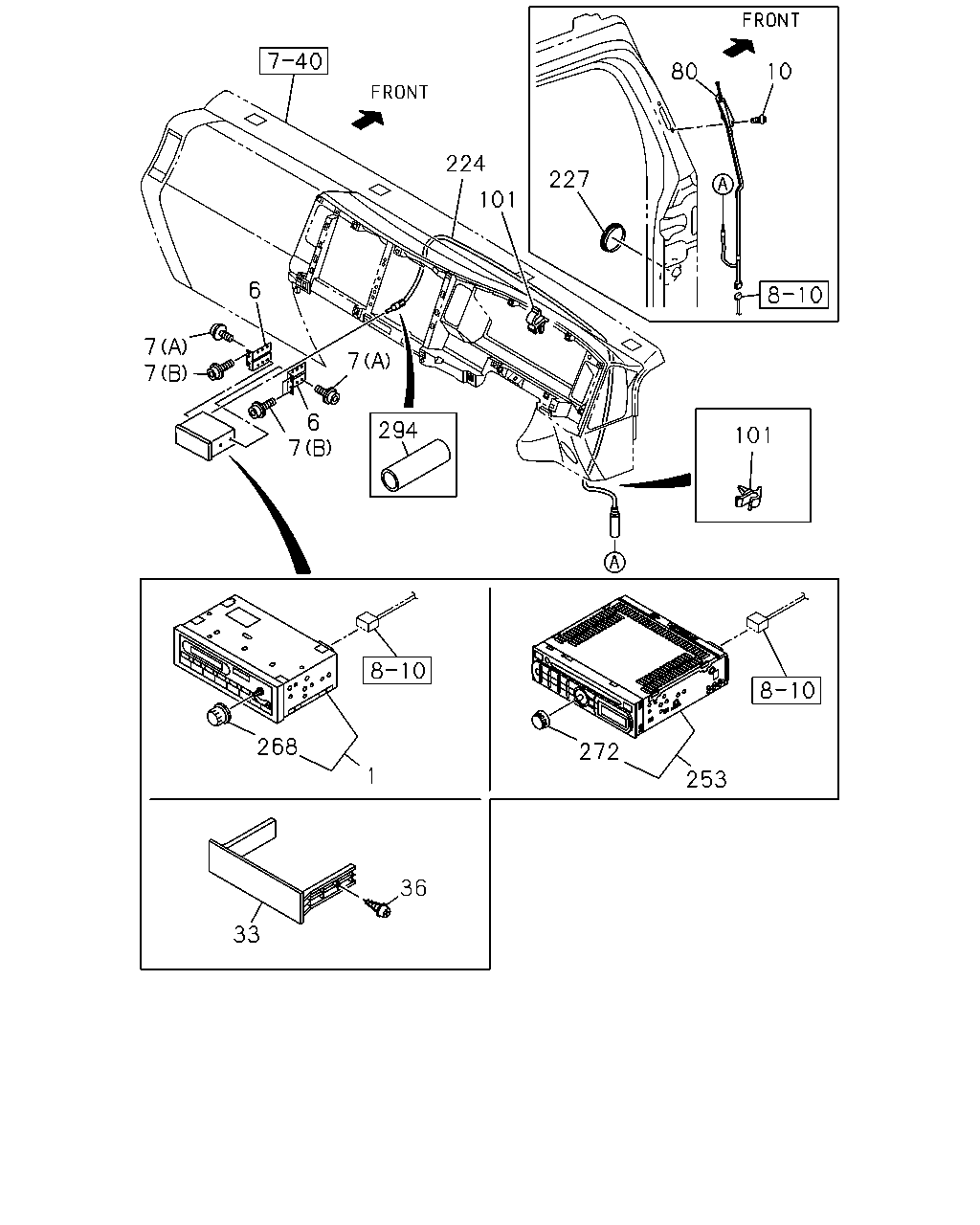

çizim 158394
80 10 224 227 101 6 7 7 7 6 7 294 101 268 272 1 253 36 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO AM/FM<U69> 		8-98032-643-0 01 1 0710-0711 ●
1 RADIO
RADIO AM/FM<U69> 		8-98032-643-0 01 1 0712- ● ●
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0710-0711 ●
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0712- ● ●
7 SCREW; RADIO
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0710-0711 ●
7 SCREW; RADIO
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0712- ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> (A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0710-0711 ●
7 SCREW; RADIO
RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> (A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0712- ● ●
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 0710-0711 ●
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 0712- ● ●
33 COVER; RADIO
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> BLACK 		8-97407-896-1 01 1 0710-0711 ●
33 COVER; RADIO
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> BLACK 		8-97407-896-1 01 1 0712-0712 ●
33 COVER; RADIO
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> BLACK 		8-97407-896-1 01 1 0712-0712 ●
33 COVER; RADIO
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> BLACK 		8-97407-896-1 01 1 0712-0712 ●
33 COVER; RADIO
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> BLACK 		8-97407-896-2 01 1 0801- ●
33 COVER; RADIO
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) EXC. TACHOGRAPH 140KM/H<WC7> BLACK 		8-97407-896-2 01 1 0801- ●
33 COVER; RADIO
EXC. TACHOGRAPH 140KM/H<WC7> BLACK 		8-97407-896-2 01 1 0801- ●
36 SCREW; COVER
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0711 ●
36 SCREW; COVER
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-1110 ● ●
36 SCREW; COVER
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1111- ●
80 ANTENNA 8-98074-576-1 01 1 0710-0711 ●
80 ANTENNA 8-98074-576-1 01 1 0712-0904 ● ●
80 ANTENNA 8-98139-014-0 01 1 0905- ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 0710-0711 ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 0712- ● ●
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 0710-0711 ●
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 0712- ● ●
227 PROTECTOR; EDGE 8-98053-117-0 01 1 0710-0711 ●
227 PROTECTOR; EDGE 8-98053-117-0 01 1 0712-0904 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0911- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> 		8-98017-752-0 01 1 0710-0711 ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> 		8-98017-752-0 01 1 0712-0910 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0911- ● ●
268 KNOB; VOL
RADIO AM/FM<U69> CLARION 		8-97375-820-0 01 1 0710-0711 ●
268 KNOB; VOL
RADIO AM/FM<U69> CLARION 		8-97375-820-0 01 1 0712- ● ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD<UT3> CLARION 		8-98048-329-0 01 1 0710-0711 ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD<UT3> CLARION 		8-98048-329-0 01 1 0712- ● ●
294 CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> 		8-98095-617-1 01 1 0710-0711 ●
294 CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> 		8-98095-617-1 01 1 0712- ● ●
