Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#65465) — 805 parça

36 33 34 34 261 35 39 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	0809-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	8-98034-702-0	01	1	0809-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0808	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0712-0808	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-	●

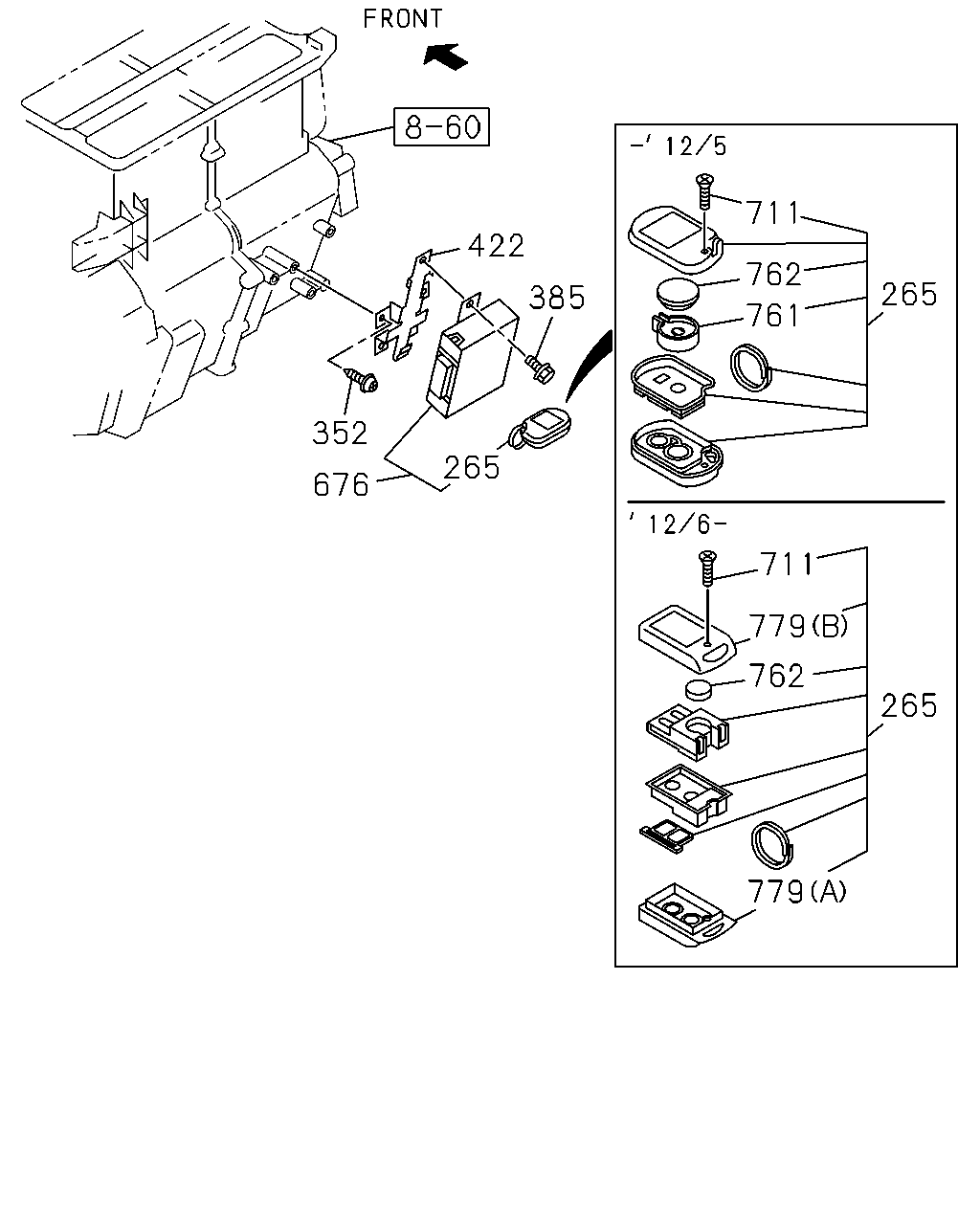

422 385 352 265 676 711 762 761 265 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98048-462-1	02	1	0712-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98178-860-0	02	1	1101-1205	●
265	TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98218-235-0	02	1	1206-1308	●
265	TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98249-522-0	02	1	1309-	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0710-0711	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98048-459-1	02	1	0712-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0712-1012		●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98180-751-0	02	1	1101-1205	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205		●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98218-236-0	02	1	1206-	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-		●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-0711	●
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-		●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0710-0711	●
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0712-	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0712-		●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0710-0711	●
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0712-	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0712-		●
676	CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98048-468-2	01	1	0712-1012	●
676	CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98181-811-0	01	1	1101-1205	●
676	CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98218-232-0	01	1	1206-1308	●
676	CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98249-782-0	01	1	1309-	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0710-0711	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98017-258-1	01	1	0712-1012	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0712-1012		●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98181-809-0	01	1	1101-1205	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205		●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98218-231-0	01	1	1206-	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-		●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0710-0711	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0712-1205	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0712-1205		●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-		●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0710-0711	●
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0712-1012	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0712-1012		●
762	BATTERY	8-98078-061-0	02	1	0710-0711	●
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0712-	●
762	BATTERY	8-98078-061-0	02	1	0712-		●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1206-	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-		●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14) (B)	8-98218-243-0	02	1	1206-	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-		●
779	COVER; TRANSMITTER HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-241-0	02	1	1206-1308	●
779	COVER; TRANSMITTER HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> (B)	8-98250-559-0	02	1	1309-	●

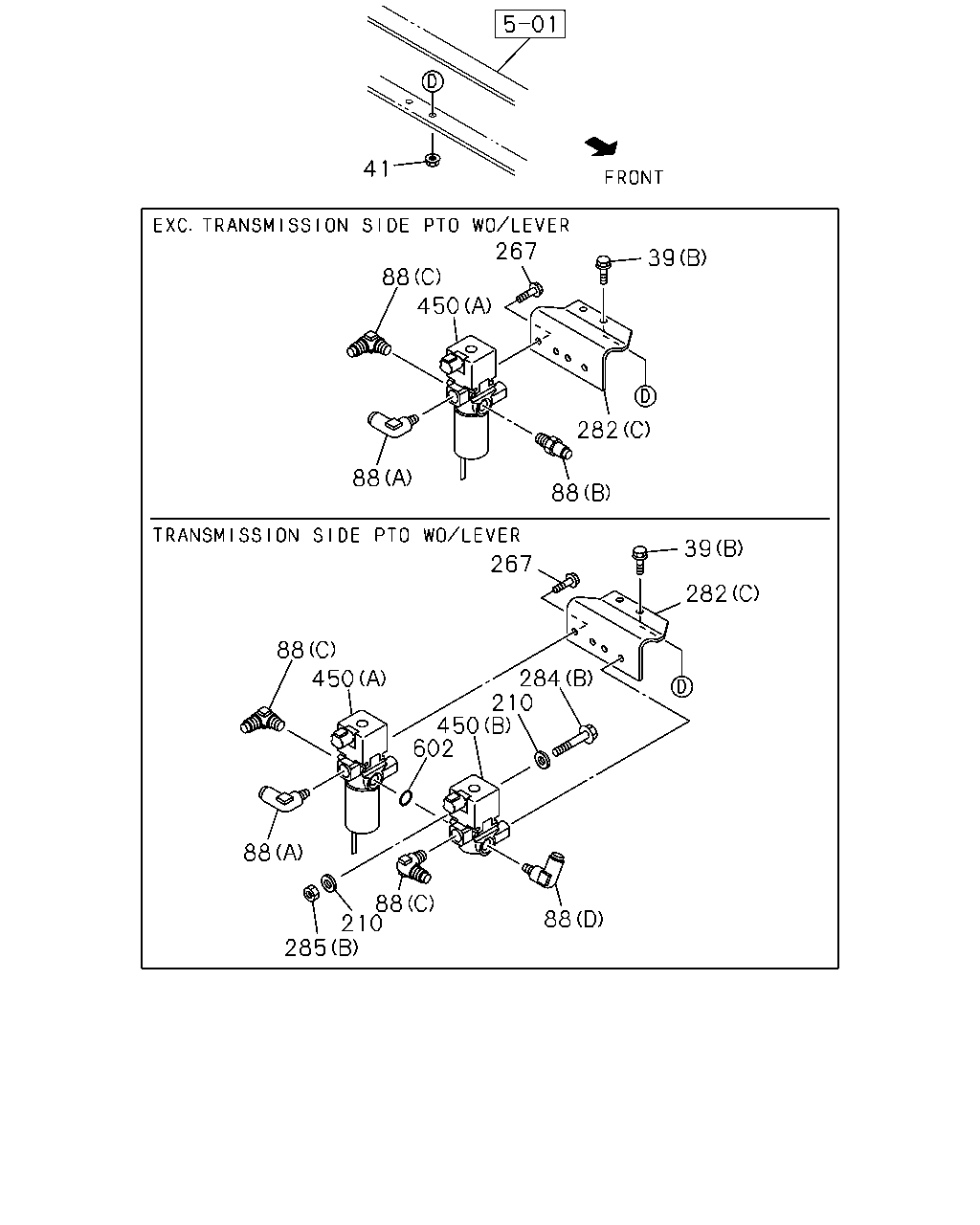

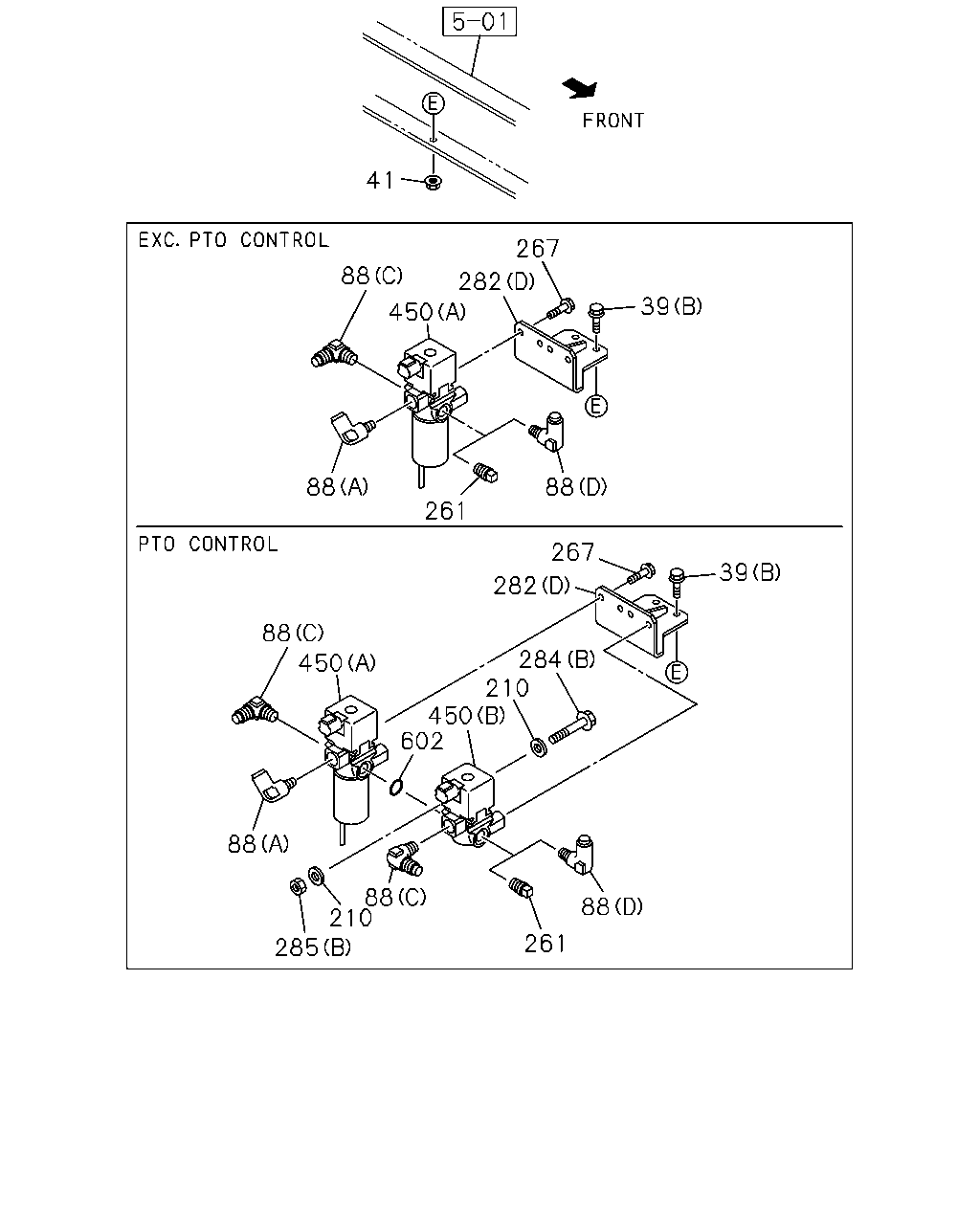

41 88 282 267 39 450 88 261 88 282 267 39 88 450 450 284 210 602 88 88 285 210 261 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0808	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0712-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-0808	●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0710-0711	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0712-0803	●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	1-82569-266-0	02	1	0712-0803		●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0712-0803		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0804-0805	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0804-0805		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6>	1-82569-266-0	02	1	0804-0805		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0806-0808	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0806-0808		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0806-0808		●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0809-0906	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0809-0906		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0809-0906		●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0907-	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0907-		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0907-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0712-0808	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0808	●	●
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0809-		●

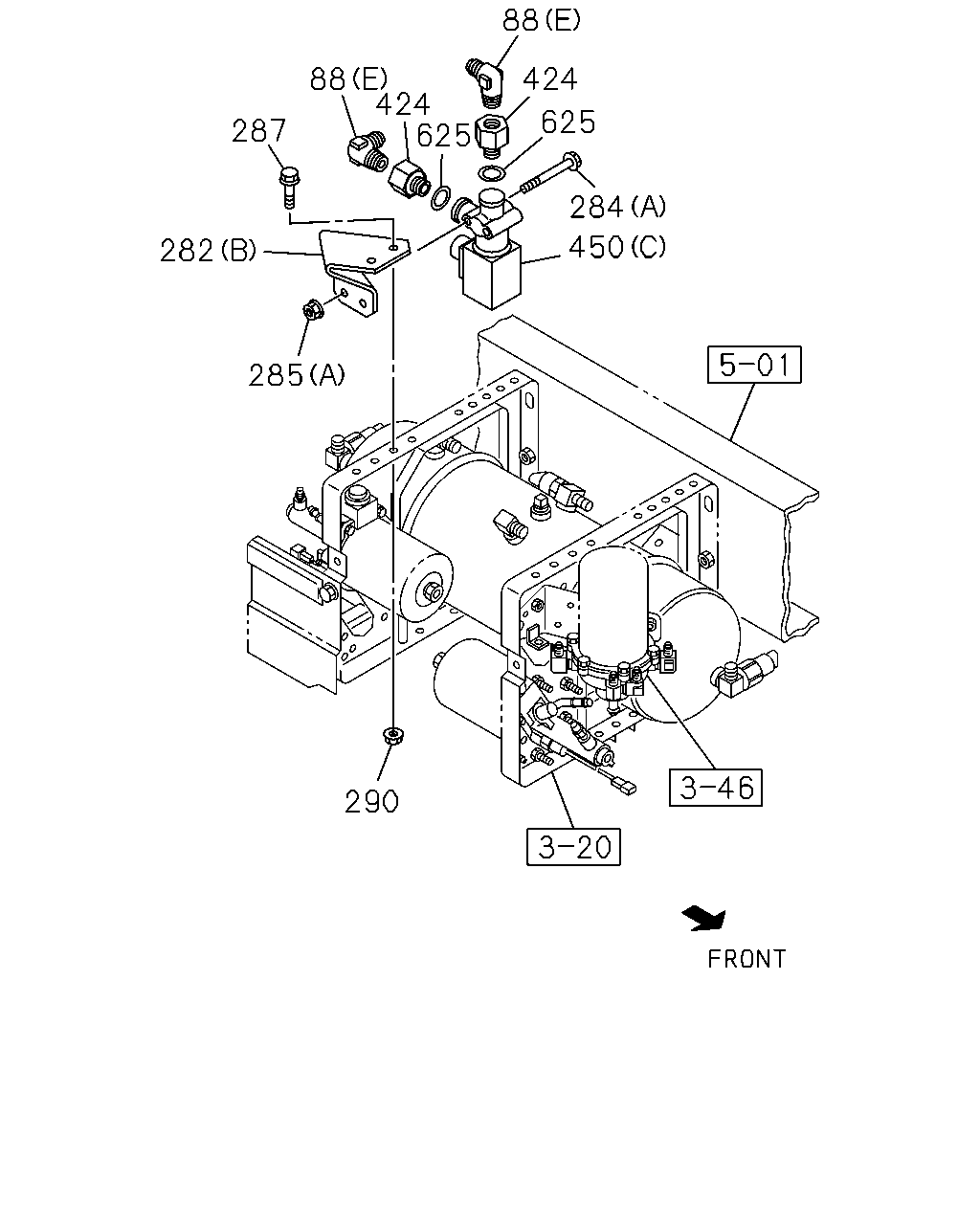

282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-0	01	1	0712-0805		●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	0712-0803		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D)	1-47479-799-0	01	1	0804-0906		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D)	1-47479-799-0	01	1	0907-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0710-0808	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0710-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-0711	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803	●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803	●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0907-	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0710-0711	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0712-0808	●	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0710-0711	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803	●
450	VALVE; MAG 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-0906	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0907-	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0710-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0710-0711	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0712-0803	●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0712-0803		●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0712-0803		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0804-0805	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0804-0805		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0804-0805		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0806-0808	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0806-0808		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0806-0808		●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0809-0906	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0809-0906		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0809-0906		●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0907-	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0907-		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0907-		●

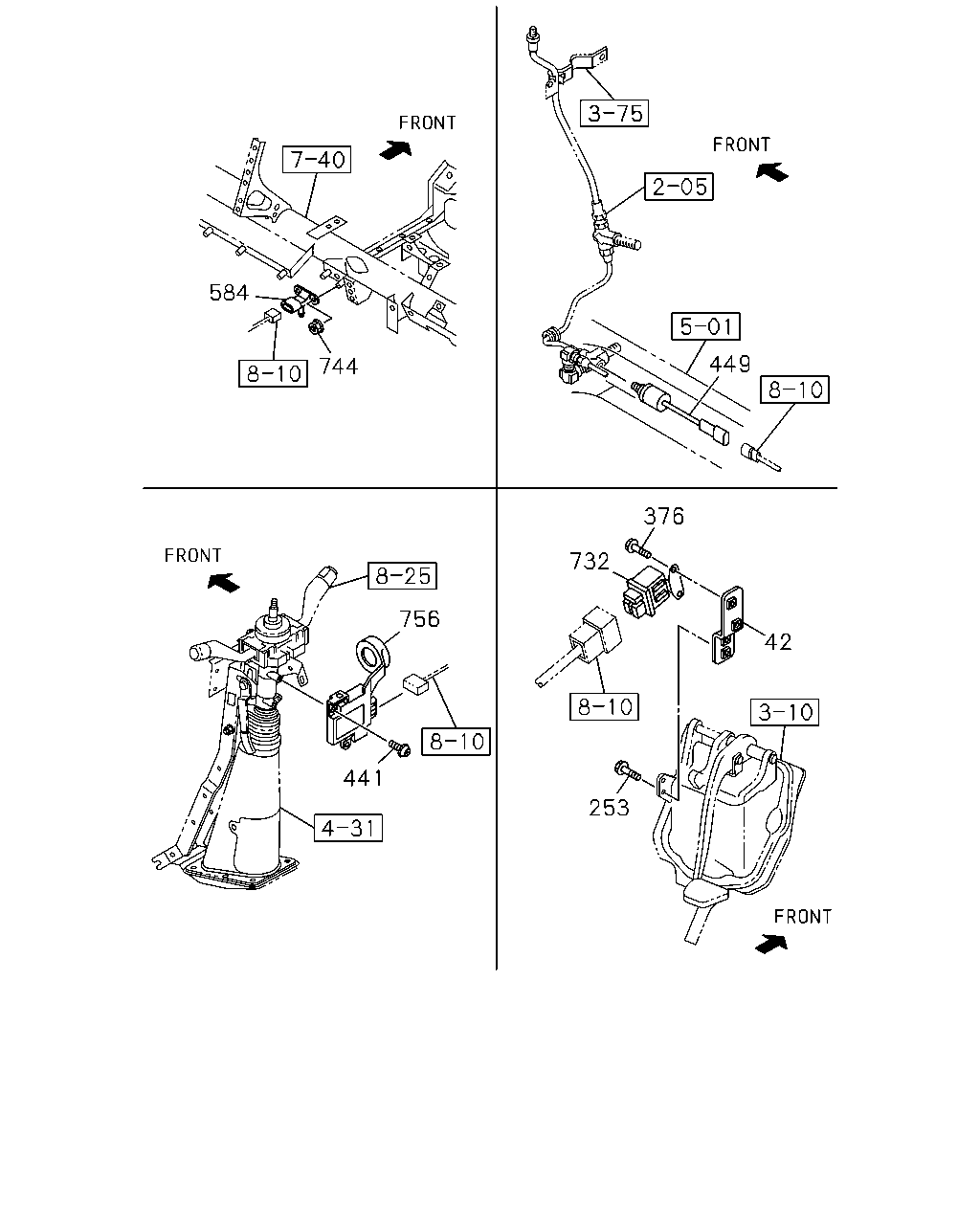

584 744 449 376 732 42 253 441 756

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	BRACKET; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-051-2	01	1	0710-0711	●
42	BRACKET; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-051-2	01	1	0712-	●	●
253	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
253	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
376	BOLT; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	0710-0711	●
376	BOLT; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	0712-	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0710-0711	●
441	SCREW; CONT UNIT IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-		●
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	0710-0711	●
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	0712-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0710-0711	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0712-	●	●
732	RELAY; EDS TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82550-337-1	01	1	0710-0711	●
732	RELAY; EDS TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82550-337-1	01	1	0712-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0710-0711	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0710-0711	●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98073-883-0	01	1	0712-0712	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0712-0712		●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98097-554-0	01	1	0712-1005	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-1005		●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98158-127-0	01	1	1006-	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-		●

41 267 450 88 39 88 88 282 88 450 88 602 450 210 284 88 210 285 88 267 39 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0808	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0712-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-0808	●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0710-0711	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0712-0803	●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	1-82569-266-0	02	1	0712-0803		●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0712-0803		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0804-0805	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0804-0805		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6>	1-82569-266-0	02	1	0804-0805		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0806-0808	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0806-0808		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0806-0808		●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0809-0906	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0809-0906		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0809-0906		●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0907-	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0907-		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0907-		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0808	●	●
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-0	01	1	0712-0805		●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	0712-0803		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D)	1-47479-799-0	01	1	0804-0906		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D)	1-47479-799-0	01	1	0907-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0710-0808	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0710-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-0711	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803	●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803	●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0907-	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0710-0711	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0712-0808	●	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0710-0711	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803	●
450	VALVE; MAG 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-0906	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0907-	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0710-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0710-0711	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0712-0803	●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0712-0803		●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0712-0803		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0804-0805	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0804-0805		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0804-0805		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0806-0808	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0806-0808		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0806-0808		●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0809-0906	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0809-0906		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0809-0906		●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0907-	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0907-		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0907-		●

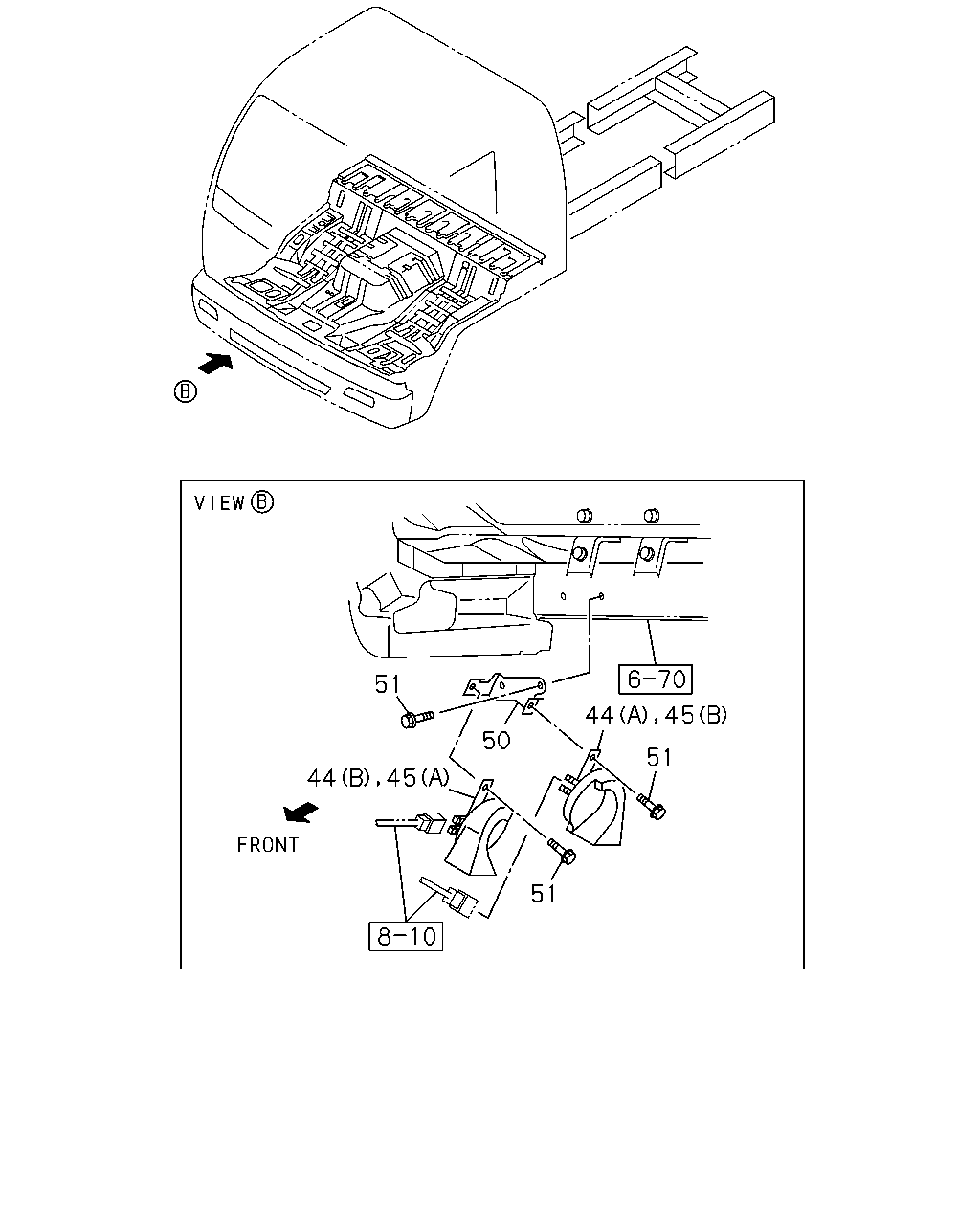

51 50 44 45 51 45 44 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0710-0711	●
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7> (A)	8-97611-677-2	01	1	0712-	●
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0712-		●
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-022-0	01	1	0712-1001	●
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> (B)	8-98022-022-0	01	1	1002-	●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0710-0711	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7> (A)	8-97611-676-2	01	1	0712-	●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0712-		●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-023-0	01	1	0712-	●
50	BRACKET; HORN	8-97613-300-2	01	1	0710-0711	●
50	BRACKET; HORN	8-97613-300-2	01	1	0712-	●	●
51	BOLT; HORN TO BRKT EXC. ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1002-	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0710-0711	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0712-1001	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-		●

88 267 282 88 261 88 450 88 450 267 282 284 210 450 602 88 88 210 285 261 88 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0808	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-0808	●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0710-0711	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0712-0803	●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6>	1-82569-266-0	02	1	0712-0803		●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0712-0803		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0804-0805	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0804-0805		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6>	1-82569-266-0	02	1	0804-0805		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0806-0808	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0806-0808		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0806-0808		●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0809-0906	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0809-0906		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0809-0906		●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0907-	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	0907-		●
210	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6>	1-82569-266-0	02	1	0907-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0712-0808	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0808	●	●
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-0	01	1	0712-0805		●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	0712-0803		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D)	1-47479-799-0	01	1	0804-0906		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D)	1-47479-799-0	01	1	0907-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0710-0808	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0710-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-0711	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803	●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803	●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0907-	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0710-0711	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0712-0808	●	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0710-0711	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803	●
450	VALVE; MAG 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-0906	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0907-	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0710-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0710-0711	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0712-0803	●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0712-0803		●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0712-0803		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0804-0805	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0804-0805		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0804-0805		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0806-0808	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0806-0808		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0806-0808		●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0809-0906	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0809-0906		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0809-0906		●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0907-	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	0907-		●
602	GASKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0907-		●

287 88 88 424 424 284 625 625 450 285 282 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-0808	●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0907-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0905		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-0906		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803	●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0906		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0907-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0711	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0805		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-0808		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-0	01	1	0712-0805		●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C)	8-98103-026-1	01	1	0806-		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	0712-0803		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D)	1-47479-799-0	01	1	0804-0906		●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D)	1-47479-799-0	01	1	0907-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0710-0808	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0710-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-0711	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803	●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0712-0803		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0804-0805		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0806-0808		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0906		●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0907-		●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803	●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0712-0803		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0804-0805		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0806-0808		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0809-0906		●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0907-	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●
287	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●
290	NUT THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	0710-	●
424	ADAPTER THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	0710-	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0710-0711	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0712-0808	●	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0710-0711	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803	●
450	VALVE; MAG 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0712-0803		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0804-0805		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0806-0808		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-0906	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-0906		●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0907-	●
450	VALVE; MAG 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0907-		●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0710-	●
625	GASKET; CONNECTOR THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24	9-09571-416-0	02	1	0710-	●

540 2 2 1 573 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0710-0711	●
1	UNIT; FLASHER	8-98025-533-1	01	1	0712-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0710-0711	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0712-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0710-0711	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0712-	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0710-0711	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0712-1308	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0712-1308		●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-		●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0710-0711	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0712-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0711	●
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●	●

117 86 84 85 115 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0712-	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0712-	●
115	RELAY; POWER CAB TILT UNIT 24V NIKKO	8-98005-631-1	01	1	0712-	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0712-	●

531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0710-0711	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0712-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
