◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#65463) — 213 parça

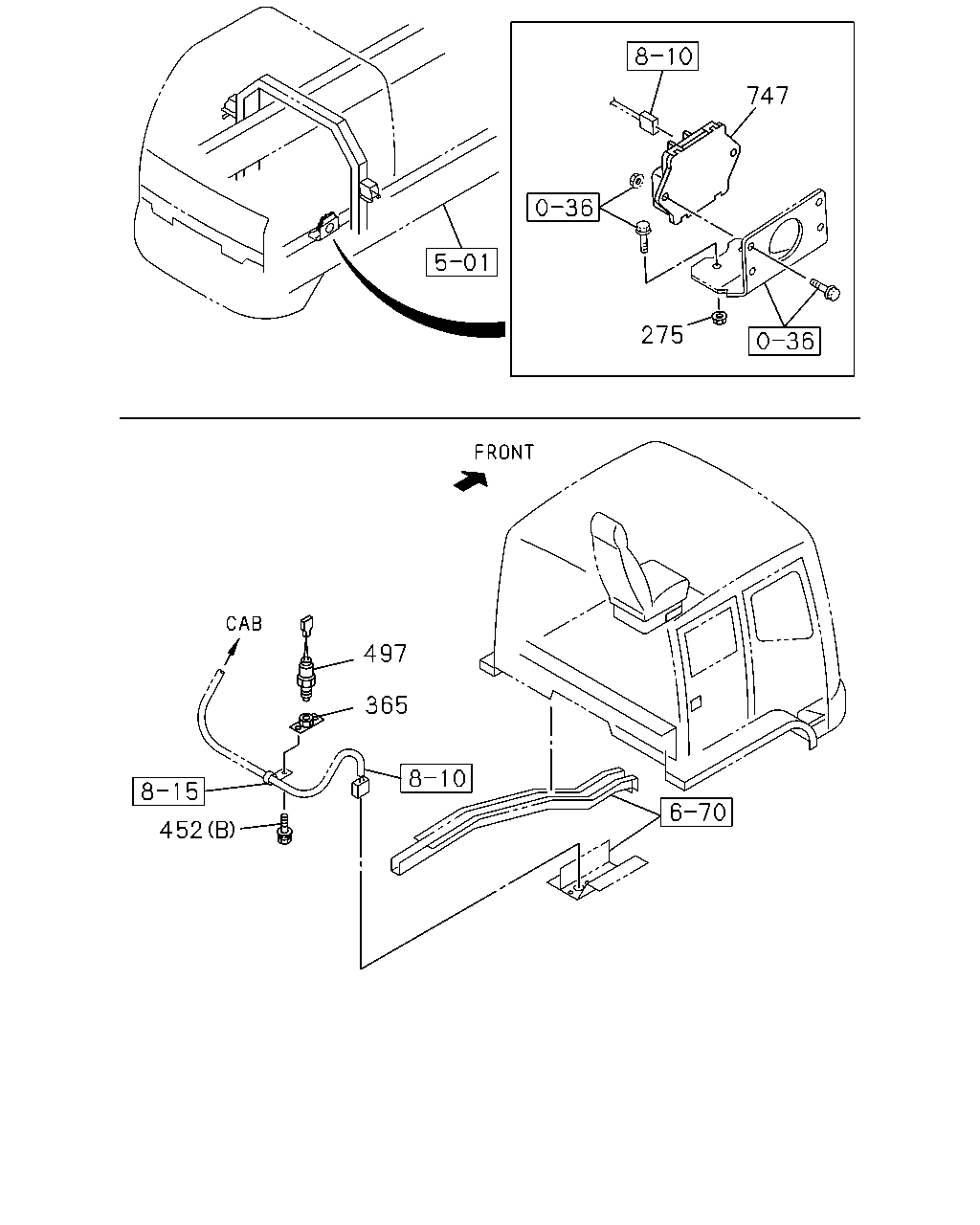

çizim 138076
747 275 497 365 452
BalonParca AdiParca NoAdetTipApplied Date A B
275 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 0712- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0712- ●
497 SWITCH; CAB TILT
STAMP NC 		1-82380-125-1 01 1 0712- ●
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98077-118-2 01 1 0712-1103 ●
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1104- ●

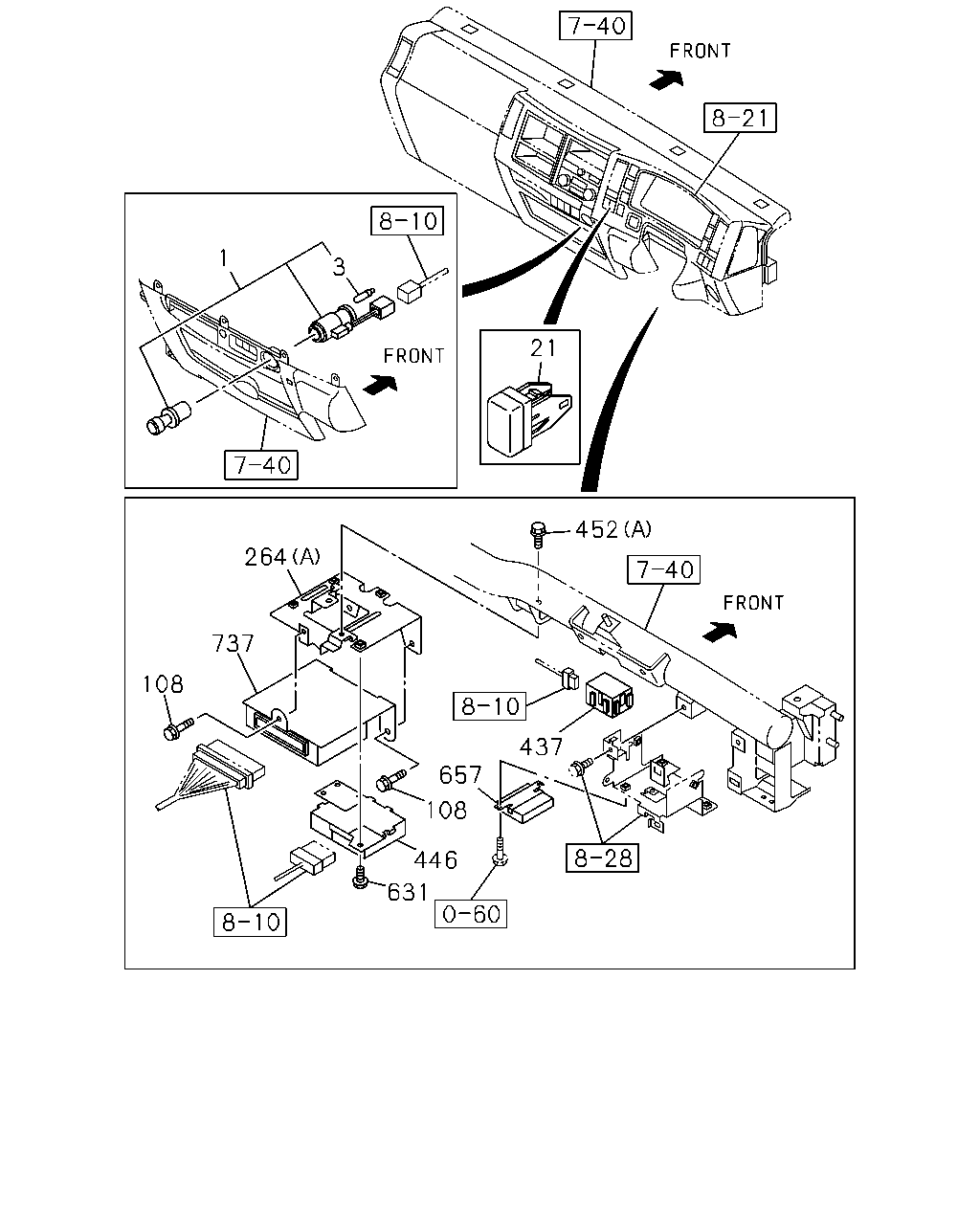

çizim 138219
1 3 21 264 737 108 657 108 446 631 437 452
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0711 ●
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0712-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0711 ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0712-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710-0711 ●
21 COVER; HOLE
EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98025-954-1 01 1 0712- ●
21 COVER; HOLE 8-98025-954-1 01 1 0712- ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0712-0901 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0902-0906 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0712- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710-0711 ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0712- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0710-0711 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0712-0812 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 0901- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0712- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0812 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0710-0711 ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0712-1401 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402- ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-824-0 01 1 0710-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-519-0 01 1 1009-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-117-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-476-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-017-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-825-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-825-0 01 1 0712-0904 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0905-0906 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0907-1008 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1009-1106 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1107-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1107-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-118-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-118-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-477-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-477-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-018-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-018-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-823-0 01 1 0712-0906 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-823-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-518-0 01 1 1009-1212 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-116-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-475-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-016-0 01 1 1412- ●

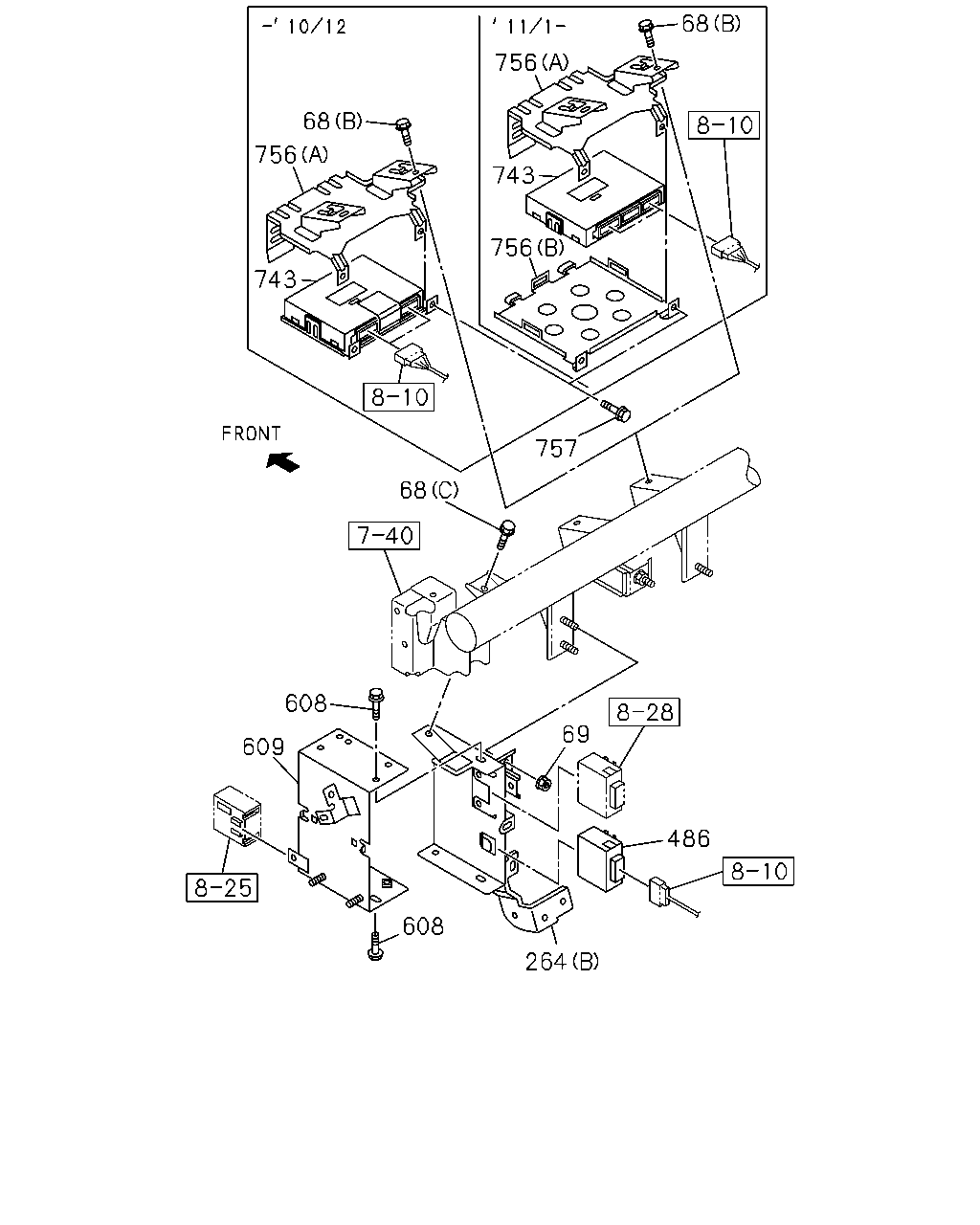

çizim 138418
68 756 68 756 743 756 743 757 68 608 69 609 486 608 264
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ●
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710-0711 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0712- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
486 CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97610-202-1 01 1 0712- ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0712- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0712-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0710-0711 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0712-0802 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 0710-0711 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 0712- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●

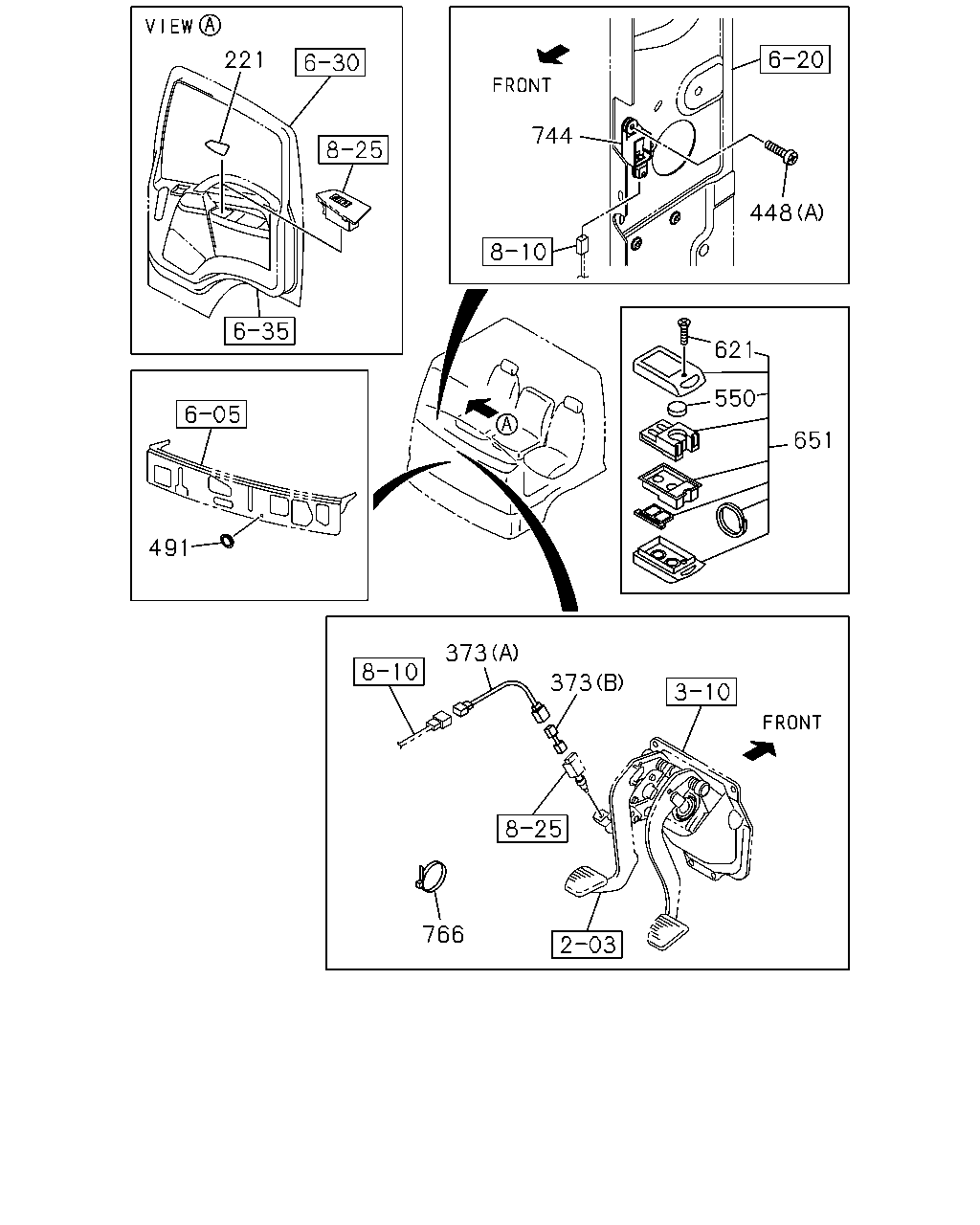

çizim 138429
651 550 621 448 744 221 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0712- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0712- ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0712-0805 ● ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0806-0809 ● ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-1 01 1 0710-0711 ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-2 01 1 0712- ● ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 0712- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710-0711 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0712- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0710-0711 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0712- ● ●
550 BATTERY; TRANSMITTER
HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1206-1308 ●
621 SCREW
HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1206-1308 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> 		8-98218-235-0 02 1 1206-1308 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0710-0711 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0712- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0711 ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0712-0805 ● ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0806- ● ●

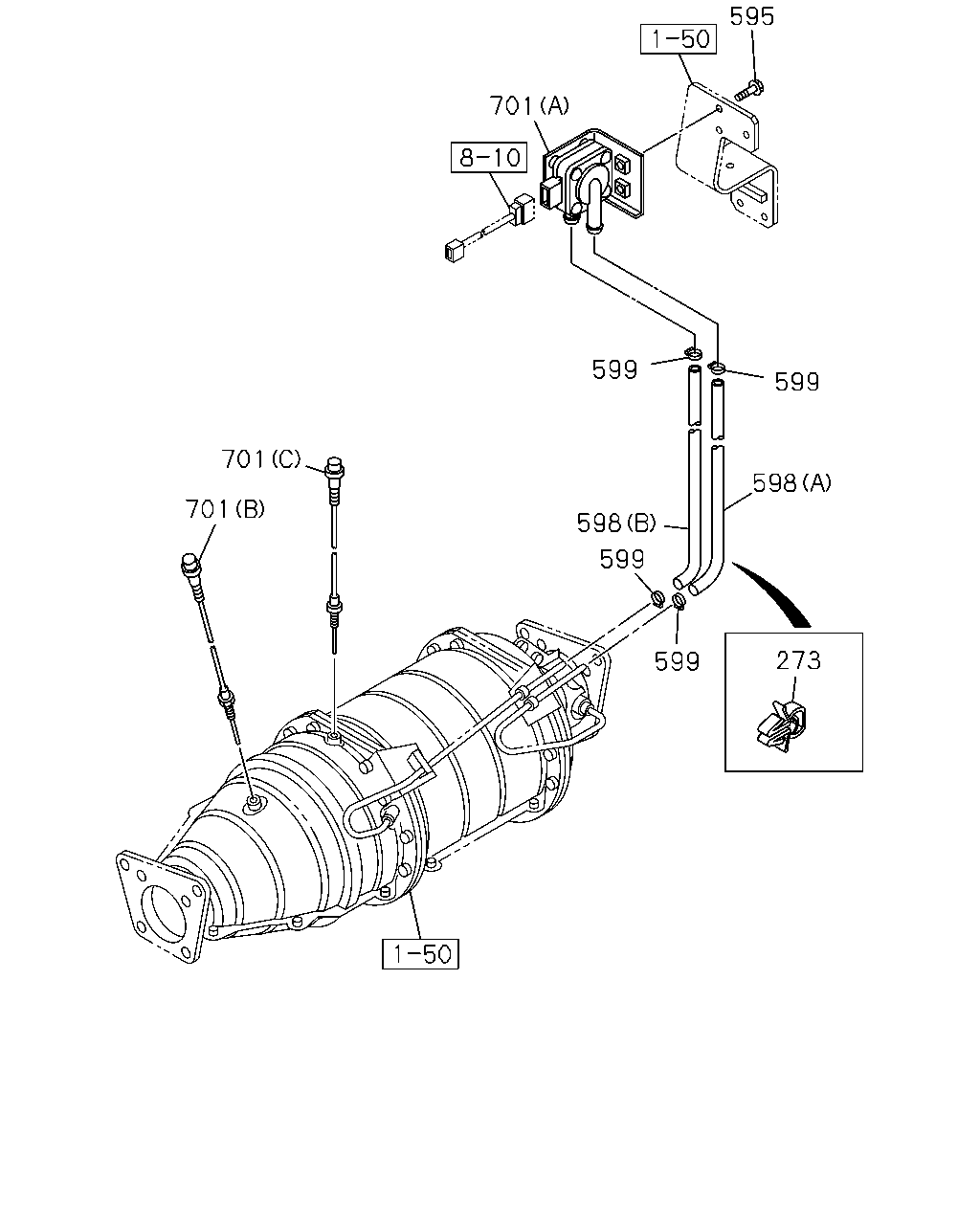

çizim 144089
595 701 599 599 701 598 701 598 599 273 599
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS 8-94225-098-0 01 1 0710-0711 ●
273 CLIP; HARNESS 8-94225-098-0 01 1 0712-0802 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ● ●
595 BOLT; SENSOR
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
598 HOSE; RUBBER,SENSOR
4HK1-TCS ENG(RJS) (B) 		8-98060-174-1 01 1 0712- ●
598 HOSE; RUBBER,SENSOR
4HK1-TCS ENG(RJS) (A) 		8-98077-342-0 01 1 0712- ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-178-1 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98060-178-1 01 1 0712-0808 ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98060-178-1 01 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98080-054-0 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98080-054-0 01 1 0712-0808 ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98080-054-0 01 1 0809- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710-0711 ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0712-0808 ● ●
599 CLIP; HOSE
EURO4 SPECIFICATION<NT4> ID=13 		8-97329-627-0 04 1 0809- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0809- ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-0711 ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0712-0808 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 0809- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-0711 ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0712-0808 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 0809- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0710-0711 ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0712-0808 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 0809- ● ●

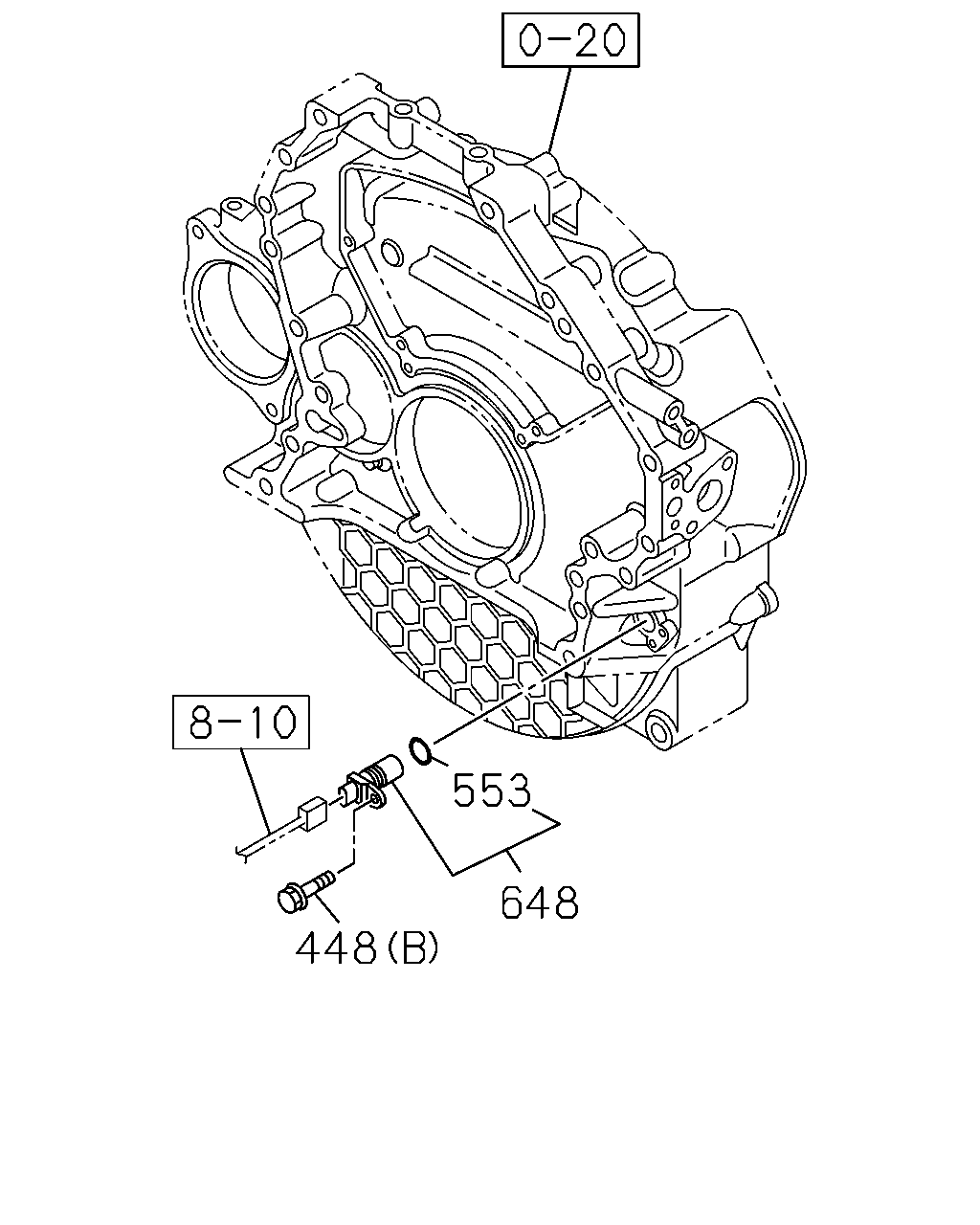

çizim 144090
553 648 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 0712- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710-0711 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0712- ● ●
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 0712- ●
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 0712- ●

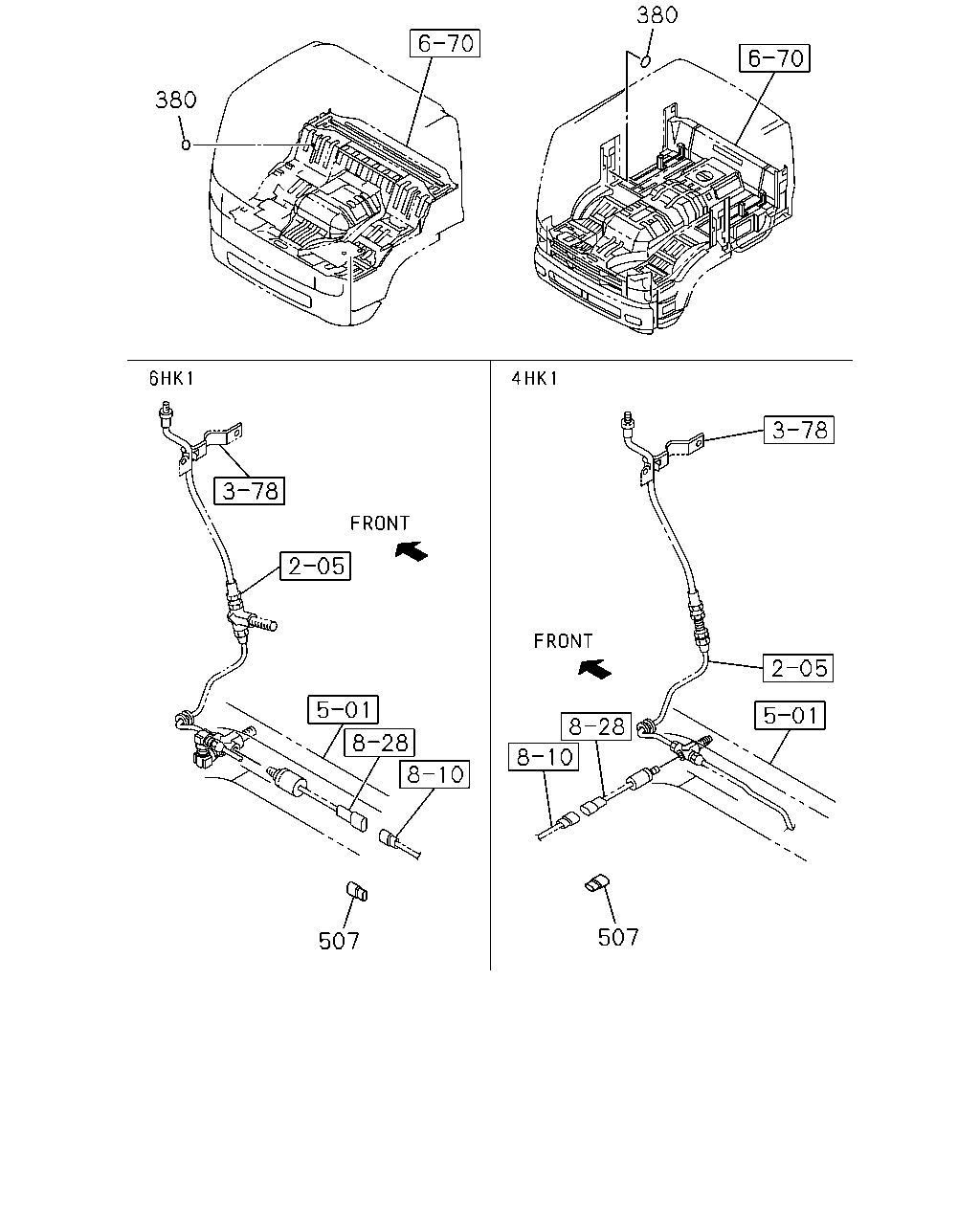

çizim 192139
380 380 507 507
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0801-0905 ●
380 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0906- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0712-0712 ●
380 SEAL
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0801-0905 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906-0906 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710-0711 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●

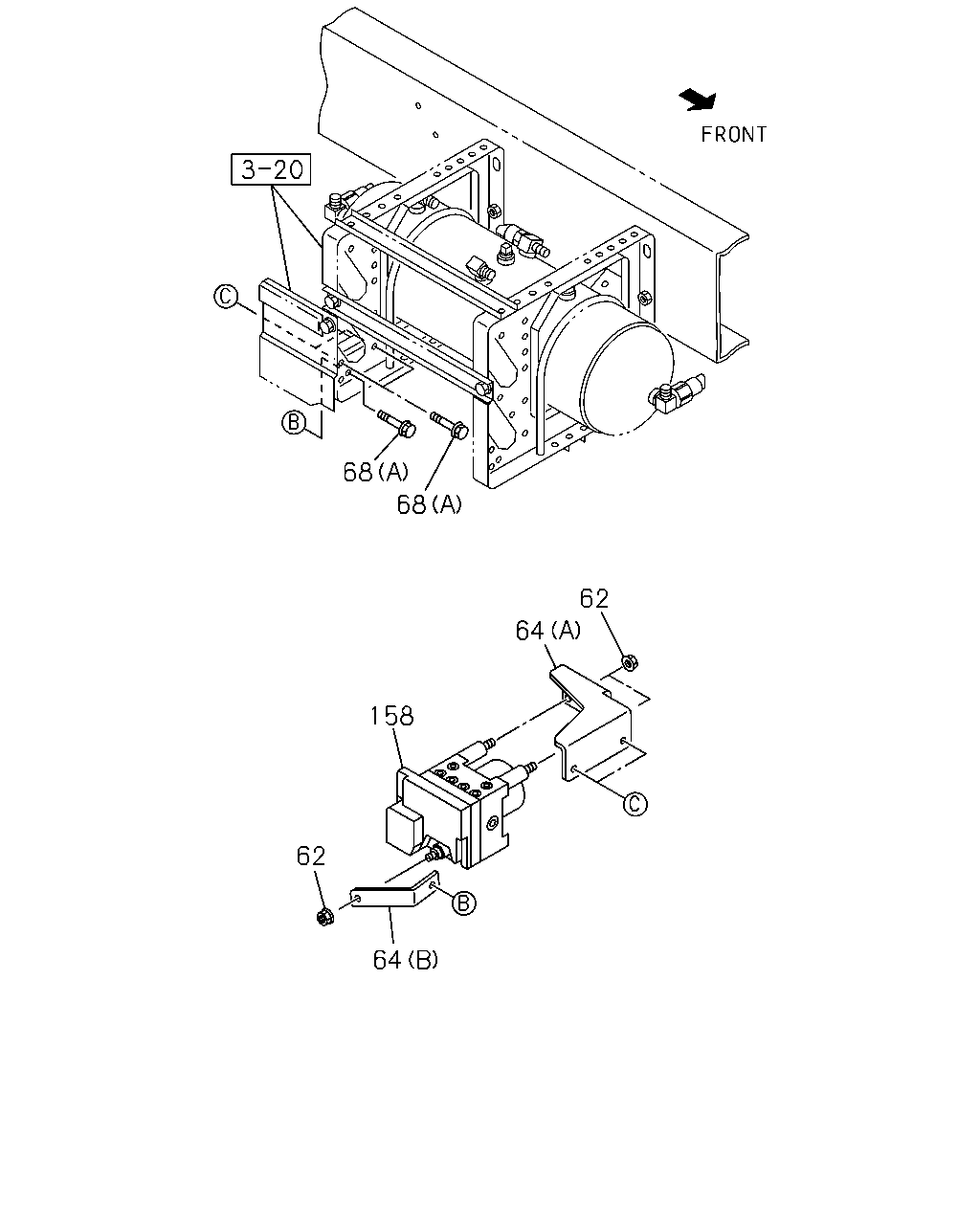

çizim 192145
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ●
62 NUT; BRKT
ANTI LOCK BRAKE(JE5) M8 FLANGE 		0-91180-108-0 03 1 0712- ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0712- ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0710-0711 ●
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (A) 		8-98044-238-2 01 1 0712- ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0712- ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0710-0711 ●
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (B) 		8-98044-239-1 01 1 0712- ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0712- ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ●
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710-0711 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 8.25-16-14 RIB(40S),TIRE 225/90R17.5-128/126L(61P),TIRE 8.25-16-14 LUG(81U),TIRE 8.25R16-14 RIB(85U) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-311-2 01 1 0712-0812 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-14 RIB(85U) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-311-2 01 1 0901-0901 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 8.25R-16-14 LUG(5L6),TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-14 RIB(85U) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-311-2 01 1 0901-1006 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-128/126L(78N) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-311-2 01 1 1007-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-128/126L(78N) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-0 01 1 1007-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 8.25R16-128/126L RIB(5P7),TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-128/126L(78N) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1012- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 8.25-16-14 RIB(40S),TIRE 225/90R17.5-128/126L(61P),TIRE 8.25-16-14 LUG(81U),TIRE 8.25R16-14 RIB(85U) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-307-2 01 1 0712-0812 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98048-307-2 01 1 0712-0812 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-14 RIB(85U) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-307-2 01 1 0901-0901 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98048-307-2 01 1 0901-0901 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 8.25R-16-14 LUG(5L6),TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-14 RIB(85U) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-307-2 01 1 0901-1006 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98048-307-2 01 1 0901-1006 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-128/126L(78N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-307-2 01 1 1007-1007 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98048-307-2 01 1 1007-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-128/126L(78N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-0 01 1 1007-1011 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98157-993-0 01 1 1007-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 8.25R16-128/126L RIB(5P7),TIRE 225/90R17.5-128/126L(61P),TIRE 8.25R16-128/126L(78N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1012- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98157-993-1 01 1 1012- ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 0710-0711 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 235/75R17.5-132/130M EXP RIB(5J9) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 0712-1001 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 1002-1006 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1007- ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 0710-0711 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 235/75R17.5-132/130M EXP RIB(5J9) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 0712-1001 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9) 		8-98048-306-2 01 1 0712-1001 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 1002-1006 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) 		8-98048-306-2 01 1 1002-1006 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1007- ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) 		8-98157-992-1 01 1 1007- ●

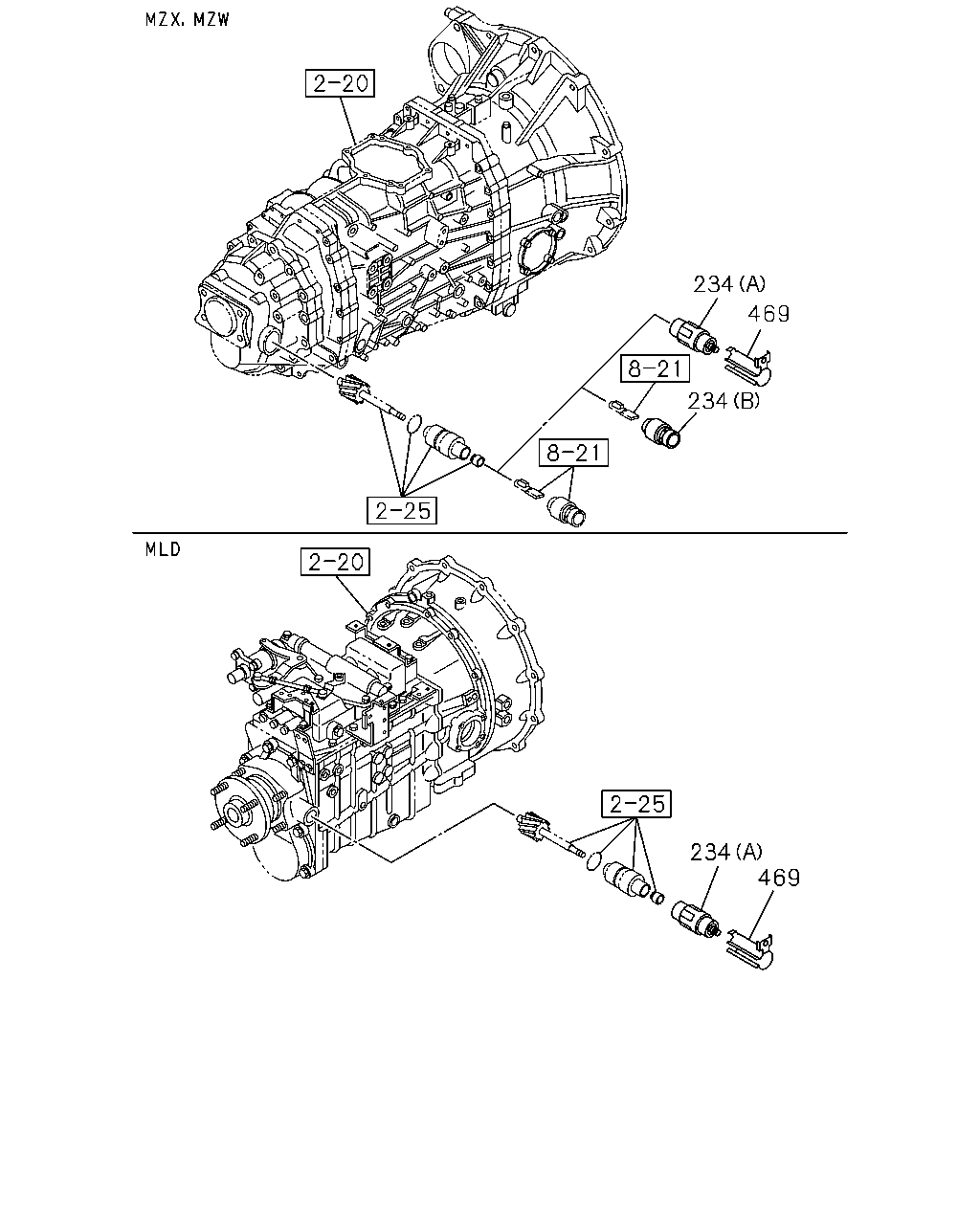

çizim 192154
234 469 234 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-238-0 01 1 0801-0803 ●
234 SENSOR; VEHICLE SPD
(A) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0710-0711 ●
234 SENSOR; VEHICLE SPD
(A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0712- ● ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0710-0711 ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0712-0808 ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
