Sayfa 8-15 - Isuzu EPC

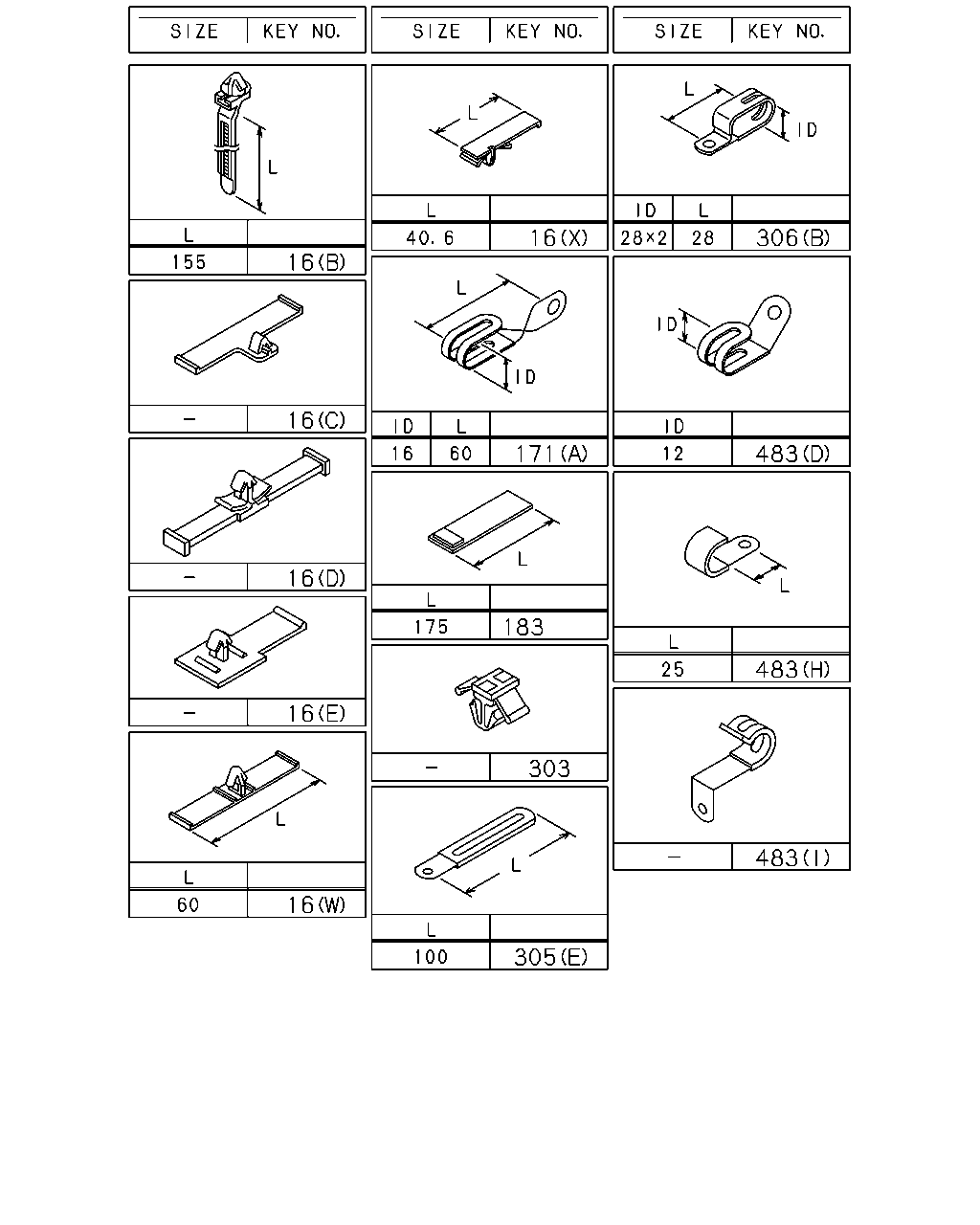

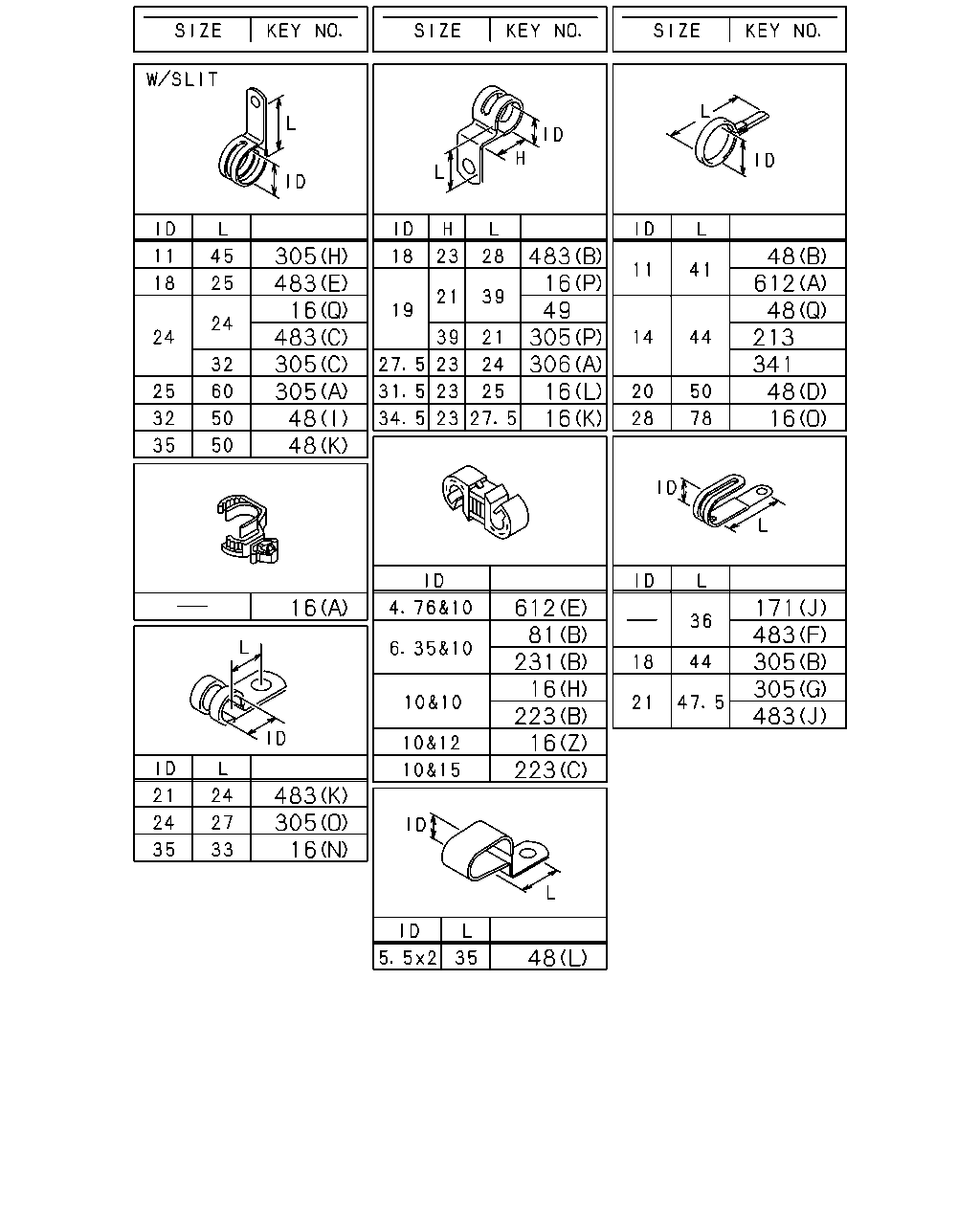

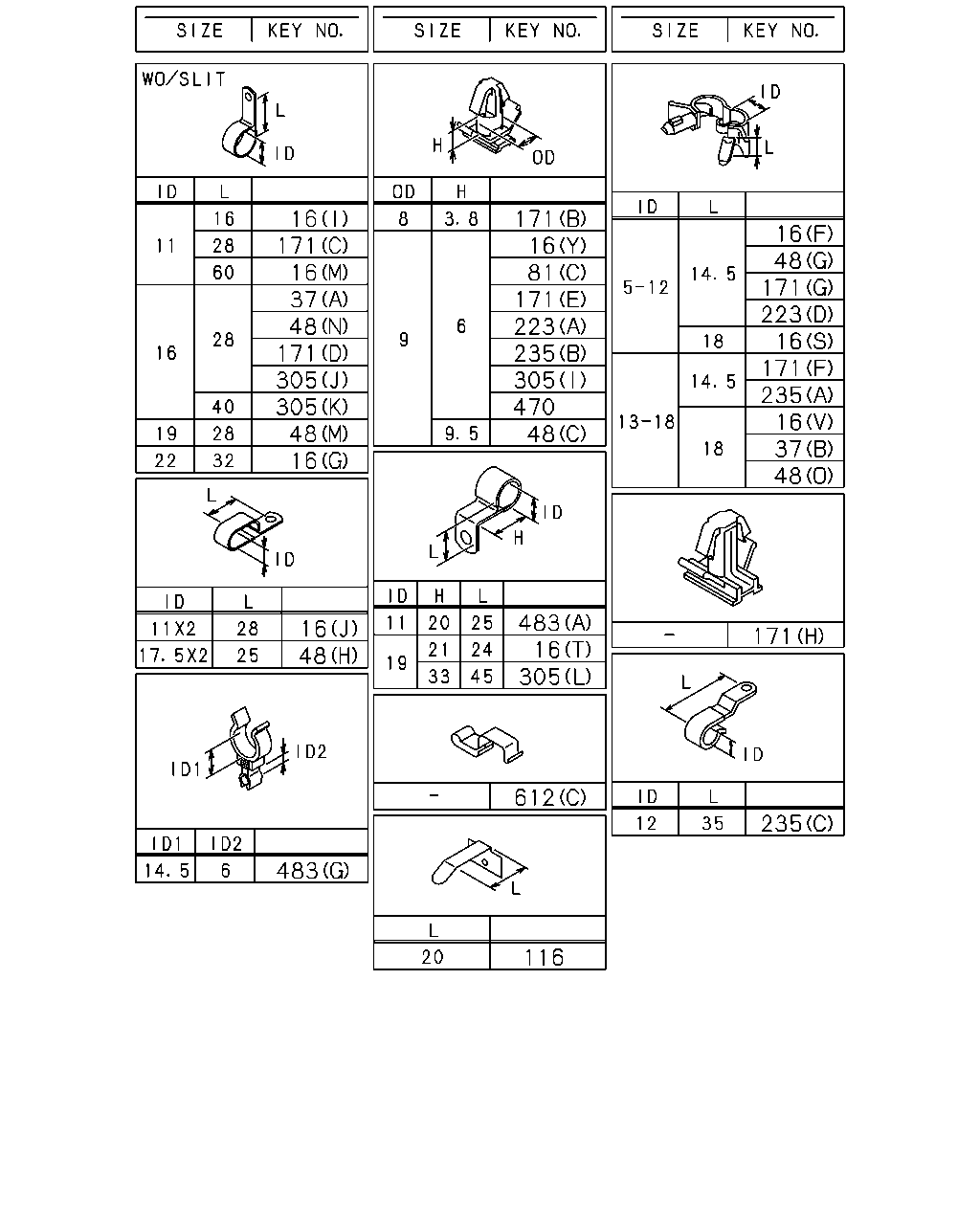

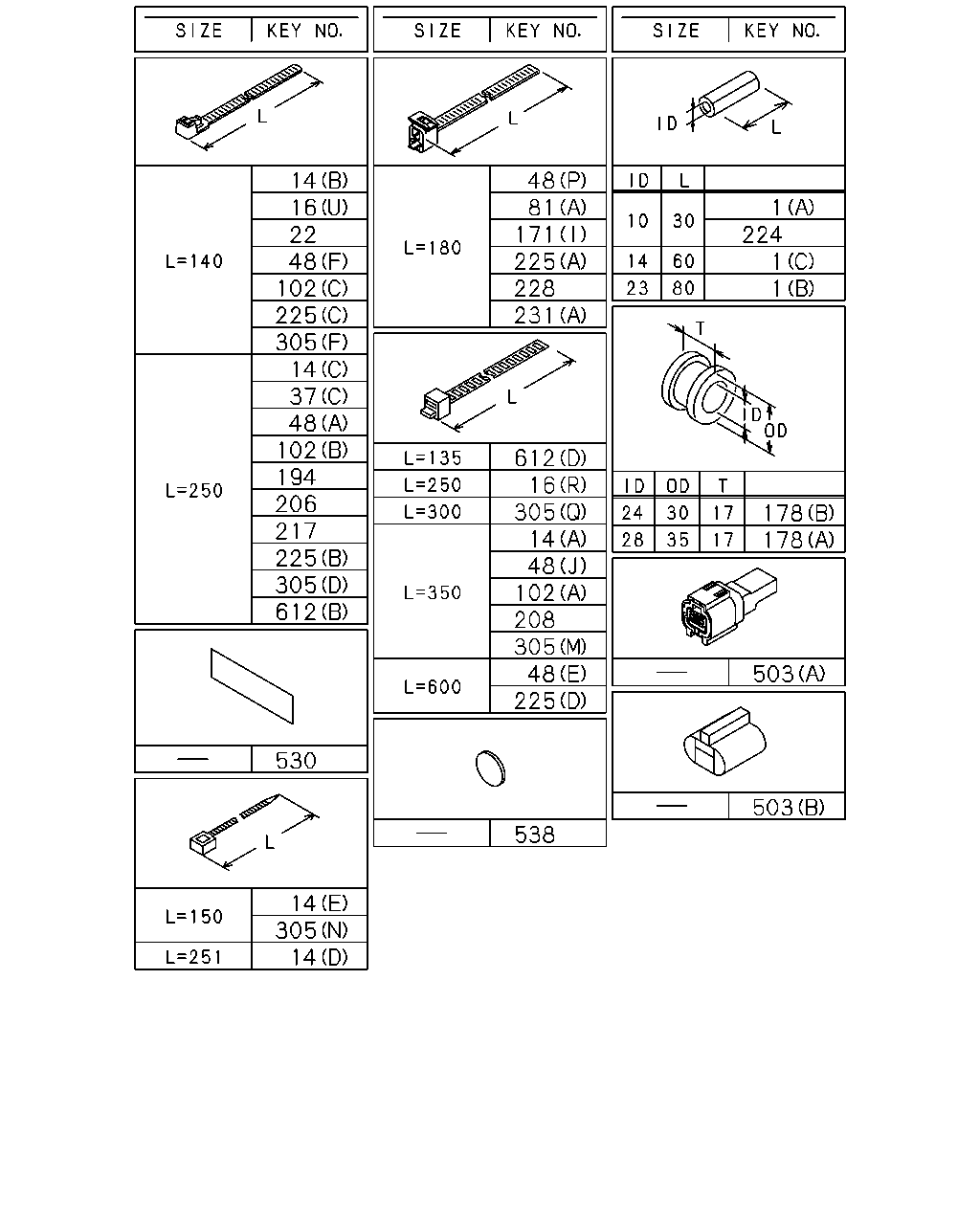

8-15 — FIXING PARTS; WIRING HARNESS (#65459) — 1351 parça

16 306 16 16 171 483 16 183 483 16 303 483 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (H) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Z) ID=10 & 12	1-09709-278-1	02	1	0912-		●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=35 L=33	1-09700-945-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=28 L=78	1-09700-858-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) ID=24 L=24	1-09701-001-1	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	01	1	0712-0806		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	02	1	0807-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (U) L=140	5-09707-031-1	02	1	0712-0712		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140	5-09707-031-1	01	1	0712-0712		●
16	CLIP; HARNESS (V) ID=13-18 L=18	1-09709-291-0	01	1	0712-0901		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (V) ID=13-18 L=18	1-09709-291-0	01	1	0902-		●
16	CLIP; HARNESS (W) L=60	8-97063-335-0	02	1	0712-		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0803-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-0711	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-	●	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11 L=16	0-95235-025-0	02	1	0712-	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0712-		●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-		●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0712-0802		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0712-	●	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0710-0711	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0712-0911	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (H) ID=10 & 10	1-09709-277-1	03	1	0912-		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-0711	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●
16	CLIP; HARNESS (G) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=22 L=32	1-09700-126-1	01	1	0712-0712	●	●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180	1-09707-162-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36	8-94224-891-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A)	8-97101-436-0	01	1	0804-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-0906		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-		●
183	CLIP; CONNECTOR L=175	1-09707-178-0	01	1	0712-0803		●
303	CLIP; HARNESS POWER TILT RELAY OD=8.95 H=6.25	8-97375-754-0	01	1	0712-		●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	1311-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (O) ID=24 L=27	1-09700-809-0	03	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=350	8-94152-256-1	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=300	1-09707-001-1	01	1	0906-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=150	8-97355-273-0	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=250	5-09707-030-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250	5-09707-030-1	01	1	0804-0906		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250	5-09707-030-1	01	1	0907-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140	5-09707-031-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	01	1	0804-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	02	1	0906-		●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	0712-		●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0712-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	0712-1310		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E) L=100	8-94443-021-1	02	1	1311-	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-0711	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	0712-		●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	0712-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	0712-		●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-		●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	0712-		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0712-0808	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●	●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	0712-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-0711	●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0712-	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0712-		●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-0711	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0712-	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=21 L=24	1-09701-201-0	01	1	1005-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H)	1-09701-124-0	01	1	0712-0803		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I)	1-09987-281-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) ID=21 L=47.5	8-94178-108-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0712-0803		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=18 L=25	8-94121-004-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=14.5 & 6	8-94312-791-0	01	1	0712-0803		●

139 127 47 524 24 219 525 219 294 524 294 84 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	0712-0807		●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	0710-0711	●
84	WASHER; LK BRKT,HARNESS ANTI LOCK BRAKE(JE5) ID=14.2	0-91510-814-0	02	1	0712-	●
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	0712-		●
127	SCREW; FACIA HARNESS CLIP EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0712-	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0711	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0712-0812	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0710-0711	●
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	0712-	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0712-		●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-0711	●
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0712-		●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-0711	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0712-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0710-0711	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-0812	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-0812		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-		●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0710-0711	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0712-	●	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901	●	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-	●	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-	●	●
219	NUT 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10 FLANGE	0-91180-210-0	01	1	0806-		●
219	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
219	NUT ANTI LOCK BRAKE(JE5) (B) M8 FLANGE	0-91180-108-0	01	1	0712-	●
219	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0712-		●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0712-0808	●
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	0712-0808		●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0809-0811	●
294	NUT EURO2 SPECIFICATION<NT2> (B) M10 FLANGE	0-91180-210-0	01	1	0809-0811	●
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	0809-0811		●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-	●
294	NUT EURO2 SPECIFICATION<NT2> (B) M10 FLANGE	0-91180-210-0	01	1	0812-	●
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	0812-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	02	1	0712-0803	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0712-0803		●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	02	1	0804-0807	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	02	1	0804-0807		●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	02	1	0808-0812	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0808-0812		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0901-0901	●	●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	02	1	0901-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-1007	●	●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	0902-1007	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1008-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	0712-0712		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0803	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0803		●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0804-0807	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0808-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0808-0901		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-1007	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	02	1	0902-1007		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	02	1	1008-		●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	02	1	1008-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0710-0711	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0712-0803	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	03	1	0712-0803		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0804-0807	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	0804-0807		●
294	NUT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	01	1	0804-0807		●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0808-0812	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	03	1	0808-0812		●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	03	1	0901-1007		●
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0710-0711	●
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0712-0811	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0812-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0710-0711	●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	06	1	0712-1107	●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0712-1107		●
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	05	1	1108-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1108-		●
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	0809-		●
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	0710-0711	●
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	0712-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0712-0803	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0712-0803		●
525	NUT; CLIP 4HK1-TCS ENG(RJS) T=8.0 M8 FLANGE	0-91180-108-0	01	1	0712-0803		●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0804-		●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0712-0807	●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.0 M8 FLANGE	0-91180-108-0	02	1	0712-0807		●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0808-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0710-0711	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0712-	●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.5 M8 FLANGE	5-09440-010-0	01	1	0712-		●

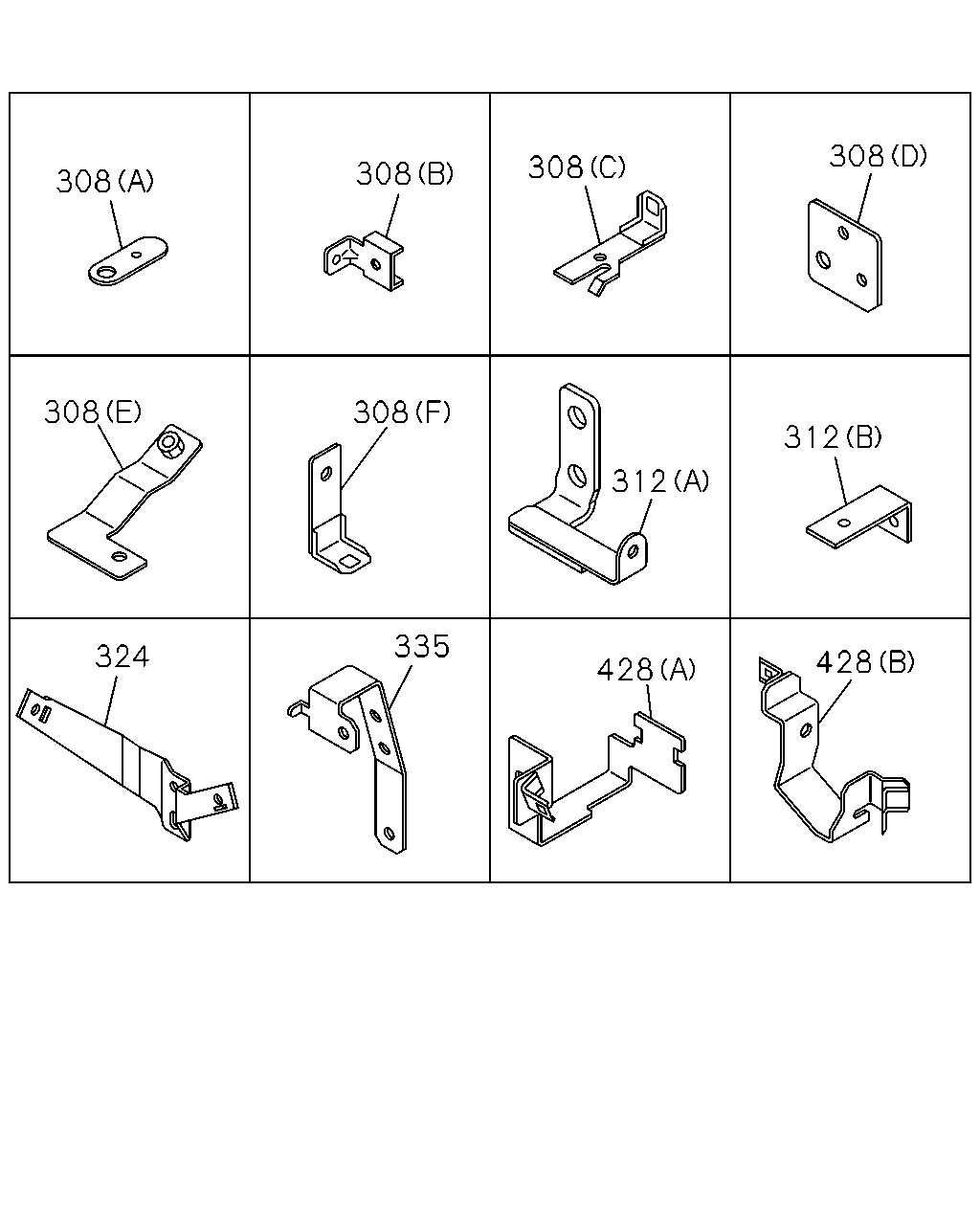

308 308 308 308 308 308 312 312 335 324 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	0809-1010	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1011-		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E)	8-98032-178-0	01	1	0809-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F)	8-98075-824-0	01	1	0809-	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0710-0711	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0712-1010	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	03	1	0712-1010		●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0710-0711	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0712-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-97614-078-0	01	1	0712-		●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0710-0711	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0712-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98021-291-2	01	1	0712-		●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0710-0711	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0712-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	0712-		●
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) (A)	8-98094-804-0	01	1	0712-		●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0710-0711	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0712-	●	●
324	BRACKET; CLIP	8-98061-654-2	01	1	0710-0711	●
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-654-2	01	1	0712-	●
324	BRACKET; CLIP	8-98061-654-2	01	1	0712-		●
324	BRACKET; CLIP	8-98061-653-2	01	1	0710-0711	●
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-653-2	01	1	0712-	●
324	BRACKET; CLIP	8-98061-653-2	01	1	0712-		●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0710-0711	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0712-	●	●
428	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98090-951-0	01	1	0712-0806		●
428	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98116-461-0	01	1	0807-		●
428	BRACKET (B)	8-98090-952-0	01	1	0710-0711	●
428	BRACKET (B)	8-98090-952-0	01	1	0712-	●
428	BRACKET 6HK1-TCN ENG(82L) (B)	8-98090-952-0	01	1	0712-		●

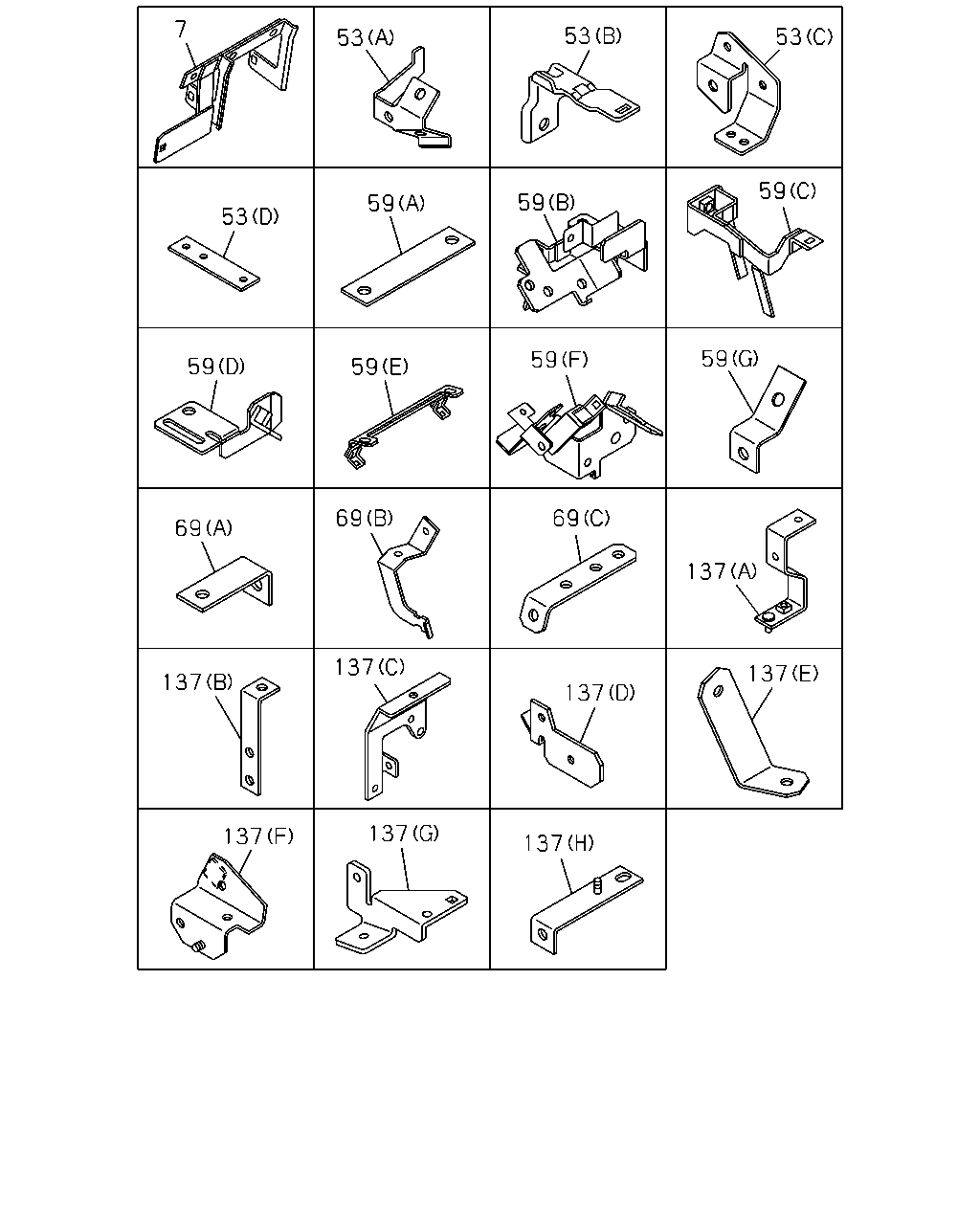

7 53 53 53 59 59 59 53 59 59 59 59 69 69 69 137 137 137 137 137 137 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0710-0711	●
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0712-	●	●
53	BRACKET; HARNESS EURO2 SPECIFICATION<NT2> (D) L=170	1-47479-380-0	01	1	0809-	●
53	BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98074-502-0	01	1	0712-0807	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98084-590-0	01	1	0710-0711	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	0712-	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98084-590-0	01	1	0712-		●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0710-0711	●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0712-	●	●
59	BRACKET; FRAME HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97627-325-0	01	1	0806-	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97627-325-0	01	1	0806-		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (G) L=75	1-47478-323-0	01	1	0712-		●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (C)	8-98099-963-0	01	1	0803-		●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (F)	8-97619-535-0	01	1	0712-		●
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	0710-0711	●
59	BRACKET; FRAME HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=85	8-98044-743-0	01	1	0712-0802	●	●
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	0803-	●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	0710-0711	●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	0712-0802	●	●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	0803-0803	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-97609-264-2	01	1	0803-0803		●
59	BRACKET; FRAME HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) (C)	8-97609-264-2	01	1	0804-0906	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MZX6P M/T(RSW) (C)	8-97609-264-2	01	1	0804-0906		●
59	BRACKET; FRAME HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (C)	8-97609-264-2	01	1	0907-	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (C)	8-97609-264-2	01	1	0907-		●
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0710-0711	●
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0712-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0710-0711	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0712-1502	●	●
59	BRACKET; FRAME HARNESS (D)	8-98254-592-0	01	1	1503-	●	●
59	BRACKET; FRAME HARNESS (B)	8-97619-534-0	01	1	0710-0711	●
59	BRACKET; FRAME HARNESS (B)	8-97619-534-0	01	1	0712-0906	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (B)	8-97619-534-0	01	1	0712-0906		●
59	BRACKET; FRAME HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-97619-534-0	01	1	0907-	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55	1-47475-304-0	01	1	0803-0803	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	1-82698-167-0	01	1	0804-	●	●
69	BRACKET; CLIP (B)	8-97616-357-3	01	1	0710-0711	●
69	BRACKET; CLIP (B)	8-97616-357-3	01	1	0712-	●
69	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-97616-357-3	01	1	0712-		●
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (F)	8-98058-354-1	01	1	0712-		●
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (G)	8-98085-819-0	01	1	0712-		●
137	BRACKET; HARNESS CLAMP (B)	8-97622-657-0	01	1	0710-0710	●
137	BRACKET; HARNESS CLAMP (H)	8-97624-013-0	01	1	0711-0711	●
137	BRACKET; HARNESS CLAMP (H)	8-97624-013-0	01	1	0712-	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (H)	8-97624-013-0	01	1	0712-		●
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	0710-0711	●
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (C)	8-97618-098-2	01	1	0712-	●
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	0712-		●
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0710-0711	●
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (A)	8-98065-904-0	01	1	0712-	●
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0712-		●
137	BRACKET; HARNESS CLAMP (E)	8-97614-728-1	01	1	0710-0711	●
137	BRACKET; HARNESS CLAMP (E)	8-97614-728-1	01	1	0712-	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (E)	8-97614-728-1	01	1	0712-		●
137	BRACKET; HARNESS CLAMP (D)	8-98059-231-1	01	1	0710-0711	●
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (D)	8-98059-231-1	01	1	0712-	●
137	BRACKET; HARNESS CLAMP (D)	8-98059-231-1	01	1	0712-		●

16 171 16 37 48 171 305 305 48 16 171 16 81 171 223 235 305 470 48 16 48 171 223 16 171 235 16 37 48 483 16 305 16 48 171 612 235 483 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (H) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Z) ID=10 & 12	1-09709-278-1	02	1	0912-		●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=35 L=33	1-09700-945-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=28 L=78	1-09700-858-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) ID=24 L=24	1-09701-001-1	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	01	1	0712-0806		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	02	1	0807-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (U) L=140	5-09707-031-1	02	1	0712-0712		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140	5-09707-031-1	01	1	0712-0712		●
16	CLIP; HARNESS (V) ID=13-18 L=18	1-09709-291-0	01	1	0712-0901		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (V) ID=13-18 L=18	1-09709-291-0	01	1	0902-		●
16	CLIP; HARNESS (W) L=60	8-97063-335-0	02	1	0712-		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0803-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-0711	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-	●	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11 L=16	0-95235-025-0	02	1	0712-	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0712-		●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-		●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0712-0802		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0712-	●	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0710-0711	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0712-0911	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (H) ID=10 & 10	1-09709-277-1	03	1	0912-		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-0711	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●
16	CLIP; HARNESS (G) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=22 L=32	1-09700-126-1	01	1	0712-0712	●	●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	0712-		●
37	CLIP; HARNESS,POWER TILT (B) ID=13-18 L=18	1-09709-291-0	02	1	0712-		●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0712-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (O) ID=13-18 L=18	1-09709-291-0	01	1	0805-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (O) ID=13-18 L=18	1-09709-291-0	01	1	0805-		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (Q) ID=14 L=44	9-09917-427-0	02	1	1202-	●
48	CLIP; FRAME HARNESS (Q) ID=14 L=44	9-09917-427-0	02	1	1202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	11	1	0809-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (Q) ID=14 L=44	9-09917-427-0	09	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	16	1	0809-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (Q) ID=14 L=44	9-09917-427-0	14	1	1008-	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (P) L=180	1-09707-162-1	01	1	0806-0809		●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	02	1	0810-		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (M) ID=19 L=28	0-95235-856-0	01	1	0712-0802		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (N) ID=16 L=28	0-95235-556-0	01	1	0803-		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0712-0808	●	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (Q) ID=14 L=44	9-09917-427-0	01	1	1202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	18	1	0712-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	17	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (Q) ID=14 L=44	9-09917-427-0	15	1	1008-	●
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (L) ID=5.5X2 L=35	1-09700-974-0	01	1	0712-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	19	1	0710-0711	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	19	1	0712-0804	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	18	1	0805-0902	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	16	1	0903-1007	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (Q) ID=14 L=44	9-09917-427-0	16	1	1008-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0710-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	19	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (Q) ID=14 L=44	9-09917-427-0	19	1	1008-	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0710-0711	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50	1-09701-214-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50	1-09701-214-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0902-	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0902-	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0712-	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0712-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0710-0711	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0712-0805	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0806-0809	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	04	1	0806-0809		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0810-0901	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0902-	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0902-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0712-0901	●	●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	0902-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0902-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	14	1	0710-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (Q) ID=14 L=44	9-09917-427-0	13	1	1008-	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0901	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	02	1	1202-		●
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	0712-	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-0711	●
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	0712-	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0712-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180	1-09707-162-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36	8-94224-891-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A)	8-97101-436-0	01	1	0804-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-0906		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-		●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-	●
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	0804-0905	●
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	03	1	0712-		●
223	CLIP; AIR TANK HARNESS (C) ID=10 & 15	1-09709-279-1	01	1	0712-		●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0712-		●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	0710-0711	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	0712-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 L=35	5-09700-206-0	01	1	0806-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 L=35	5-09700-206-0	01	1	0806-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0710-0711	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0712-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0712-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 4HK1-TCS ENG(RJS) (B) OD=9 H=6	1-09709-178-0	02	1	0712-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0710-0711	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (B) OD=9 H=6	1-09709-178-0	01	1	0712-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0712-		●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	1311-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (O) ID=24 L=27	1-09700-809-0	03	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=350	8-94152-256-1	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=300	1-09707-001-1	01	1	0906-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=150	8-97355-273-0	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=250	5-09707-030-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250	5-09707-030-1	01	1	0804-0906		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250	5-09707-030-1	01	1	0907-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140	5-09707-031-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	01	1	0804-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	02	1	0906-		●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	0712-		●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0712-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	0712-1310		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E) L=100	8-94443-021-1	02	1	1311-	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-0711	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	0712-		●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	0712-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	0712-		●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-		●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	0712-		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0712-0808	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●	●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	0712-		●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0710-0711	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0712-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-	●
470	CLIP; HARNESS,LICENSE LAMP EXC. AUSTRALIA EQUIPMENT(B13) OD=9 H=6	1-09709-178-0	01	1	1206-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=21 L=24	1-09701-201-0	01	1	1005-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H)	1-09701-124-0	01	1	0712-0803		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I)	1-09987-281-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) ID=21 L=47.5	8-94178-108-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0712-0803		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=18 L=25	8-94121-004-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=14.5 & 6	8-94312-791-0	01	1	0712-0803		●
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-	●
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-		●
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0710-0711	●
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0712-0804	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0710-0711	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (A) ID=11 L=41	1-09700-403-0	01	1	0809-	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0809-		●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0710-0711	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) L=135	1-09987-143-1	01	1	0809-	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0809-		●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0710-0711	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) L=250	5-09707-030-1	01	1	0809-	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0809-		●

150 38 38 38 139 139 150 313 304 38 139 38 139 313 150 304 150 304 139 150 304 150 38 150 304 516 304 139 38 38 386 516 358 377 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) M10X20 FLANGE	0-28751-020-0	01	1	0806-	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) M10X20 FLANGE	0-28751-020-0	01	1	0806-		●
38	BOLT; CLIP,HARNESS (F) M8X16 FLANGE	8-98076-109-0	01	1	0710-0710	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0710-0711	●
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (C) M8X16 FLANGE	0-28050-816-0	03	1	0712-	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0712-		●
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0710-0711	●
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0710-0711	●
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0712-1201	●	●
38	BOLT; CLIP,HARNESS (H) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712	●	●
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0710-0711	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0712-	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	0712-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0711	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0712-0812	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0710-0711	●
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	0712-	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0712-		●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-0711	●
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0712-		●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-0711	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0712-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0710-0711	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-0812	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-0812		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-		●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0710-0711	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0712-	●	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901	●	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0901		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-	●	●
139	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M6X10 FLANGE	0-28050-610-0	01	1	0712-0803		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M6X20 FLANGE	0-28050-620-0	01	1	0712-1004		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M6X20 FLANGE	0-28050-620-0	02	1	1005-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X12 FLANGE	0-28050-812-0	01	1	0712-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (E) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (F) M8X14 FLANGE	0-28080-814-0	01	1	0712-0803		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (G) M6X16 FLANGE	0-28650-616-0	01	1	0712-		●
150	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●
150	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	04	1	0809-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0710-0711	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0712-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	03	1	0712-		●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0710-0711	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0712-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	01	1	0712-		●
304	BOLT; ENG HARNESS CLIP 4HK1-TCS ENG(RJS) (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0803		●
304	BOLT; ENG HARNESS CLIP 4HK1-TCS ENG(RJS) (F) M10X16 FLANGE	0-28151-016-0	01	1	0712-0803		●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0710-0711	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0712-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (E) M6X12 FLANGE	0-28050-612-0	01	1	0712-		●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0710-0711	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0712-1010	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (D) M8X10 FLANGE	0-28050-810-0	01	1	0712-1010		●
313	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-0811	●
313	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0812-	●
313	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28651-030-0	01	1	0812-	●
313	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X30 FLANGE	0-28651-030-0	01	1	0812-		●
313	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-0711	●
313	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0712-0811	●
313	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X30 FLANGE	0-28651-030-0	01	1	0712-0811		●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●	●
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-		●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0712-		●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0710-0711	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0712-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-0711	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0712-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●
516	BOLT; HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	0806-		●
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0710-0711	●
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0712-	●
516	BOLT; HARNESS 6HK1-TCN ENG(82L) (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0712-		●

305 483 16 483 305 305 48 48 483 16 49 305 306 16 16 48 612 48 213 341 48 16 16 612 81 231 16 223 16 223 171 483 305 305 483 483 305 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (H) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Z) ID=10 & 12	1-09709-278-1	02	1	0912-		●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=35 L=33	1-09700-945-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=28 L=78	1-09700-858-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) ID=24 L=24	1-09701-001-1	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	01	1	0712-0806		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	02	1	0807-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (U) L=140	5-09707-031-1	02	1	0712-0712		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140	5-09707-031-1	01	1	0712-0712		●
16	CLIP; HARNESS (V) ID=13-18 L=18	1-09709-291-0	01	1	0712-0901		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (V) ID=13-18 L=18	1-09709-291-0	01	1	0902-		●
16	CLIP; HARNESS (W) L=60	8-97063-335-0	02	1	0712-		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0803-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-0711	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-	●	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11 L=16	0-95235-025-0	02	1	0712-	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0712-		●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-		●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0712-0802		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0712-	●	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0710-0711	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0712-0911	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (H) ID=10 & 10	1-09709-277-1	03	1	0912-		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-0711	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●
16	CLIP; HARNESS (G) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=22 L=32	1-09700-126-1	01	1	0712-0712	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (O) ID=13-18 L=18	1-09709-291-0	01	1	0805-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (O) ID=13-18 L=18	1-09709-291-0	01	1	0805-		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (Q) ID=14 L=44	9-09917-427-0	02	1	1202-	●
48	CLIP; FRAME HARNESS (Q) ID=14 L=44	9-09917-427-0	02	1	1202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	11	1	0809-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (Q) ID=14 L=44	9-09917-427-0	09	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	16	1	0809-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (Q) ID=14 L=44	9-09917-427-0	14	1	1008-	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (P) L=180	1-09707-162-1	01	1	0806-0809		●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	02	1	0810-		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (M) ID=19 L=28	0-95235-856-0	01	1	0712-0802		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (N) ID=16 L=28	0-95235-556-0	01	1	0803-		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0712-0808	●	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (Q) ID=14 L=44	9-09917-427-0	01	1	1202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	18	1	0712-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	17	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (Q) ID=14 L=44	9-09917-427-0	15	1	1008-	●
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (L) ID=5.5X2 L=35	1-09700-974-0	01	1	0712-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	19	1	0710-0711	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	19	1	0712-0804	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	18	1	0805-0902	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	16	1	0903-1007	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (Q) ID=14 L=44	9-09917-427-0	16	1	1008-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0710-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	19	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (Q) ID=14 L=44	9-09917-427-0	19	1	1008-	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0710-0711	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50	1-09701-214-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50	1-09701-214-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0902-	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0902-	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0712-	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0712-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0710-0711	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0712-0805	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0806-0809	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	04	1	0806-0809		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0810-0901	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0902-	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0902-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0712-0901	●	●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	0902-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0902-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	14	1	0710-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (Q) ID=14 L=44	9-09917-427-0	13	1	1008-	●
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	0808-		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0901	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180	1-09707-162-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36	8-94224-891-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A)	8-97101-436-0	01	1	0804-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-0906		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-		●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0710-0711	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0712-	●	●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-	●
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	0804-0905	●
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	03	1	0712-		●
223	CLIP; AIR TANK HARNESS (C) ID=10 & 15	1-09709-279-1	01	1	0712-		●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0712-		●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	0710-0711	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	0712-	●	●
231	CLIP; BAND,OIL PRESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●
231	CLIP; BAND,OIL PRESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0712	●	●
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0710-0711	●
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0712	●	●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	1311-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (O) ID=24 L=27	1-09700-809-0	03	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=350	8-94152-256-1	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=300	1-09707-001-1	01	1	0906-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=150	8-97355-273-0	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=250	5-09707-030-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250	5-09707-030-1	01	1	0804-0906		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250	5-09707-030-1	01	1	0907-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140	5-09707-031-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	01	1	0804-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	02	1	0906-		●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	0712-		●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0712-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	0712-1310		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E) L=100	8-94443-021-1	02	1	1311-	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-0711	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	0712-		●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	0712-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	0712-		●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-		●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	0712-		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0712-0808	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●	●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	0712-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-0711	●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0712-	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0712-		●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-0711	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0712-	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	0712-		●
341	CLIP; BAND,STARTER RELAY ID=14 L=44	9-09917-427-0	01	1	0710-0711	●
341	CLIP; BAND,STARTER RELAY ID=14 L=44	9-09917-427-0	01	1	0712-0802	●
341	CLIP; BAND,STARTER RELAY 6HK1-TCN ENG(82L) ID=14 L=44	9-09917-427-0	01	1	0712-0802		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=21 L=24	1-09701-201-0	01	1	1005-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H)	1-09701-124-0	01	1	0712-0803		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I)	1-09987-281-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) ID=21 L=47.5	8-94178-108-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0712-0803		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=18 L=25	8-94121-004-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	01	1	0712-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=14.5 & 6	8-94312-791-0	01	1	0712-0803		●
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-	●
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-		●
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0710-0711	●
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0712-0804	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0710-0711	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (A) ID=11 L=41	1-09700-403-0	01	1	0809-	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0809-		●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0710-0711	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) L=135	1-09987-143-1	01	1	0809-	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0809-		●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0710-0711	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) L=250	5-09707-030-1	01	1	0809-	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0809-		●

14 16 22 48 102 225 305 14 37 48 102 194 206 217 225 305 612 48 81 171 225 228 231 1 224 1 1 612 16 305 14 48 102 208 305 48 225 178 178 503 530 503 538 14 305 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-		●
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0710-0711	●
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0712-	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0712-		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0710-0711	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0712-0808	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0712-0808		●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (C) L=250	8-98216-430-0	01	1	1312-	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=250	5-09707-030-1	08	1	0809-1205	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=250	8-98216-430-0	08	1	1206-	●
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	15	1	0801-0805	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	02	1	0803-0808		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	02	1	0809-1107		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	02	1	1108-		●
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	13	1	0710-0711	●
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	13	1	0712-0712	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=250	5-09707-030-1	13	1	0712-0712		●
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	14	1	0801-0909	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=250	5-09707-030-1	14	1	0801-0909		●
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	13	1	0910-1205	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=250	5-09707-030-1	13	1	0910-1205		●
14	CLIP; BAND,HARNESS (C) L=250	8-98216-430-0	13	1	1206-	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=250	8-98216-430-0	13	1	1206-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	0712-0909		●
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (D) L=251	8-97619-917-0	01	1	0910-	●	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	02	1	0712-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	03	1	0712-0803		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	04	1	0804-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=150	8-97355-273-0	01	1	0712-		●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	0710-0711	●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	0712-	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	01	1	0712-		●
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (H) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Z) ID=10 & 12	1-09709-278-1	02	1	0912-		●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807	●
16	CLIP; HARNESS (M) ID=11 L=60	0-95235-096-0	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=35 L=33	1-09700-945-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=28 L=78	1-09700-858-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0712-0807		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) ID=24 L=24	1-09701-001-1	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	01	1	0712-0806		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) L=250	1-09707-126-0	02	1	0807-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	0712-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (U) L=140	5-09707-031-1	02	1	0712-0712		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140	5-09707-031-1	01	1	0712-0712		●
16	CLIP; HARNESS (V) ID=13-18 L=18	1-09709-291-0	01	1	0712-0901		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (V) ID=13-18 L=18	1-09709-291-0	01	1	0902-		●
16	CLIP; HARNESS (W) L=60	8-97063-335-0	02	1	0712-		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0803-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-0711	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-	●	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11 L=16	0-95235-025-0	02	1	0712-	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0712-		●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0712-		●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0710-0711	●
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0712-		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60	8-94449-165-0	02	1	0712-0802	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0712-0802		●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6	8-97229-357-0	02	1	0803-1202	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	0803-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS (X) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5	8-97019-892-0	02	1	0712-0802	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0712-0802		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0712-1202	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0711	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0712-1202	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0712-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-0711	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0712-	●	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0710-0711	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	03	1	0712-0911	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (H) ID=10 & 10	1-09709-277-1	03	1	0912-		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-0711	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●
16	CLIP; HARNESS (G) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●
16	CLIP; HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=22 L=32	1-09700-126-1	01	1	0712-0712	●	●
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	03	1	0712-0803		●
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	0804-		●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	0712-		●
37	CLIP; HARNESS,POWER TILT (B) ID=13-18 L=18	1-09709-291-0	02	1	0712-		●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0712-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (O) ID=13-18 L=18	1-09709-291-0	01	1	0805-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (O) ID=13-18 L=18	1-09709-291-0	01	1	0805-		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (Q) ID=14 L=44	9-09917-427-0	02	1	1202-	●
48	CLIP; FRAME HARNESS (Q) ID=14 L=44	9-09917-427-0	02	1	1202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	11	1	0809-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (Q) ID=14 L=44	9-09917-427-0	09	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	16	1	0809-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (Q) ID=14 L=44	9-09917-427-0	14	1	1008-	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (P) L=180	1-09707-162-1	01	1	0806-0809		●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	02	1	0810-		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (M) ID=19 L=28	0-95235-856-0	01	1	0712-0802		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (N) ID=16 L=28	0-95235-556-0	01	1	0803-		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0712-0808	●	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (Q) ID=14 L=44	9-09917-427-0	01	1	1202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	18	1	0712-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	17	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (Q) ID=14 L=44	9-09917-427-0	15	1	1008-	●
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (L) ID=5.5X2 L=35	1-09700-974-0	01	1	0712-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	19	1	0710-0711	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	19	1	0712-0804	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	18	1	0805-0902	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50	9-09917-430-0	16	1	0903-1007	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (Q) ID=14 L=44	9-09917-427-0	16	1	1008-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0710-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	19	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (Q) ID=14 L=44	9-09917-427-0	19	1	1008-	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0710-0711	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50	1-09701-214-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50	1-09701-214-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0902-	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0712-	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	02	1	0902-	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0712-	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0712-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0710-0711	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0712-0805	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0806-0809	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	04	1	0806-0809		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0810-0901	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0902-	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-0711	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0712-0901	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0902-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0711	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0712-0901	●	●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	0902-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0902-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	14	1	0710-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (Q) ID=14 L=44	9-09917-427-0	13	1	1008-	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0901	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
102	CLIP; BAND (B) L=250	5-09707-030-1	02	1	0712-0901		●
102	CLIP; BAND (C) L=140	5-09707-031-1	01	1	0712-0811		●
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0710-0711	●
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0712-0911	●	●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28	0-95235-556-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	02	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809	●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180	1-09707-162-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6	1-09709-178-0	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36	8-94224-891-1	01	1	0806-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A)	8-97101-436-0	01	1	0804-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0712-0803		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-0906		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-		●
178	GROMMET; HARNESS EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0805-0806	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0807-0811	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-	●	●
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-		●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0710-0711	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0712-0804	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0805-0806	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0710-0711	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0710-0711	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0712-	●	●
178	GROMMET; HARNESS ANTI LOCK BRAKE(JE5) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0712-	●
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0712-		●
194	CLIP; BAND L=250	5-09707-030-1	01	1	0710-0711	●
194	CLIP; BAND L=250	5-09707-030-1	01	1	0712-	●
194	CLIP; BAND 6HK1-TCN ENG(82L) L=250	5-09707-030-1	01	1	0712-		●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	0710-0711	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	0712-0901	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0902-	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0710-0711	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0712-0901	●	●
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0710-0711	●
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0712-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0710-0711	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0712-	●	●
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0710-0711	●
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0712-0803	●	●
225	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) (C) L=140	5-09707-031-1	01	1	0712-		●
225	CLIP; AIR TANK HARNESS (D) L=600	1-09707-107-1	02	1	0712-0901		●
225	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) (D) L=600	1-09707-107-1	02	1	0902-		●
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0710-0711	●
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0712-	●	●
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	0710-1011	●
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0712-0803		●
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0804-0807	●
228	CLIP; COOLER HARNESS 6HK1-TCN ENG(82L) L=180	1-09707-162-1	01	1	0804-0807		●
231	CLIP; BAND,OIL PRESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●
231	CLIP; BAND,OIL PRESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0712	●	●
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0710-0711	●
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0712	●	●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	1311-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (O) ID=24 L=27	1-09700-809-0	03	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (P) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=350	8-94152-256-1	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (Q) L=300	1-09707-001-1	01	1	0906-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=150	8-97355-273-0	01	1	0712-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=250	5-09707-030-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250	5-09707-030-1	01	1	0804-0906		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250	5-09707-030-1	01	1	0907-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140	5-09707-031-1	01	1	0712-0803		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	01	1	0804-0905		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=140	5-09707-031-1	02	1	0906-		●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=24 L=32	1-09700-766-1	01	1	0712-		●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (E) L=100	8-94443-021-1	01	1	0712-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) L=100	8-94443-021-1	01	1	0712-1310		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E) L=100	8-94443-021-1	02	1	1311-	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-0711	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	0712-		●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	0712-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	0712-		●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-		●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	0712-		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0712-0808	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●	●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0711	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-94225-185-0	01	1	0712-0801		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-0711	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0712-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	0712-		●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-666-0	01	1	0809-	●	●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0804-	●	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-82690-668-0	01	1	0710-0711	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-82690-668-0	01	1	0712-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1306-		●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0710-0711	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0712-1305	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS O/SIDE MIRROR RR VIEW FLAT<YS1> 180X40	1-72498-019-1	01	1	1306-	●
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1306-	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-		●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0710-0711	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0712-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0710-0711	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0712-	●	●
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-	●
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-		●
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0710-0711	●
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0712-0804	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0710-0711	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (A) ID=11 L=41	1-09700-403-0	01	1	0809-	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0809-		●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0710-0711	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) L=135	1-09987-143-1	01	1	0809-	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0809-		●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0710-0711	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0712-0808	●	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) L=250	5-09707-030-1	01	1	0809-	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
