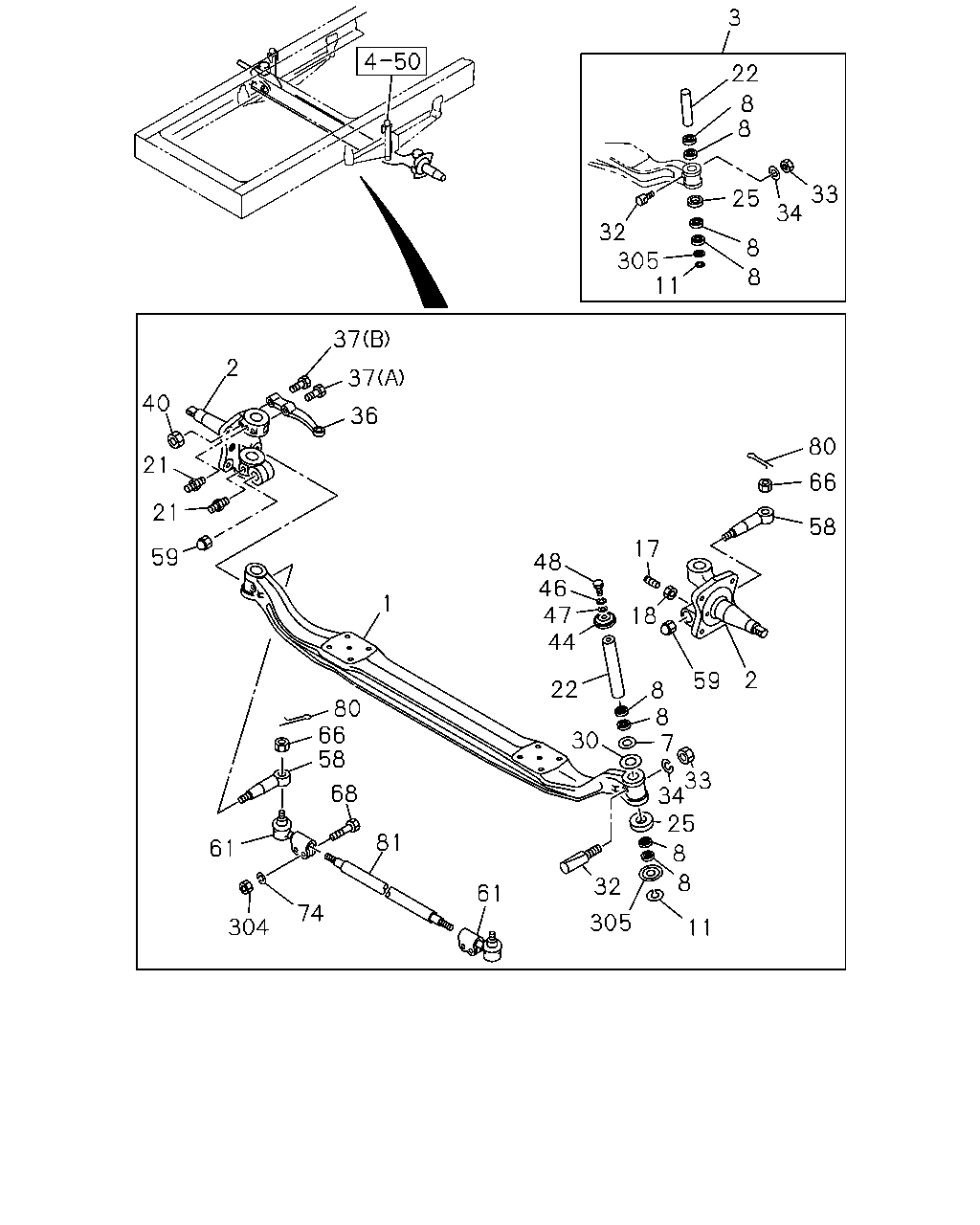

4-10 — FRONT AXLE (#65452) — 66 parça

3 22 8 8 32 305 11 8 8 25 34 33 2 40 21 21 59 37 37 36 1 80 66 58 68 81 61 61 304 74 48 46 47 44 22 30 32 305 11 8 8 25 34 33 7 8 8 59 2 58 66 80 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-133-0	01	1	9707-	●	●
2	KNUCKLE; FRT AXLE	1-43132-083-0	01	1	9707-	●	●
2	KNUCKLE; FRT AXLE	1-43131-083-0	01	1	9707-	●	●
3	KING PIN SET	1-87830-837-2	01	1	9707-0704	●	●
3	KING PIN SET	1-87831-390-1	01	1	0705-	●	●
3	KING PIN SET	1-87830-804-2	01	1	9707-0704	●	●
3	KING PIN SET	1-87831-389-1	01	1	0705-	●	●
7	SEAL; OIL,KING PIN NSK	1-09625-087-0	02	1	9707-	●	●
7	SEAL; OIL,KING PIN NTN	1-09625-089-0	02	1	9707-	●	●
8	BEARING; NEEDLE,KING PIN NTN	1-09811-071-0	08	1	9707-	●	●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-072-0	08	1	9707-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9707-	●	●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	9707-0805	●	●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-191-0	02	1	0806-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	9707-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9707-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-	●	●
22	PIN; KING,FRT AXLE	1-43161-007-1	02	1	9707-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-040-0	01	1	9707-	●	●
25	BEARING; THRUST,KING PIN NTN	1-09829-026-0	01	1	9707-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-028-0	01	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=2.800	1-43171-229-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=2.850	1-43171-230-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=2.900	1-43171-231-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=2.950	1-43171-232-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=3.000	1-43171-233-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=3.050	1-43171-234-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=3.100	1-43171-235-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=3.150	1-43171-236-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=3.200	1-43171-237-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=3.250	1-43171-238-0	AR	1	9707-	●	●
30	WASHER; THRUST,KING PIN T=3.300	1-43171-239-0	AR	1	9707-	●	●
32	BOLT; KEY,KING PIN	1-43116-005-1	02	1	9707-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9707-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9707-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-068-2	01	1	9707-	●	●
37	BOLT; KNUCKLE ARM (A) M22X162	1-09000-107-1	01	1	9707-	●	●
37	BOLT; KNUCKLE ARM (B) M22X147	1-09000-108-1	01	1	9707-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9707-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
44	COVER; KING PIN	1-43175-016-0	02	1	9707-	●	●
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	9707-0603	●	●
46	WASHER; LK,COVER ID=12.2	0-91510-512-0	02	1	0604-	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	9707-0605	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32 IDN	0-91614-712-0	02	1	0606-	●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9707-	●	●
58	ARM; TIE ROD	1-43135-015-1	01	1	9707-	●	●
58	ARM; TIE ROD	1-43134-015-1	01	1	9707-	●	●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9707-0704	●	●
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-678-3	01	1	9707-	●	●
61	ROD END; TIE ROD	1-43150-677-3	01	1	9707-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9707-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9707-	●	●
74	NUT; TIE ROD END M12 IDN	9-99110-512-0	04	1	9707-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9707-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE	1-43151-129-0	01	1	9707-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9707-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9707-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●
