◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#65451) — 62 parça

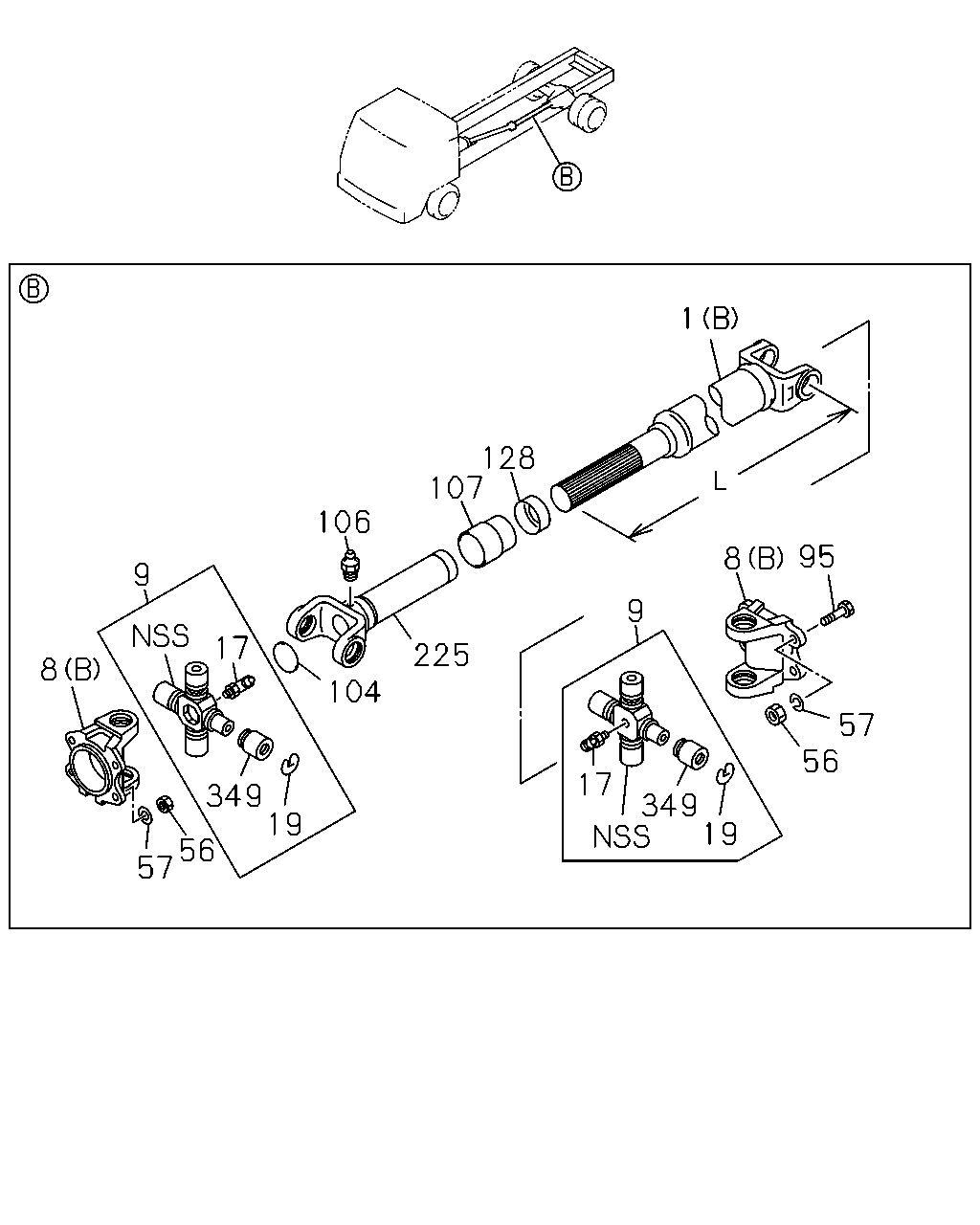

çizim 122601
9 8 104 9 128 1 8 57 56 19 349 17 17 349 19 56 57 225 106 107 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
SHORT CHASSIS(FT***C) (A) L=616 IDN 		8-97520-239-0 01 1 9707- ● ●
1 SHAFT; PROP
SHORT CHASSIS(FT***C) (B) L=766 IDN 		8-97520-242-0 01 1 9707- ● ●
1 SHAFT; PROP
MIDDLE CHASSIS(FT***F) (A) L=701 IDN 		8-97520-238-0 01 1 9707- ● ●
1 SHAFT; PROP
MIDDLE CHASSIS(FT***F) (B) L=1275 IDN 		8-97520-241-0 01 1 9707- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 9707- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 9707- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9707-0512 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 03 1 9707-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9707- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9707- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9707- ● ●
56 NUT; YOKE
M14 IDN 		9-99110-514-0 08 1 9707-0512 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9707-0603 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9707- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9707- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9707-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9707- ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9707- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9707- ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-330-0 12 1 9707- ● ●

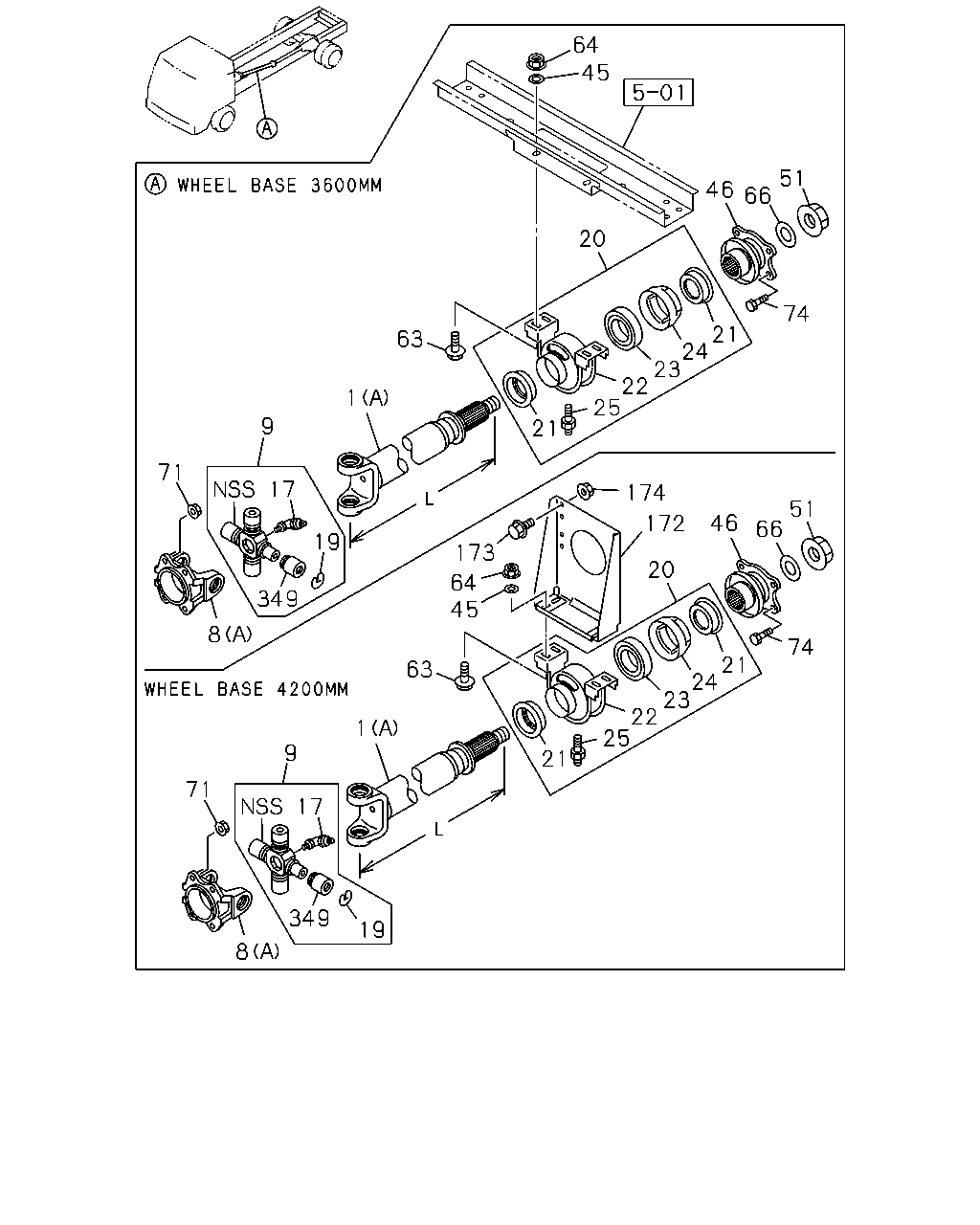

çizim 184915
64 45 20 46 66 51 74 21 24 23 22 25 21 63 1 9 71 17 19 349 8 71 17 9 1 8 349 19 63 45 64 173 174 172 46 66 51 74 21 24 23 22 25 21 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
SHORT CHASSIS(FT***C) (A) L=616 IDN 		8-97520-239-0 01 1 9707- ● ●
1 SHAFT; PROP
SHORT CHASSIS(FT***C) (B) L=766 IDN 		8-97520-242-0 01 1 9707- ● ●
1 SHAFT; PROP
MIDDLE CHASSIS(FT***F) (A) L=701 IDN 		8-97520-238-0 01 1 9707- ● ●
1 SHAFT; PROP
MIDDLE CHASSIS(FT***F) (B) L=1275 IDN 		8-97520-241-0 01 1 9707- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 9707- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 9707- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9707-0512 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 03 1 9707-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9707- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9707- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9707- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9707- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9707- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9707- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9707- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9707- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 9707- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9707-0605 ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9707- ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9707-9801 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28681-035-0 04 1 9707-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9707-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9707-9801 ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9707- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9707- ● ●
172 BRACKET; CENTER BRG
MIDDLE CHASSIS(FT***F) 		1-37515-102-0 01 1 9707- ● ●
173 BOLT; BRKT
MIDDLE CHASSIS(FT***F) M10X25 FLANGE 		0-28081-025-0 04 1 9707-0512 ● ●
173 BOLT; BRKT
MIDDLE CHASSIS(FT***F) M10X25 FLANGE 		0-28051-025-0 04 1 0601- ● ●
174 NUT; BRKT
MIDDLE CHASSIS(FT***F) M10 		9-09110-510-0 04 1 9707-0512 ● ●
174 NUT; BRKT
MIDDLE CHASSIS(FT***F) M10 		0-91110-510-0 04 1 0601- ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-330-0 12 1 9707- ● ●
