3-78 — FIXING PARTS; AIR PIPING
(#65450) — 52 parça
Tümü
A - FTR5MC
B - FTR5MF
◀
[378A] NO.1 (49 parça)

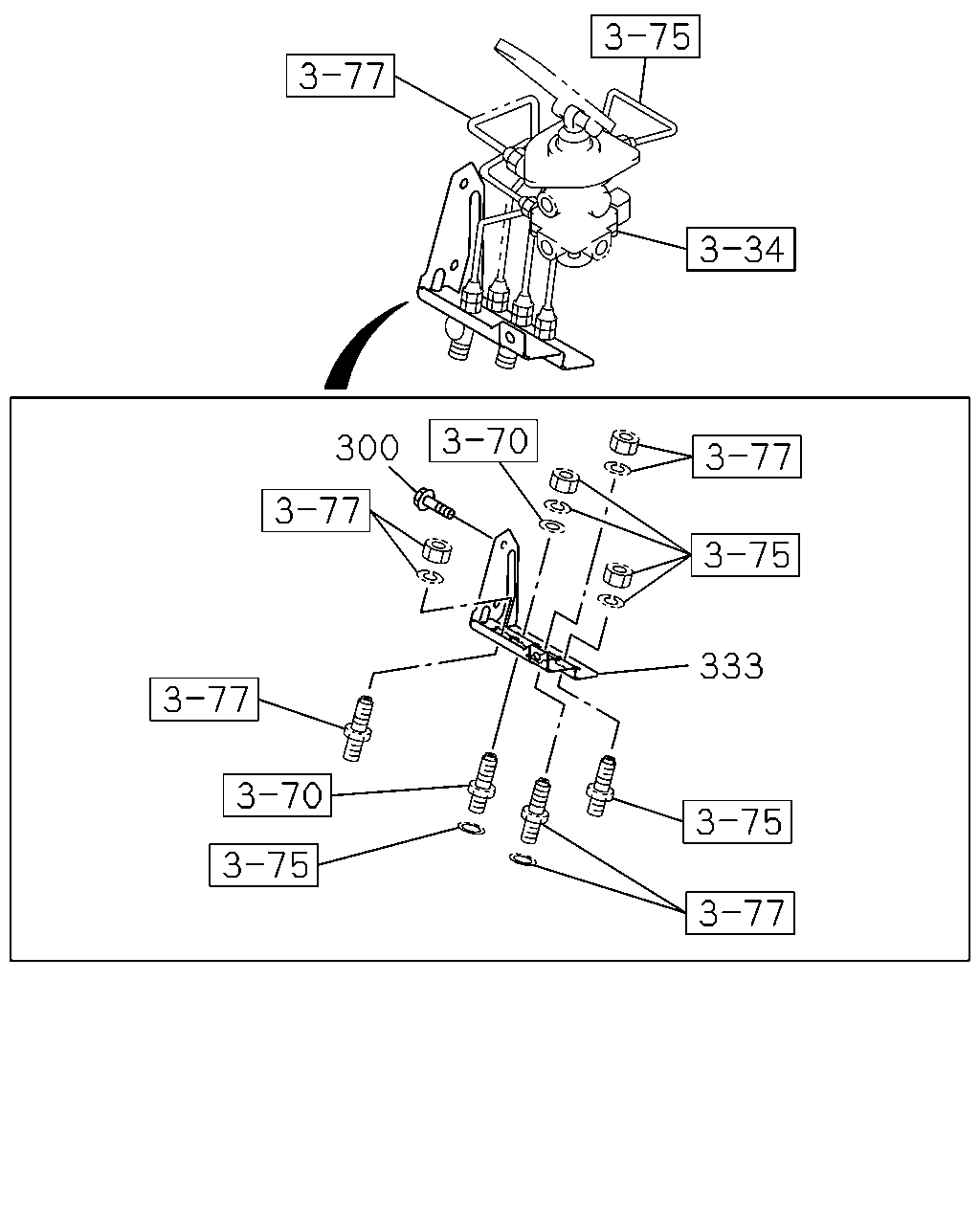

[378A] NO.2 (3 parça)
▶
13
146
386
290
148
147
254
383
13
311
382
318
311
367
283
150
356
284
123
149
75
288
283
290
89
376
33
280
1
129
164
177
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
01
1
9707-
●
●
13
CLIP; AIR PIPE
(A) ID=7 L=38 H=21
1-09700-916-0
01
1
9707-
●
●
13
CLIP; AIR PIPE
(B) ID=7 L=40
9-09524-675-0
01
1
9707-0606
●
●
13
CLIP; AIR PIPE
(B) ID=7 L=40
0-95234-675-0
01
1
0607-
●
●
33
CLIP; BOLT
ID=16 & 7 L=21 & 17
1-09700-675-0
01
1
9707-
●
●
75
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9707-0512
●
●
75
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
75
BOLT; CLIP
M8X25 FLANGE IDN
0-28680-825-0
01
1
9707-0512
●
●
75
BOLT; CLIP
M8X25 FLANGE IDN
0-28650-825-0
01
1
0601-
●
●
75
BOLT; CLIP
M8X30 FLANGE
0-28680-830-0
03
1
9707-0512
●
●
75
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
03
1
0601-
●
●
89
BOLT; PIPE CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9707-0512
●
●
89
BOLT; PIPE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
123
BOLT; PIPE CLIP
M8X25 FLANGE IDN
0-28680-825-0
02
1
9707-0512
●
●
123
BOLT; PIPE CLIP
M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
●
●
129
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
01
1
9707-
●
●
146
CLIP; AIR PIPE
ID=10
1-09709-242-0
01
1
9707-
●
●
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28080-870-0
03
1
9707-0512
●
●
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
03
1
0601-
●
●
148
NUT; PIPE CLIP
M8 FLANGE
0-91150-108-0
03
1
9707-0602
●
●
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
9707-
●
●
150
NUT; CLIP BRKT
M8 FLANGE
0-91150-108-0
02
1
9707-0602
●
●
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
164
CLIP; AIR PIPE
ID=10 & 15
1-09709-279-1
01
1
9707-
●
●
177
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
9707-
●
●
254
BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9707-
●
●
254
BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0205-0205
●
●
274
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
01
1
9707-
●
●
274
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
02
1
9707-
●
●
280
CLIP; AIR PIPE
ID=7 & 9 L=17.5 & 17.5
1-09700-746-0
01
1
9707-
●
●
283
NUT; CLIP
M8 FLANGE
0-91150-108-0
04
1
9707-0602
●
●
283
NUT; CLIP
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
284
CLIP; FLEX HOSE
ID=18 & 18
8-94323-068-0
02
1
9707-
●
●
288
BOLT; CLIP,AIR PIPE
M8X25 FLANGE IDN
0-28680-825-0
02
1
9707-0512
●
●
288
BOLT; CLIP,AIR PIPE
M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
●
●
290
NUT; CLIP,AIR PIPE
M8 FLANGE
0-91150-108-0
02
1
9707-0602
●
●
290
NUT; CLIP,AIR PIPE
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
311
CLIP; AIR PIPE
(B) ID=6 H=20 L=20
1-09700-603-0
04
1
9707-
●
●
311
CLIP; AIR PIPE
(A) ID=7 & 9 L=17.5 & 17.5
1-09700-746-0
01
1
9707-
●
●
318
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
01
1
9707-
●
●
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
03
1
9707-
●
●
356
CLIP; AIR PIPE
ID=4.8
8-94128-483-0
01
1
9707-
●
●
367
BRACKET ASM
1-47475-427-1
01
1
9707-
●
●
376
BOLT; BRKT
M8X40 FLANGE
0-28080-840-0
01
1
9707-0512
●
●
376
BOLT; BRKT
M8X40 FLANGE
0-28050-840-0
01
1
0601-
●
●
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
03
1
9707-
●
●
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
03
1
9707-
●
●
386
CLIP; CENTER
ID=10
1-09709-242-0
03
1
9707-
●
●
300
333
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
300
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0206-0904
●
●
300
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
●
●
333
BRACKET; BRK AIR PIPE
1-79738-815-2
01
1
9707-
●
●
