Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#65449) — 32 parça
Tümü
A - FTR5MC
B - FTR5MF
◀
[377A] NO.2 (22 parça)

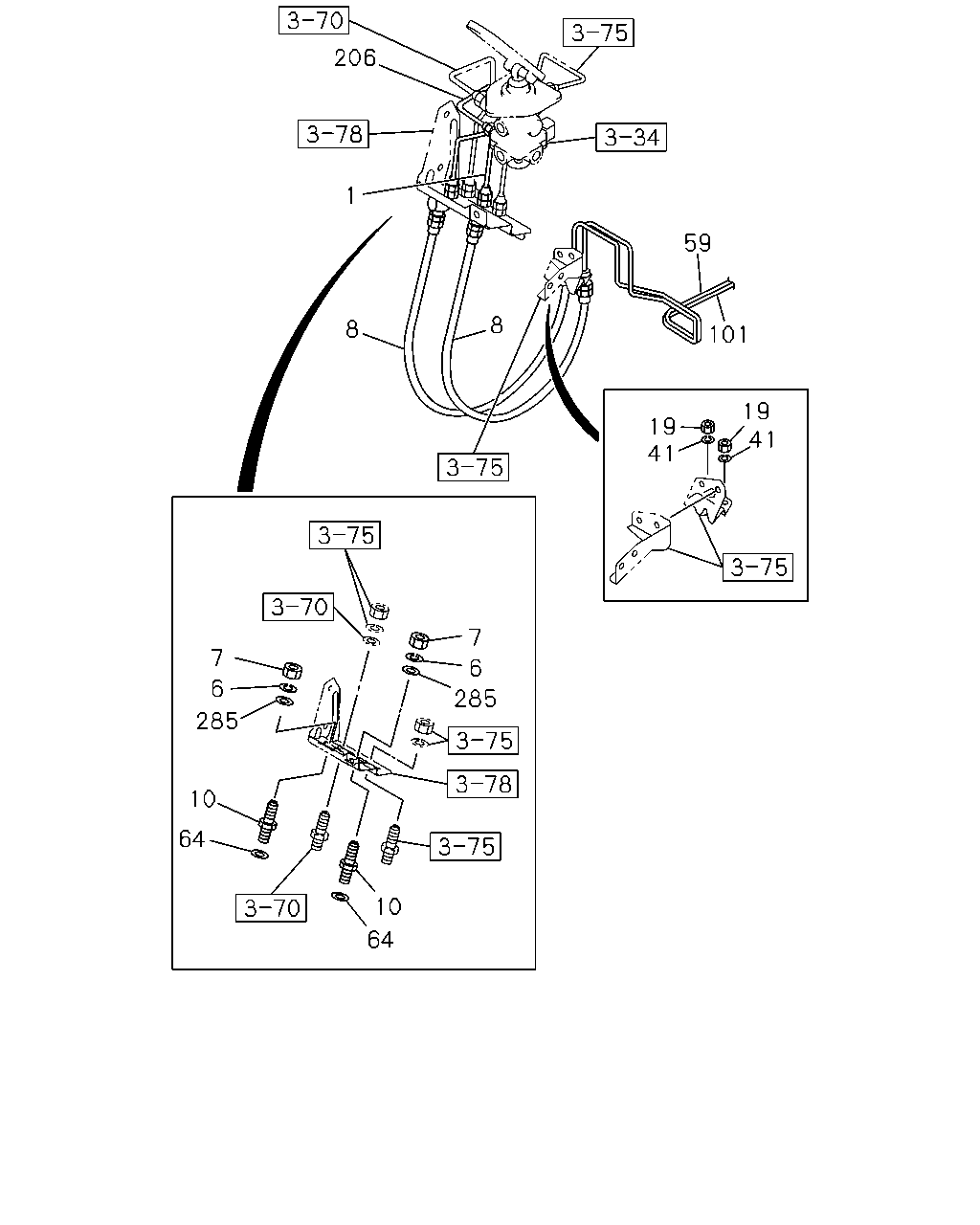

[377A] NO.1 (10 parça)
▶
206
1
59
8
8
101
19
41
19
41
7
7
6
6
285
285
10
64
10
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=279
1-47492-449-4
01
1
9707-9902
●
●
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
9903-0109
●
●
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=278
1-49121-498-0
01
1
0110-
●
●
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9707-0603
●
●
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
7
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
9707-0512
●
●
7
NUT; FLEX HOSE
M16 IDN
0-91111-516-0
02
1
0601-
●
●
8
HOSE; FLEX,AIR,CAB SIDE
L=520
0-07474-520-1
02
1
9707-0209
●
●
8
HOSE; FLEX,AIR,CAB SIDE
L=520
1-09363-605-0
02
1
0210-
●
●
10
CONNECTOR; FLEX HOSE
1-09654-324-0
02
1
9707-0209
●
●
10
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
02
1
0210-
●
●
19
NUT; PIPE UNION
M16
9-99111-416-0
02
1
9707-0512
●
●
19
NUT; PIPE UNION
M16 IDN
0-91111-516-0
02
1
0601-
●
●
41
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9707-0603
●
●
41
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
59
PIPE; AIR,UNION TO FLEX HOSE
L=3392 SERVICED BY L=3700
1-47426-427-0
01
1
9707-
●
●
64
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
9707-0209
●
●
101
PIPE; AIR,FLEX HOSE TO UNION
L=3140 SERVICED BY L=3300
1-47428-801-0
01
1
9707-
●
●
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
9707-0109
●
●
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=397
1-49118-723-2
01
1
0110-
●
●
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
9707-0605
●
●
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-
●
●
37
91
87
59
118
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
01
1
9707-0607
●
●
37
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
01
1
9707-0607
●
●
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0608-
●
●
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0608-
●
●
59
PIPE; AIR,UNION TO FLEX HOSE
L=3392 SERVICED BY L=3700
1-47426-427-0
01
1
9707-
●
●
87
PIPE; AIR,AIR TANK TO UNION
1-49116-276-0
01
1
9707-
●
●
91
NUT; PIPE UNION
M16
9-99111-416-0
02
1
9707-0512
●
●
91
NUT; PIPE UNION
M16 IDN
0-91111-516-0
02
1
0601-
●
●
101
PIPE; AIR,FLEX HOSE TO UNION
L=3140 SERVICED BY L=3300
1-47428-801-0
01
1
9707-
●
●
118
PIPE; AIR,UNION TO AIR MASTER
1-49114-892-0
01
1
9707-
●
●
