Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#65448) — 35 parça
Tümü
A - FTR5MC
B - FTR5MF
◀
[375A] NO.1 (10 parça)
[375A] NO.2 (25 parça)
▶

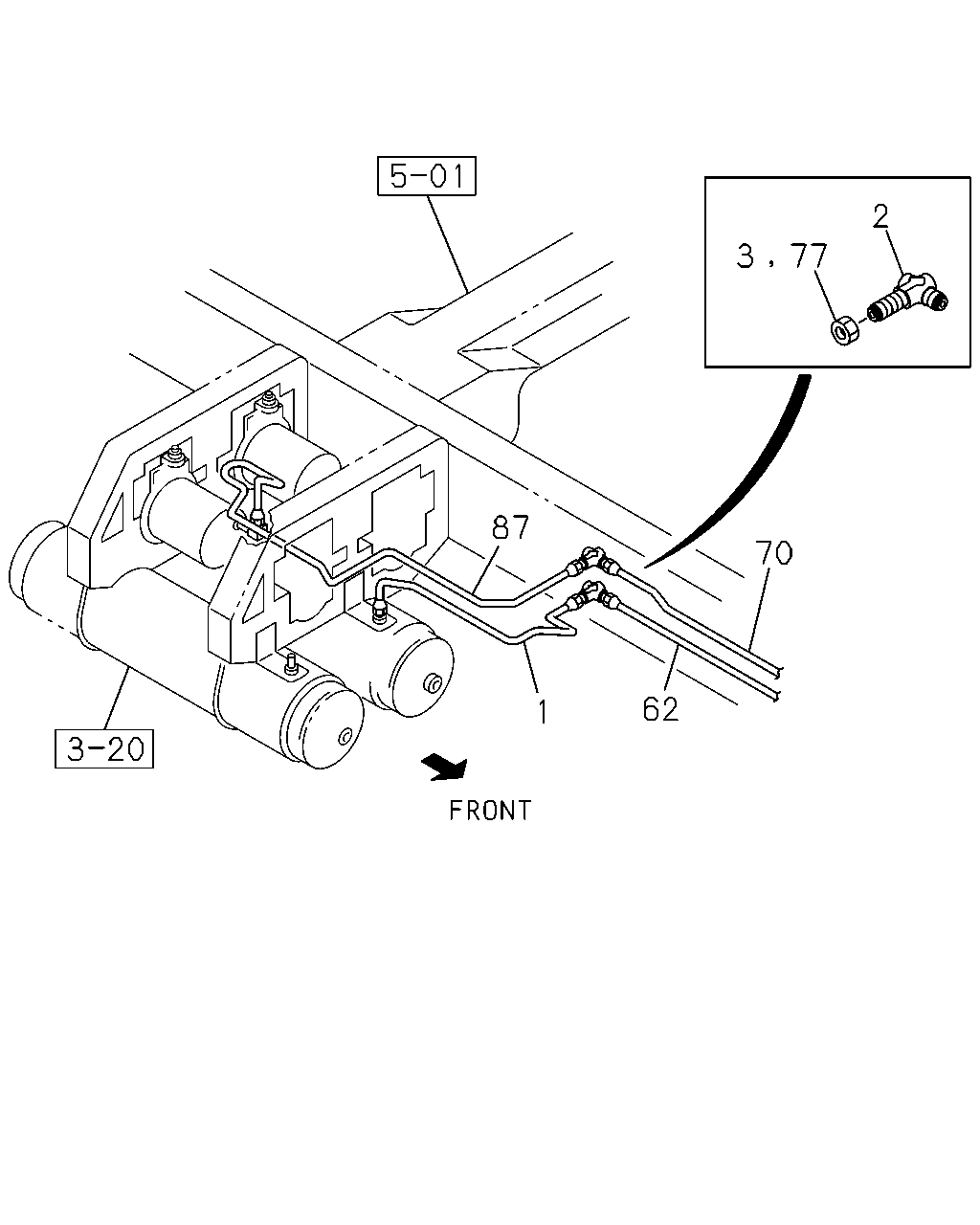

2
3
77
87
70
62
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; AIR,AIR TANK TO UNION
1-49114-887-0
01
1
9707-
●
●
2
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
02
1
9707-0607
●
●
2
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
0608-
●
●
3
NUT; PIPE UNION
M16
9-99111-416-0
01
1
9707-0512
●
●
3
NUT; PIPE UNION
M16 IDN
0-91111-516-0
01
1
0601-
●
●
62
PIPE; AIR,UNION TO FLEX HOSE
L=2958 SERVICED BY L=3300
1-47428-801-0
01
1
9707-
●
●
70
PIPE; AIR,FLEX HOSE TO UNION
L=3112 SERVICED BY L=3300
1-47428-801-0
01
1
9707-
●
●
77
NUT; PIPE UNION
M16
9-99111-416-0
01
1
9707-0512
●
●
77
NUT; PIPE UNION
M16 IDN
0-91111-516-0
01
1
0601-
●
●
87
PIPE; AIR,UNION TO AIR MASTER
L=1189 SERVICED BY L=1250
1-47426-416-0
01
1
9707-
●
●

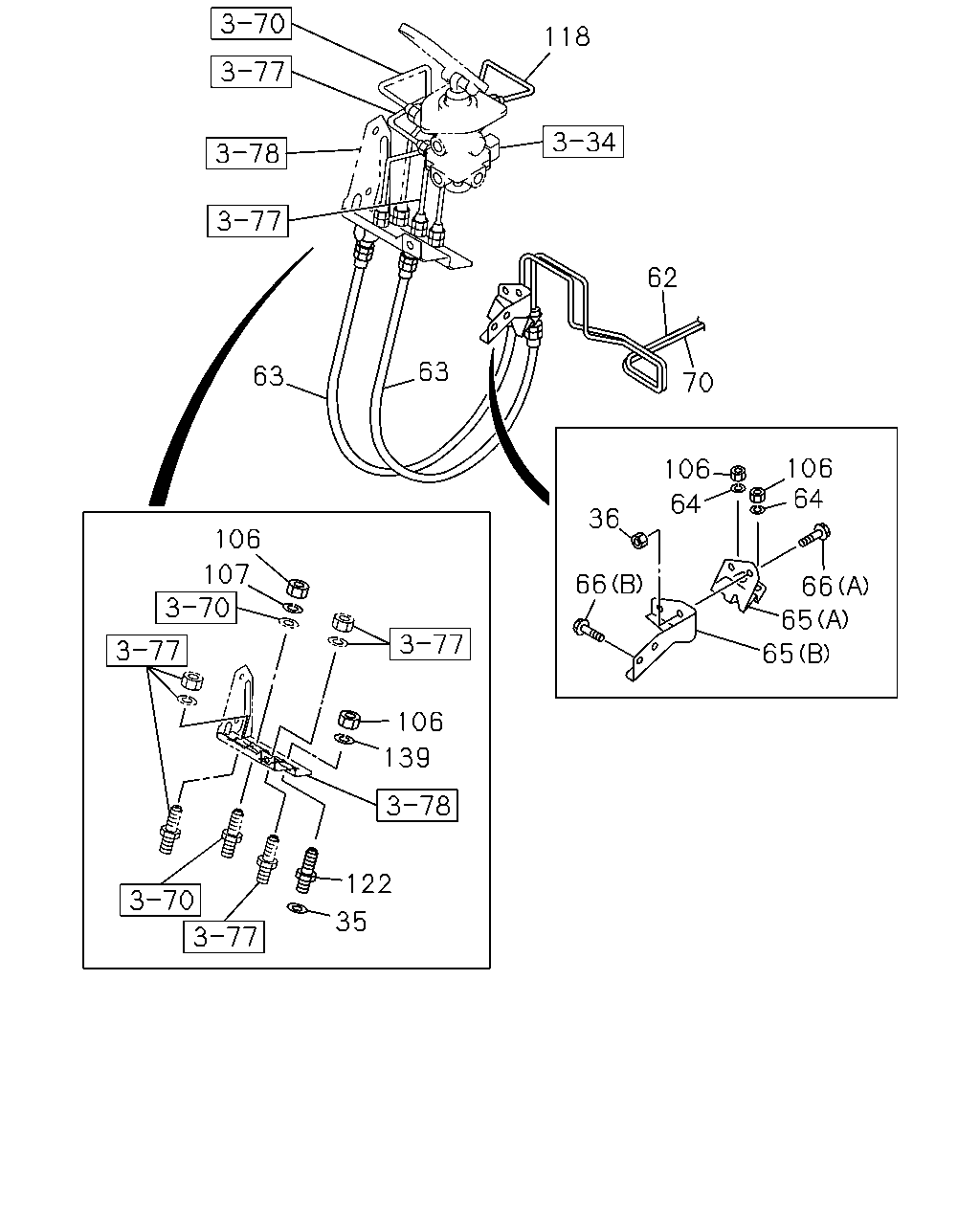

118
62
63
63
70
106
64
106
64
36
106
107
66
66
65
65
106
139
122
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
9707-0209
●
●
36
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
9707-0602
●
●
36
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
62
PIPE; AIR,UNION TO FLEX HOSE
L=2958 SERVICED BY L=3300
1-47428-801-0
01
1
9707-
●
●
63
HOSE; FLEX,BRK LINE,CAB SIDE
L=710
0-07474-710-1
02
1
9707-0209
●
●
63
HOSE; FLEX,BRK LINE,CAB SIDE
L=700
1-09363-604-1
02
1
0210-
●
●
64
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9707-0603
●
●
64
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
65
BRACKET; FLEX HOSE
(A)
1-47476-761-1
01
1
9707-
●
●
65
BRACKET; FLEX HOSE
(B)
1-47477-485-0
01
1
9707-
●
●
66
BOLT; HOSE BRKT
(B) M10X16 FLANGE
0-28181-016-0
02
1
9707-0512
●
●
66
BOLT; HOSE BRKT
(B) M10X16 FLANGE
0-28151-016-0
02
1
0601-
●
●
66
BOLT; HOSE BRKT
(A) M8X25 FLANGE IDN
0-28680-825-0
02
1
9707-0512
●
●
66
BOLT; HOSE BRKT
(A) M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
●
●
70
PIPE; AIR,FLEX HOSE TO UNION
L=3112 SERVICED BY L=3300
1-47428-801-0
01
1
9707-
●
●
106
NUT; FLEX HOSE
M16
9-99111-416-0
04
1
9707-0512
●
●
106
NUT; FLEX HOSE
M16 IDN
0-91111-516-0
04
1
0601-
●
●
107
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9707-0603
●
●
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
9707-0109
●
●
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=417
1-49118-722-0
01
1
0110-
●
●
122
CONNECTOR; FLEX HOSE
1-09654-324-0
01
1
9707-0209
●
●
122
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0210-
●
●
139
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
9707-0605
●
●
139
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-
●
●
