3-70 — BRAKE PIPING; AIR,AIR MASTER (#65447) — 69 parça
çizim 121181
184 1 6 186 185 3 170 2 7 14 155 170 155 243 154 244
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9707- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9707-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9707-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9707-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9707-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 9707- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9707- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9707- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-883-0 01 1 9707- ● ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9707- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9707- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9707-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		9-09225-206-1 01 1 9707-0607 ● ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
243 UNION; AIR PIPE
(A) M12 		9-09228-306-1 01 1 9707-0607 ● ●
243 UNION; AIR PIPE
(A) M12 		0-92138-306-0 01 1 0608- ● ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 01 1 9707- ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-99111-412-0 01 1 9707-0512 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		0-91111-512-0 01 1 0601- ● ●
çizim 121279

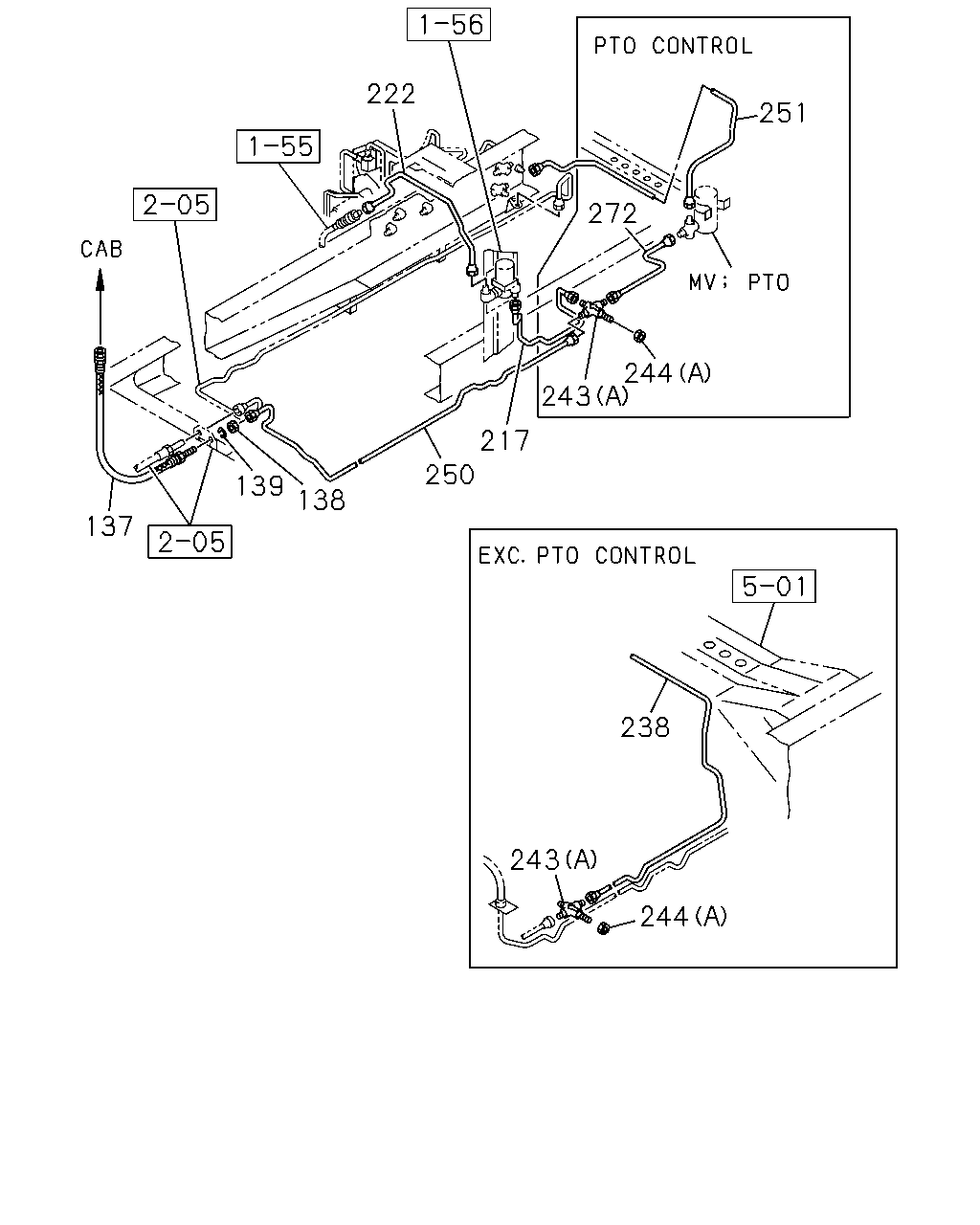

222 251 272 244 243 217 250 139 138 137 238 243 244
BalonParca AdiParca NoAdetTipApplied Date A B
137 HOSE; FLEX,AIR PRESSURE GAGE
L=450 		0-07120-450-0 01 1 9707- ● ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9707- ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9707-0603 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
217 PIPE; VAC,UNION TO MAG VLV 1-49117-779-0 01 1 9707- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9707- ● ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9707- ●
238 PIPE; AIR,UNION TO UNION
L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9707- ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		9-09225-206-1 01 1 9707-0607 ● ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
243 UNION; AIR PIPE
(A) M12 		9-09228-306-1 01 1 9707-0607 ● ●
243 UNION; AIR PIPE
(A) M12 		0-92138-306-0 01 1 0608- ● ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 01 1 9707- ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-99111-412-0 01 1 9707-0512 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		0-91111-512-0 01 1 0601- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2531 SERVICED BY L=2650 		1-47428-827-0 01 1 9707- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49114-905-0 01 1 9707- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49114-906-0 01 1 9707- ●
çizim 121323

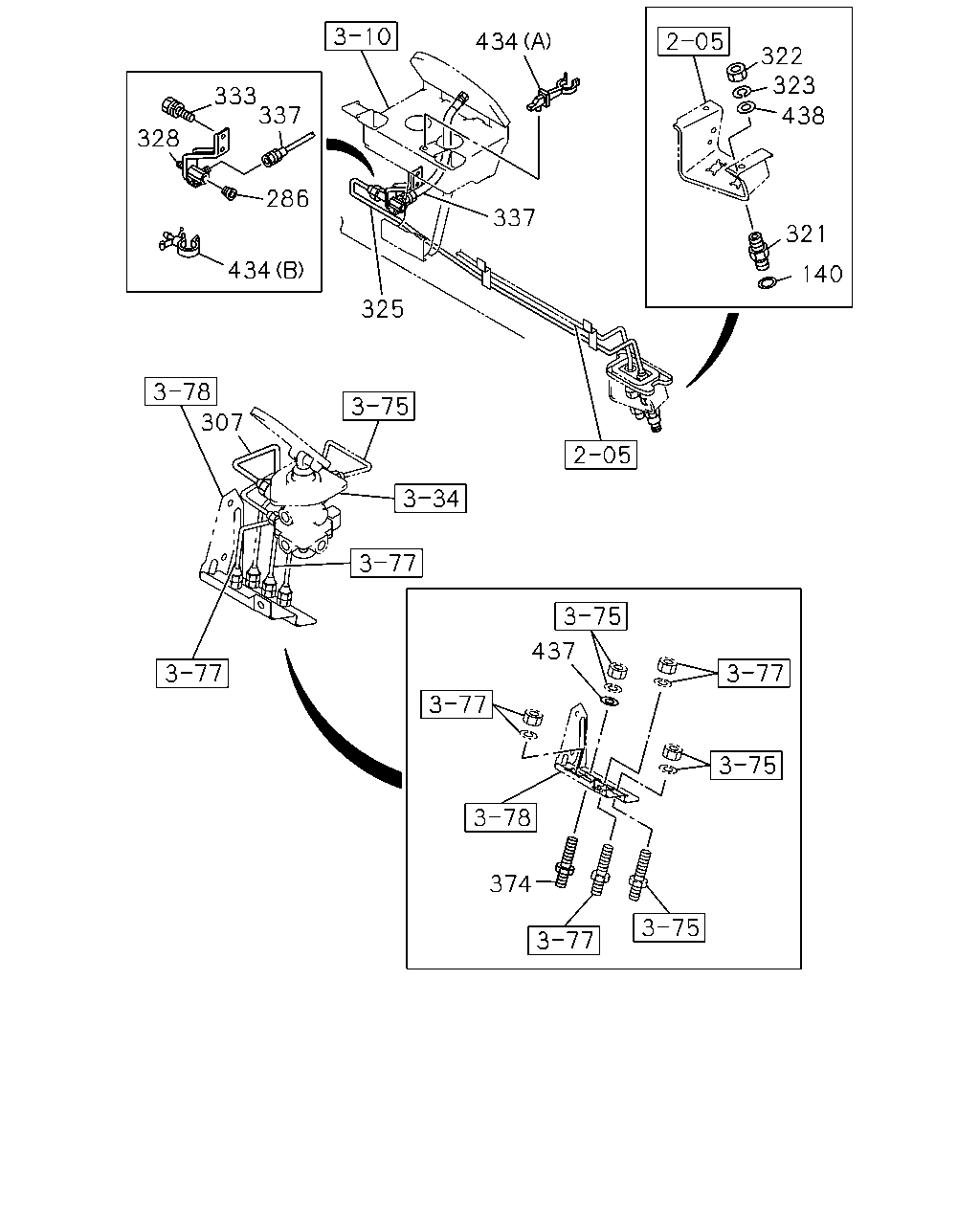

434 322 323 333 337 438 328 286 337 321 434 140 325 307 437 374
BalonParca AdiParca NoAdetTipApplied Date A B
140 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9707- ● ●
286 PLUG; AIR PIPE 9-09204-510-0 01 1 9707- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9707-9902 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903-0109 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=414 		1-49121-497-0 01 1 0110- ● ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9707- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9707- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9707-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 9707- ● ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 9707- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9707- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 9707-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606- ● ●
374 CONNECTOR 1-09654-324-0 01 1 9707-0209 ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 0210- ● ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9707- ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 9707- ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9707-0605 ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9707- ● ●
çizim 184912

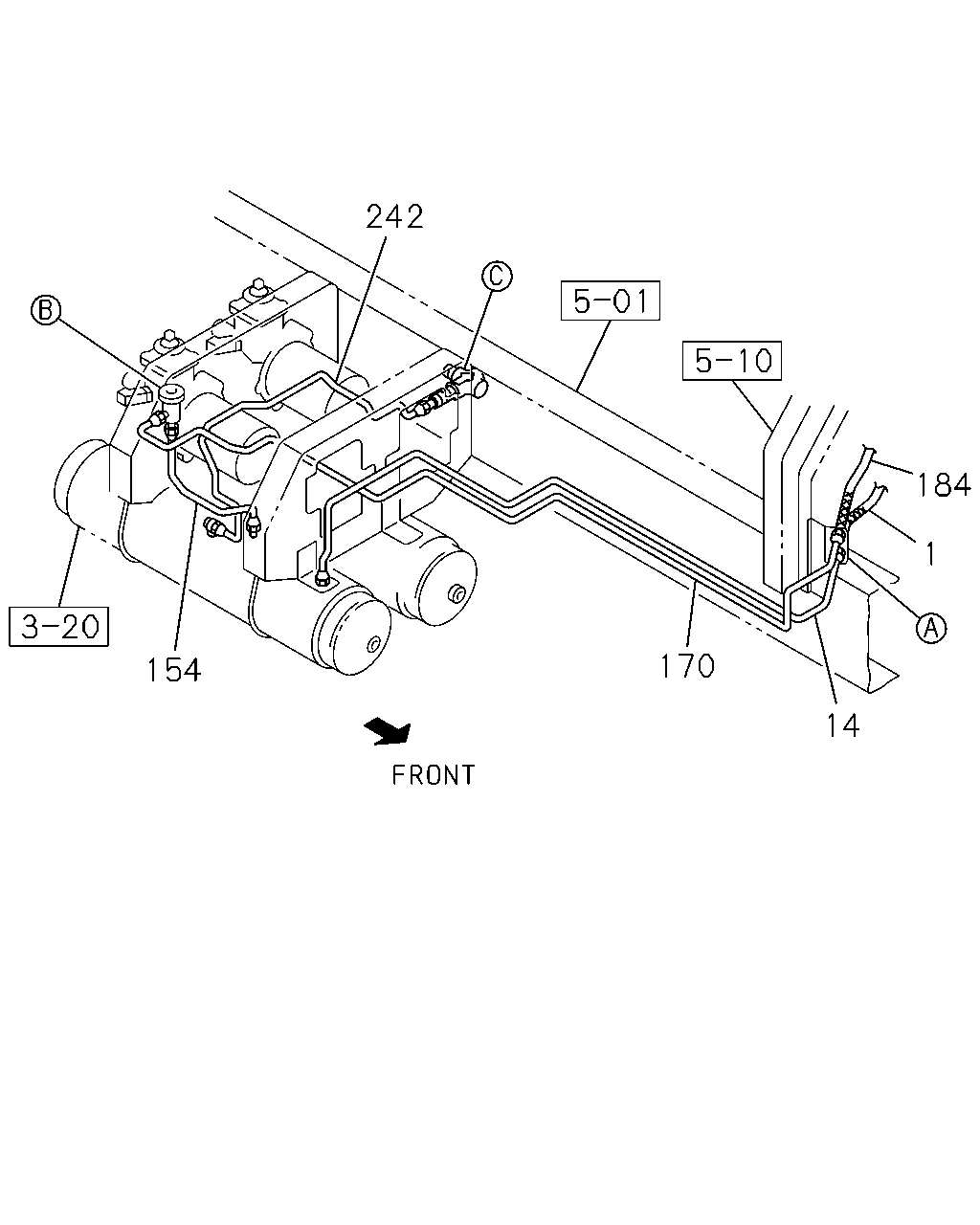

242 184 1 170 154 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9707- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 9707- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9707- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-883-0 01 1 9707- ● ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9707- ● ●
242 PIPE; AIR,AIR TANK TO UNION 1-49114-895-0 01 1 9707- ● ●
