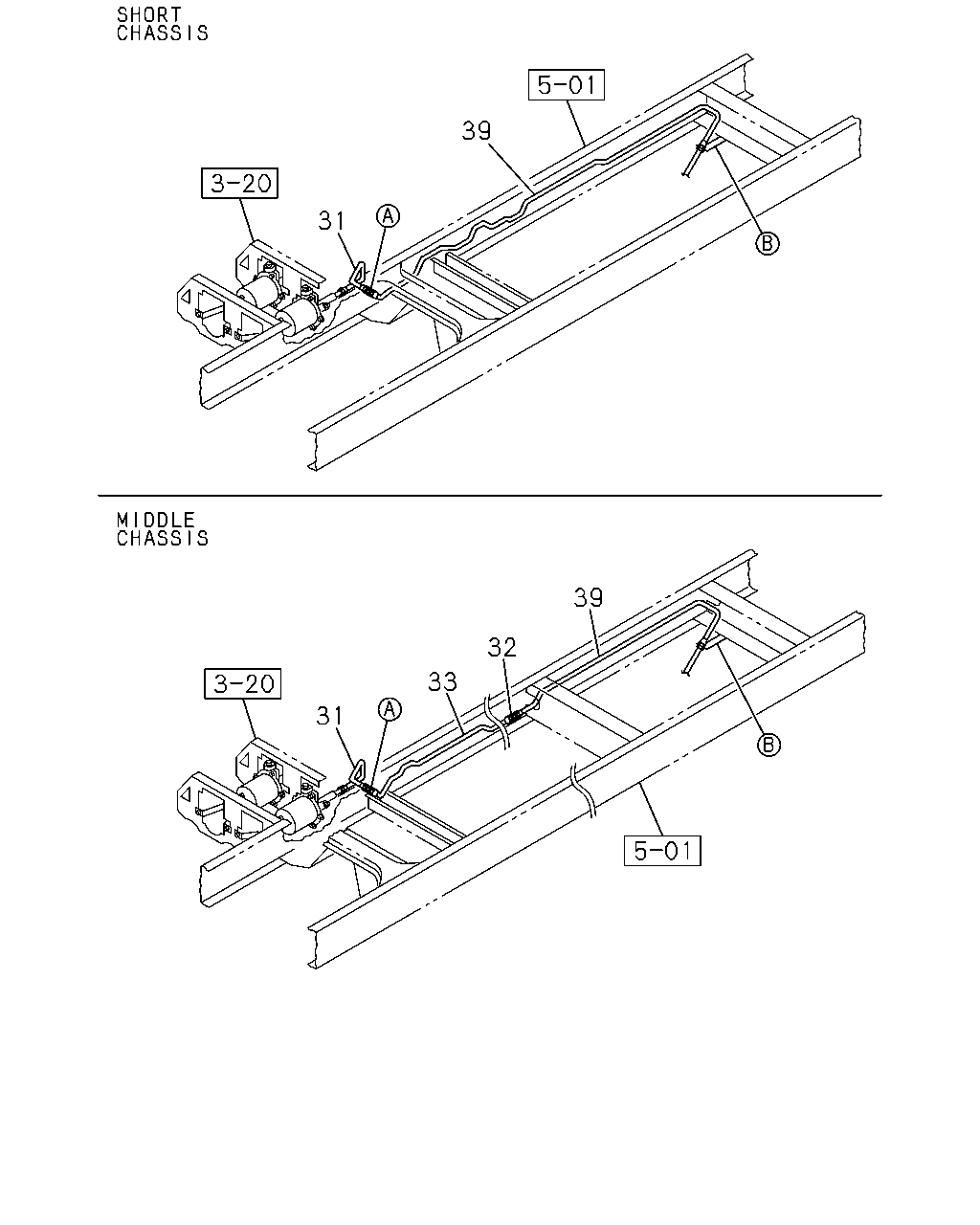

3-55 — BRAKE PIPING; OIL,REAR (#65445) — 22 parça

46 75 5 5 7 7 6 6 4 3 4 3 2 1 2 1 13 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9707-0907	●	●
1	HOSE; FLEX,RR BRK L=700	0-05212-700-0	01	1	0908-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9707-	●	●
3	BRACKET; FLEX HOSE,RR BRK	1-47475-112-0	01	1	9707-	●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	9707-		●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9707-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE IDN	0-28680-825-0	02	1	9707-0512	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9707-0603	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9707-	●	●
13	PIPE; BRK,RR AXLE L=1215	1-47428-959-0	01	1	9707-	●	●
13	PIPE; BRK,RR AXLE L=938	1-47428-958-0	01	1	9707-	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9707-	●	●
75	UNION; OIL PIPE M12 2WAY	1-09654-257-1	01	1	9707-	●	●

39 31 39 32 33 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	PIPE; OIL,AIR MASTER TO UNION L=415	1-47428-489-0	01	1	9707-	●	●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	9707-0607		●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-		●
33	PIPE; OIL,UNION TO UNION L=1180 SERVICED BY L=1200	1-47426-352-0	01	1	9707-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2988 SERVICED BY L=3200	1-47426-365-0	01	1	9707-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2156 SERVICED BY L=2200	1-47426-360-0	01	1	9707-		●
