3-20 — AIR TANK
(#65440) — 69 parça
Tümü
A - FTR5MC
B - FTR5MF
◀

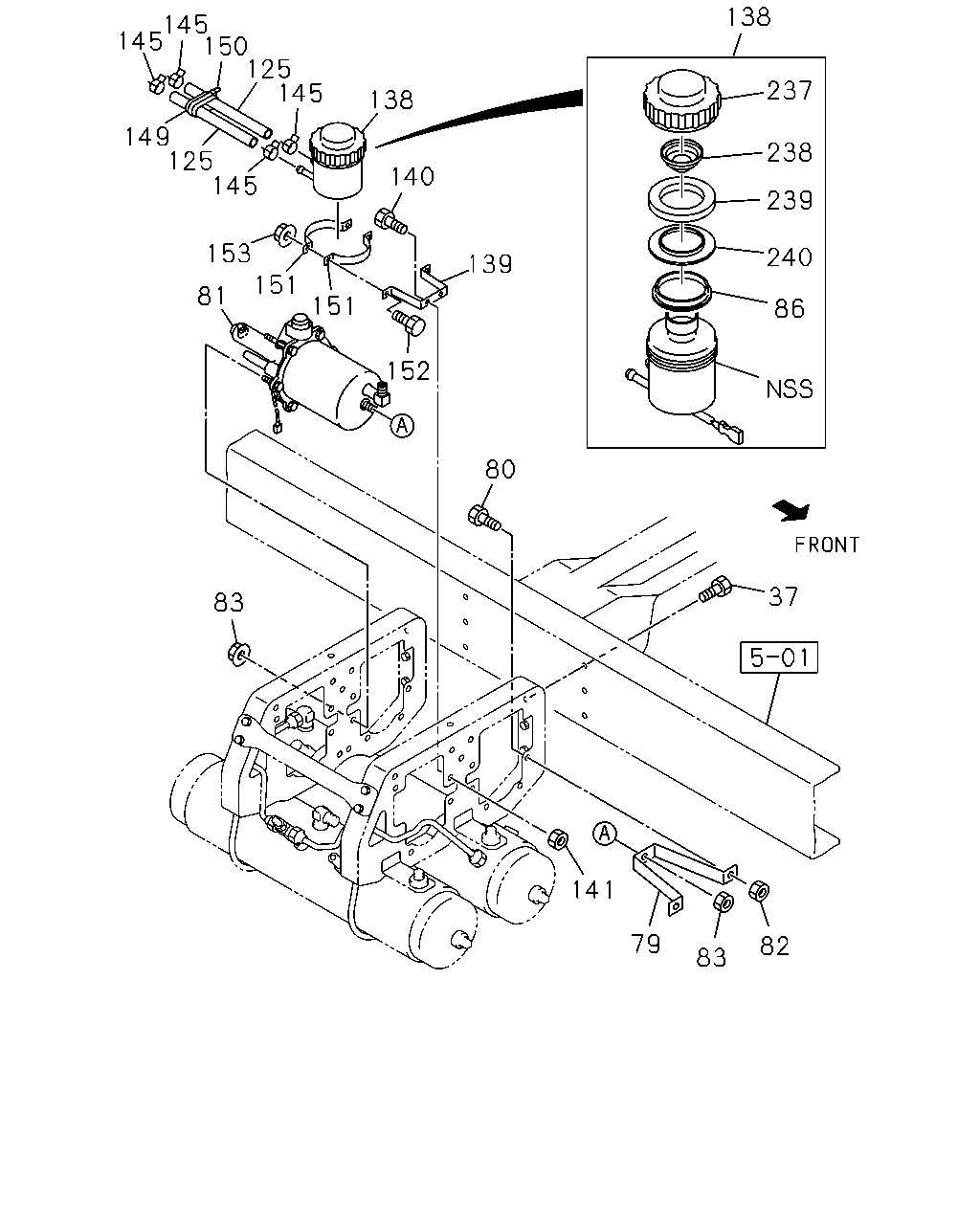

[320A] NO.1 (34 parça)

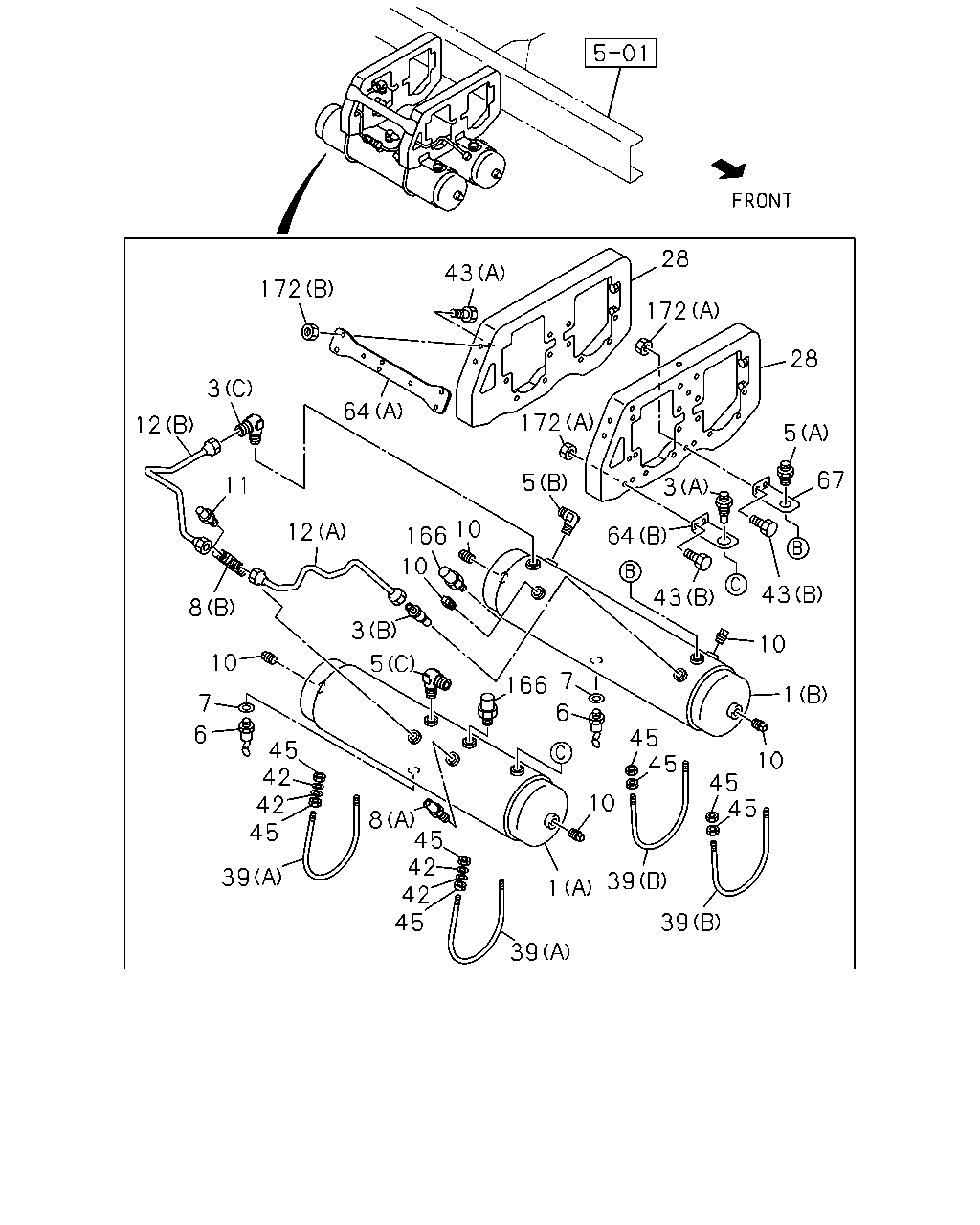

[320A] NO.2 (35 parça)
▶
138
145
145
150
125
145
237
138
149
125
145
238
140
239
153
240
139
151
81
151
86
152
80
37
83
141
79
82
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
BOLT; AIR TANK
M12X40 FLANGE
0-28681-240-0
06
1
9707-0512
●
●
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
06
1
0601-
●
●
79
STAY; AIR MASTER TO BRKT
H=203
1-53318-217-0
02
1
9707-
●
●
80
BOLT; BRKT
M10X30 FLANGE
0-28681-030-0
04
1
9707-0512
●
●
80
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
04
1
0601-
●
●
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY
1-47800-468-1
01
1
9707-
●
●
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY
1-47800-469-1
01
1
9707-
●
●
82
NUT; STAY,AIR MASTER BRKT
M10 FLANGE
0-91150-110-0
04
1
9707-0602
●
●
82
NUT; STAY,AIR MASTER BRKT
M10 FLANGE
0-91180-110-0
04
1
0603-
●
●
83
NUT; AIR MASTER
M10 FLANGE
0-91150-110-0
10
1
9707-0602
●
●
83
NUT; AIR MASTER
M10 FLANGE
0-91180-110-0
10
1
0603-
●
●
86
SEAL; DUST
1-47529-019-0
01
1
9707-
●
●
125
HOSE; OIL TANK TO AIR MASTER
L=1800
1-09360-320-0
02
1
9707-
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-170-1
01
1
9707-0011
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-184-0
01
1
0012-0206
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-185-1
01
1
0207-
●
●
139
BRACKET; OIL TANK
1-47537-081-2
01
1
9707-
●
●
140
BOLT; OIL TANK TO BRKT
M10X25 FLANGE
0-28681-025-0
02
1
9707-0512
●
●
140
BOLT; OIL TANK TO BRKT
M10X25 FLANGE IDN
0-28651-025-0
02
1
0601-
●
●
141
NUT; OIL TANK TO BRKT
M10 FLANGE
0-91150-210-0
02
1
9707-0602
●
●
141
NUT; OIL TANK TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 IDN
1-09704-102-0
04
1
9707-
●
●
149
SLEEVE; RUBBER,HOSE
ID=23 OD=27 L=40
1-09337-015-0
01
1
9707-
●
●
150
CLIP; BAND,RUBBER SLEEVE
L=140 IDN
5-09707-031-1
01
1
9707-
●
●
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
9707-
●
●
152
BOLT; OIL TANK TO BAND
M8X30 FLANGE
0-28680-830-0
02
1
9707-0512
●
●
152
BOLT; OIL TANK TO BAND
M8X30 FLANGE
0-28650-830-0
02
1
0601-
●
●
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91150-108-0
02
1
9707-0602
●
●
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
237
CAP; OIL TANK
1-47525-024-0
01
1
9707-0011
●
●
237
CAP; OIL TANK
1-47525-030-0
01
1
0012-
●
●
238
PLATE; BAFFLE
1-47529-022-0
01
1
9707-
●
●
239
FILTER; DUST
1-47529-017-0
01
1
9707-
●
●
240
HOLDER; FILTER
1-47529-018-0
01
1
9707-
●
●
28
43
172
172
28
3
64
172
12
5
67
5
11
3
10
12
166
64
10
43
43
8
3
10
10
5
7
166
6
1
7
6
45
45
45
42
42
45
10
45
45
10
45
42
42
45
8
39
39
1
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK ASM; AIR
(A)
1-48330-598-0
01
1
9707-
●
●
1
TANK ASM; AIR
(B)
1-48370-299-0
01
1
9707-
●
●
3
VALVE; CHECK,AIR TANK
(A) M22 & PT3/4
1-48410-136-3
01
1
9707-
●
●
3
VALVE; CHECK,AIR TANK
(B)
1-48410-182-3
01
1
9707-
●
●
3
VALVE; CHECK,AIR TANK
(C) M20 & PT3/4 ELBOW
1-48410-412-0
01
1
9707-
●
●
5
UNION; AIR TANK
(A) M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
9707-
●
●
5
UNION; AIR TANK
(C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9707-
●
●
5
UNION; AIR TANK
(B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
9707-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
9707-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
9707-
●
●
8
CONNECTOR; AIR TANK
(A)
1-09650-283-1
01
1
9707-
●
●
8
CONNECTOR; AIR TANK
(B)
1-09656-699-0
01
1
9707-
●
●
10
PLUG; AIR TANK
PT1/4
9-99204-513-0
06
1
9707-
●
●
11
VALVE; SAFETY,AIR TANK
1-48320-012-2
01
1
9707-
●
●
12
PIPE ASM; AIR,AIR TANK TO AIR TANK
(B)
1-47497-011-0
01
1
9707-
●
●
12
PIPE ASM; AIR,AIR TANK TO AIR TANK
(A)
1-47497-012-0
01
1
9707-
●
●
28
BRACKET; AIR TANK
1-53318-338-6
02
1
9707-
●
●
39
U-BOLT; AIR TANK
(A) L=97.5 IDN
1-48317-323-1
02
1
9707-
●
●
39
U-BOLT; AIR TANK
(B) L=195 IDN
1-48317-367-2
02
1
9707-
●
●
42
WASHER; PL
ID=8.4 OD=18
9-09160-608-0
04
1
9707-0605
●
●
42
WASHER; PL
ID=8.4 OD=18
0-91610-608-0
04
1
0606-
●
●
43
BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE
0-28680-820-0
04
1
9707-0512
●
●
43
BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE IDN
0-28650-820-0
04
1
0601-
●
●
43
BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE
0-28681-025-0
04
1
9707-0512
●
●
43
BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE IDN
0-28651-025-0
04
1
0601-
●
●
45
NUT; AIR TANK,MAIN
M8
9-09110-408-0
16
1
9707-0512
●
●
45
NUT; AIR TANK,MAIN
M8 IDN
0-91110-508-0
16
1
0601-
●
●
64
STAY; AIR TANK,MAIN
(A)
1-53318-293-1
01
1
9707-
●
●
64
STAY; AIR TANK,MAIN
(B)
8-94301-490-0
01
1
9707-
●
●
67
STAY; SUB TANK
1-48317-349-0
01
1
9707-
●
●
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
530KPA
1-48340-054-1
01
1
9707-
●
●
172
NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE
0-91150-108-0
04
1
9707-0602
●
●
172
NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
172
NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE
0-91150-210-0
04
1
9707-0602
●
●
172
NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
