3-05 — REAR WHEEL BRAKE (#65436) — 67 parça

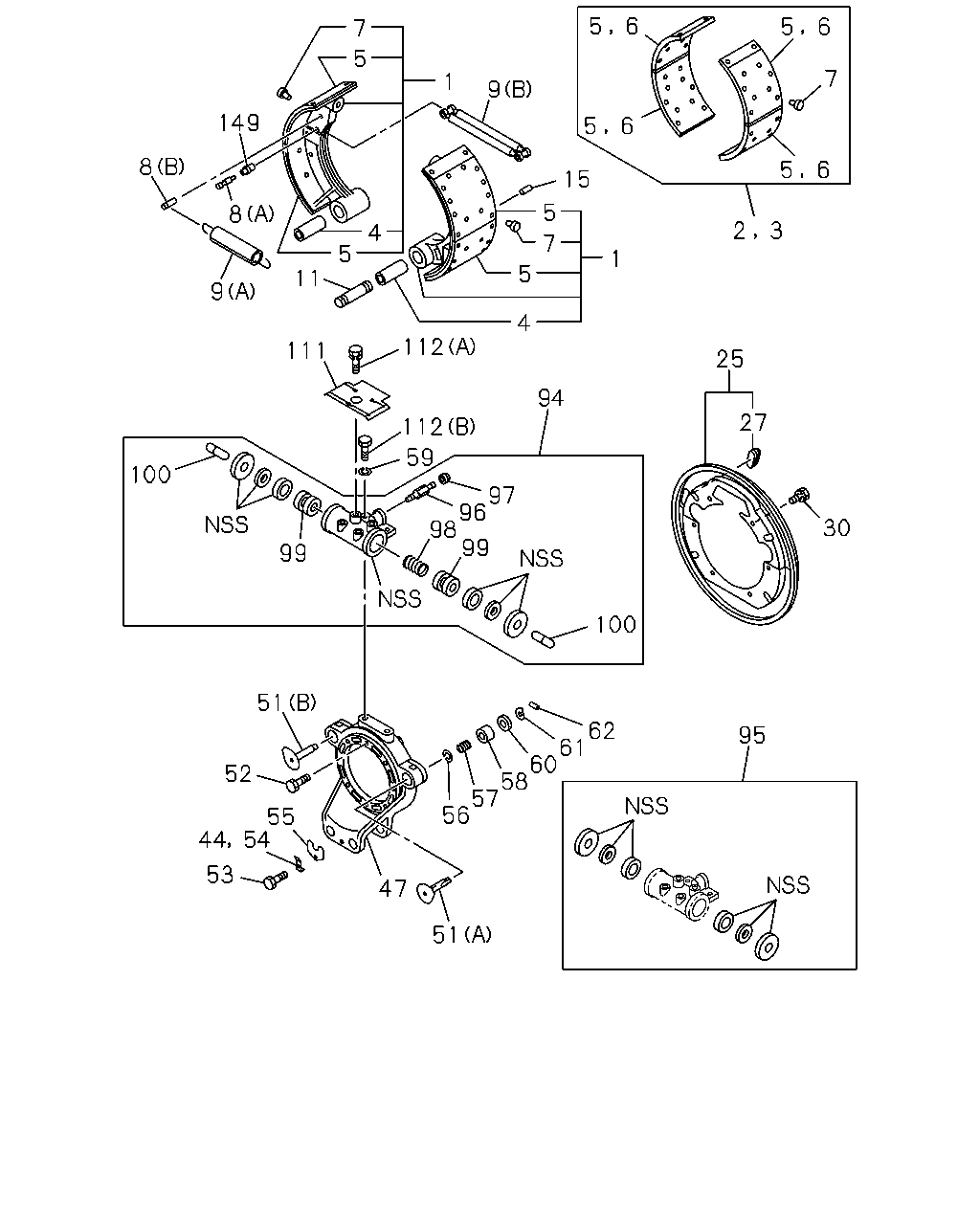

çizim 184907
5 6 5 6 7 5 7 1 9 149 5 6 8 5 6 15 5 8 2 3 4 7 5 1 5 11 9 4 112 111 25 94 27 112 59 100 97 96 98 99 30 99 100 51 62 61 60 58 57 56 95 52 55 54 44 53 47 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-47110-893-0 04 1 9707-0007 ● ●
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-47120-708-0 04 1 0008-0106 ● ●
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/6 16.5" HYPOID(W1M) 		1-47120-708-0 04 1 0107- ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47120-218-0 04 1 9707- ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-88302-925-0 02 1 9707-0006 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L) T=16 		1-88310-529-1 02 1 0007-0106 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/6 16.5" HYPOID(W1M) T=16 		1-88310-529-1 02 1 0107- ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-88302-958-0 02 1 9707- ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-88302-926-0 02 1 9707-0006 ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L) T=17 		1-88310-530-1 02 1 0007-0106 ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/6 16.5" HYPOID(W1M) T=17 		1-88310-530-1 02 1 0107- ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-88310-157-0 02 1 9707- ● ●
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-47112-012-0 04 1 9707-0007 ● ●
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47112-012-0 04 1 9707-0007 ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0008- ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-47115-773-0 08 1 9707-0007 ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L) T=16 		1-47125-813-0 08 1 0008-0106 ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/6 16.5" HYPOID(W1M) T=16 		1-47125-813-0 08 1 0107- ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47125-055-0 08 1 9707- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-47115-774-0 08 1 9707-0007 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L) T=17 		1-47125-814-0 08 1 0008-0106 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/6 16.5" HYPOID(W1M) T=17 		1-47125-814-0 08 1 0107- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47125-057-0 08 1 9707- ● ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 9707- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 9707- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 9707- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 9707- ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L) (B) 		1-09583-210-0 04 1 9707-0106 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/6 16.5" HYPOID(W1M) (B) 		1-09583-210-0 02 1 0107- ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) 		1-09583-210-0 04 1 9707- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 9707- ● ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 9707- ● ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 9707- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9707- ● ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 9707-0906 ● ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907- ● ●
44 WASHER; ADJ SCREW
FINAL GEAR 39/6 16.5" HYPOID(W1L) 		1-47133-011-0 02 1 9707-0106 ● ●
44 WASHER; ADJ SCREW
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/6 16.5" HYPOID(W1M) 		1-47133-011-0 02 1 0107- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 9707- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 9707- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 9707- ● ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 9707- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 9707-0512 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47133-011-0 02 1 9707- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 9707- ● ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 9707- ● ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 9707- ● ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 9707- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 9707-0603 ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 9707- ● ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 9707- ● ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 9707- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47600-682-0 02 1 9707- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-528-0 02 1 9707- ● ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 9707- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 9707- ● ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 9707- ● ●
99 PISTON; RR WHEEL CYL 1-47624-303-0 04 1 9707- ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 9707- ● ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 9707- ● ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20801-435-0 04 1 9707-0512 ● ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20851-435-0 04 1 0601- ● ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50040-816-0 06 1 9707-0512 ● ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50540-816-0 06 1 0601- ● ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 9707- ● ●
