Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

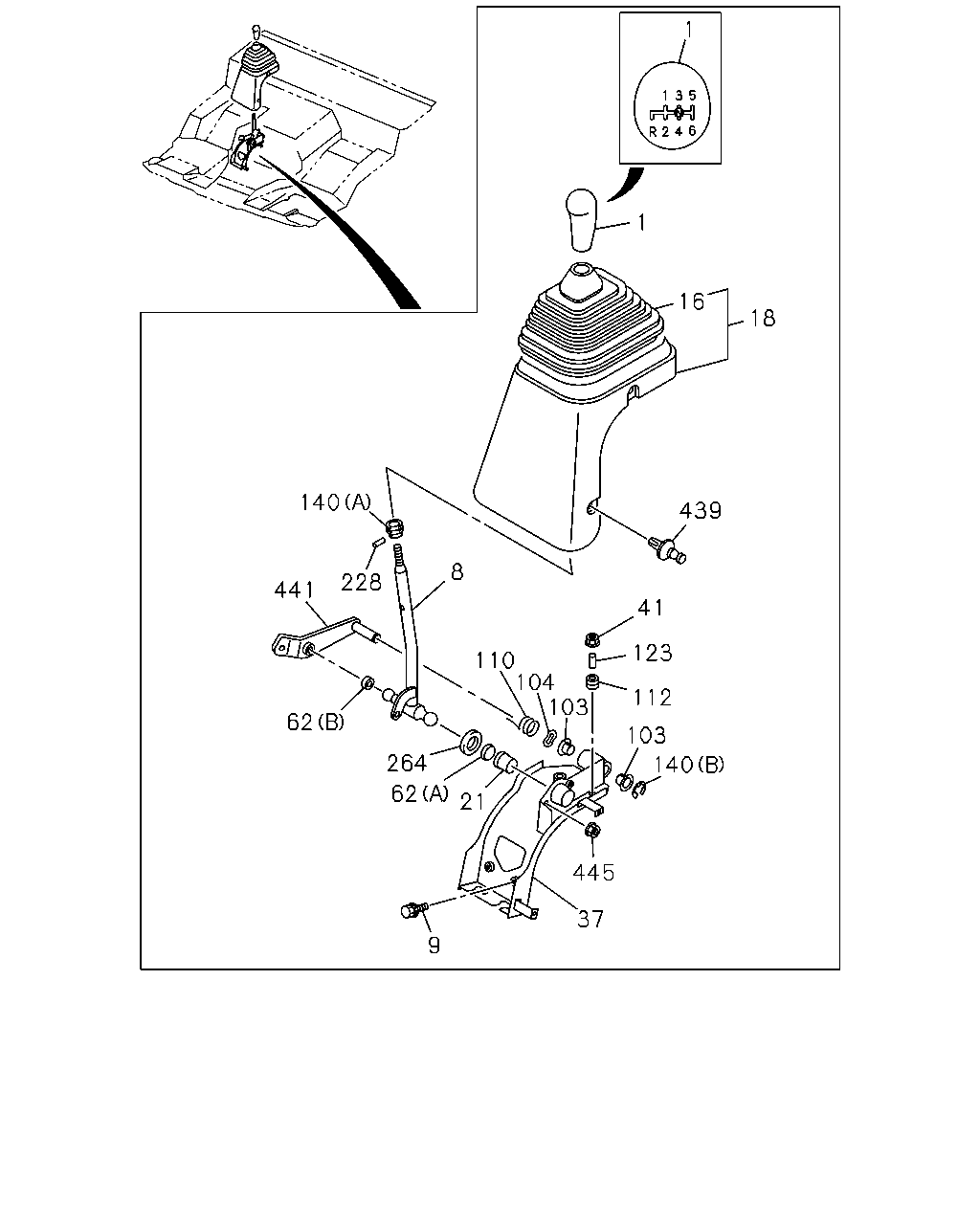

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#65430) — 26 parça
1
1
16
18
140
439
8
228
441
41
123
110
104
103
112
62
103
264
140
62
21
445
37
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-070-1
01
1
9707-
8
LEVER; CHANGE
1-33619-553-0
01
1
9707-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
9707-
16
BOOT; CHANGE LEVER
1-79998-751-4
01
1
9707-
18
BOOT; CHANGE LEVER
1-79998-761-6
01
1
9707-
21
SEAT; CHANGE LEVER
1-33619-429-0
01
1
9707-
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-444-2
01
1
9707-
41
NUT; CHANGE LEVER
M8 W/LK WASHER
8-97065-435-0
02
1
9707-0107
41
NUT; CHANGE LEVER
M8 FLANGE
8-97046-127-0
02
1
0108-0805
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
0806-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
9707-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97011-900-0
01
1
9707-
103
BUSHING; RELAY LEVER
ID=14 OD=16
8-94252-671-0
02
1
9707-
104
WASHER; WAVED
1-09550-009-0
01
1
9707-
110
SPRING; RETURN,CHANGE LEVER
1-33619-435-0
01
1
9707-
112
RUBBER; CUSHION
1-33619-442-0
04
1
9707-
123
COLLAR; DIST,CHANGE LEVER
1-33619-443-0
04
1
9707-
140
RING; SNAP
(A)
1-33619-504-0
01
1
9707-
140
RING; SNAP
(B) ID=10 IDN
9-09185-410-0
01
1
9707-0604
140
RING; SNAP
(B) ID=10 IDN
0-91805-510-0
01
1
0605-
228
PIN; SPR,CHANGE LEVER
1-33619-505-0
01
1
9707-
264
PLATE; COVER
1-33619-430-0
01
1
9707-
439
FASTENER; COVER
1-09987-245-1
04
1
9707-
441
LEVER; SELECT
1-33619-437-2
01
1
9707-
445
NUT; PLATE
M6 FLANGE
0-91150-106-0
02
1
9707-0602
445
NUT; PLATE
M6 FLANGE
0-91180-106-0
02
1
0603-
