2-05 — CLUTCH PIPING (#65422) — 63 parça

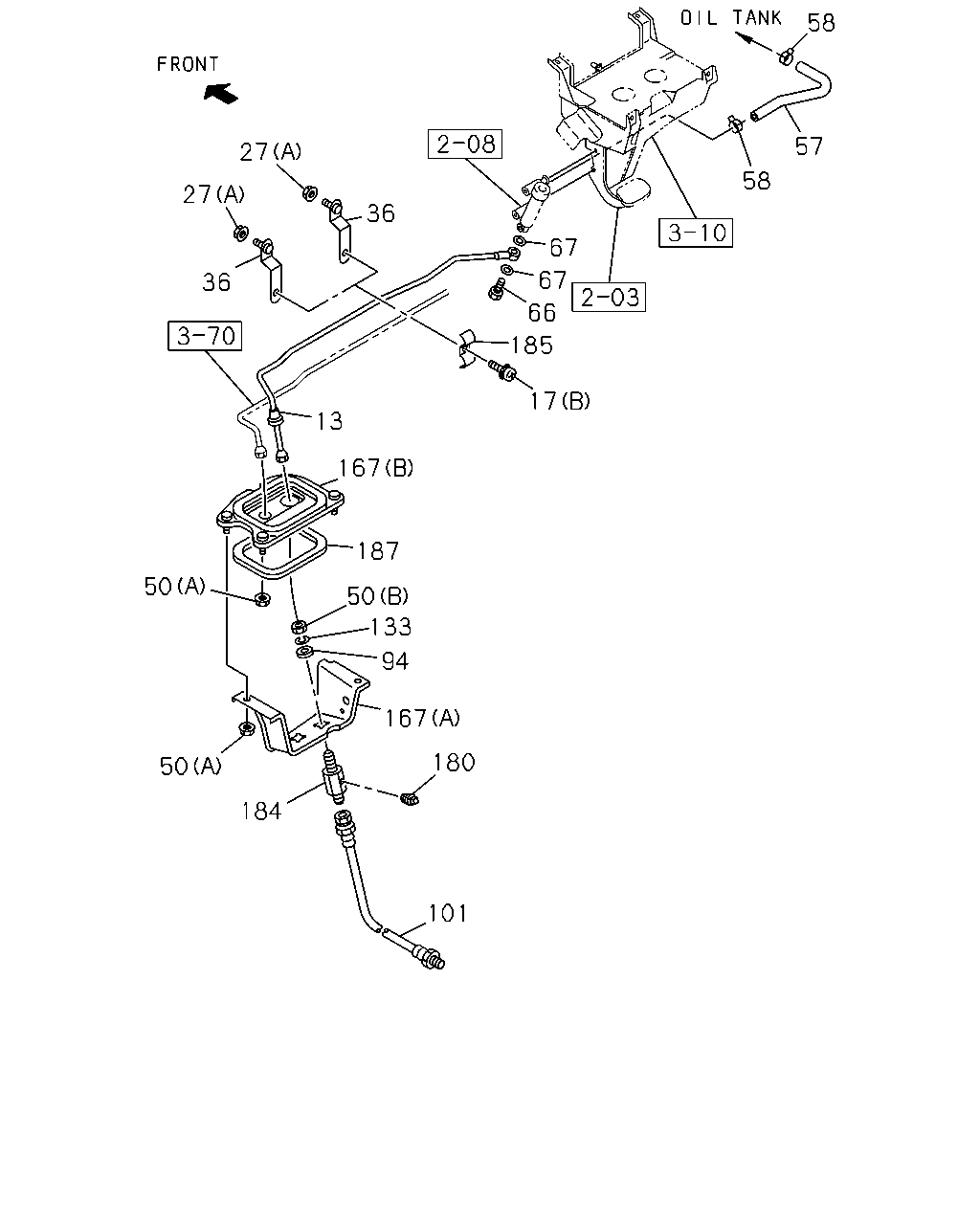

çizim 99551
58 57 27 58 27 36 67 67 36 66 185 17 13 167 187 50 50 133 94 167 180 50 184 101
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47423-750-4 01 1 9707-
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28680-825-0 02 1 9707-0512
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9707-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9707-0602
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9707-
36 BRACKET; CLIP 1-79738-186-1 02 1 9707-
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 9707-
50 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9707-0512
50 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0601-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9707-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9707-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9707-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9707-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 9707-0605
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0606-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9707-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9707-0603
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604-
167 BRACKET; UNION
(A) 		1-79738-193-6 01 1 9707-
167 BRACKET; UNION
(B) 		1-79738-204-2 01 1 9707-9911
167 BRACKET; UNION
(B) 		1-79738-845-1 01 1 9912-
180 PLUG; PIPE 9-09204-510-0 01 1 9707-0804
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9707-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 9707-
187 SEAL; BRKT 1-79738-190-0 01 1 9707-

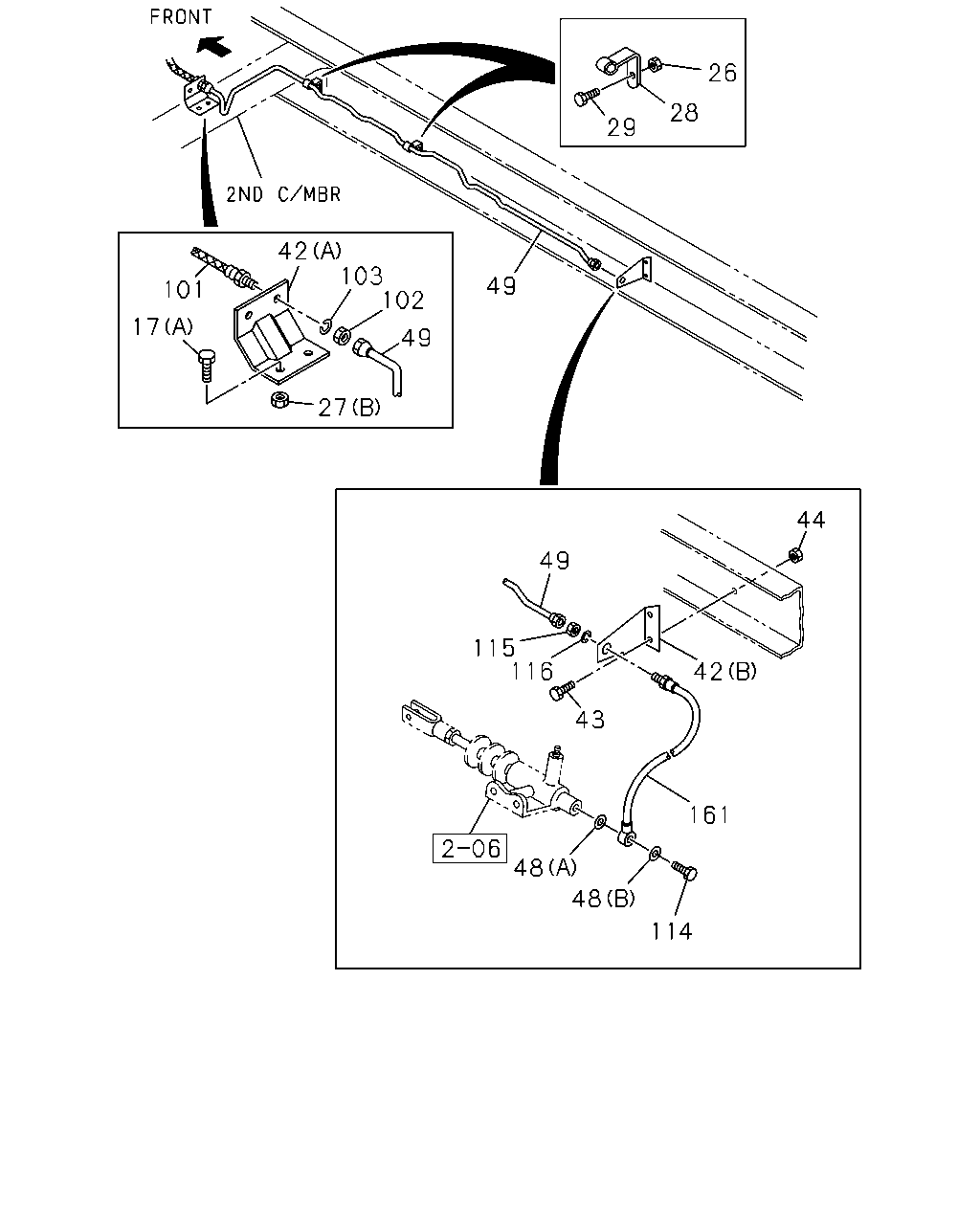

çizim 101899
26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28680-825-0 02 1 9707-0512
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9707-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9707-0602
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9707-0602
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9707-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 9707-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9707-0512
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9707-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9707-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9707-0512
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9707-0602
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603-
48 GASKET; FLEX HOSE,CLU CONT
(A) ID=10.5 		1-09630-074-1 01 1 9707-
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09851-004-0 01 1 9707-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=2426 SERVICED BY L=2700 		1-47426-396-0 01 1 9707-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9707-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9707-0512
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9707-0603
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9707-
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9707-0512
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9707-0603
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
161 HOSE; FLEX,SLAVE CYL
L=400 		1-09364-597-0 01 1 9707-
