Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

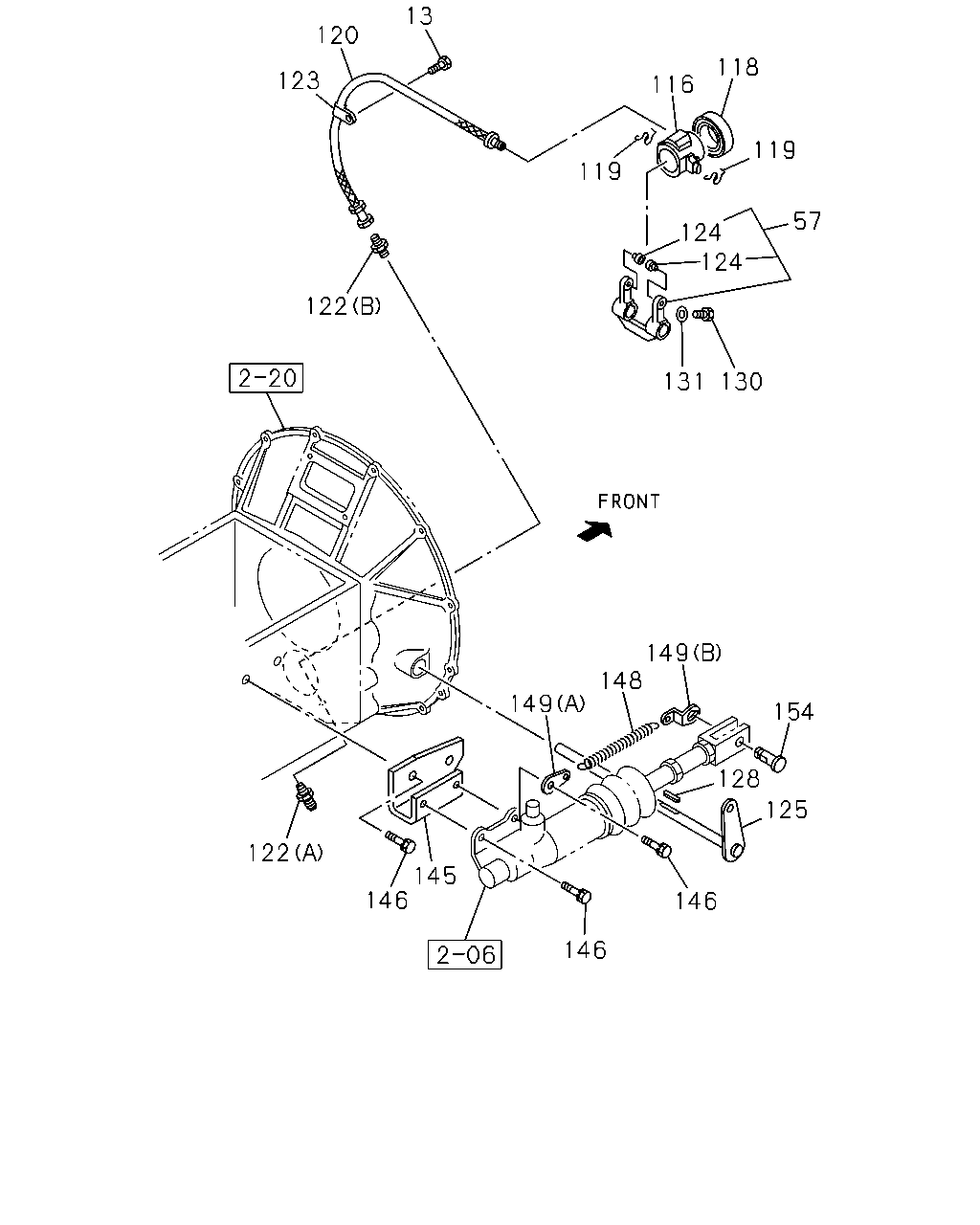

2-01 — CLUTCH
(#65420) — 60 parça
◀
[201A] NO.2 (31 parça)
[201A] NO.1 (29 parça)
▶
13
120
118
123
116
119
119
57
124
124
122
131
130
149
148
149
154
128
125
122
145
146
146
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9707-0512
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
57
FORK; SHIFT,CLU
1-31340-056-1
01
1
9707-
116
BLOCK; SHIFT,CLU
1-31321-052-3
01
1
9707-
118
BEARING; CLU RELEASE
1-09820-008-0
01
1
9707-0111
118
BEARING; CLU RELEASE
1-09820-114-0
01
1
0112-
119
SPRING; SHIFT FORK
1-09585-054-1
01
1
9707-
119
SPRING; SHIFT FORK
1-09585-053-1
01
1
9707-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09364-870-0
01
1
9707-0003
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0004-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
9707-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
9-09031-010-0
01
1
9707-0512
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
9-09524-835-0
01
1
9707-0606
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
0607-
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
9707-
125
SHAFT; CLU
1-31342-271-0
01
1
9707-9803
125
SHAFT; CLU
1-31342-298-1
01
1
9804-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
9707-
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
9707-0512
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0601-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
9707-0603
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0604-
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-052-0
01
1
9707-9803
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-058-0
01
1
9804-
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28181-025-0
04
1
9707-0512
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28151-025-0
04
1
0601-
148
SPRING; CLU RETURN
1-09583-249-0
01
1
9707-
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-019-1
01
1
9707-
149
EYE; SPRING,RETURN SPRING
(A) T=2.3
1-47324-005-1
01
1
9707-
154
PIN; JAW JOINT
1-31424-009-0
01
1
9707-

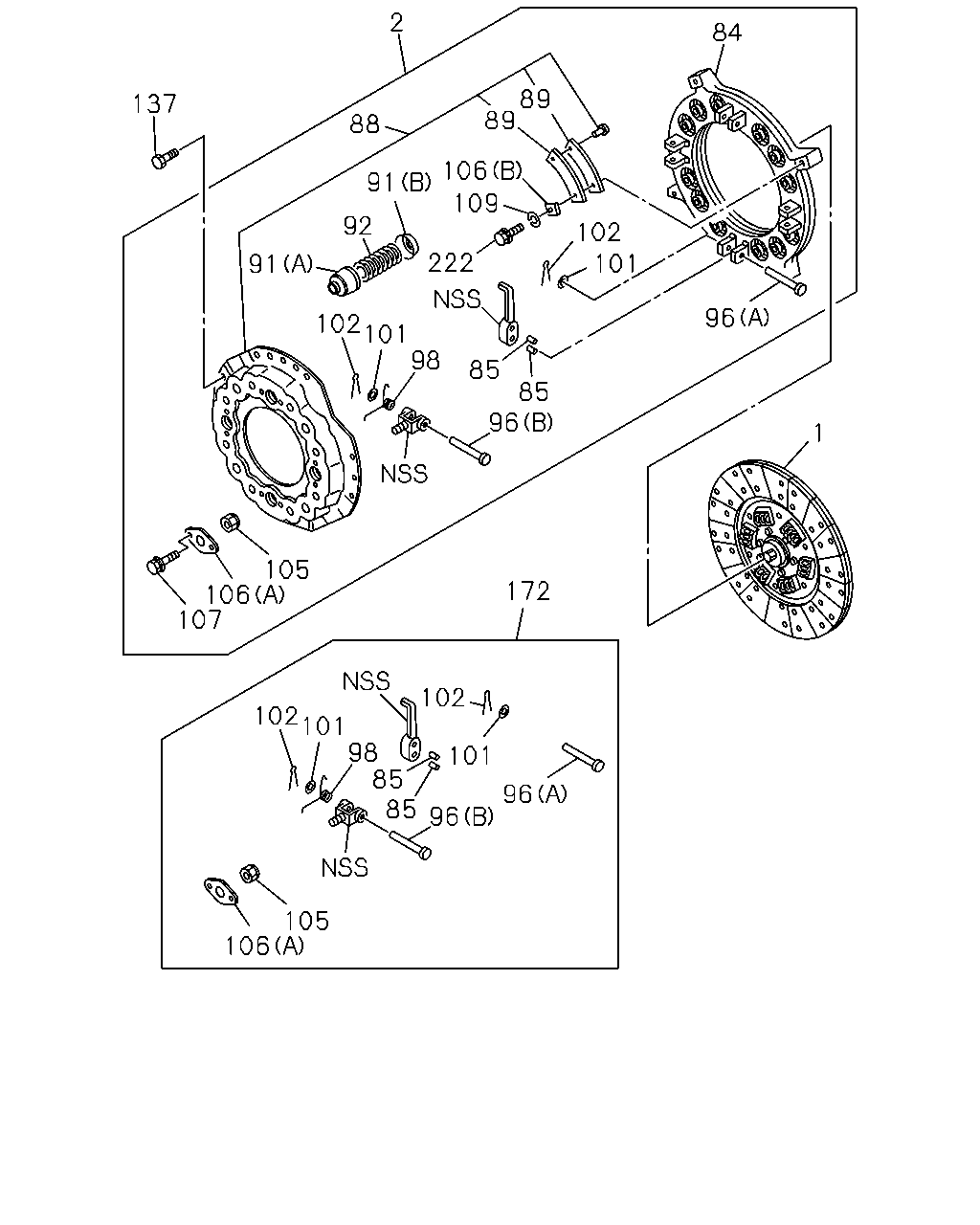

2
84
89
89
137
88
106
91
109
92
102
101
222
91
96
102
101
98
85
85
96
1
105
106
107
172
102
102
101
98
85
85
101
96
96
105
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
14" IDN
8-97520-221-0
01
1
9707-
2
PLATE ASM; PRESSURE,CLU
IDN
8-97520-219-2
01
1
9707-
84
PLATE; PRESSURE
IDN
8-97520-230-0
01
1
9707-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
9707-
88
COVER SUB ASM; CLU
IDN
1-31211-036-0
01
1
9707-
89
PLATE; STRAP
1-31229-001-0
08
1
9707-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
9707-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
9707-
92
SPRING; CLU
14"
1-09580-234-0
12
1
9707-0308
92
SPRING; CLU
IDN
1-31214-088-0
12
1
0309-
96
PIN; RELEASE LEVER
(B) L=49.0
1-31232-005-0
04
1
9707-
96
PIN; RELEASE LEVER
(A) L=57.0
1-31232-014-0
04
1
9707-
98
SPRING; RETURN
1-31233-003-0
04
1
9707-
101
WASHER; RELEASE LEVER
9-31239-039-0
08
1
9707-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
9707-
105
NUT; SUPPORT
9-31235-061-0
04
1
9707-0308
105
NUT; SUPPORT
IDN
1-31235-014-0
04
1
0309-
106
PLATE; LK,LEVER SUPPORT
(B)
1-31235-008-0
08
1
9707-
106
PLATE; LK,LEVER SUPPORT
(A)
1-31239-019-0
04
1
9707-
107
BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER
1-31239-020-0
08
1
9707-0308
107
BOLT; LK PLATE
IDN
1-31239-061-0
08
1
0309-
109
WASHER; LK,STRAP
ID=10.2
9-09150-510-0
04
1
9707-0603
109
WASHER; LK,STRAP
ID=10.2
0-91510-510-0
04
1
0604-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
12
1
9707-0512
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0601-
172
LEVER KIT; RELEASE,CLU
1-87831-167-0
01
1
9707-0306
172
LEVER KIT; RELEASE,CLU
1-87831-173-1
01
1
0307-
222
BOLT; STRAP
M10X26 HEX SOKET
1-09040-101-0
04
1
9707-0308
222
BOLT; STRAP
IDN
1-31239-059-0
04
1
0309-
