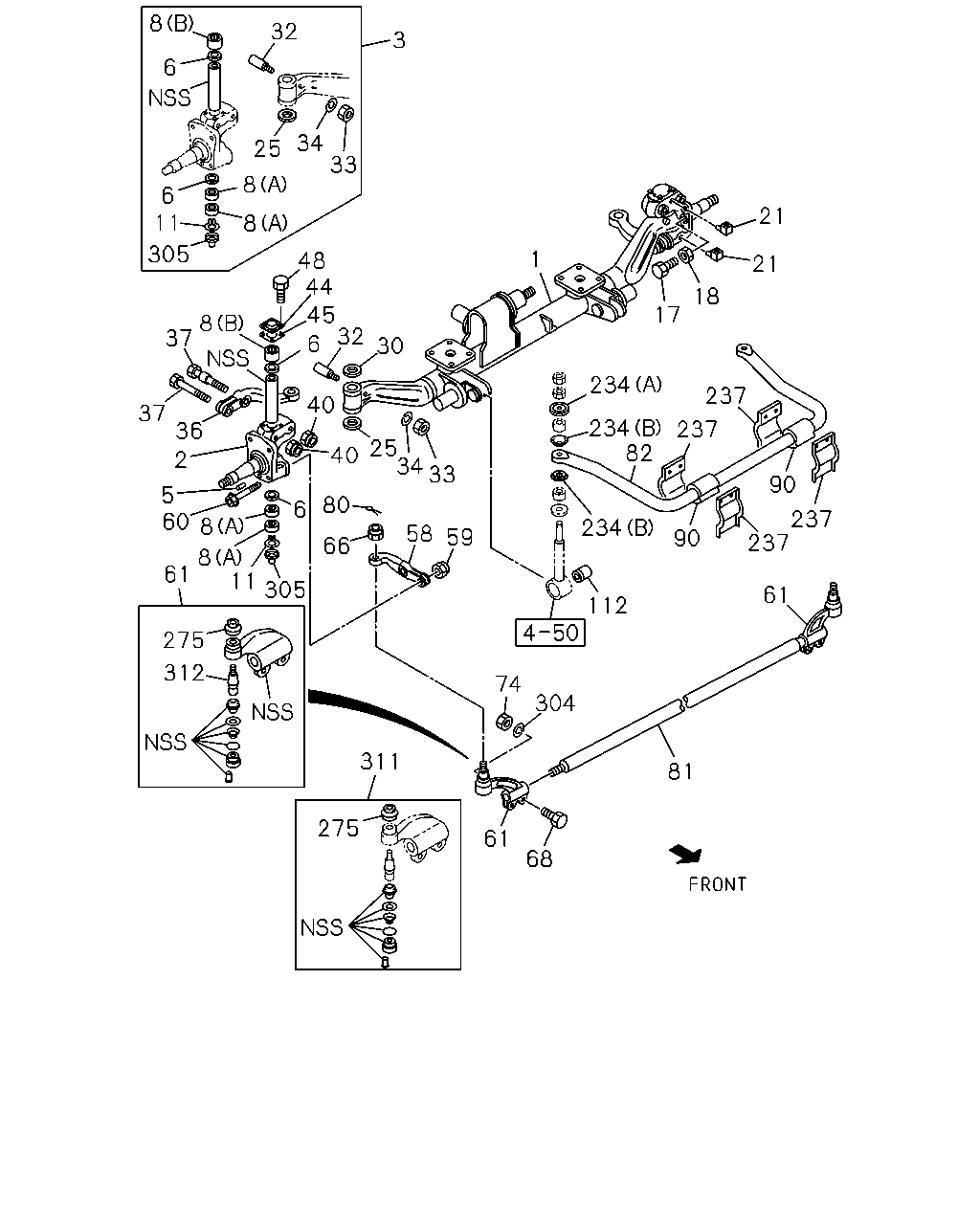

4-10 — FRONT AXLE (#6542) — 64 parça

8 32 3 6 34 33 25 8 6 11 21 8 305 1 48 44 45 32 21 18 17 8 37 6 30 234 237 40 37 234 82 237 36 25 34 33 40 2 90 5 60 80 6 237 237 8 234 58 59 90 66 8 11 61 305 61 112 275 312 74 304 311 81 275 61 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43110-066-2	01	1	9705-0010
1	AXLE; FRT	1-43110-076-0	01	1	0011-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9705-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9705-
3	KING PIN SET	1-87830-738-0	02	1	9705-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9705-
6	SEAL; KING PIN	9-09926-024-0	04	1	9705-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9705-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9705-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9705-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9705-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9705-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9705-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9705-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9705-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9705-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9705-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9705-
36	ARM; KNUCKLE	1-43133-064-0	01	1	9705-
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9705-
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9705-
44	COVER; KING PIN	1-43175-014-1	02	1	9705-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	9705-
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9705-
58	ARM; TIE ROD	1-43135-042-1	01	1	9705-
58	ARM; TIE ROD	1-43134-042-1	01	1	9705-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9705-
61	ROD END; TIE ROD	1-43150-649-3	01	1	9705-9812
61	ROD END; TIE ROD	1-43150-804-0	01	1	9901-
61	ROD END; TIE ROD	1-43150-639-3	01	1	9705-9812
61	ROD END; TIE ROD	1-43150-803-0	01	1	9901-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9705-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9705-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9705-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9705-
81	ROD; TIE	1-43151-121-0	01	1	9705-
82	BAR; STAB,FRT SUSP	1-51771-141-0	01	1	9705-
90	BUSHING; RUBBER,STAB BAR ID=38 RED	1-51779-047-0	02	1	9705-
112	BUSHING; ROD	1-51779-072-0	02	1	9705-
234	WASHER; STAB (A) ID=20.5 OD=74 T=6	9-51631-044-0	02	1	9705-
234	WASHER; STAB (B) ID=24.4 OD=74 T=2.3	9-51631-045-0	04	1	9705-
237	SUPPORT; STAB BAR	1-51781-120-2	04	1	9705-
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9705-9812
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9705-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9705-
311	REPAIR KIT; ROD END,TIE	1-85574-041-0	02	1	9705-
312	JOINT; BALL,ROD END,TIE	1-44361-105-1	02	1	9705-
