1-50 — EXHAUST PIPE AND SILENCER (#65417) — 182 parça

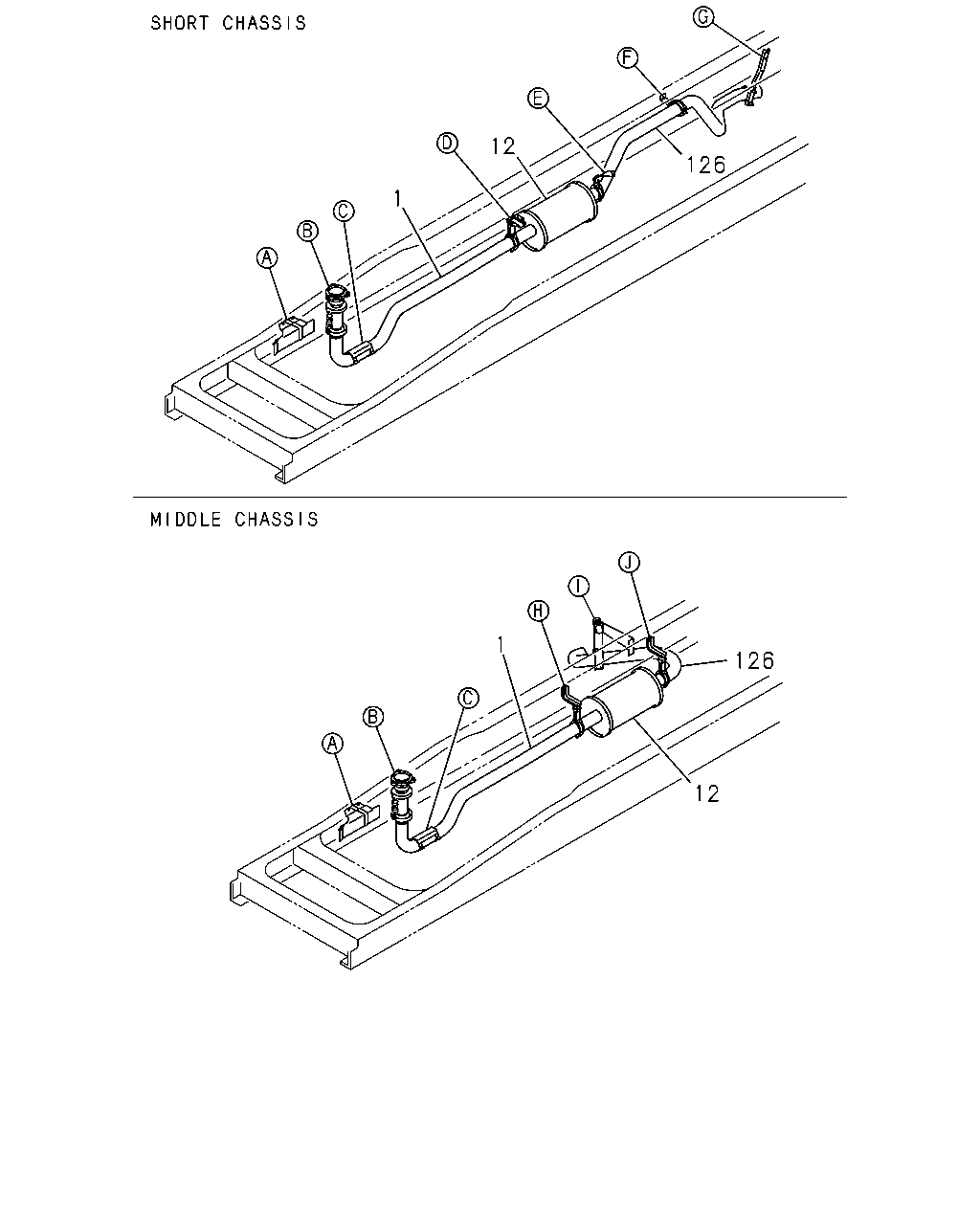

12 126 1 1 126 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH IDN	8-97520-046-0	01	1	9707-
12	SILENCER ASM; EXH IDN	8-97520-043-0	01	1	9707-
126	PIPE; EXH,RR SHORT CHASSIS(FT***C) IDN	8-97520-045-0	01	1	9707-
126	PIPE; EXH,RR MIDDLE CHASSIS(FT***F) IDN	8-97520-044-1	01	1	9707-

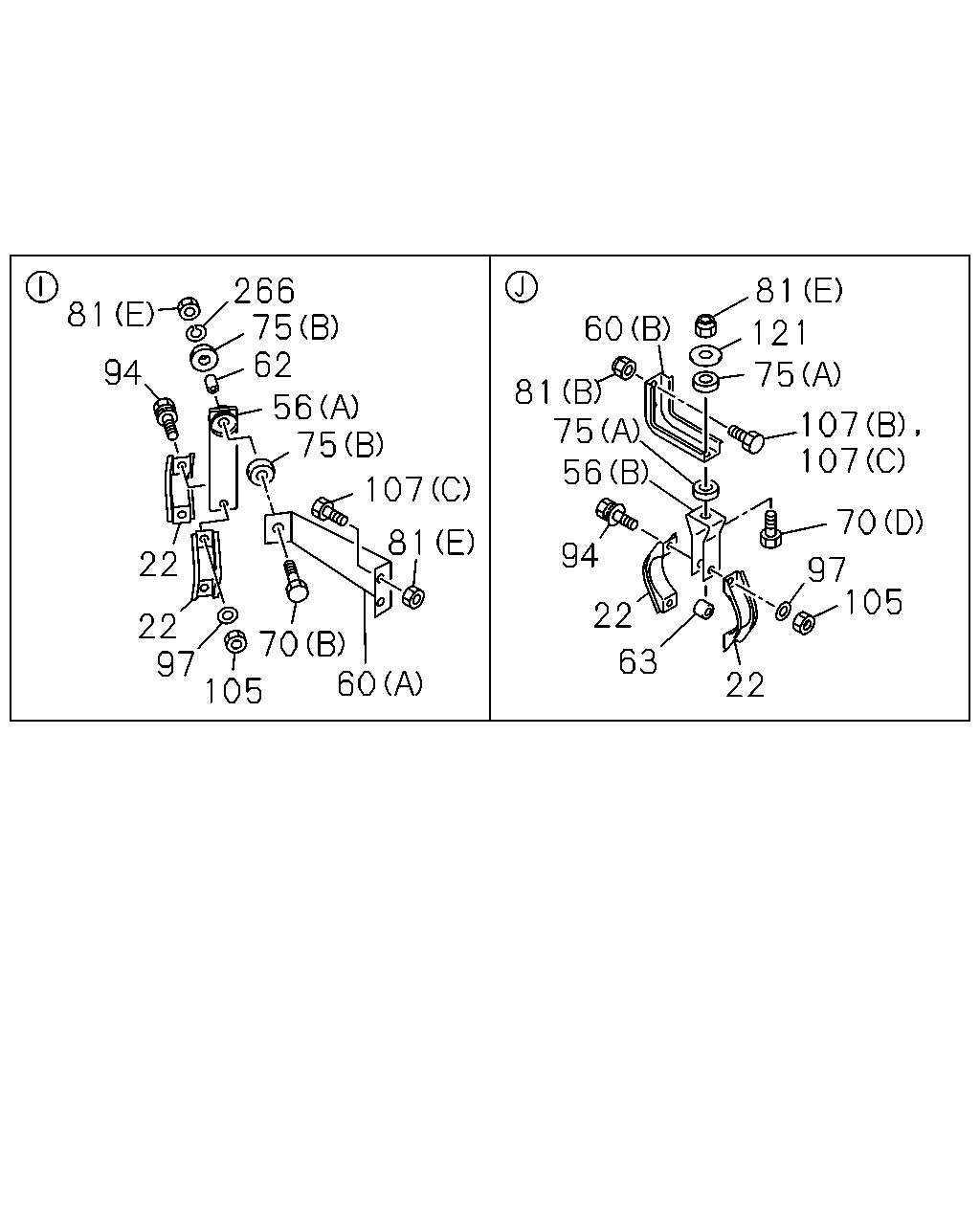

81 266 75 62 81 121 75 60 94 81 75 56 56 75 107 107 107 70 81 94 22 97 105 22 22 97 105 70 60 63 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FT***F) ID=80-84 IDN	1-22133-233-0	04	1	9707-
22	CLAMP; EXH PIPE SHORT CHASSIS(FT***C) ID=80-84 IDN	1-22133-233-0	06	1	9707-
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FT***F) ID=80-84 IDN	1-22133-233-0	02	1	9707-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) (B) H=119	1-22139-060-0	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (A) L=89	1-22131-538-1	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (B)	1-22131-695-0	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (C) H=89	1-22139-046-0	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) (A)	1-22131-528-1	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) (C) H=112	1-22139-043-0	01	1	9707-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (A)	1-22131-676-0	01	1	9707-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (B)	1-22151-534-3	01	1	9707-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FT***F) (A)	1-22131-741-0	01	1	9707-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FT***F) (B)	1-22151-512-3	02	1	9707-
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	9707-
63	TUBE; DIST,BRKT MIDDLE CHASSIS(FT***F) L=11 IDN	1-22139-026-0	02	1	9707-
63	TUBE; DIST,BRKT SHORT CHASSIS(FT***C) L=8.5	1-22139-057-0	01	1	9707-
70	BOLT; BRKT (B) M10X55	0-10806-055-0	01	1	9707-0204
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	0205-0512
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	0601-
70	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M10X45	0-10806-045-0	01	1	9707-0204
70	BOLT; BRKT SHORT CHASSIS(FT***C) (C) M10X35 FLANGE IDN	0-28681-035-0	01	1	9707-0512
70	BOLT; BRKT SHORT CHASSIS(FT***C) (C) M10X35 FLANGE IDN	0-28651-035-0	01	1	0601-
70	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M10X45	0-10806-045-0	01	1	0205-
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) (D) M10X50	0-10806-050-0	02	1	9707-0512
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) (D) M10X50	0-10856-050-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS(FT***F) (A) OD=30	1-22159-106-1	04	1	9707-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS(FT***C) (A) OD=30	1-22159-106-1	02	1	9707-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS(FT***C) (B) OD=40	1-22159-193-0	02	1	9707-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS(FT***F) (B) OD=40	1-22159-094-0	02	1	9707-
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (C) M10 LOCK NUT	9-09131-510-0	02	1	9707-0603
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (C) M10 LOCK NUT IDN	0-91370-010-0	02	1	0604-
81	NUT; BRKT (E) M10 FLANGE	0-91150-210-0	02	1	9707-0204
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91150-210-0	02	1	9707-0204
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91150-210-0	03	1	0205-0602
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT (D) M10	9-09110-510-0	01	1	9707-0204
81	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0205-0602
81	NUT; BRKT (D) M10 FLANGE	0-91180-210-0	02	1	0603-
81	NUT; BRKT SHORT CHASSIS(FT***C) (A) M8 FLANGE	0-91150-108-0	02	1	9707-0602
81	NUT; BRKT SHORT CHASSIS(FT***C) (A) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT SHORT CHASSIS(FT***C) (B) M10 FLANGE	0-91150-210-0	04	1	9707-0204
81	NUT; BRKT SHORT CHASSIS(FT***C) (B) M10 FLANGE	0-91150-210-0	05	1	0205-0602
81	NUT; BRKT SHORT CHASSIS(FT***C) (B) M10 FLANGE	0-91180-210-0	05	1	0603-
81	NUT; BRKT SHORT CHASSIS(FT***C) (C) M10 LOCK NUT	9-09131-510-0	01	1	9707-0603
81	NUT; BRKT SHORT CHASSIS(FT***C) (C) M10 LOCK NUT IDN	0-91370-010-0	01	1	0604-
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91150-210-0	01	1	0206-0602
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91180-210-0	03	1	0603-
94	BOLT; CLAMP SHORT CHASSIS(FT***C) M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9707-0805
94	BOLT; CLAMP SHORT CHASSIS(FT***C) M10X45 W/LK&PL WASHER	8-98055-085-0	06	1	0806-
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9707-0805
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9707-0805
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	8-98055-085-0	04	1	0806-
97	WASHER; PL,CLAMP SHORT CHASSIS(FT***C) ID=10.5	9-09164-510-0	06	1	9707-
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	9707-0812
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	0-91614-510-0	02	1	0901-0907
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	0908-
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	04	1	9707-0812
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	0901-0907
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	0901-0907
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	04	1	0908-
105	NUT; CLAMP SHORT CHASSIS(FT***C) M10	9-09110-510-0	06	1	9707-0512
105	NUT; CLAMP SHORT CHASSIS(FT***C) M10	0-91110-510-0	06	1	0601-
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	9-09110-510-0	02	1	9707-0512
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	0-91110-510-0	02	1	0601-
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	9-09110-510-0	04	1	9707-0512
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	0-91110-510-0	04	1	0601-
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9707-0512
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (B) M10X30 FLANGE	0-28681-030-0	02	1	9707-0512
107	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
107	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M8X35 FLANGE	0-28680-835-0	02	1	9707-0512
107	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
107	BOLT; BRKT SHORT CHASSIS(FT***C) (B) M10X30 FLANGE	0-28681-030-0	03	1	9707-0512
107	BOLT; BRKT SHORT CHASSIS(FT***C) (B) M10X30 FLANGE	0-28651-030-0	03	1	0601-
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (C) M10X35 FLANGE IDN	0-28681-035-0	02	1	9707-0512
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (C) M10X35 FLANGE IDN	0-28651-035-0	02	1	0601-
121	WASHER; PL,BRKT MIDDLE CHASSIS(FT***F) ID=10.5 OD=32	9-09164-810-0	02	1	9707-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS(FT***F) ID=10.5 OD=32	0-91614-810-0	02	1	0606-
121	WASHER; PL,BRKT SHORT CHASSIS(FT***C) ID=10.5 OD=32	9-09164-810-0	01	1	9707-0605
121	WASHER; PL,BRKT SHORT CHASSIS(FT***C) ID=10.5 OD=32	0-91614-810-0	01	1	0606-
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9707-0204

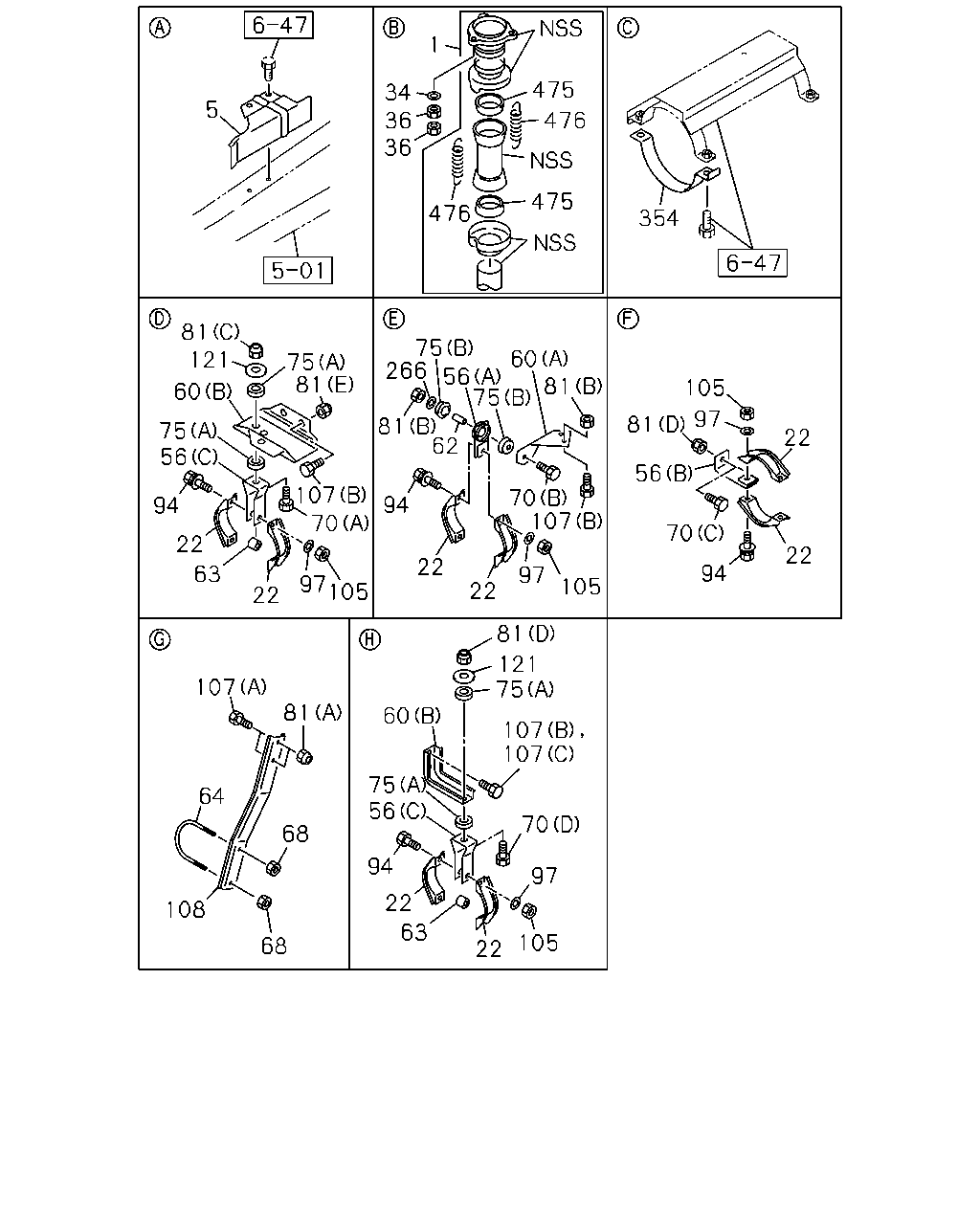

1 475 34 36 36 5 476 475 476 354 81 121 75 266 60 81 75 81 56 75 105 60 81 62 97 81 75 56 22 56 107 70 70 107 94 94 70 22 22 22 94 63 97 97 105 105 22 22 81 121 75 107 81 60 107 107 75 56 64 70 68 94 97 22 108 63 105 68 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH IDN	8-97520-046-0	01	1	9707-
5	PROTECTOR; HEAT	1-33659-182-1	01	1	9707-
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FT***F) ID=80-84 IDN	1-22133-233-0	04	1	9707-
22	CLAMP; EXH PIPE SHORT CHASSIS(FT***C) ID=80-84 IDN	1-22133-233-0	06	1	9707-
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FT***F) ID=80-84 IDN	1-22133-233-0	02	1	9707-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9707-0410
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9707-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) (B) H=119	1-22139-060-0	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (A) L=89	1-22131-538-1	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (B)	1-22131-695-0	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (C) H=89	1-22139-046-0	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) (A)	1-22131-528-1	01	1	9707-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) (C) H=112	1-22139-043-0	01	1	9707-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (A)	1-22131-676-0	01	1	9707-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (B)	1-22151-534-3	01	1	9707-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FT***F) (A)	1-22131-741-0	01	1	9707-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FT***F) (B)	1-22151-512-3	02	1	9707-
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	9707-
63	TUBE; DIST,BRKT MIDDLE CHASSIS(FT***F) L=11 IDN	1-22139-026-0	02	1	9707-
63	TUBE; DIST,BRKT SHORT CHASSIS(FT***C) L=8.5	1-22139-057-0	01	1	9707-
64	U-BOLT; EXH PIPE,RR SHORT CHASSIS(FT***C)	1-22139-033-1	01	1	9707-1105
64	U-BOLT; EXH PIPE,RR SHORT CHASSIS(FT***C)	1-22113-101-0	01	1	1106-
68	NUT; U BOLT SHORT CHASSIS(FT***C) M8 FLANGE	0-91150-108-0	02	1	9707-0602
68	NUT; U BOLT SHORT CHASSIS(FT***C) M8 FLANGE	0-91180-108-0	02	1	0603-
70	BOLT; BRKT (B) M10X55	0-10806-055-0	01	1	9707-0204
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	0205-0512
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	0601-
70	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M10X45	0-10806-045-0	01	1	9707-0204
70	BOLT; BRKT SHORT CHASSIS(FT***C) (C) M10X35 FLANGE IDN	0-28681-035-0	01	1	9707-0512
70	BOLT; BRKT SHORT CHASSIS(FT***C) (C) M10X35 FLANGE IDN	0-28651-035-0	01	1	0601-
70	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M10X45	0-10806-045-0	01	1	0205-
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) (D) M10X50	0-10806-050-0	02	1	9707-0512
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) (D) M10X50	0-10856-050-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS(FT***F) (A) OD=30	1-22159-106-1	04	1	9707-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS(FT***C) (A) OD=30	1-22159-106-1	02	1	9707-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS(FT***C) (B) OD=40	1-22159-193-0	02	1	9707-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS(FT***F) (B) OD=40	1-22159-094-0	02	1	9707-
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (C) M10 LOCK NUT	9-09131-510-0	02	1	9707-0603
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (C) M10 LOCK NUT IDN	0-91370-010-0	02	1	0604-
81	NUT; BRKT (E) M10 FLANGE	0-91150-210-0	02	1	9707-0204
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91150-210-0	02	1	9707-0204
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91150-210-0	03	1	0205-0602
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT (D) M10	9-09110-510-0	01	1	9707-0204
81	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0205-0602
81	NUT; BRKT (D) M10 FLANGE	0-91180-210-0	02	1	0603-
81	NUT; BRKT SHORT CHASSIS(FT***C) (A) M8 FLANGE	0-91150-108-0	02	1	9707-0602
81	NUT; BRKT SHORT CHASSIS(FT***C) (A) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT SHORT CHASSIS(FT***C) (B) M10 FLANGE	0-91150-210-0	04	1	9707-0204
81	NUT; BRKT SHORT CHASSIS(FT***C) (B) M10 FLANGE	0-91150-210-0	05	1	0205-0602
81	NUT; BRKT SHORT CHASSIS(FT***C) (B) M10 FLANGE	0-91180-210-0	05	1	0603-
81	NUT; BRKT SHORT CHASSIS(FT***C) (C) M10 LOCK NUT	9-09131-510-0	01	1	9707-0603
81	NUT; BRKT SHORT CHASSIS(FT***C) (C) M10 LOCK NUT IDN	0-91370-010-0	01	1	0604-
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91150-210-0	01	1	0206-0602
81	NUT; BRKT MIDDLE CHASSIS(FT***F) (E) M10 FLANGE	0-91180-210-0	03	1	0603-
94	BOLT; CLAMP SHORT CHASSIS(FT***C) M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9707-0805
94	BOLT; CLAMP SHORT CHASSIS(FT***C) M10X45 W/LK&PL WASHER	8-98055-085-0	06	1	0806-
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9707-0805
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9707-0805
94	BOLT; CLAMP MIDDLE CHASSIS(FT***F) M10X45 W/LK&PL WASHER	8-98055-085-0	04	1	0806-
97	WASHER; PL,CLAMP SHORT CHASSIS(FT***C) ID=10.5	9-09164-510-0	06	1	9707-
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	9707-0812
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	0-91614-510-0	02	1	0901-0907
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	0908-
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	04	1	9707-0812
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	0901-0907
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	02	1	0901-0907
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FT***F) ID=10.5	9-09164-510-0	04	1	0908-
105	NUT; CLAMP SHORT CHASSIS(FT***C) M10	9-09110-510-0	06	1	9707-0512
105	NUT; CLAMP SHORT CHASSIS(FT***C) M10	0-91110-510-0	06	1	0601-
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	9-09110-510-0	02	1	9707-0512
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	0-91110-510-0	02	1	0601-
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	9-09110-510-0	04	1	9707-0512
105	NUT; CLAMP MIDDLE CHASSIS(FT***F) M10	0-91110-510-0	04	1	0601-
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9707-0512
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (B) M10X30 FLANGE	0-28681-030-0	02	1	9707-0512
107	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
107	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M8X35 FLANGE	0-28680-835-0	02	1	9707-0512
107	BOLT; BRKT SHORT CHASSIS(FT***C) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
107	BOLT; BRKT SHORT CHASSIS(FT***C) (B) M10X30 FLANGE	0-28681-030-0	03	1	9707-0512
107	BOLT; BRKT SHORT CHASSIS(FT***C) (B) M10X30 FLANGE	0-28651-030-0	03	1	0601-
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (C) M10X35 FLANGE IDN	0-28681-035-0	02	1	9707-0512
107	BOLT; BRKT MIDDLE CHASSIS(FT***F) (C) M10X35 FLANGE IDN	0-28651-035-0	02	1	0601-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SHORT CHASSIS(FT***C)	1-22131-663-2	01	1	9707-1309
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SHORT CHASSIS(FT***C)	8-98245-519-0	01	1	1310-
121	WASHER; PL,BRKT MIDDLE CHASSIS(FT***F) ID=10.5 OD=32	9-09164-810-0	02	1	9707-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS(FT***F) ID=10.5 OD=32	0-91614-810-0	02	1	0606-
121	WASHER; PL,BRKT SHORT CHASSIS(FT***C) ID=10.5 OD=32	9-09164-810-0	01	1	9707-0605
121	WASHER; PL,BRKT SHORT CHASSIS(FT***C) ID=10.5 OD=32	0-91614-810-0	01	1	0606-
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9707-0204
354	CLAMP; HEAT PROTECTOR	1-22119-347-0	02	1	9707-
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-1	02	1	9707-
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	9707-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
