Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

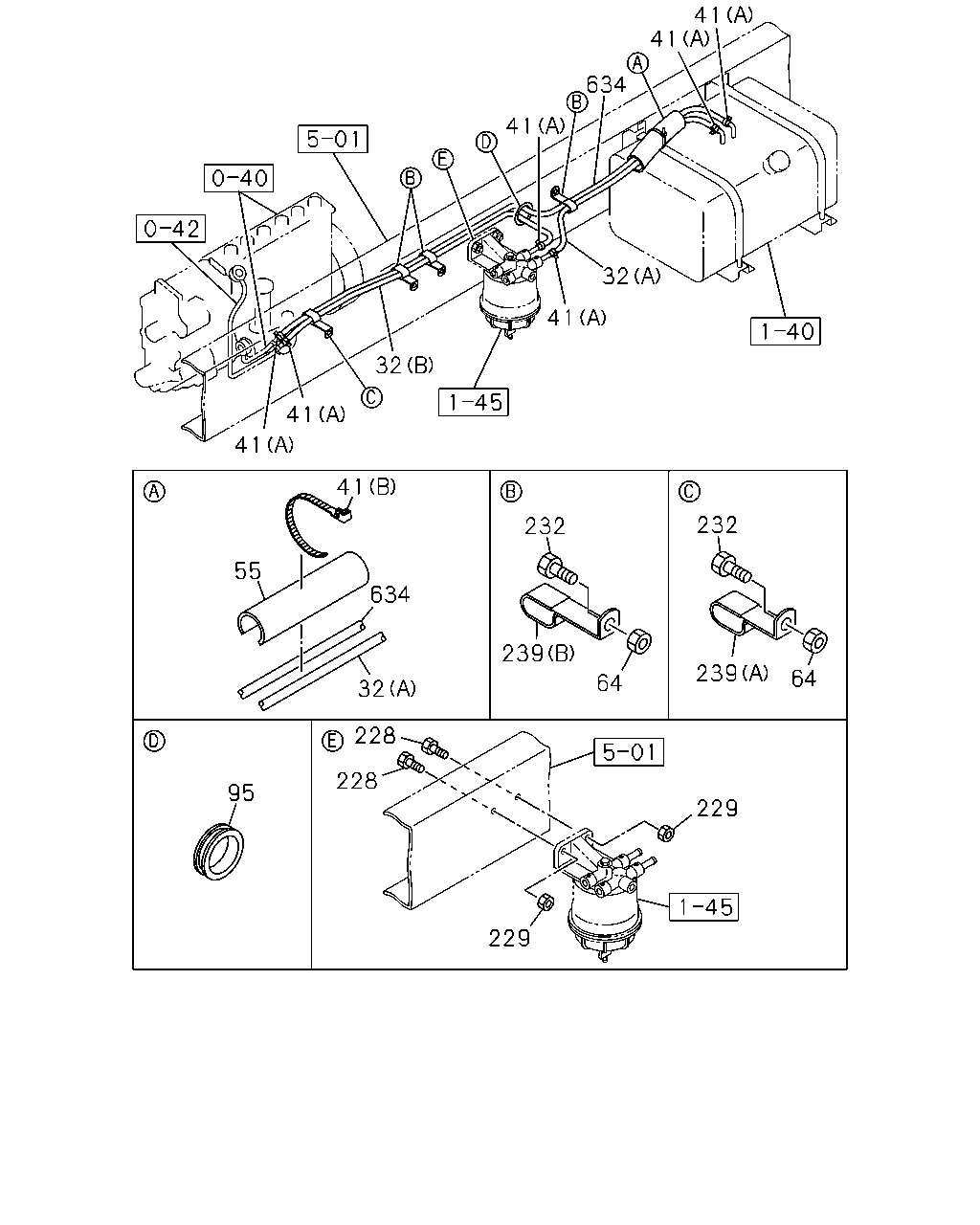

1-41 — FUEL PIPING; CHASSIS
(#65415) — 20 parça
41
41
634
41
32
41
32
41
41
41
232
232
55
634
239
239
64
64
32
228
228
95
229
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=820 SERVICED BY L=3000
0-01260-300-0
01
1
9707-9709
32
PIPE; DELIVERY,FUEL TANK
(A) L=980 SERVICED BY L=3000
0-01260-300-0
01
1
9710-
32
PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000
0-01260-300-0
01
1
9707-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 IDN
1-09704-102-0
06
1
9707-
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250 IDN
5-09707-030-1
01
1
9707-
55
COVER; PIPE,FUEL TANK
L=1300
1-09360-677-1
01
1
9707-
64
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
9707-0602
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
95
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
01
1
9707-
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28681-040-0
02
1
9707-0512
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28651-040-0
02
1
0601-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
9707-0602
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-210-0
02
1
0603-
232
BOLT; CLIP,PIPE
M8X30 FLANGE
0-28680-830-0
03
1
9707-0512
232
BOLT; CLIP,PIPE
M8X30 FLANGE
0-28650-830-0
03
1
0601-
239
CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50
1-09700-777-0
01
1
9707-9908
239
CLIP; FUEL PIPE
(A) M13X2 H=20 L=60
1-09701-280-0
01
1
9909-
239
CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25
1-09701-101-0
02
1
9707-
634
HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000
0-01260-300-0
01
1
9707-9709
634
HOSE; RUBBER RETURN
L=2000 SERVICED BY L=3000
0-01260-300-0
01
1
9710-
