1-30 — AIR CLEANER (#65412) — 23 parça

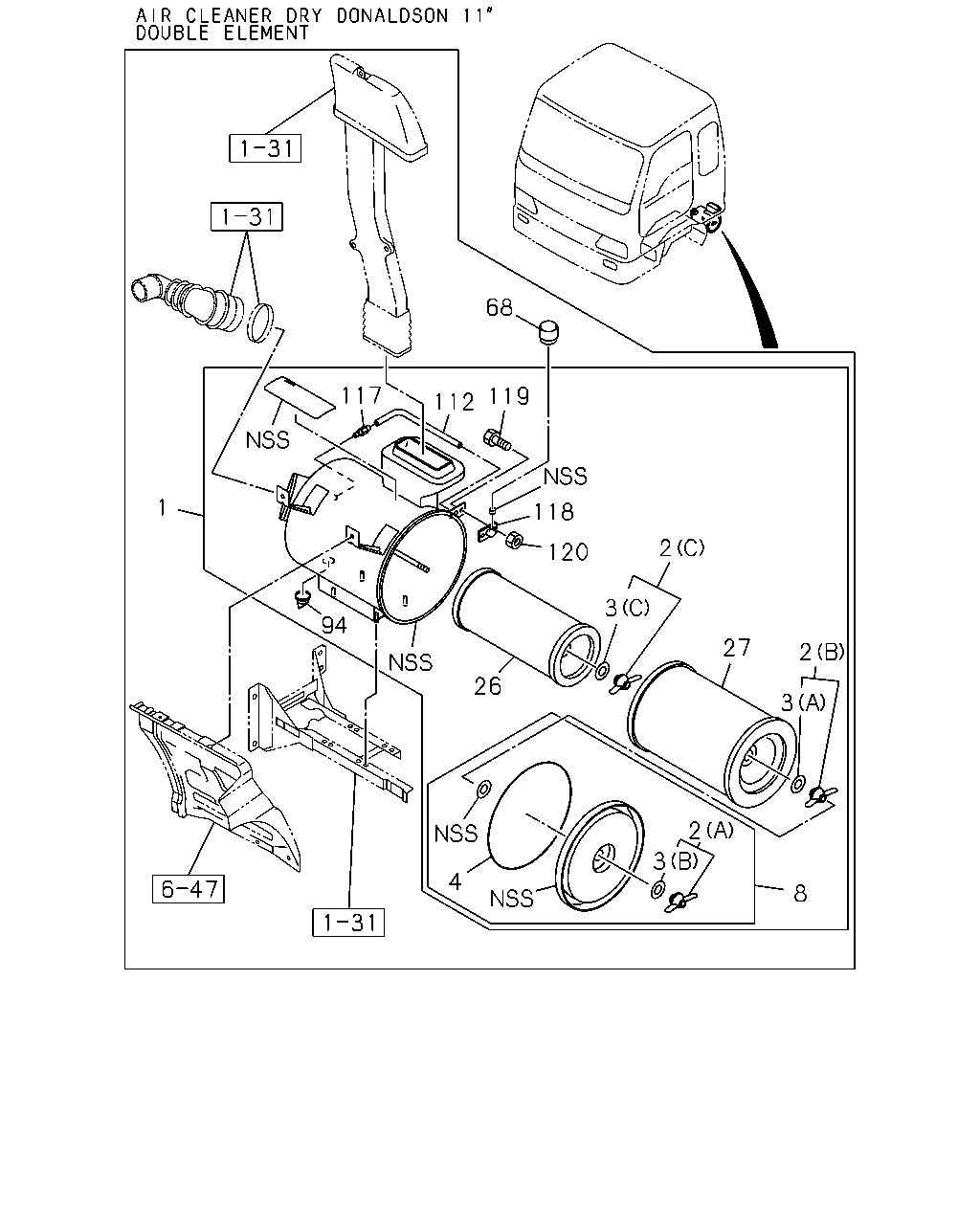

çizim 91553
68 117 119 112 1 118 2 120 3 94 27 2 26 3 2 3 4 8
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14210-778-4 01 1 9707-
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"<WG8> IDN 		8-97520-255-0 01 1 9707-
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> (C) 		1-14217-036-0 01 1 9707-
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> (A) 		1-14217-049-0 01 1 9707-
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> (B) 		1-14217-050-0 01 1 9707-
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> (A) 		1-14219-118-0 01 1 9707-
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> (B) 		1-14219-156-0 01 1 9707-
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> (C) 		9-14219-177-0 01 1 9707-
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14219-141-0 01 1 9707-
8 COVER ASM; ACL
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14212-084-0 01 1 9707-
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14215-111-0 01 1 9707-
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14215-172-0 01 1 9707-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9707-
94 VALVE; VACUATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14219-192-0 01 1 9707-
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14219-260-0 01 1 9707-
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14210-040-0 01 1 9707-
118 BRACKET; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14219-187-0 01 1 9707-
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> M6X16 		9-02040-616-0 02 1 9707-
120 NUT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> M6 IDN 		9-09111-406-0 02 1 9707-
çizim 184976
68 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT<Q2X> 		1-14210-778-4 01 1 9707-
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"<WG8> IDN 		8-97520-255-0 01 1 9707-
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"<WG8> IDN 		8-97520-223-0 01 1 0307-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9707-
