◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#65393) — 32 parça

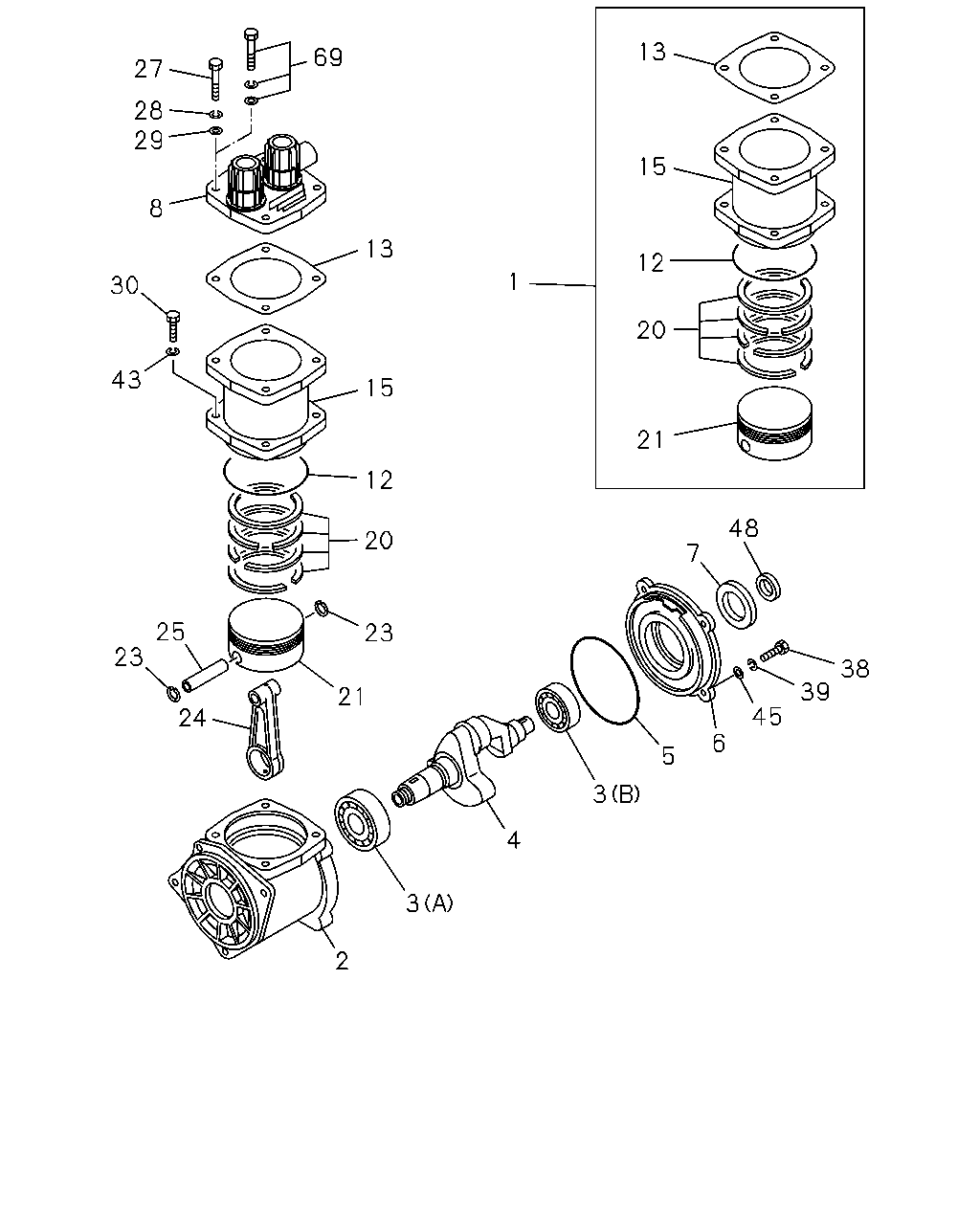

çizim 62664
13 69 27 28 29 15 8 13 12 1 30 20 43 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date
1 LINER KIT; CYL,AIR CMPR 1-19163-050-1 01 1 9707-
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9707-
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9707-
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9707-
4 CRANKSHAFT; AIR CMPR 1-19171-047-1 01 1 9707-
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9707-1107
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108-
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9707-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9707-
8 HEAD ASM; CYL,AIR CMPR 1-19110-019-0 01 1 9707-
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9707-1107
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-
13 GASKET; AIR CMPR 1-19115-006-0 01 1 9707-9805
13 GASKET; AIR CMPR 8-98113-036-0 01 1 9806-
15 CYLINDER; AIR CMPR 1-19151-250-0 01 1 9707-
20 RING KIT; PISTON,AIR CMPR 1-19163-043-0 01 1 9707-
21 PISTON; AIR CMPR 1-19161-021-0 01 1 9707-
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9707-1107
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1108-
24 ROD ASM; CONN,AIR CMPR 1-19173-017-0 01 1 9707-
25 PIN; PISTON,AIR CMPR 9-19167-006-0 01 1 9707-
27 BOLT; HD
M10X30 		9-02061-030-0 04 1 9707-9805
28 WASHER; LK,HD BOLT
ID=10.2 		9-09150-610-0 04 1 9707-9805
29 WASHER; PL,HD BOLT
ID=10.5 		9-09164-510-0 04 1 9707-9805
30 BOLT; CYL TO CRANKCASE 1-09000-332-0 04 1 9707-9805
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806-
38 BOLT; COVER FIX 9-81385-023-0 04 1 9707-
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9707-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9707-9805
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9707-
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9707-
69 BOLT ASM; AIR COMP 1-19119-031-0 04 1 9806-
