Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

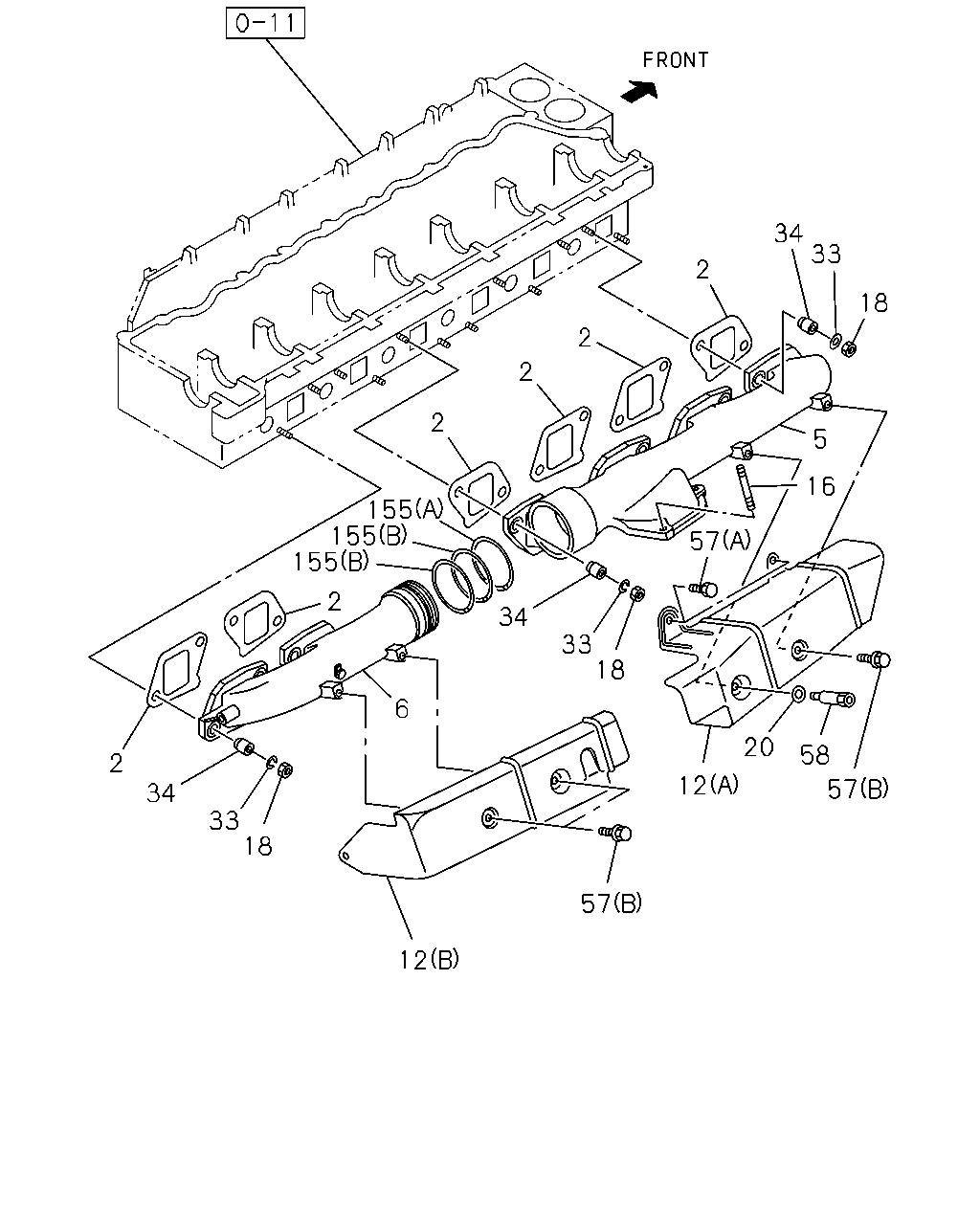

0-27 — EXHAUST MANIFOLD
(#65385) — 21 parça
34
33
2
18
2
2
2
5
16
155
155
155
57
2
34
33
18
6
20
58
2
12
57
34
33
18
57
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
9707-
5
MANIFOLD; EXH,FRT
8-94394-753-1
01
1
9707-
6
MANIFOLD; EXH,RR
IDN
8-94394-755-4
01
1
9707-
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B)
8-94391-040-0
01
1
9707-9809
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B)
8-94392-947-0
01
1
9810-
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A)
8-94395-204-0
01
1
9707-
16
STUD; EXH PIPE TO MANIF
M12X103 L=123
8-94394-656-0
03
1
9707-
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
12
1
9707-0602
18
NUT; EXH MANIF
M10 FLANGE
0-91180-210-0
12
1
0603-
20
WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18
9-09160-608-0
01
1
9707-9803
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
12
1
9707-
34
COLLAR; DIST,EXH MANIF
L=28
8-94395-679-0
12
1
9707-0209
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
0210-
57
BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE
0-28080-812-0
02
1
9707-0512
57
BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE
0-28050-812-0
02
1
0601-
57
BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE
8-94312-699-1
04
1
9707-9803
57
BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE
8-94312-699-1
05
1
9804-0408
57
BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE
8-97378-075-0
05
1
0409-
58
STUD; HEAT PROTECTOR
8-94396-828-2
01
1
9707-9803
155
RING; SEAL,EXH MANIF
(A)
1-14149-151-0
01
1
9707-
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
02
1
9707-
