Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

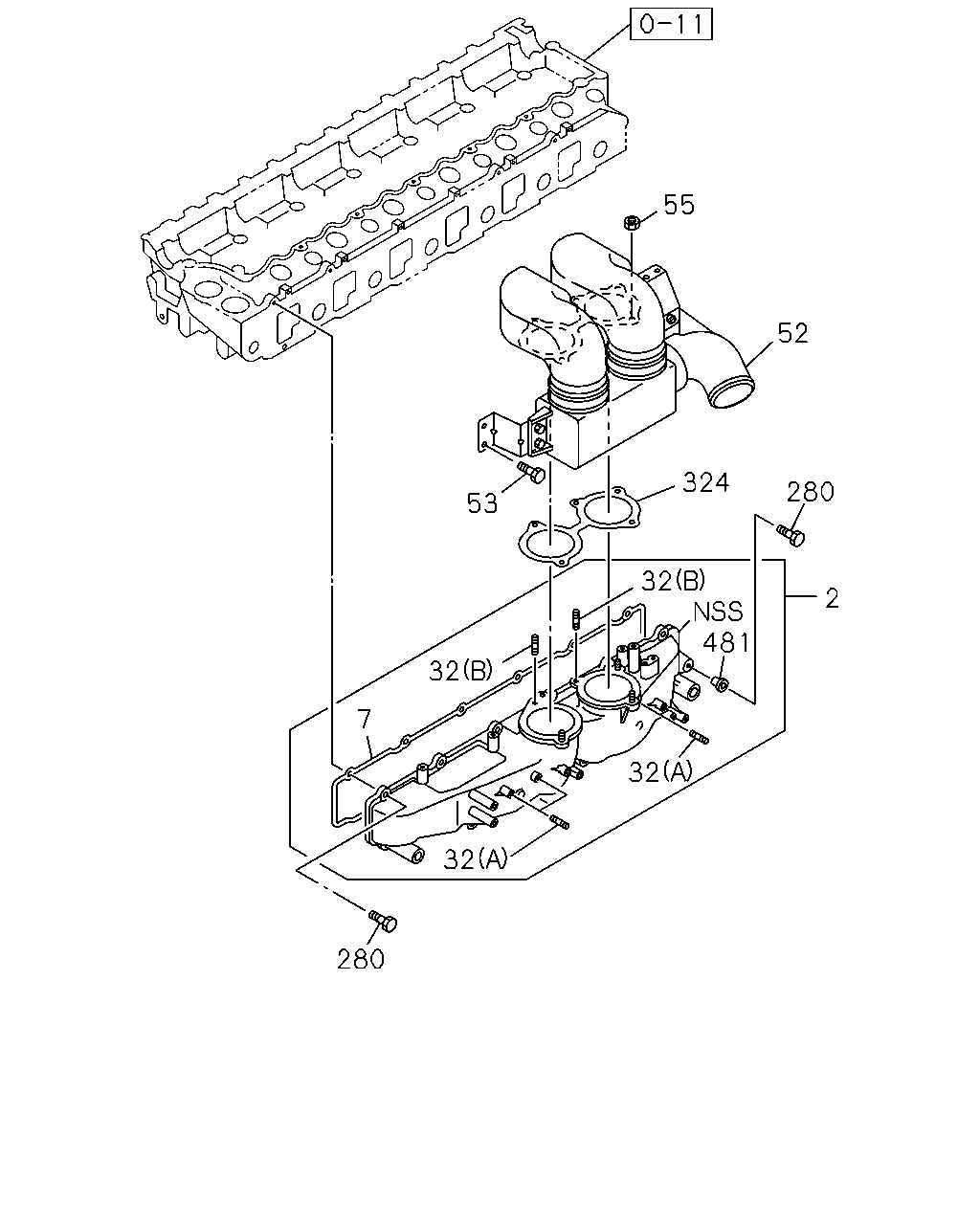

0-25 — INLET MANIFOLD
(#65384) — 14 parça
55
52
324
280
53
32
481
2
32
7
32
32
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
IDN
8-94395-899-1
01
1
9707-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94397-039-1
01
1
9707-
32
STUD; INL PIPE
(A) M6X25 L=34
9-04110-625-0
04
1
9707-0604
32
STUD; INL PIPE
(A) M6X25 L=34
0-41010-625-0
04
1
0605-
32
STUD; INL PIPE
(B) M8X20 L=32
9-04110-820-0
05
1
9707-0604
32
STUD; INL PIPE
(B) M8X20 L=32
0-41010-820-0
05
1
0605-
52
PIPE; INL
8-94395-597-1
01
1
9707-
53
BOLT; INL PIPE
M8X12 FLANGE
0-28080-812-0
04
1
9707-0512
53
BOLT; INL PIPE
M8X12 FLANGE
0-28050-812-0
04
1
0601-
55
NUT; INL PIPE
M8 FLANGE
0-91150-108-0
05
1
9707-0602
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
05
1
0603-
280
BOLT; INL COVER
M8X28 FLANGE
0-28080-828-0
12
1
9707-
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-141-0
01
1
9707-
481
TUBE; DIST,INL COVER
OD=22
8-94395-684-0
12
1
9707-
